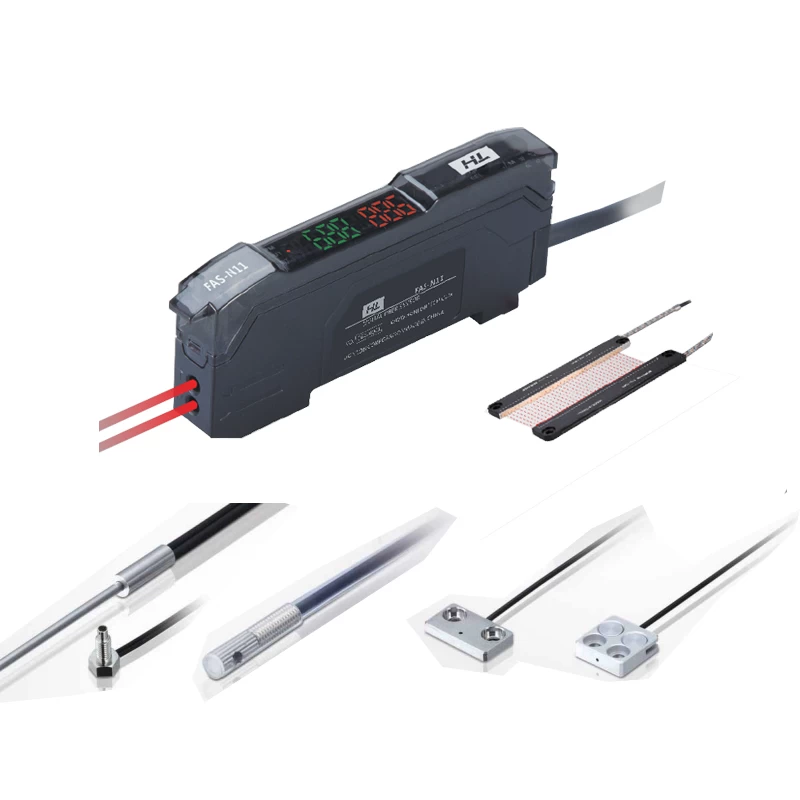

Product Item: Digital Fiber Optic Sensor
|
Type
|
FAS-N11
|
FAS-N11P
|
|
Model
|
NPN
|
PNP
|
|
Light source
|
Red, 4-element LED
|
|
Response time
|
100 µs (HIGH SPEED)/250 µs
(FINE)/1 ms (SUPER)/4 ms (TURBO)/16 ms (MEGA)
|
|
Output option
|
LIGHT-ON / DARK-ON (Switch
option)
|
|
Detection
method
|
Light intensity (Area
detection, Automatic tracking sensitivity function)
|
|
Control output
|
NPN / PNP open collector 24
V; max: 100 mA; residual voltage 1 V
|
|
Power voltage
|
12 - 24 V DC ±10% ripple
(P-P) 10% or less
|
Current
Consumption
|
Normal:
750 mW or less (31 mA max. at 24 V, 40 mA max. at 12 V)
Eco on mode: 580 mW or less (24 mA max. at 24 V, 28 mA max. at 12 V)
*Using high speed mode, the power consumption will increase 160 Mw (7mA)
|
Operating
ambient
luminance
|
Incandescent lamp: 20000
lux or less; Sunlight: 30000 lux or less
|
Operating
ambient
temperature
|
‘-10 to +55 °C (no
freezing)
|
Operating
ambient humidity
|
35 to 85% RH (no
condensation)
|
Vibration
resistance
|
10 to 55 Hz Compound
amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
|
|
Shock
resistance
|
500
m/s2, 3 times for each of X,Y,Z axis
|
|
Case material
|
PC
|
|
Dimension
|
30.3mm (H) x 9.8mm (W) x
71.8mm (D)
|
|
Weight
|
Approx 80g
|
