Digital hydrostatic head tester M023C

To test the waterproof property for fabric which have been waterproof processed, such coating cloth, tent cloth, tarpaulin, rainproof clothing fabric and non-woven fabric material, etc.


  • PartnerUL,SGS,etc

To test the waterproof property for fabric which have been waterproof processed, such coating cloth, tent cloth, tarpaulin, rainproof clothing fabric and non-woven fabric material, etc.


Digital hydrostatic head tester Features

1. Color touch screen control panel, Built-in English and Chinese menu for ease operation.

2. Adding pressure rate adjustable, 1-100 KPa/min

3. Adopt improt high precision pressure sensor, automatic overload protection, pressure control • Adopt dynamic feedback adjustment to avoid over laod.

4. Seven test units can be selected: Pa, Kpa, mmHg, mmH2O, cmH2O, PSI, Bar.

5. Auto stop machine and record test value once sample burst during testing.

6. Working modes: Supercharge method, Constant pressure and time, Constant pressure and timing, Leaking method, flexing test.

7. Test data can be saved 30*20 times, equipped with micro-printer to print out data directly.

8. LED lighting of sample area

9. 100 cm² test head included

10. Quick Test feature saves technician time



Digital hydrostatic head tester Standards

AATCC 127, BS 3321, ERT 120-1, ISO 811, AFNOR G07-057, BS EN 20811, ERT 160-0, ISO 9073-16, JIS 1092 B-b, ASTM D751, EN 343, GB/T 4744, IST 080.4(01), IST 080.6(01), WSP 080.6.R4(12), FZ/T01004,  DIN 53886, ISO 1420

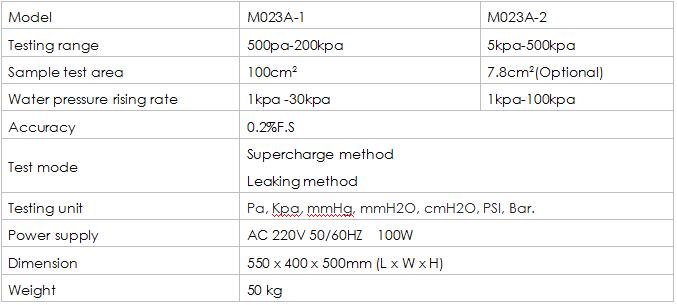

Key Specifications

Applications

Digital hydrostatic head tester
