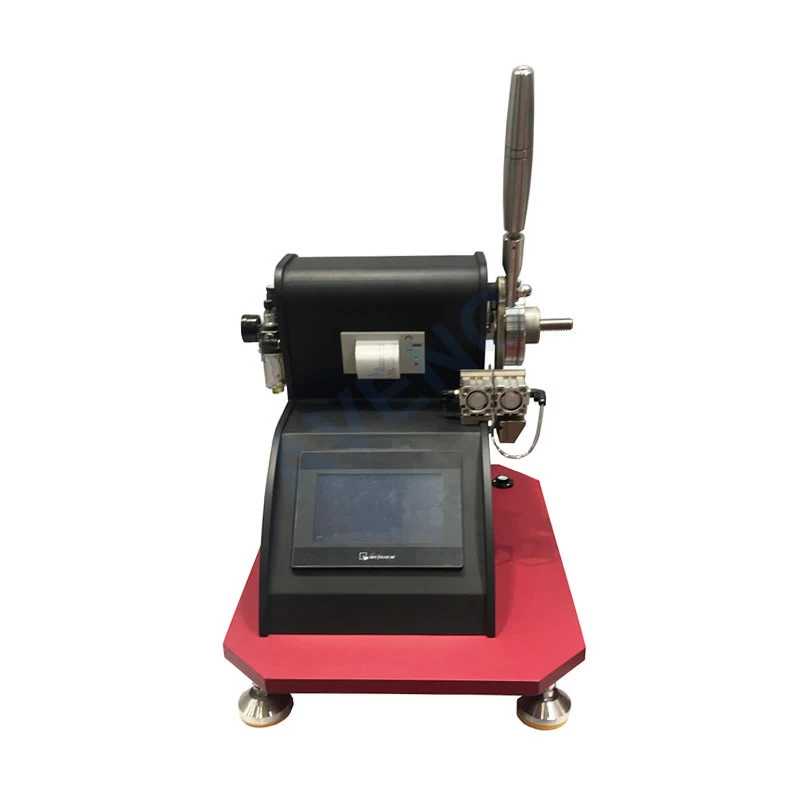

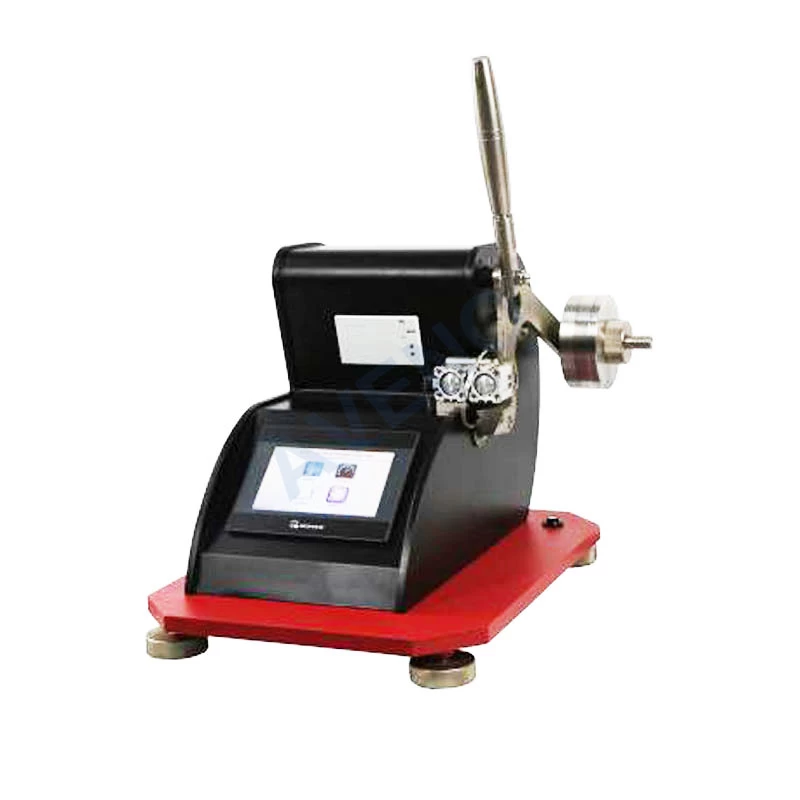

AG11-3-Digital Tearing Tester
Application Of Digital Tearing Tester
Digital Tearing Tester is used for testing the tearing strength of all kinds of fabrics( Elmendorf Method), and the tearing resistance of thick paper, plastic cloth, electrical tape, etc.
Standards Of Digital Tearing Tester
-
Textile:GB/T 3917.1, ASTM D1424, DIN 53862, EN ISO 13937-1, ISO 4674-2, ISO 9290, M&S P29, NEXT 17, NF G07-149
-
Paper: GB/T 455, APPITA P 400, ASTM D 689, BS 4468, CSA D9, DIN 53128, EN 21974,ISO 1974, JIS P 8116, PAPTAC D9, SCAN P11, TAPPI T414, UNI 6444
-
Plastic:GB/T 11999, ASTM D1922, ISO 6383-2, JIS K 7128-2, NF T54 141
-
Non-woven:ASTM D5734, WSP 100.1.
Key Specification Of Digital Tearing Tester
|
Model
|
AG11-3
Digital Elmendorf Tearing Tester
|
|
Range of Tearing Force
|
A: 16N
B: 32N
C: 64N
D: 128N
|
|
Accuracy
|
≤±0.2％ F·S
|
|
Cut Length
|
20±0.1mm
|
|
Rip Length
|
43mm
|
|

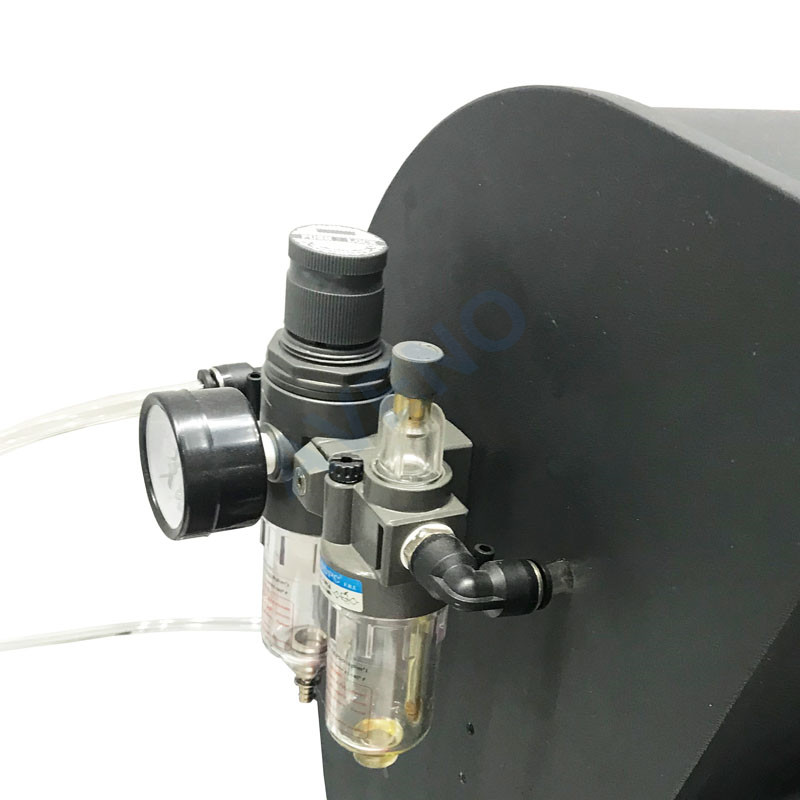

Sample clamping method
|
Pneumatic
|
|
Sample size
|
100 x 63mm (LxW)
|
|
Power supply
|
AC 220V, 50/60HZ
|
|
Dimensions (LxWxH)
|
400 x 210 x 395mm
|
|
Weight
|
30kg
|
Accessories Of Digital Tearing Tester
|
Standard Accessories
|

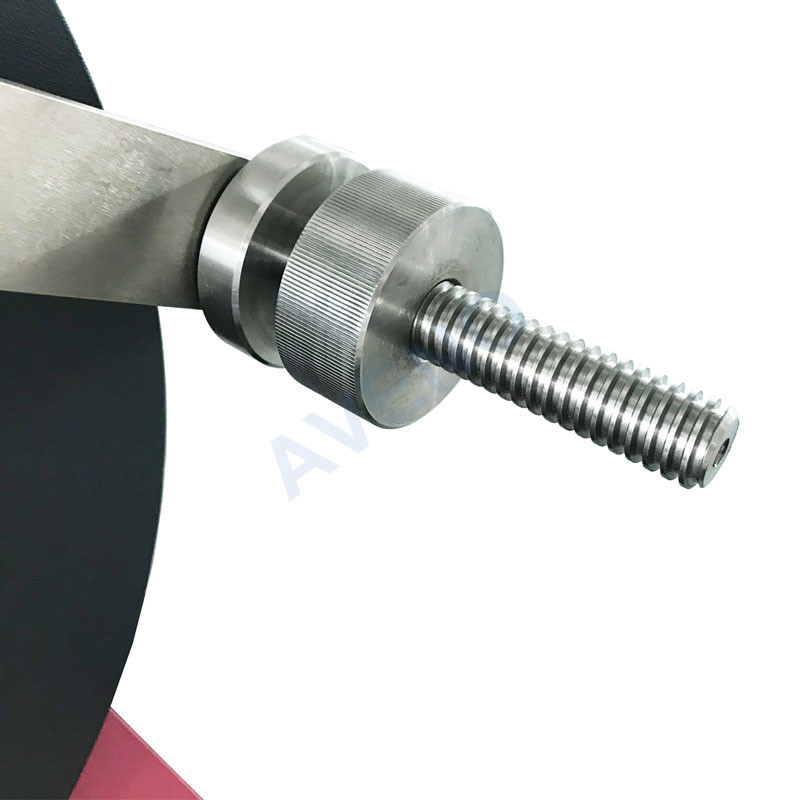

Load
|
4sets (A, B, C and D)
|
|
Sample template
|
1pc
|
|
English operation software
|
1pc
|
|
Cable connect
to PC
|
1set
|
|
Option Accessories
|
Desk Top Computer (HP)
|
|
|
Grips and
load cell
|
|
