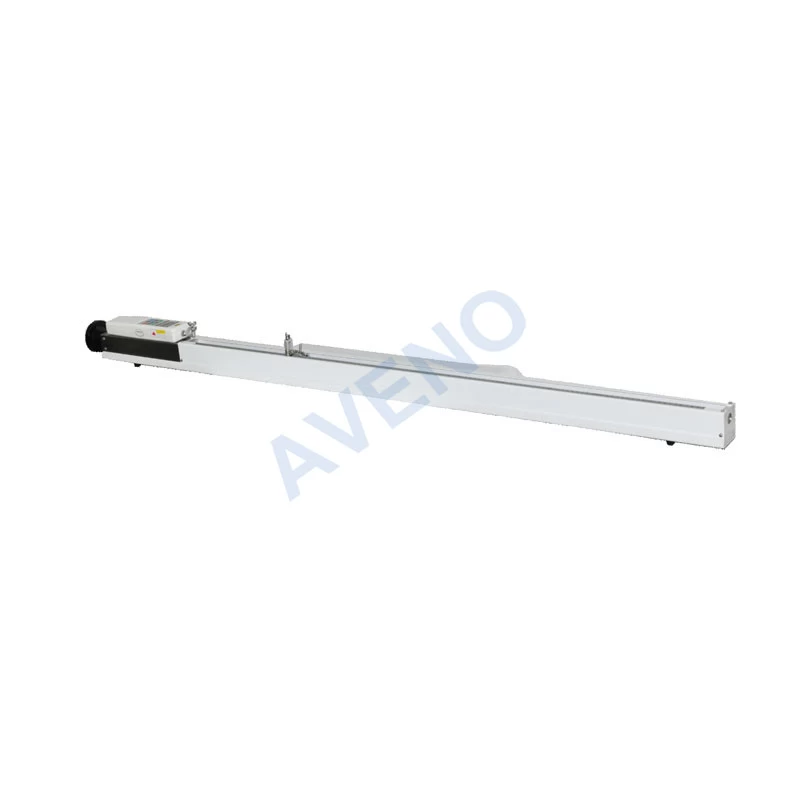

AY15-Digital Yarn Crimp Tester
Application Of Digital Yarn Crimp Tester
Digital Yarn Crimp Tester is used to test the wool woven fabric, wool knitted fabric and length of yarn before weaving, to calculate their linear and binding density coefficients. Also can measure the elasticity of special yarns, such as elastic yarns and bulked yarns.
Test Principle Of Digital Yarn Crimp Tester

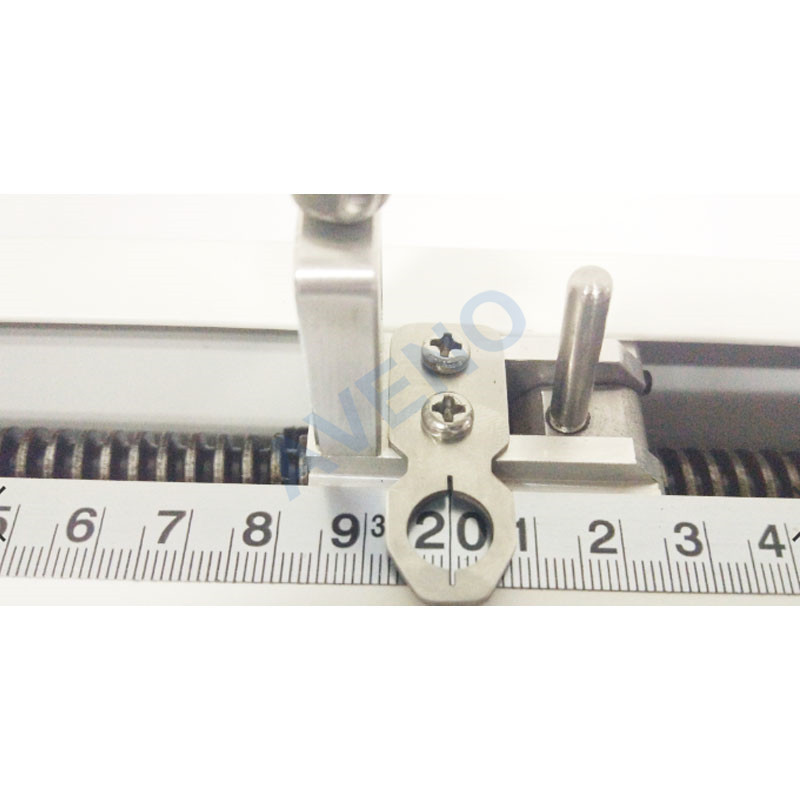

One end of the sample yarn is clamped in a tension left gripper, the other end is in the right gripper, then moving the right gripper to align the balance body with three marks, note down the numerical line on a length scale on which a red scale is aligned as the length of the sample yarn.
Standards Of Digital Yarn Crimp Tester
EN14970, ASTM D 3883, ISO7211-3, AFNOR G 07-104, AFNOR G 07-101, NF G07-104, EN14970
Key Specification Of Digital Yarn Crimp Tester
|
Model
|
AY15
Digital Yarn Crimp Tester
|
|
Display mode
|
CLD display (Push-pull force gauge display)
|
|
Griper distance
|
0mm-1200mm
|
|
Maximum force range
|
5N
|
|
Dimension
|
163cmx10cmx20cm
|
|
Weight
|
15kg
|
Accessories Of Digital Yarn Crimp Tester
|
Standard
Accessories
|

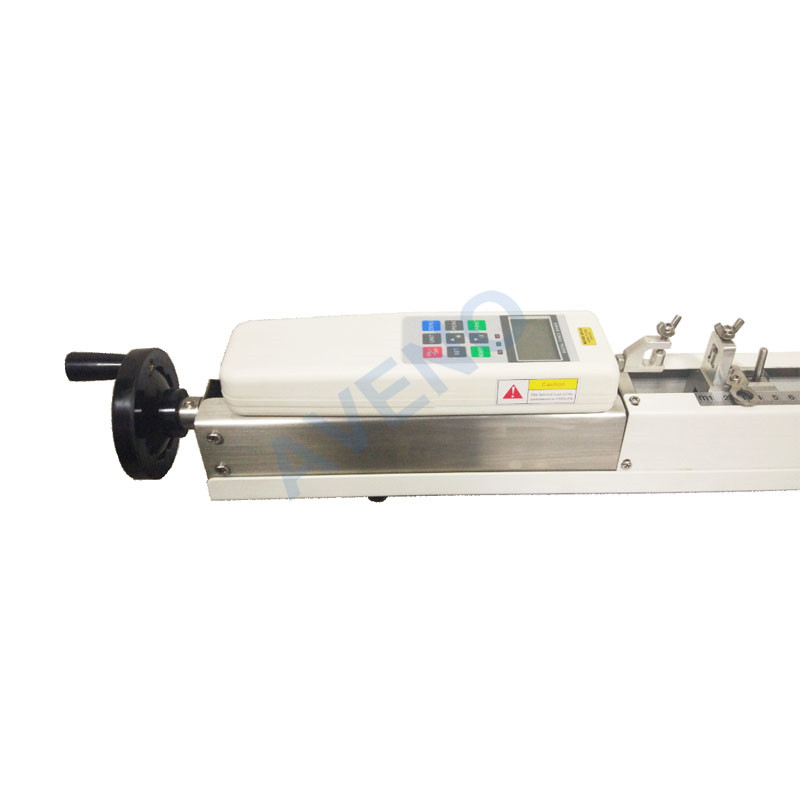

Push-pull Force Gauge
|
1 set
|
