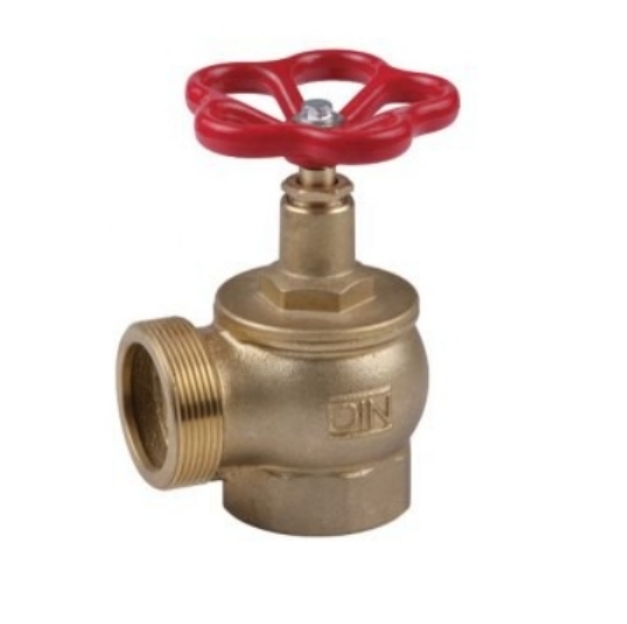

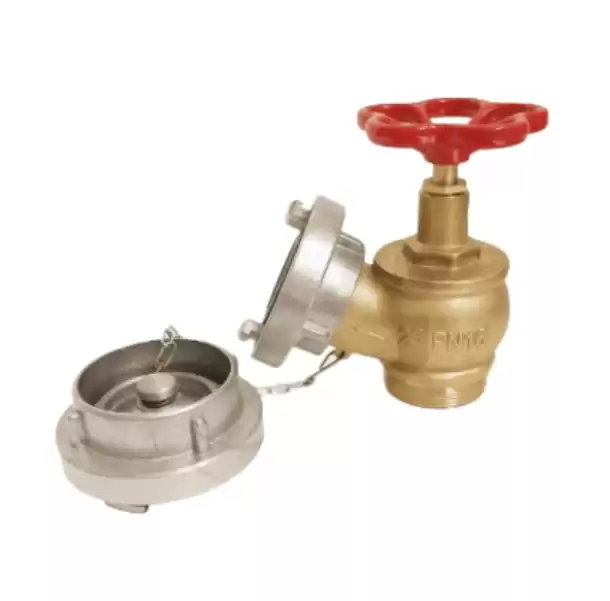

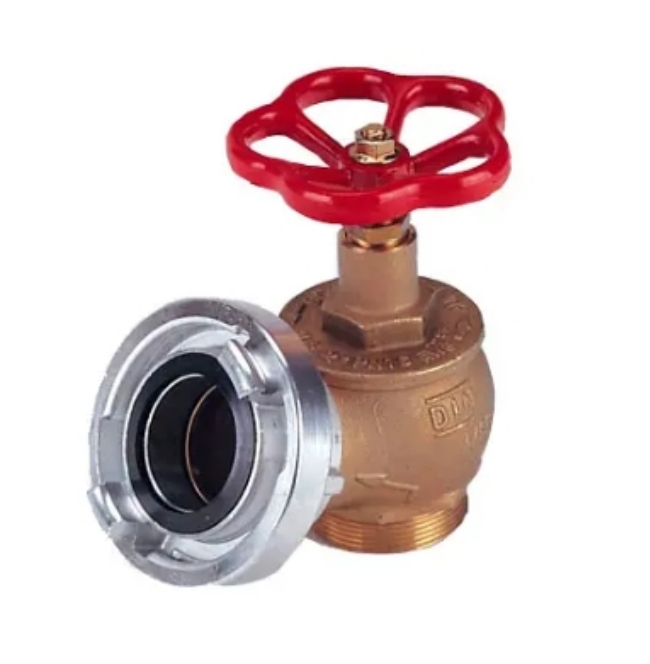

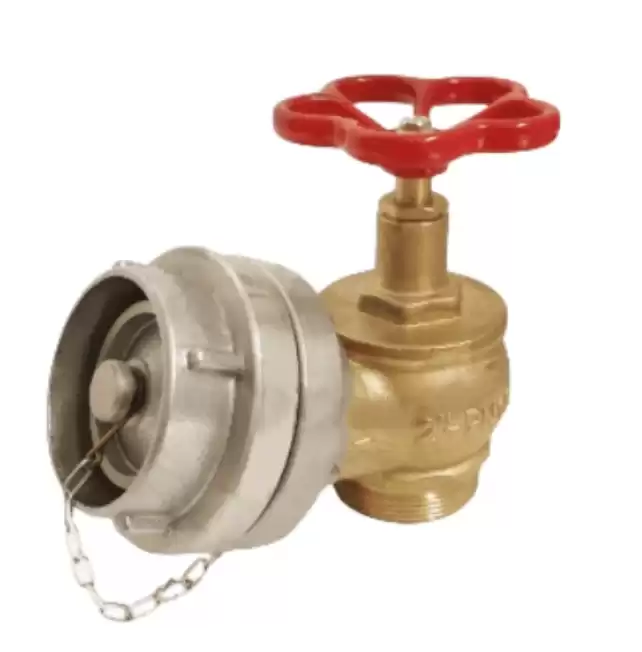

Din landing valve with storz adapter with cap

The DIN Landing Valve is a wet-barrel outdoor fire hydrant compliant with DIN standards, designed for mild-climate areas (no freezing temperatures). It serves as a critical outdoor water supply node for fire-fighting systems, providing stable water sources for fire engines or direct nozzle connection to suppress fires.



Product Description

 As an essential outdoor fire protection component, the DIN Landing Valve is engineered for use in mild-climate regions where freezing temperatures are non-existent—ensuring year-round reliable operation. It is typically installed in outdoor areas connected to municipal water supply networks or outdoor fire water networks (e.g., around malls, shopping centers, colleges, hospitals) and avoids locations prone to vehicle accidents to prevent damage.

Constructed from high-quality brass, the valve boasts excellent corrosion resistance and structural strength, with a forged body that enhances durability for long-term outdoor use. Each unit comes complete with an LM adapter and cap for secure connection and dust/water protection, and the exterior is sprayed red for high visibility—facilitating quick identification and access by firefighters during emergencies.

The valve adheres strictly to DIN standards and holds ISO 9001:2015, BSI, and LPCB certifications, guaranteeing compliance with international fire safety requirements. It supports two core application scenarios: connecting to fire engines to draw water from the municipal network, or directly linking to nozzles for on-site fire suppression. With a working pressure of 20 Bar and a test pressure of 24 Bar, it can withstand high-pressure water supply demands, ensuring stable performance in fire-fighting operations.

Feature

  • DIN Standard Compliance: Manufactured and certified to DIN standards, meeting international fire safety requirements.
  • Wet-Barrel Design: Suitable for mild-climate areas (no freezing temperatures) for year-round outdoor use.
  • Durable Brass Construction: Forged brass body with corrosion resistance, ensuring long-term outdoor durability.
  • Complete Accessories: Comes with LM adapter and cap for secure connection and external protection.
  • High-Pressure Resistance: Working pressure 20 Bar, test pressure 24 Bar, adapting to high-pressure fire water supply.
  • High Visibility: Red spray finish for quick identification by firefighters in emergencies.
  • Dual Application: Supports connection to fire engines or direct nozzle linkage for flexible fire suppression.
  • Certified Quality: Holds ISO 9001:2015, BSI, and LPCB certifications, ensuring reliable performance.

Product Parameter



Material Brass
Inlet Size & Type 2"BSP / 2.5"BSP
Outlet Size & Type 2"STORZ / 2.5"STORZ
Working Pressure 20 Bar
Test Pressure 24 Bar
Standard Accessories LM adapter, Cap



FAQ

 Q: What are the size options for the DIN Landing Valve?

A: The valve has three common size specifications: DN40, DN50, and DN65, with inlet options of 2"BSP/2.5"BSP and outlet options of 2"STORZ/2.5"STORZ to match different fire water network configurations.


Q: How long is the lead time for orders? A: Lead time is 25-35 days, which may vary slightly according to order quantity and customization requirements. We will confirm the specific delivery time with you after receiving your order.
Q: Can the surface color or accessories be customized? A: Yes, we support OEM services. The surface color can be adjusted beyond the standard red (based on your needs), and we can also provide alternative accessories (e.g., different types of adapters) as long as you confirm the design and requirements in advance.
