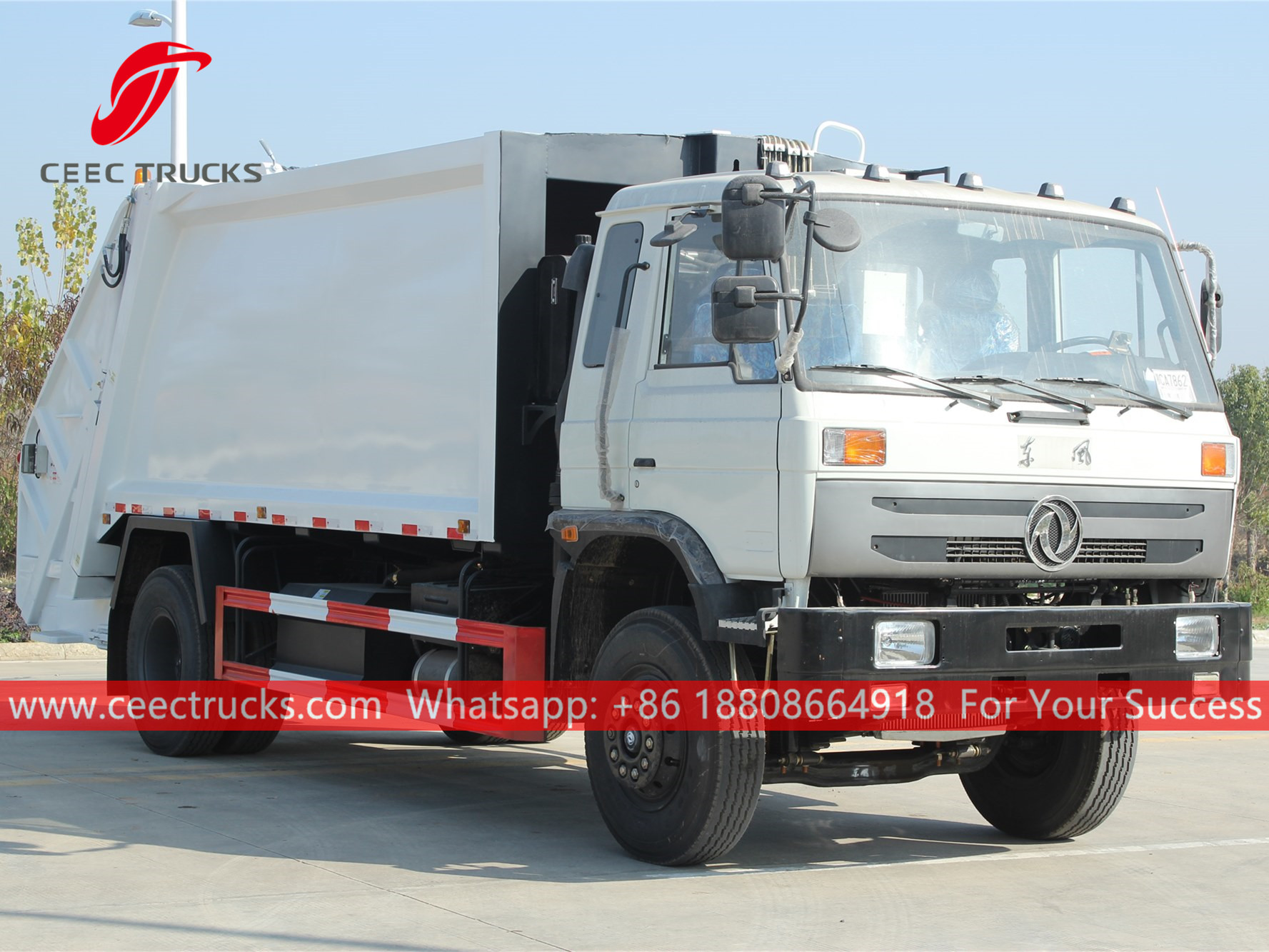

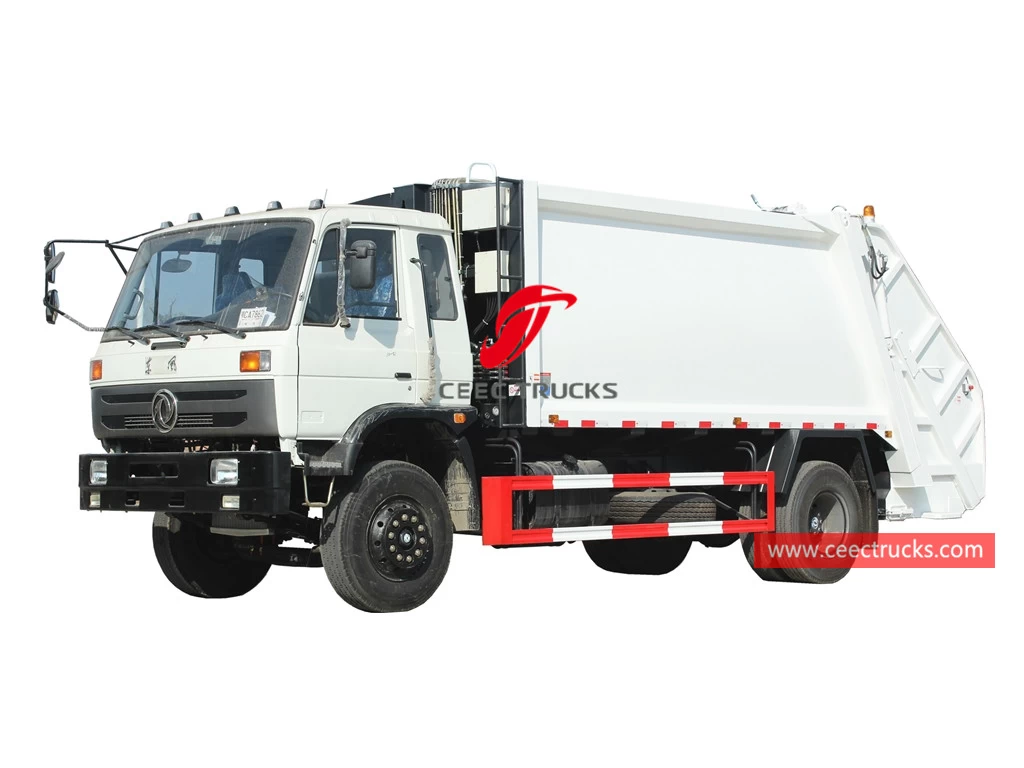

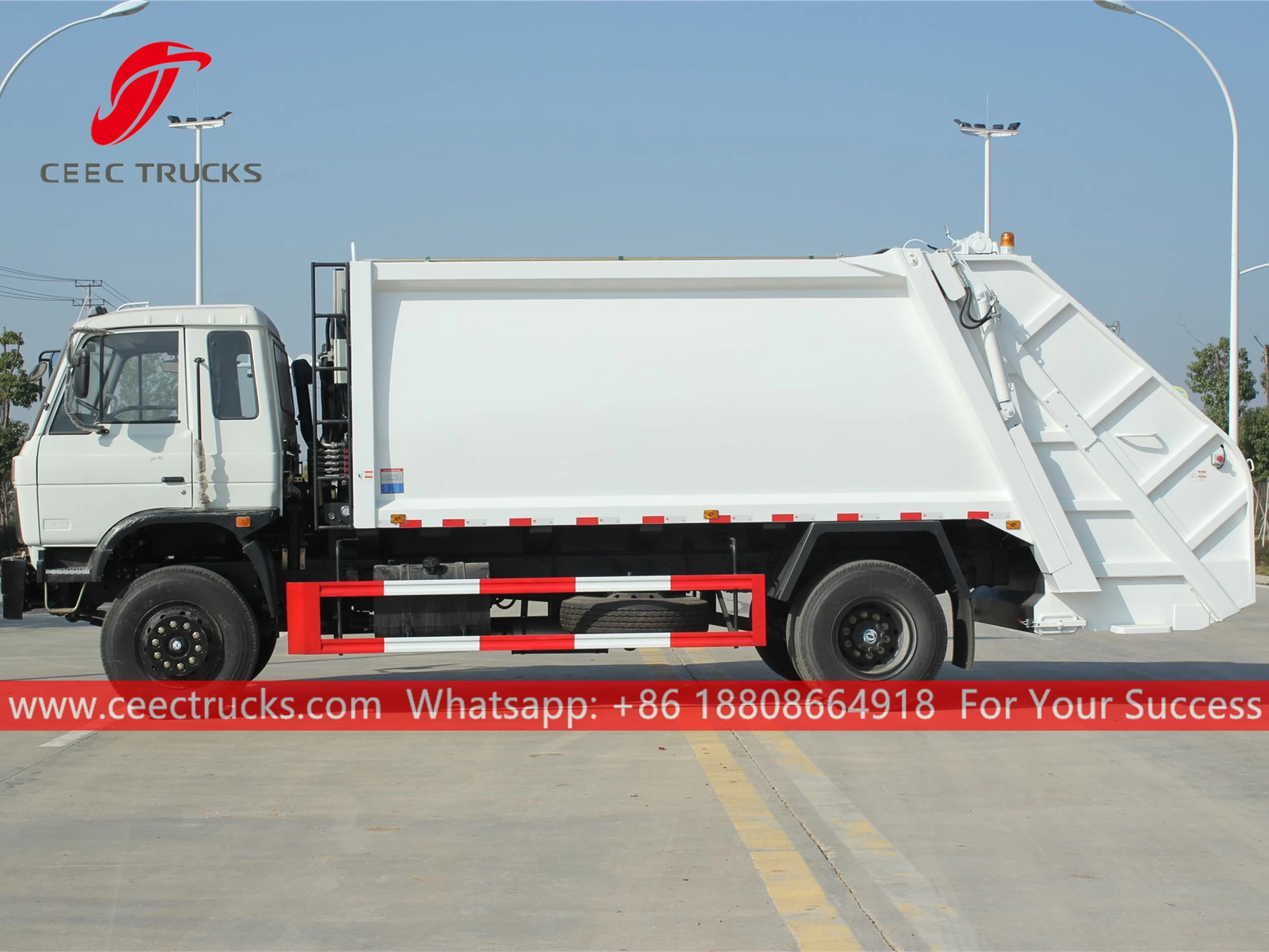

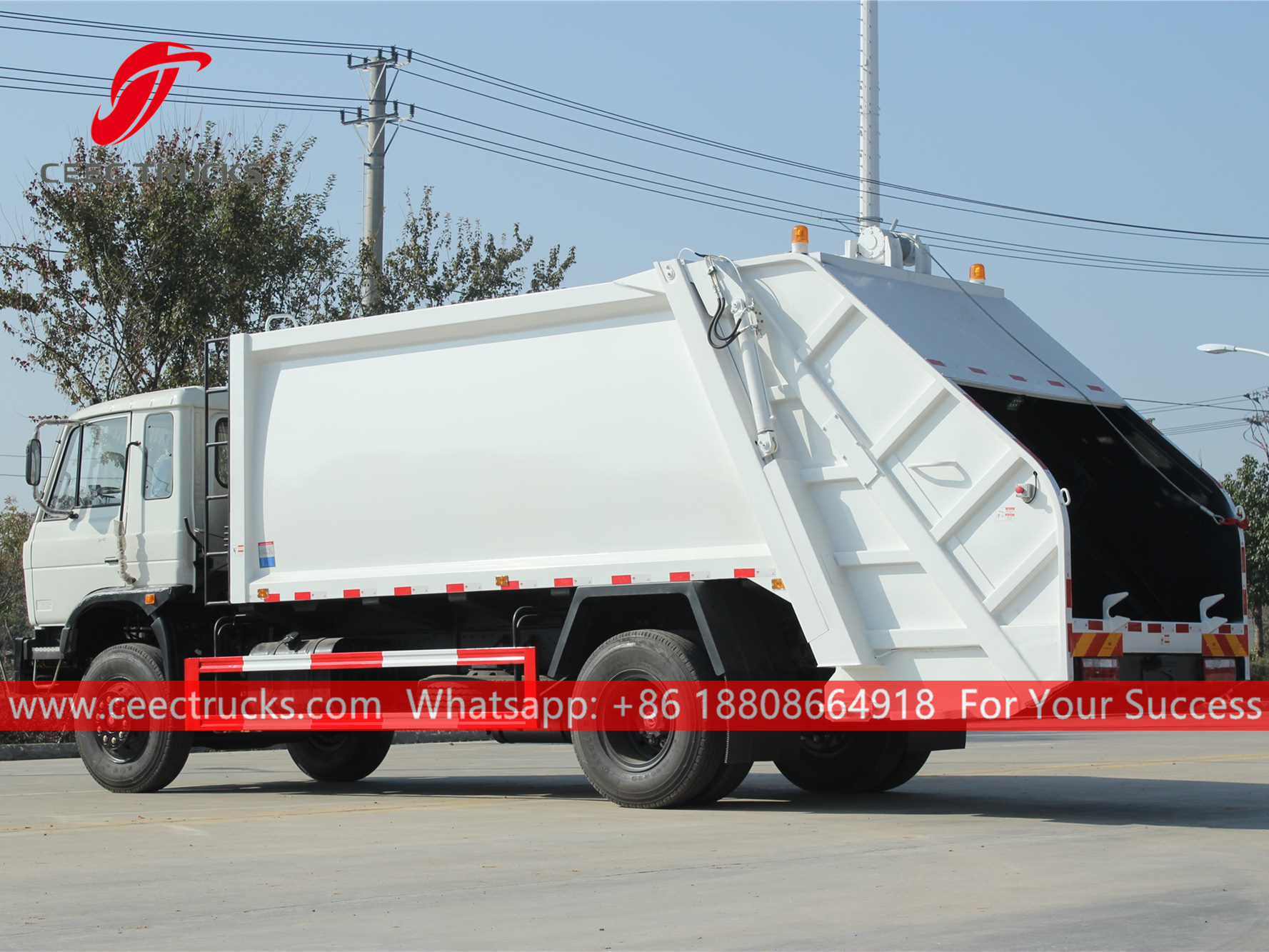

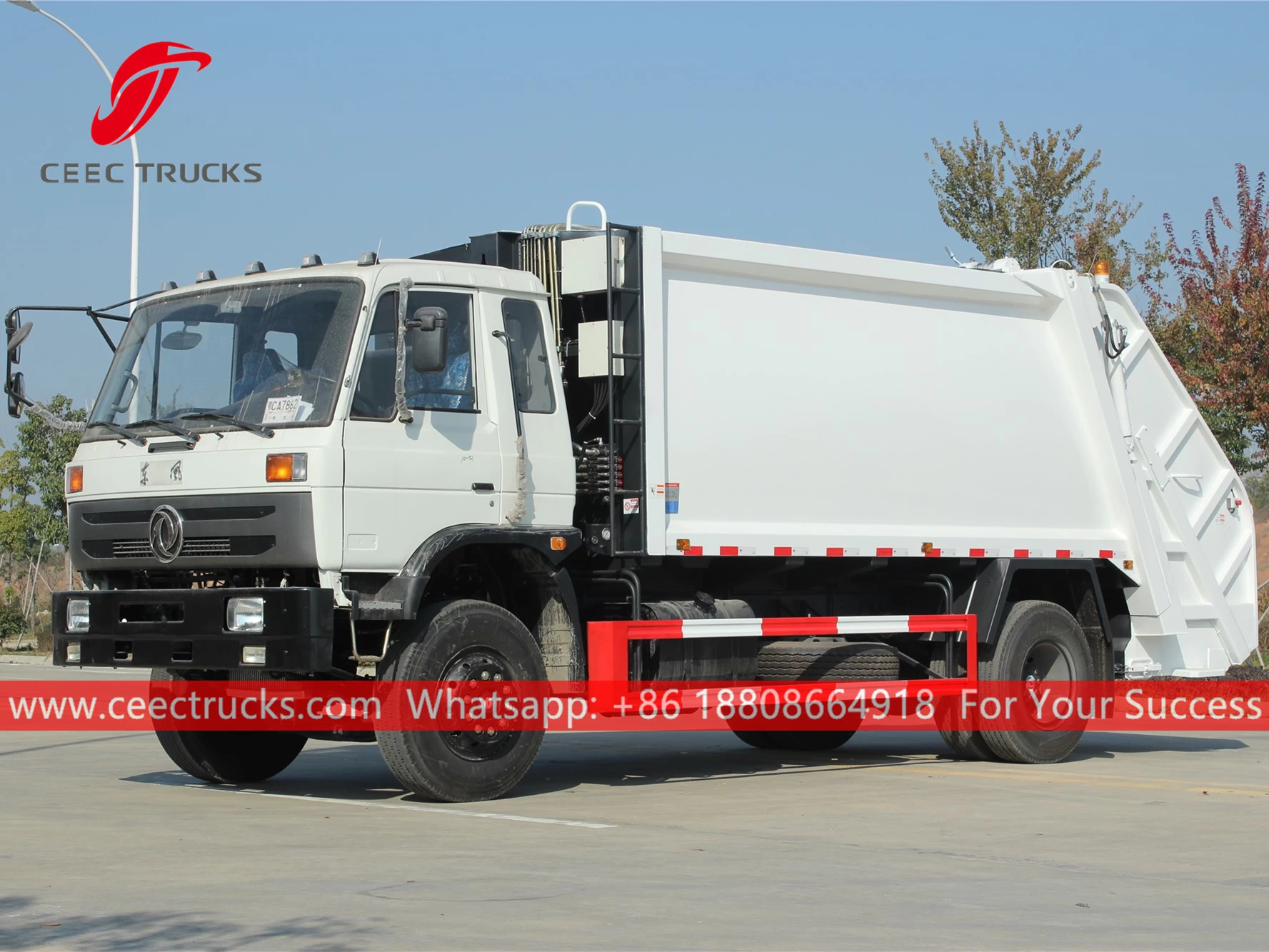

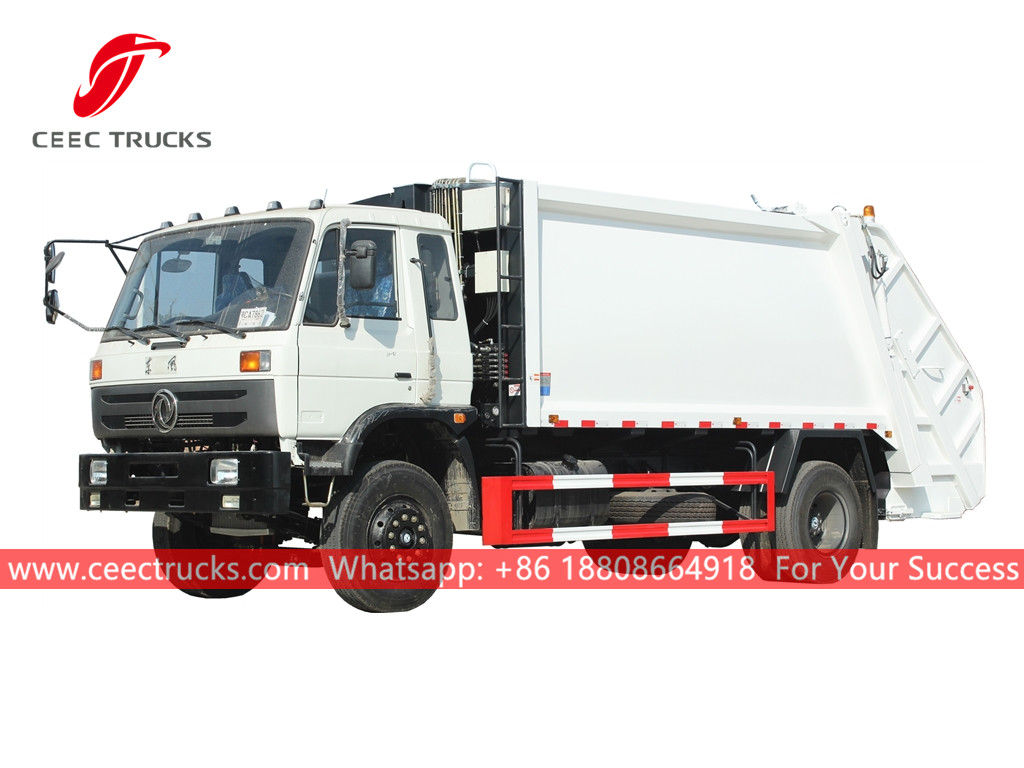

Dongfeng 14CBM Refuse compressor truck

Dongfeng 14cbm compressor garbage truck, the truck chassis use CUMMINS 190HP diesel engine, manual 8-shift transmission gear. PLC control box for easy operation. All painting and logos based on clients requirement.




14CBM Refuse compact truck

 Applications:



Dongfeng Waste Compactor (also called garbage compact truck, 4X2 refuse compressor truck, brand new back-loading compressed garbage truck, compression rubbish truck, refuse truck with compactor, compressed trash vehicle) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS  garbage compression truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- Dongfeng chassis, perfect performance

---- CUMMINS engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.



 Specifications:



Rear-loader garbage truck (14 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

8820 * 2500 * 3200 mm

GVW / Kerb Weight

18,000kg / 10,450kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

190HP

Displacement

5900 ml

Emission Standard

Euro 3

Chassis

Drive Type

4X2, (left hand drive)

Transmission

8 speed levers with 1 reverse

Wheelbase/No. of axle

4500mm / 2

Tire Specification

9.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

14 cbm

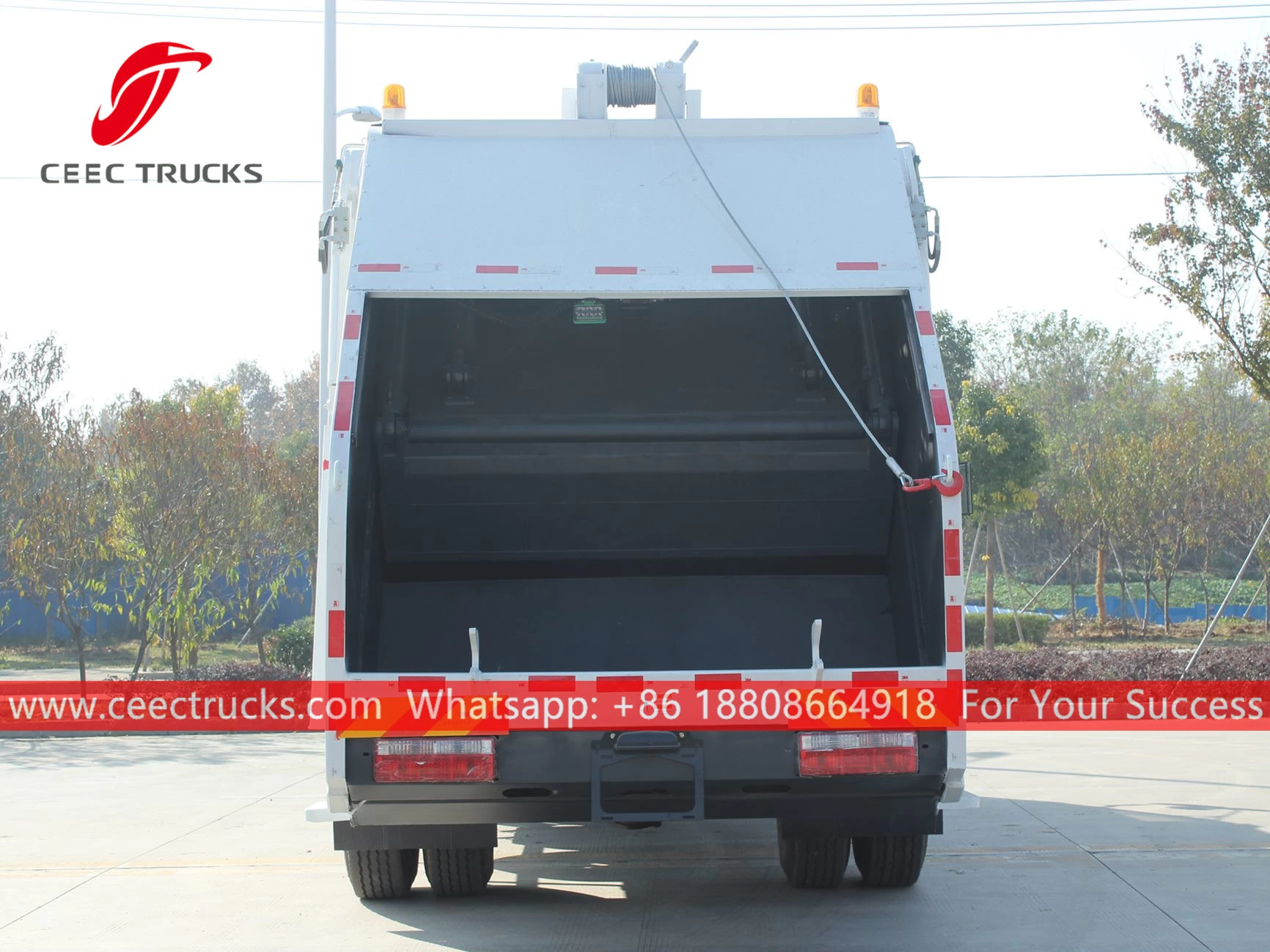

Fill Hopper capacity

2 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

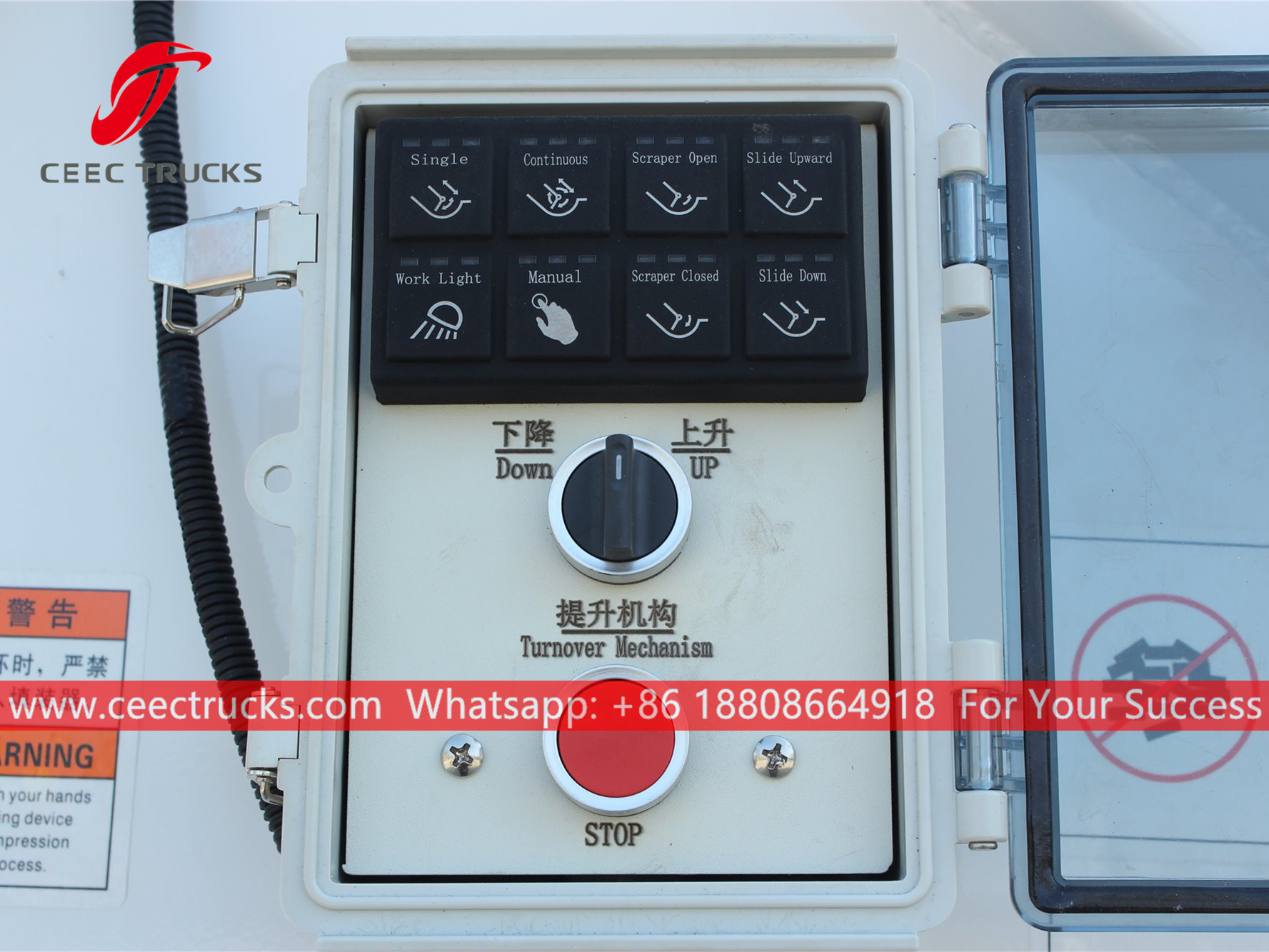

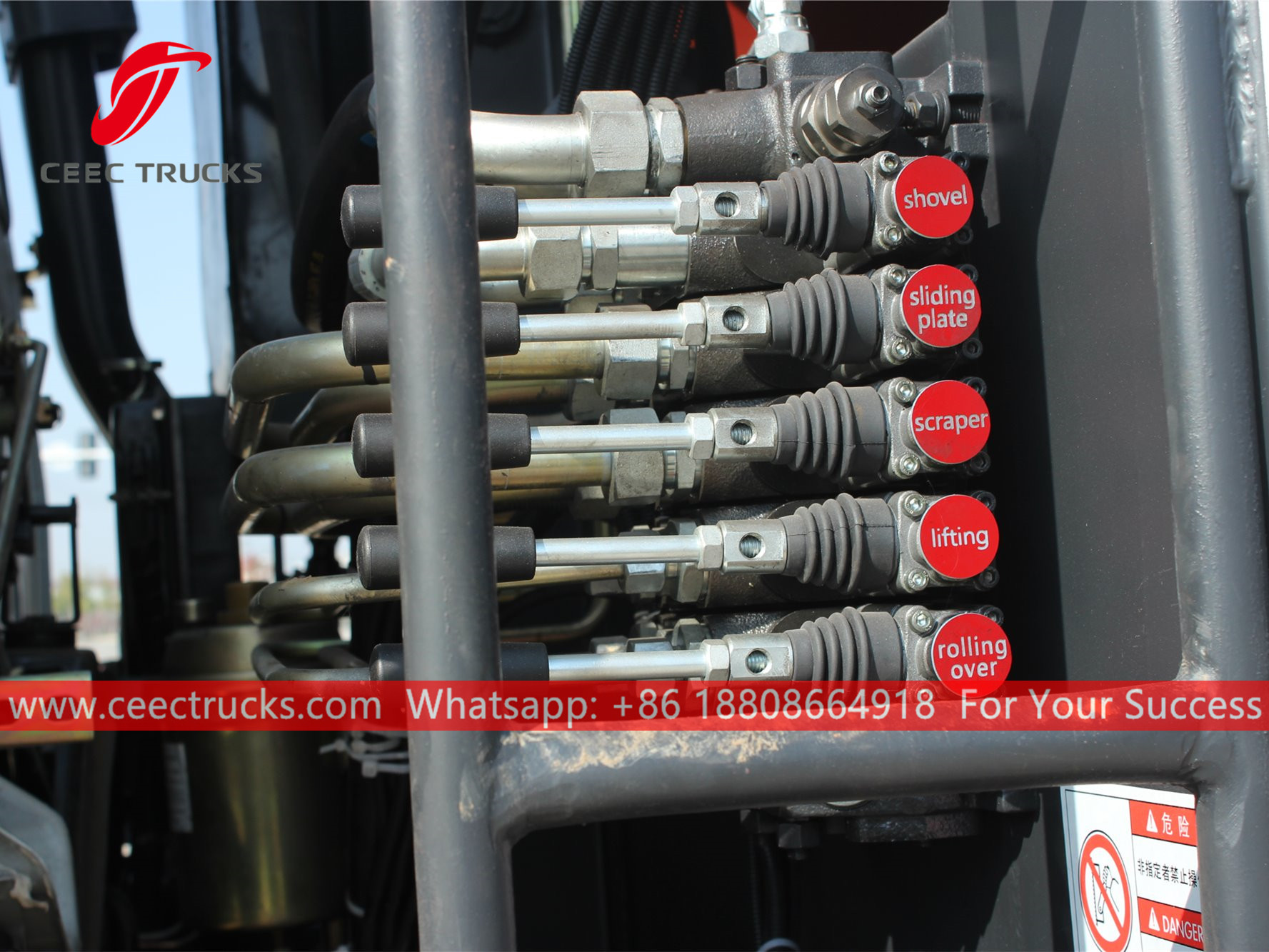

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

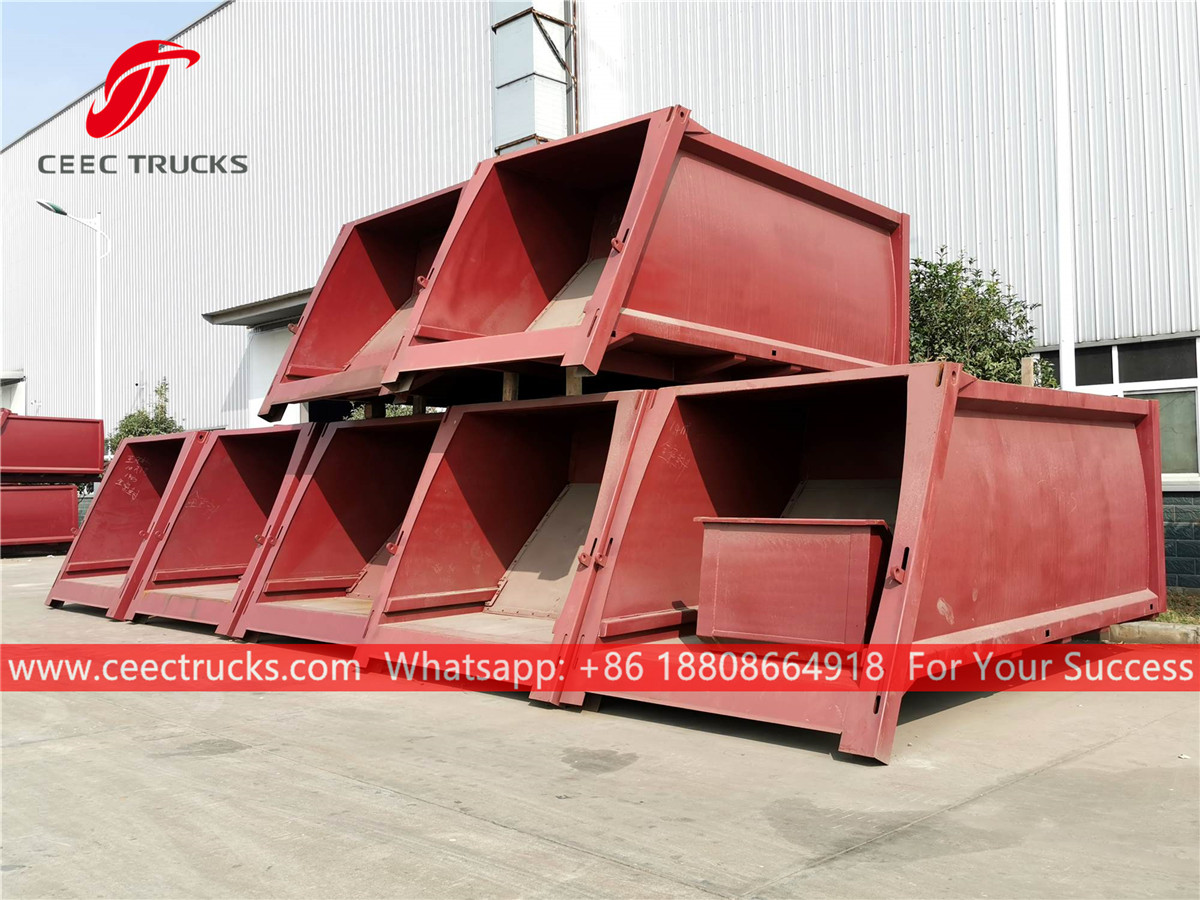

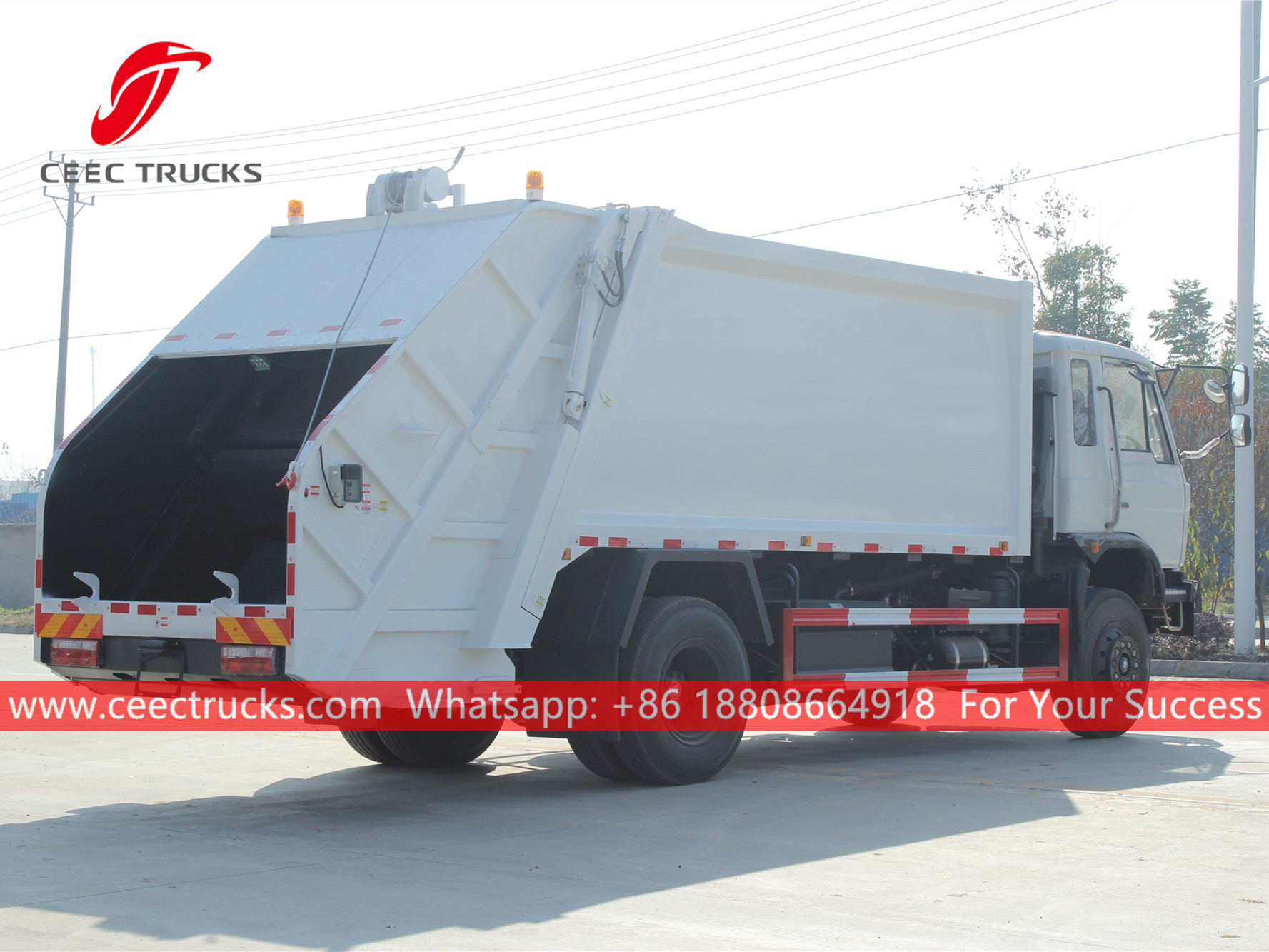

Refuse compression truck body

(High quality garbage compactor truck during production)



Key words: rear loader, waste compressing truck, trash truck with compactor
