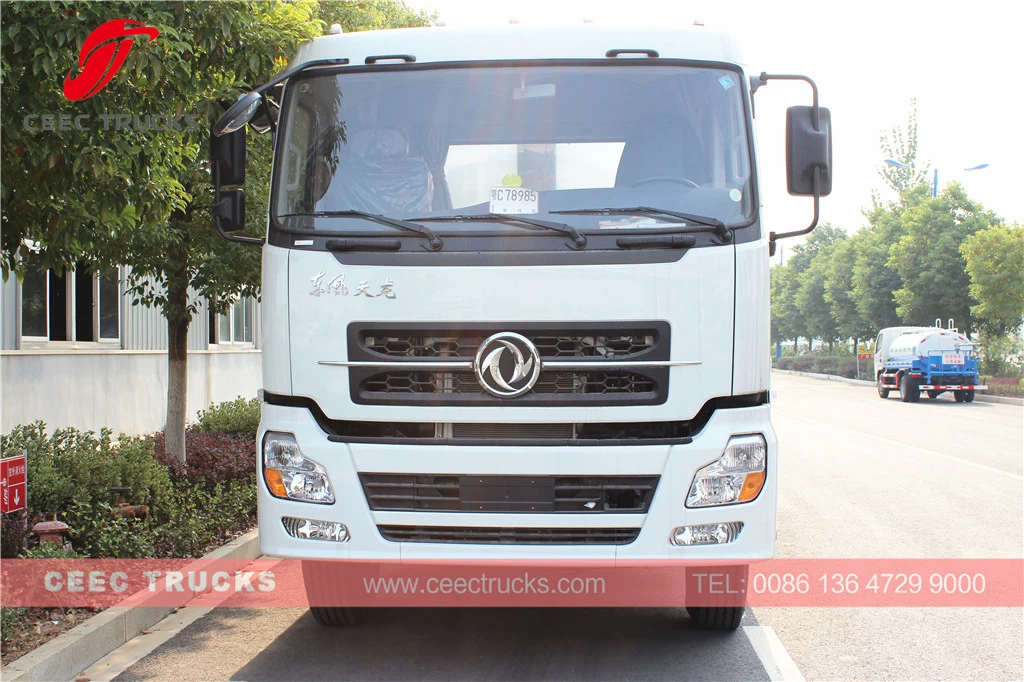

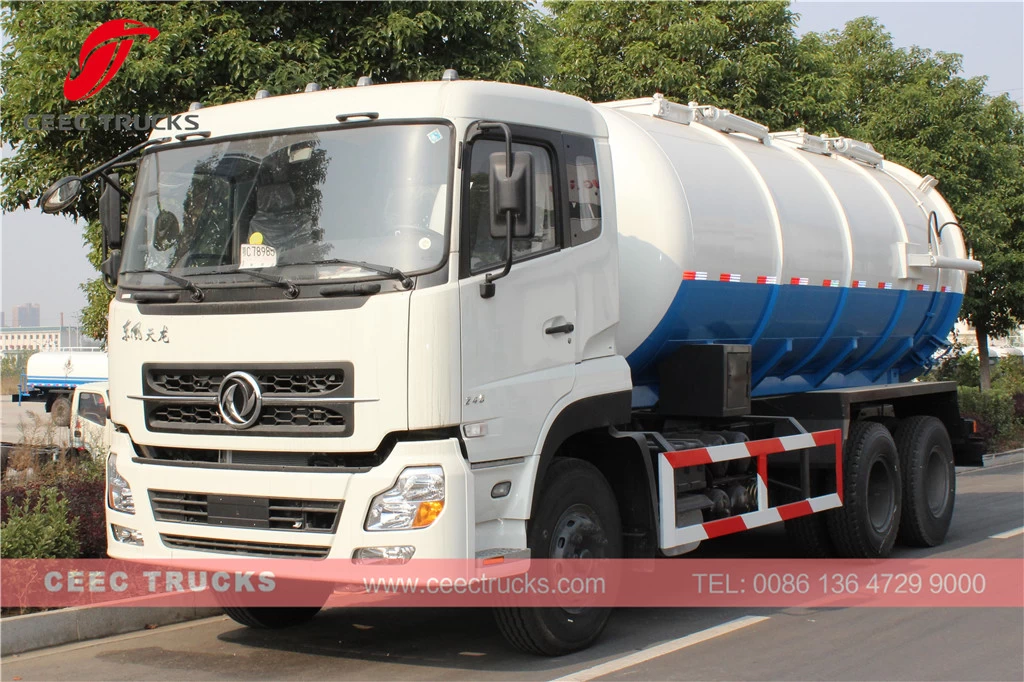

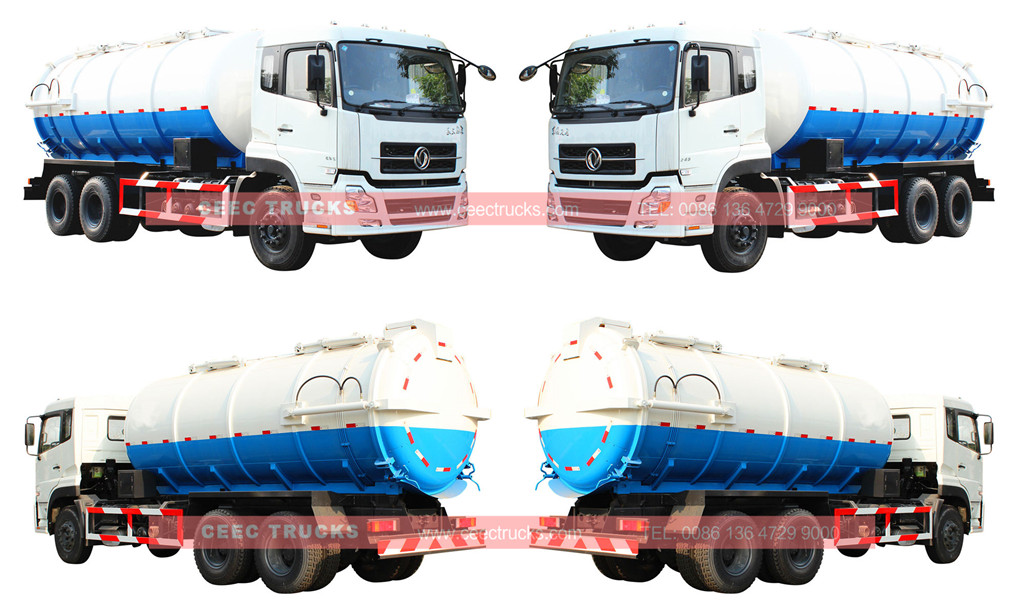

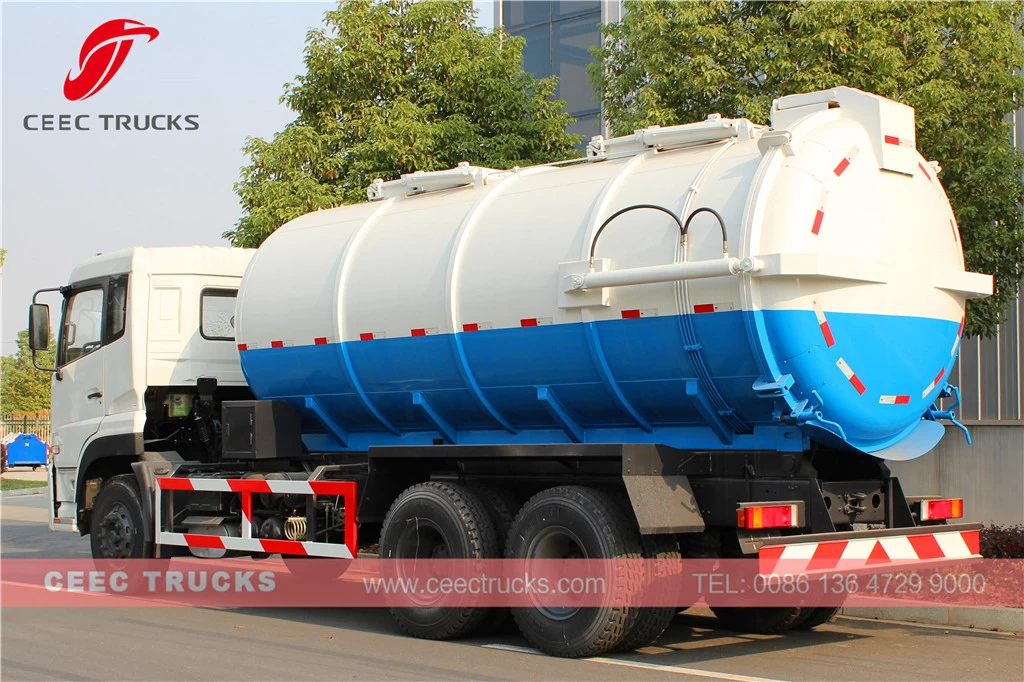

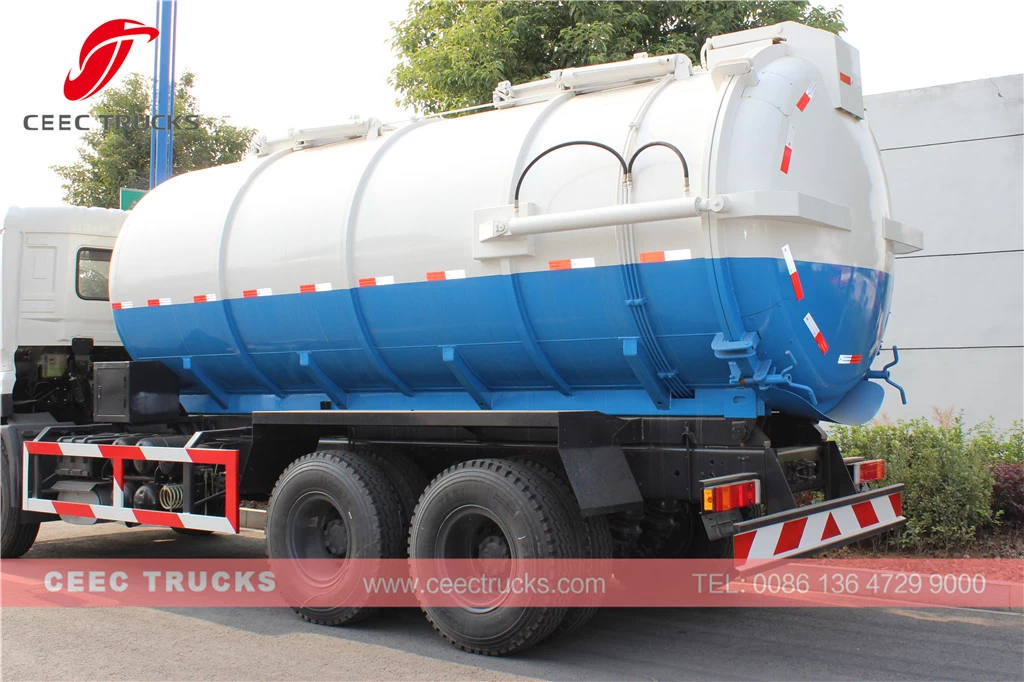

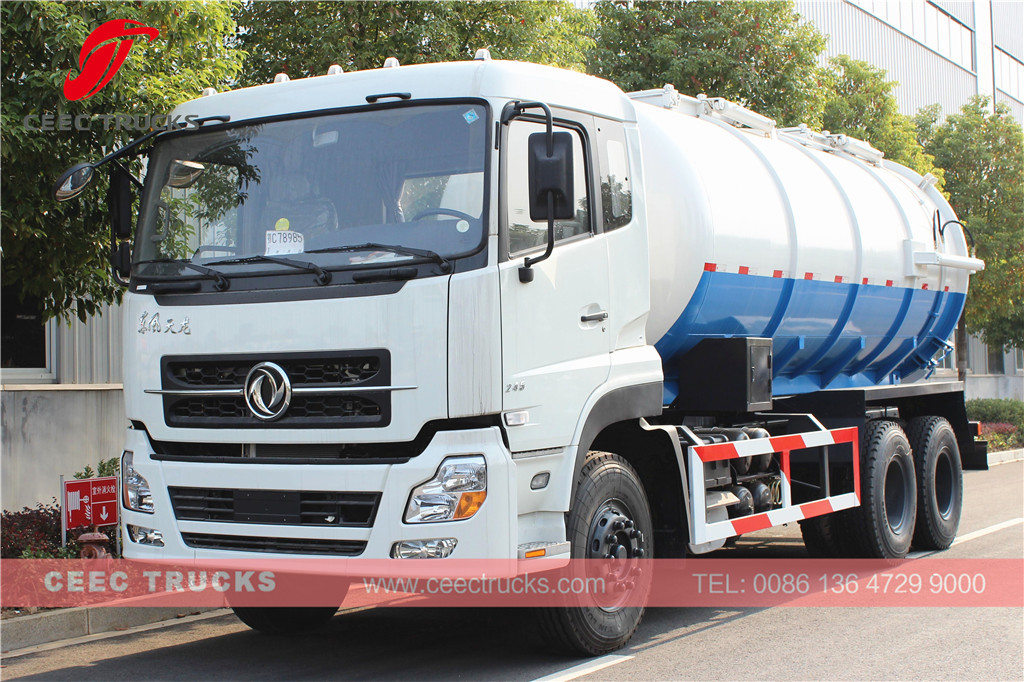

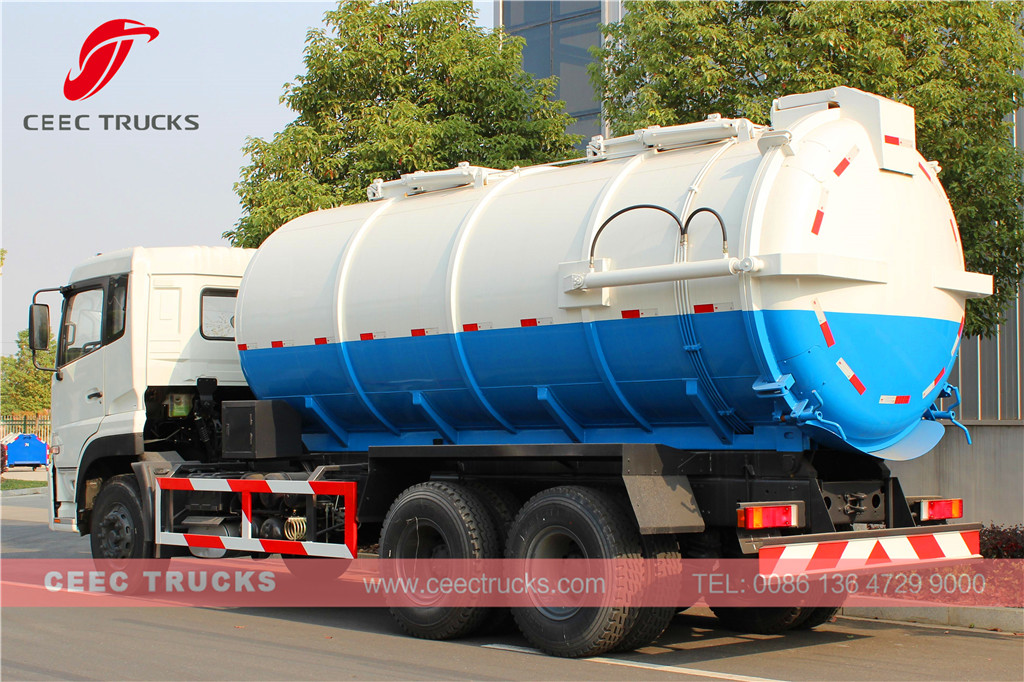

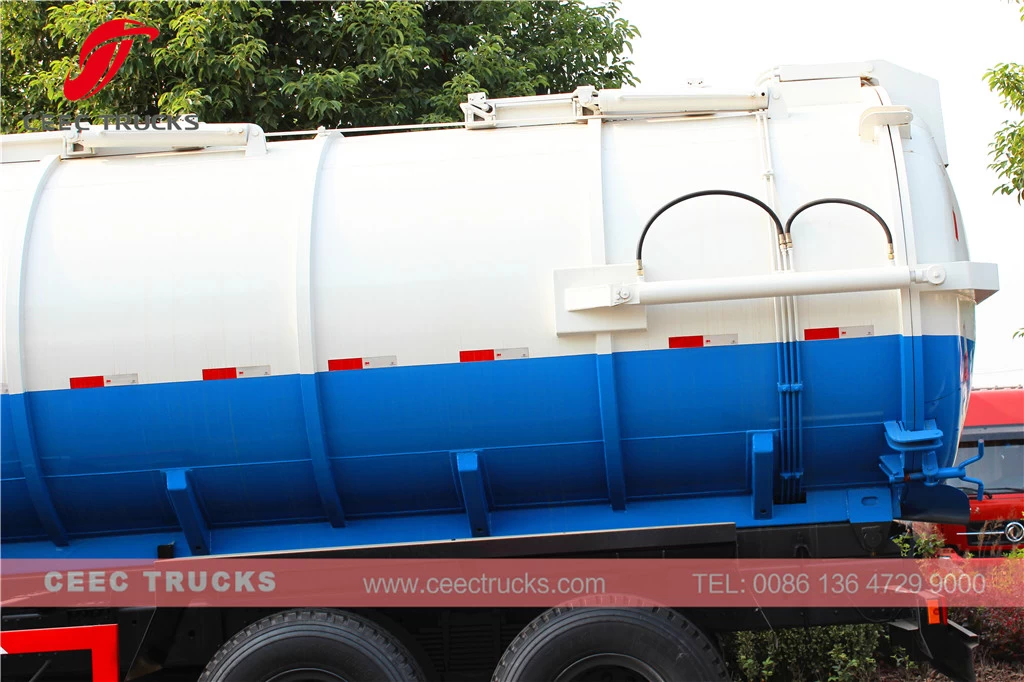

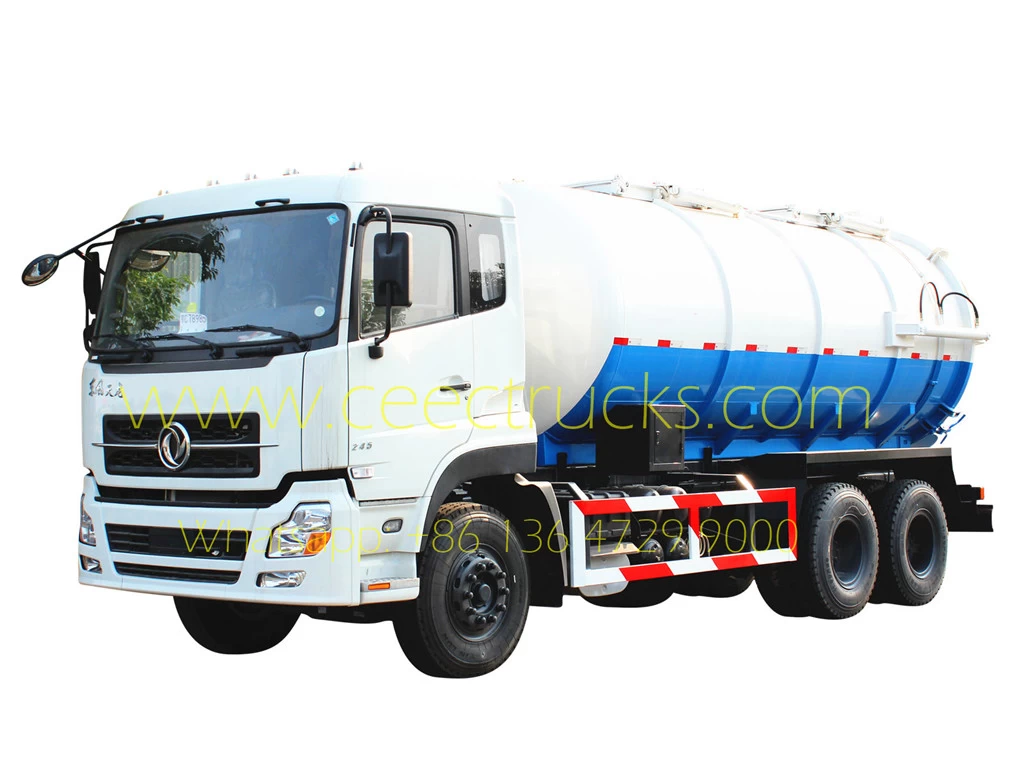

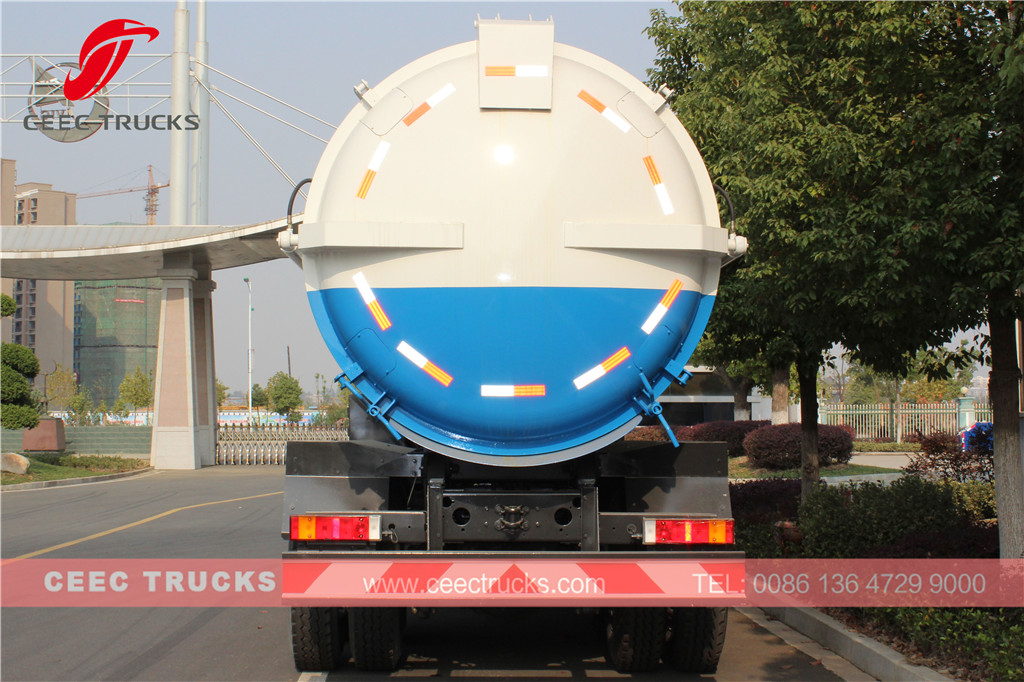

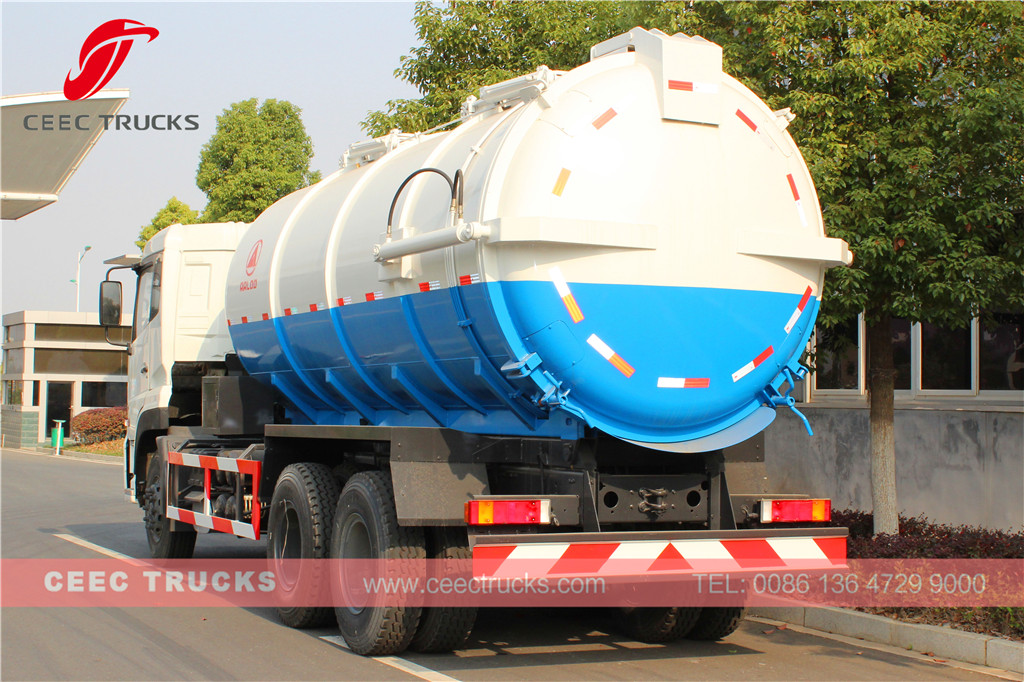

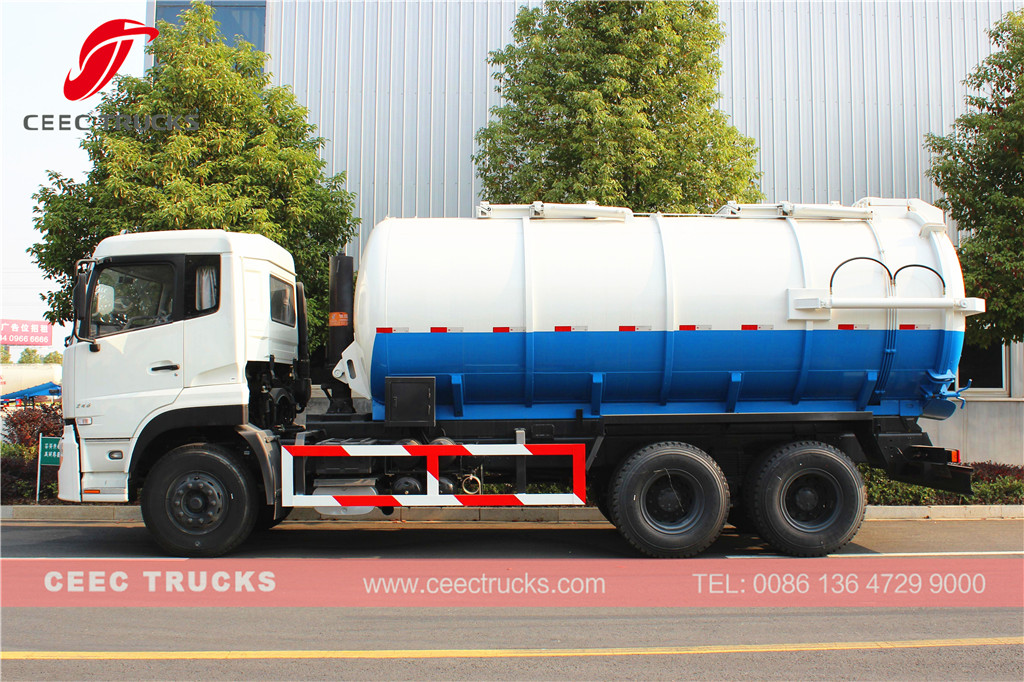

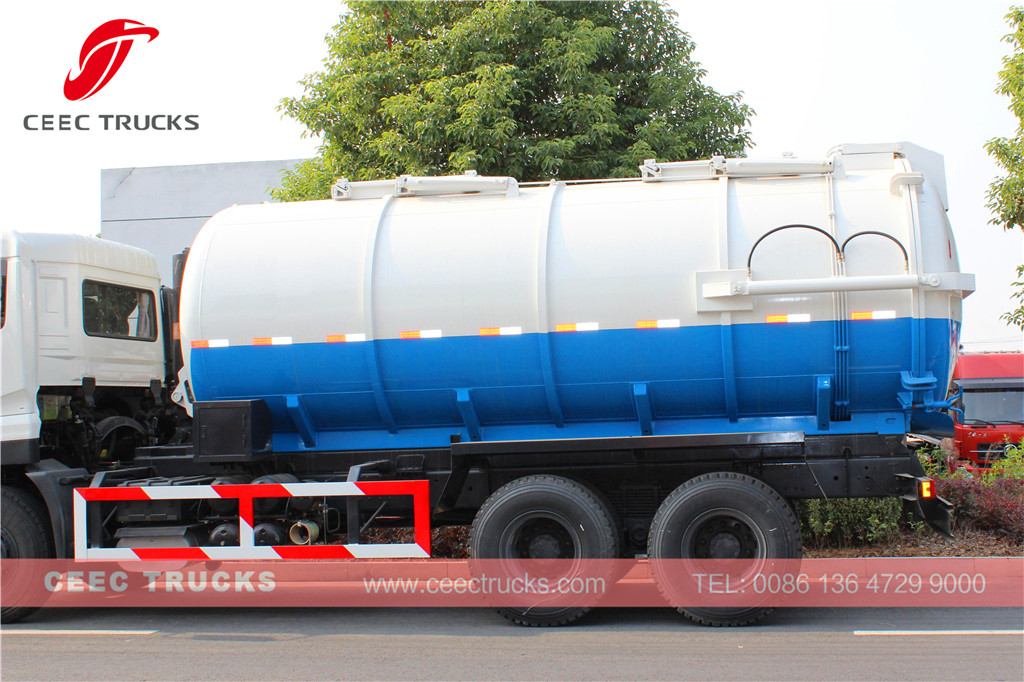

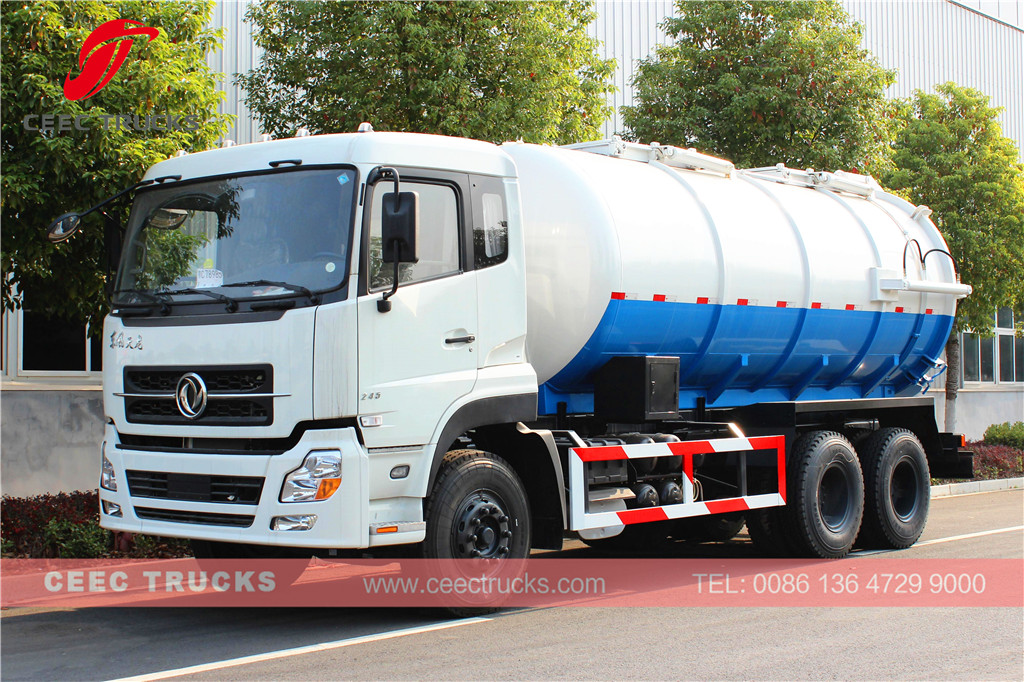

Dongfeng 16CBM cesspit emptier truck

Manufacture sale Dongfeng 16000L cesspit emptier, which use America CUMMINS 210HP diesel engine, 8-shift manual gearbox, high strength steel material tanker can be up to 16cbm, WEILONG vacuum pump as standard, hydraulic lifting device for tank rising, painting and logos depend on request.





overview for DONGFENG 16cbm vacuum truck



 Applications:



Sewage Vacuum Truck (also called sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.



CEEC TRUCKS Cesspit Emptier truck which use WEILONG or Italy BP vacuum pump, for 10CBM or more recommend Double Pump for efficiently working.



The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.



 Key Features:



---- DONGFENG chassis, perfect performance

---- CHAOCHAI / YUCHAI / CUMMINS engine option, super powerful, no overhaul within 100,000 km.

---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



Cesspit Emptier DONGFENG (16 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

9100 * 2500 *311 0 mm

GVW / Kerb Weight

25,000kg / 12,200kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

210 HP (154 KW)

Displacement

5900 ml

Emission Standard

Euro 2 or 3

Chassis

Drive Type

6X4, (left hand drive)

Transmission

Manual 8 speed levers with 1 reverse

Wheelbase/No. of axle

4350+1300 mm / 3

Tire Specification

10.00-20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

16 cbm

Tanker Material

Carbon Steel

Suction Head pipeline

7 m

Vacuum Pump brand

WEILONG / Italy BP / Domestic Pump

Vacuum Pump advantage

High efficient, vacuum rate 93%,

quick suction and discharge, suction lift 6m

Hose

High quality, wire strengthened hose

Control panel

English or Your language

All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Standard carbon steel, stainless steel optional.

** Standard WEILONG vacuum pump, Italy vacuum pump optional



 technical drawing for dongfeng 16cbm cesspit emptier
