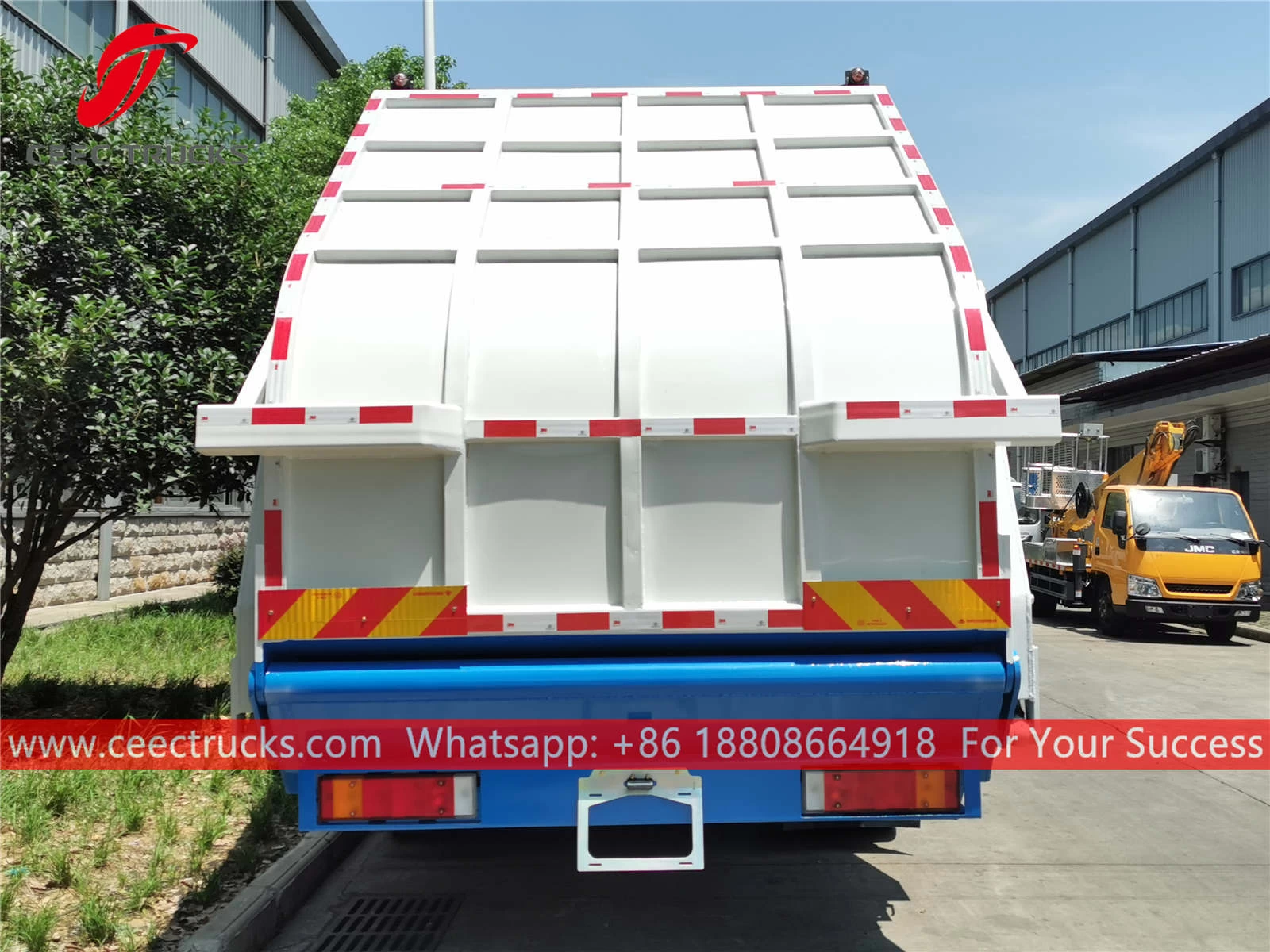

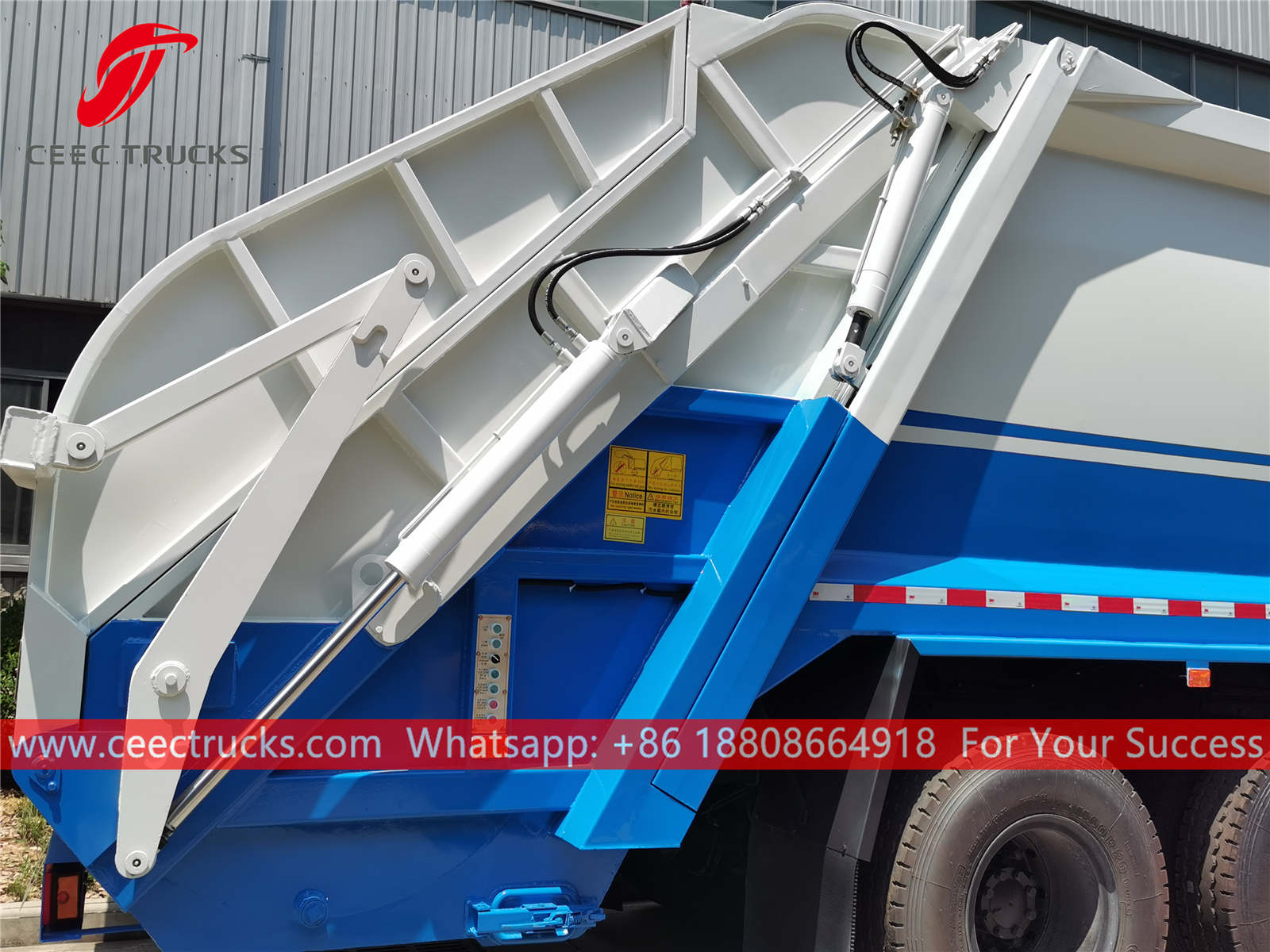

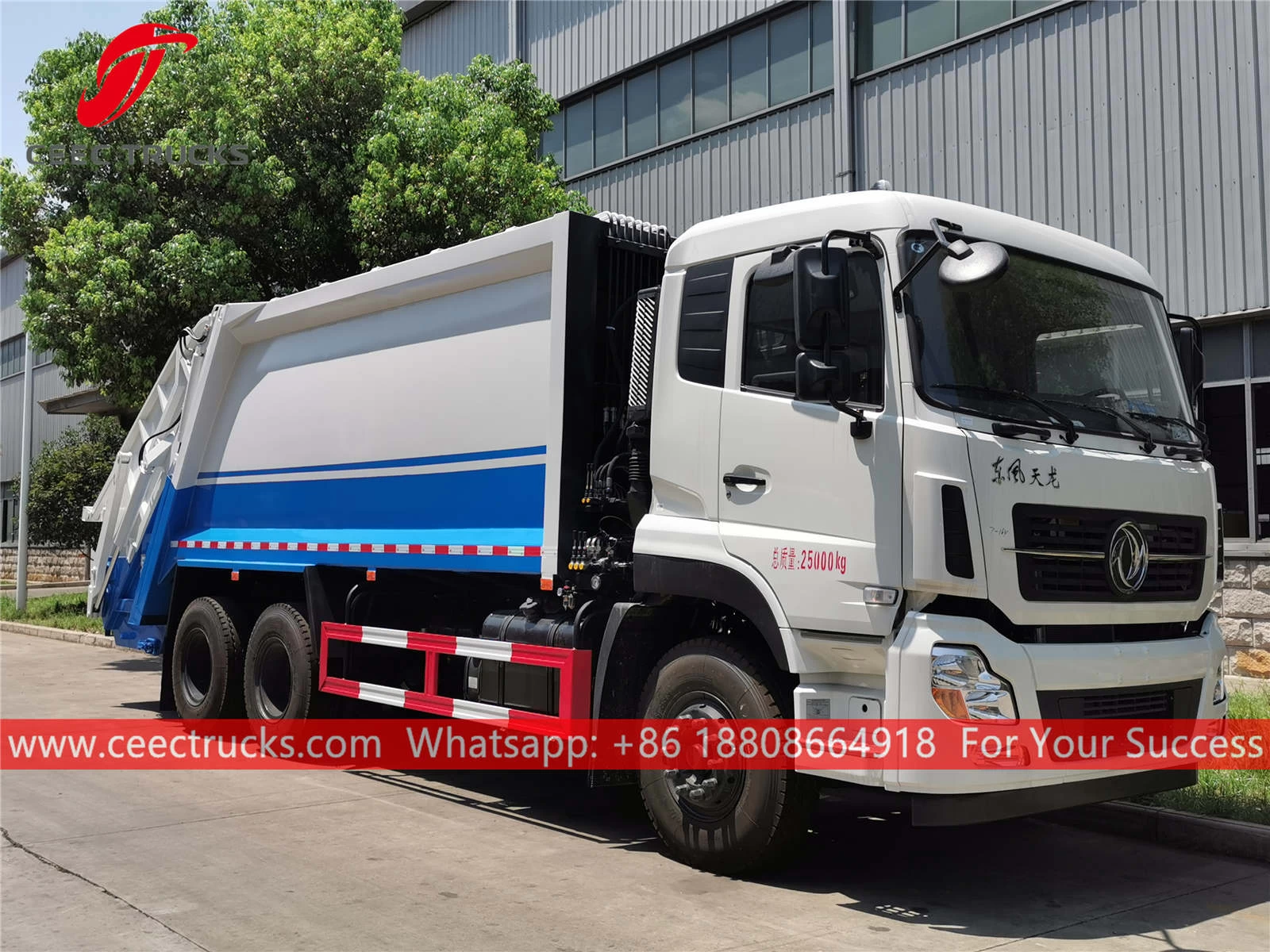

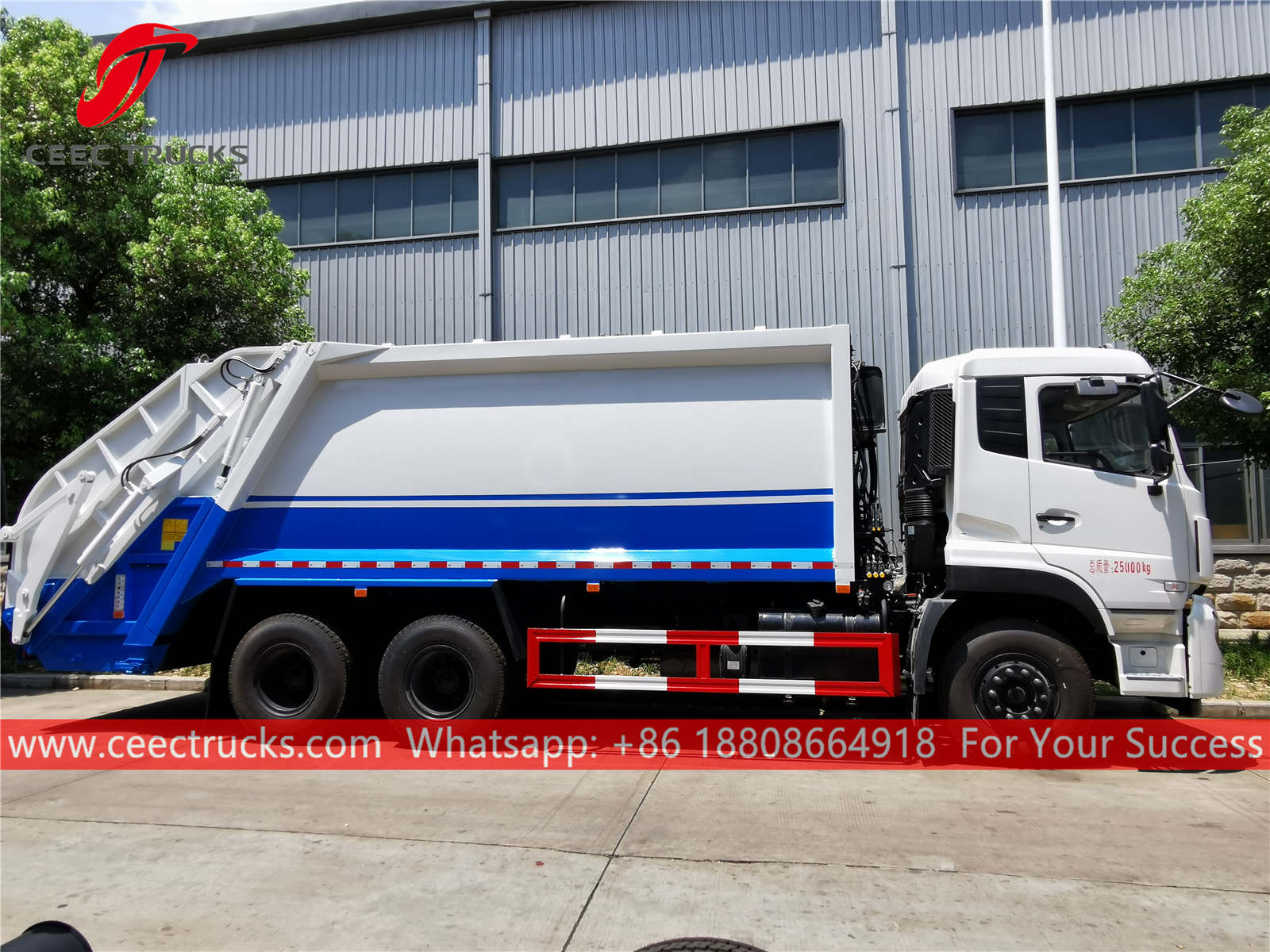

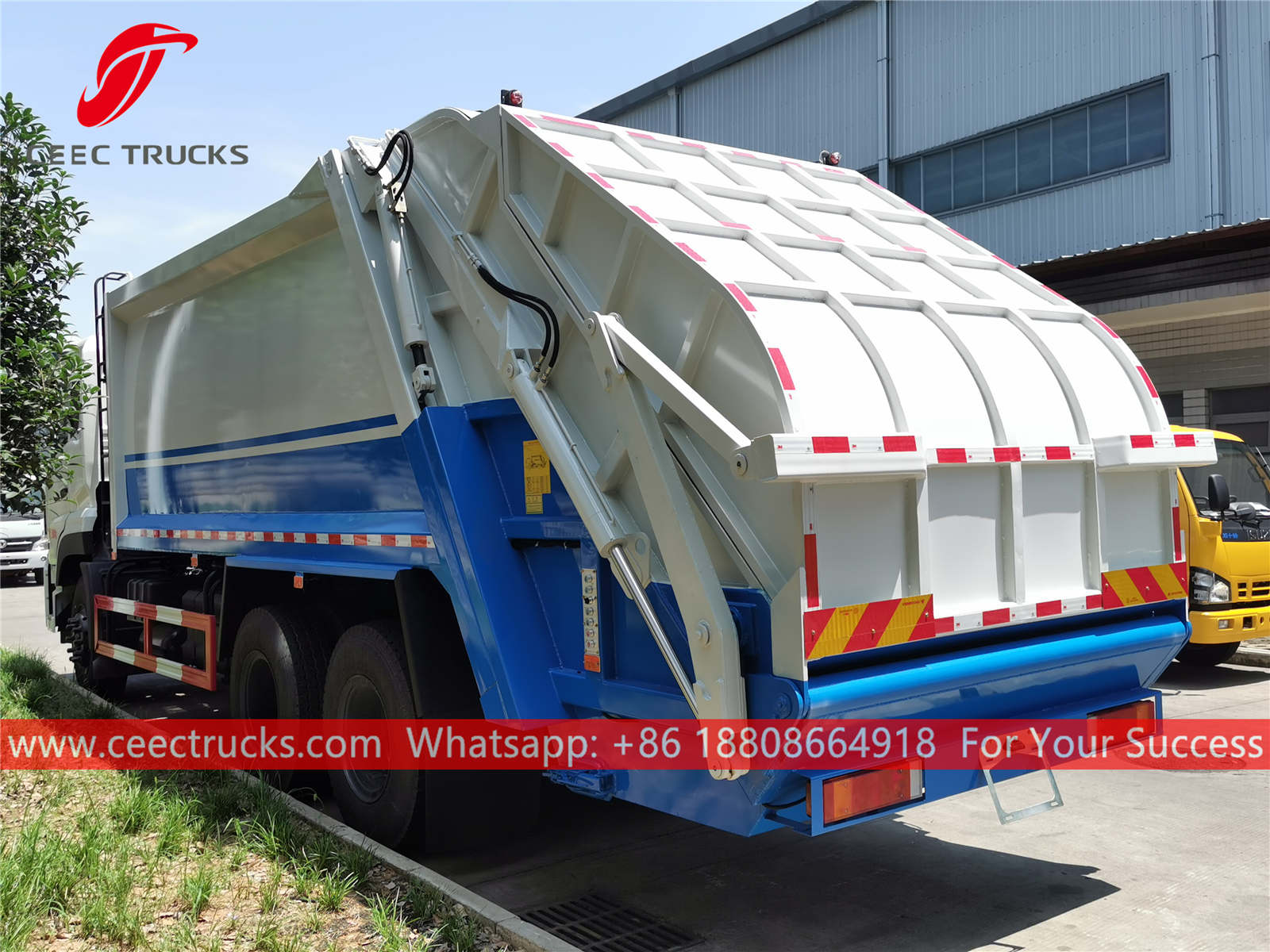

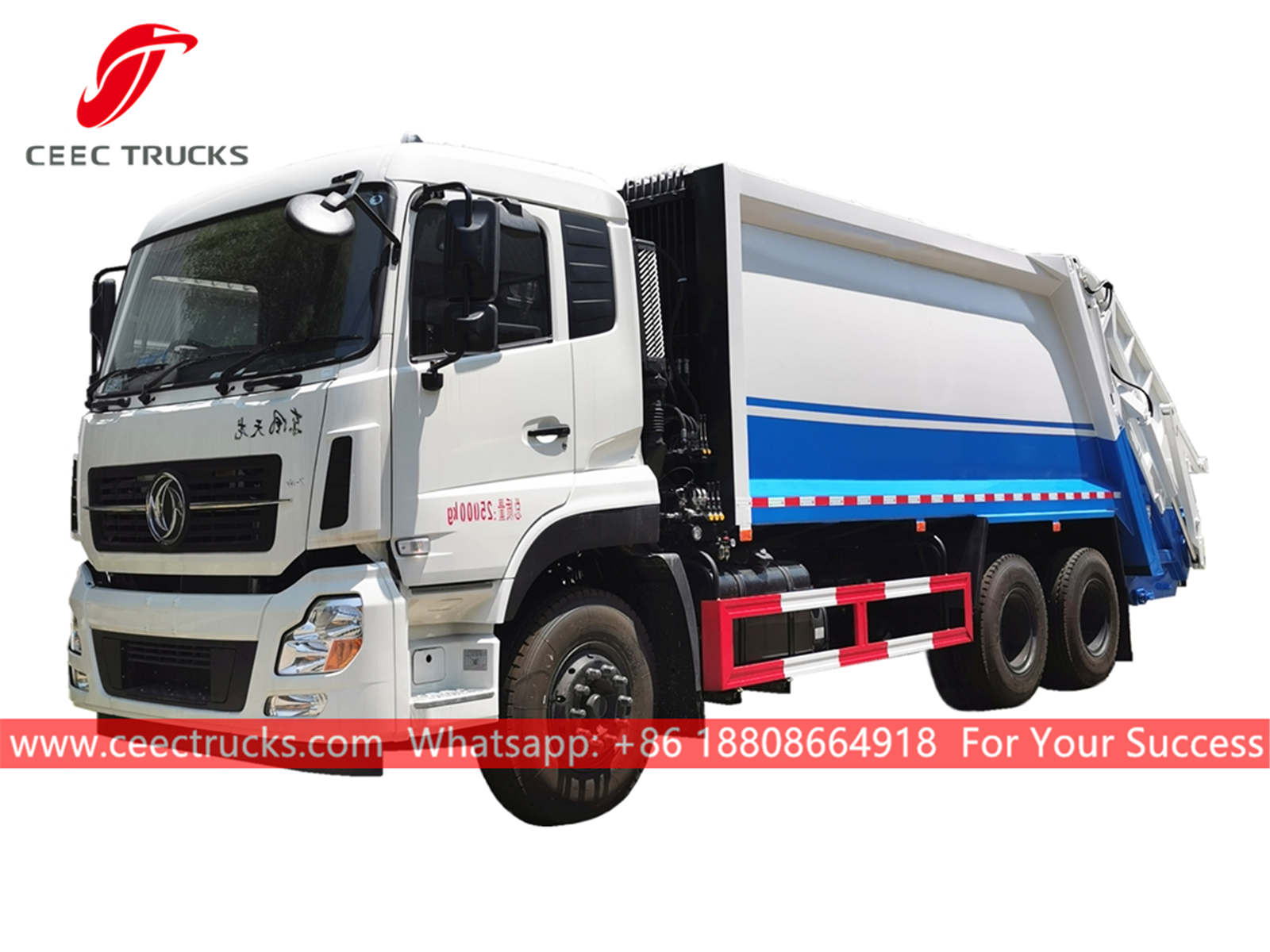

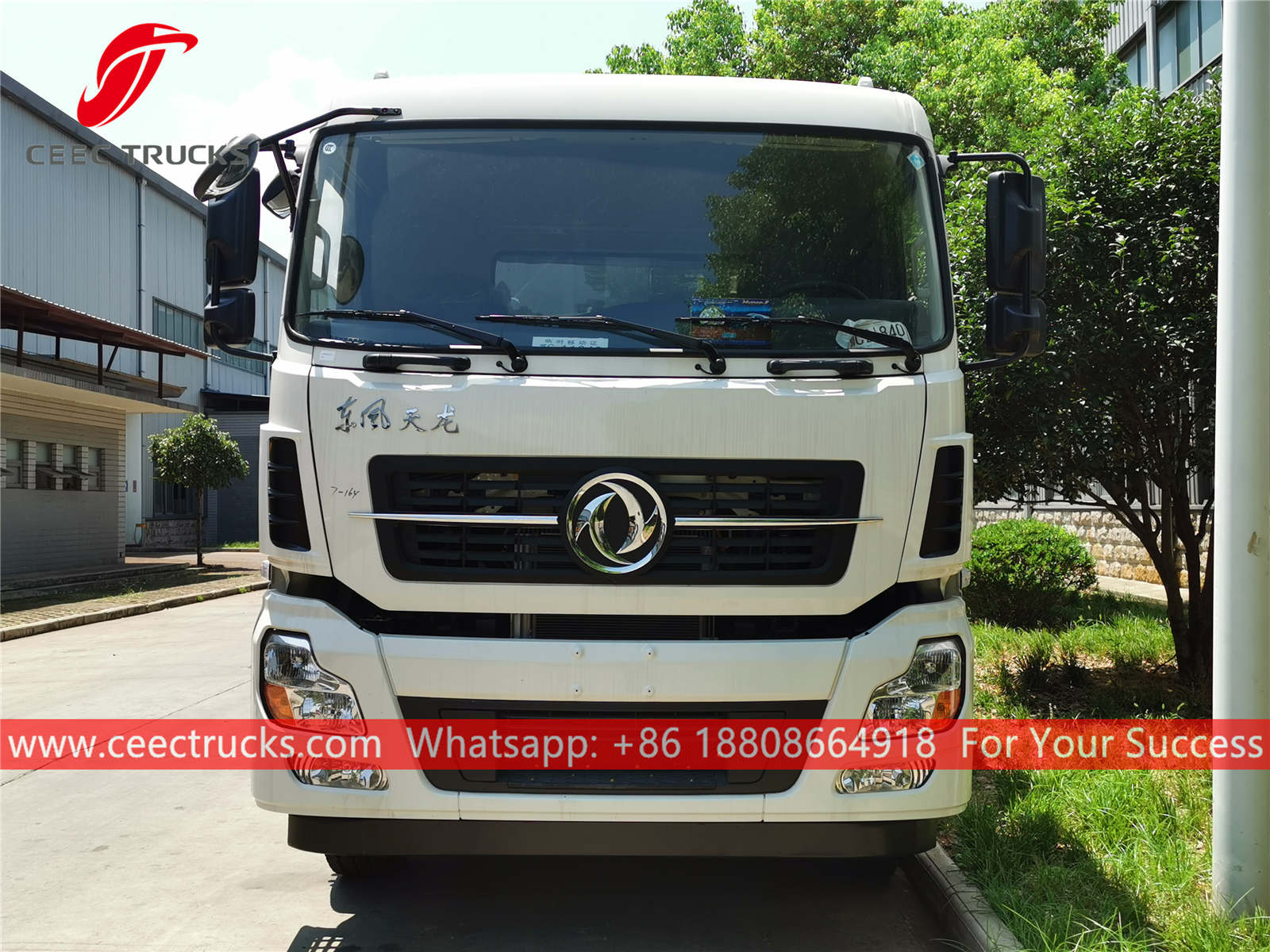

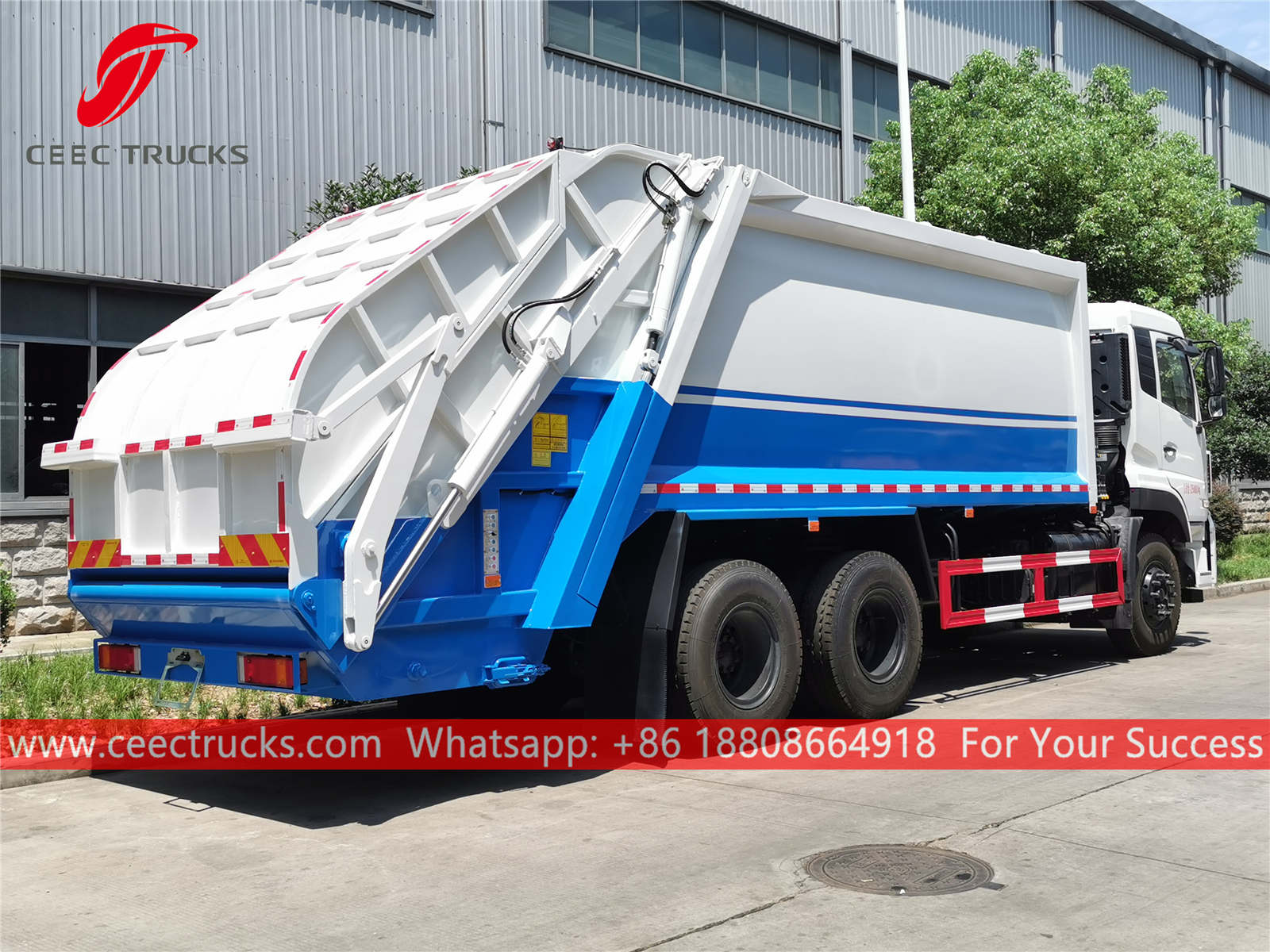

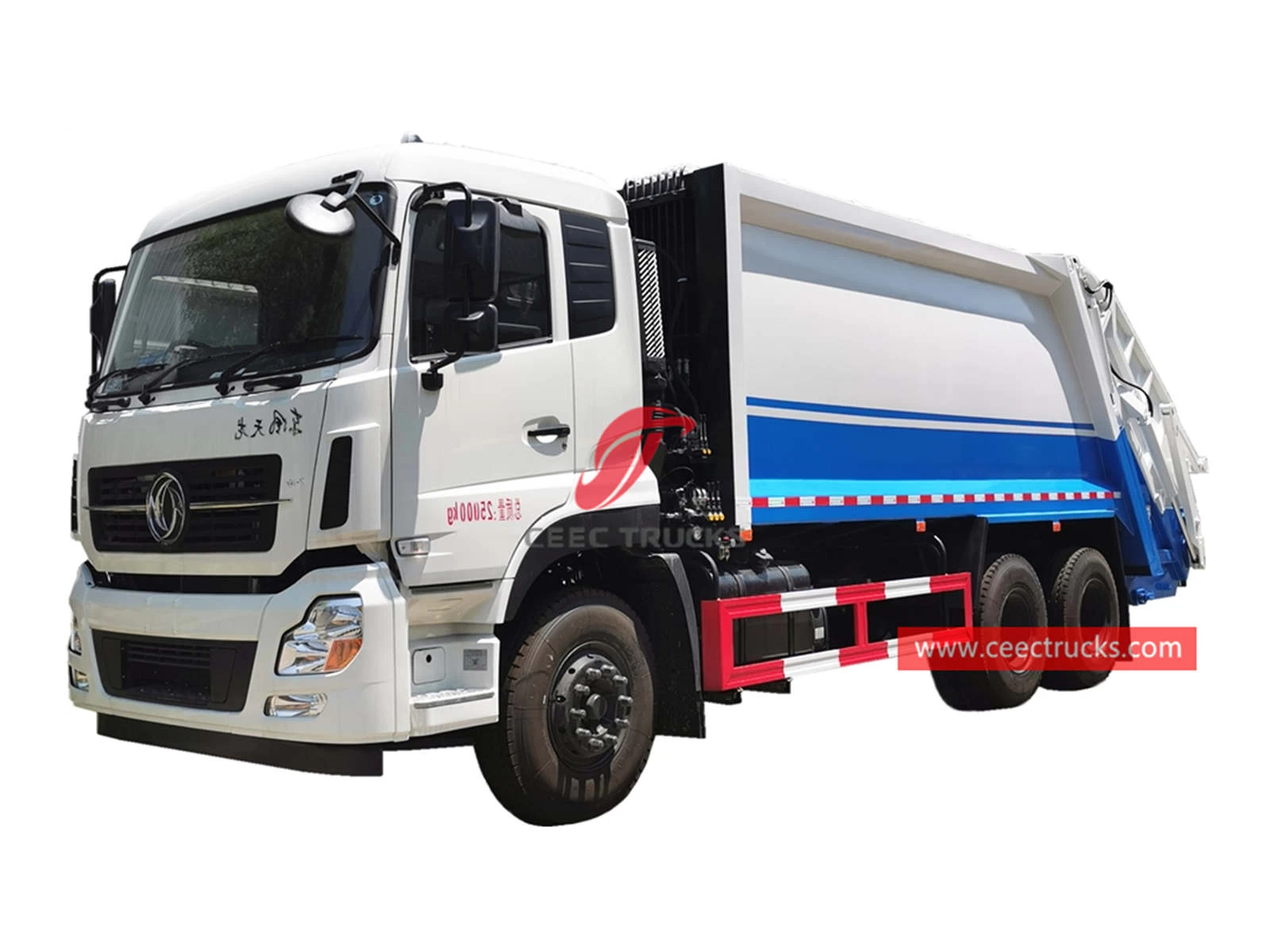

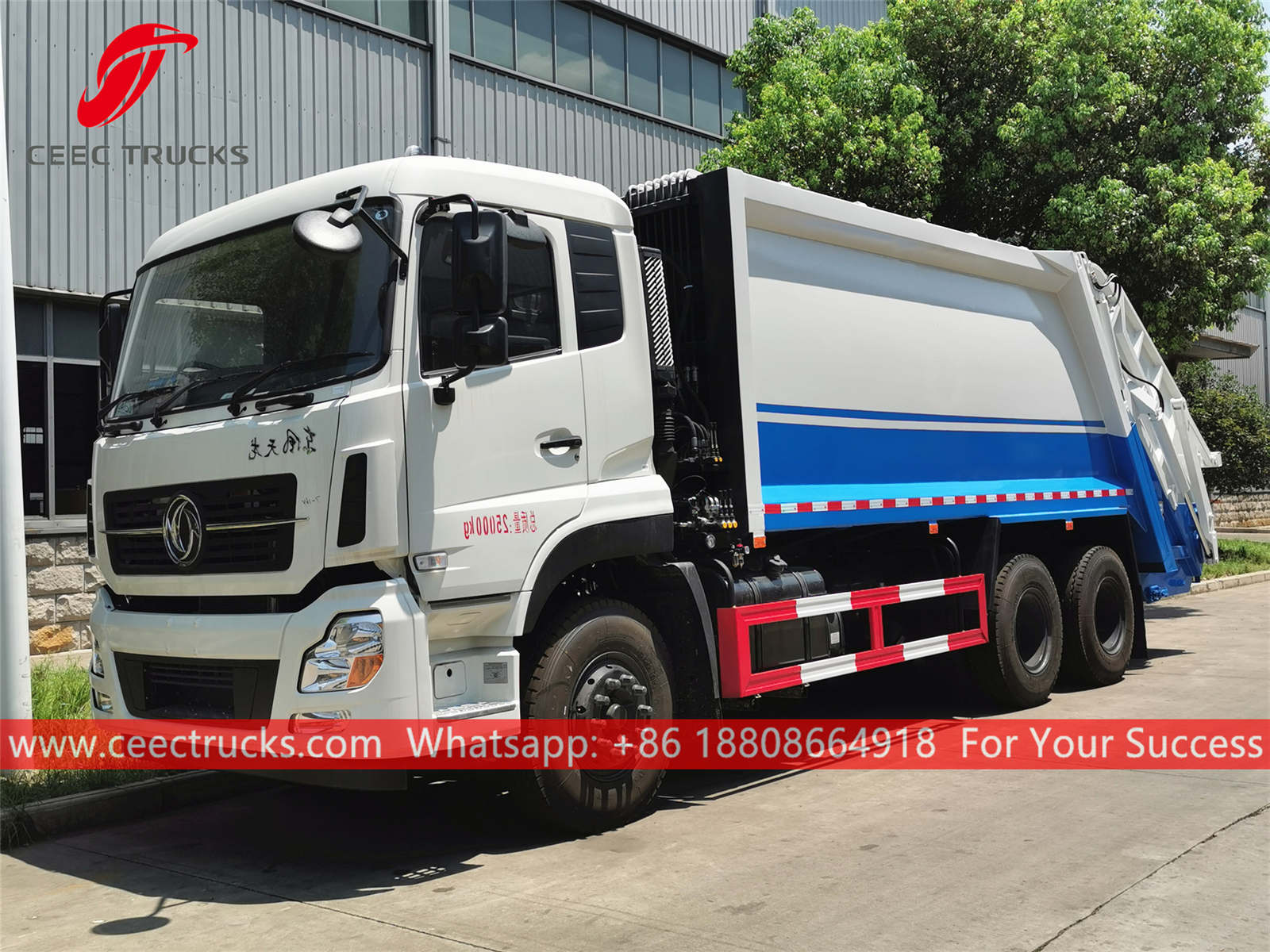

Dongfeng 20CBM Compressed Garbage Truck

Dongfeng Tianlong 20cbm trash compressed truck, the truck chassis use CUMMINS 270HP diesel engine, FAST 9-shift transmission gear. Siemens technology PLC control box for easy operation. All painting and logos depend on clients requirement.




 Applications:



Dongfeng 20CBM Compressed Waste Truck (also called Dongfeng Compressed garbage truck, rear load rubbish compactor, waste compression truck Dongfeng, good quality compression refuse collector, hydraulic waste compactor vehicle, 10-wheeler garbage collecting truck, refuse compressed truck for sale) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- DONGFENG chassis, perfect performance

---- CUMMINS engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



Dongfeng Refuse Compactor truck (18 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

10320 * 2500 * 3450 mm

GVW / Kerb Weight

25,000kg / 15,805kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

270 HP (198 KW)

Displacement

6700 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

6X4, (left hand drive)

Transmission

FAST 9 speed levers with 2 reverse

Wheelbase/No. of axle

4350+1350 mm / 3

Tire Specification

11.00-20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

  20cbm

Fill Hopper capacity

1.3 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
