Dongfeng 4x4 RHD pickup fire truck

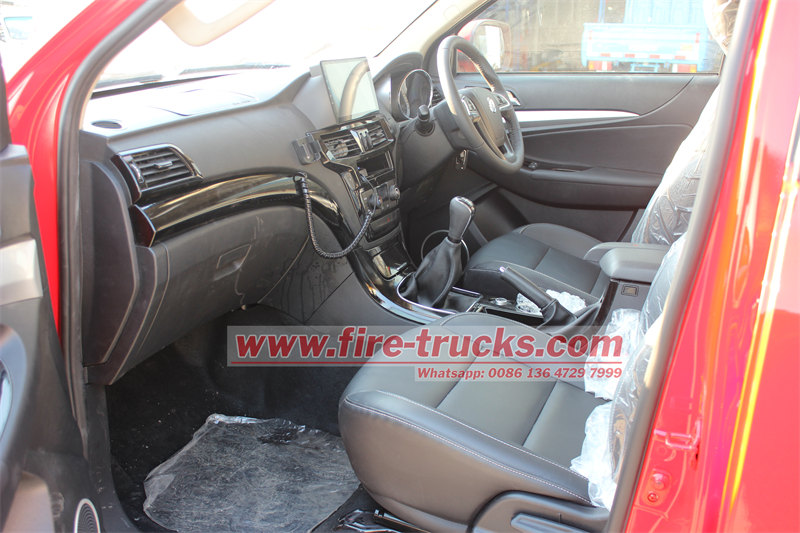

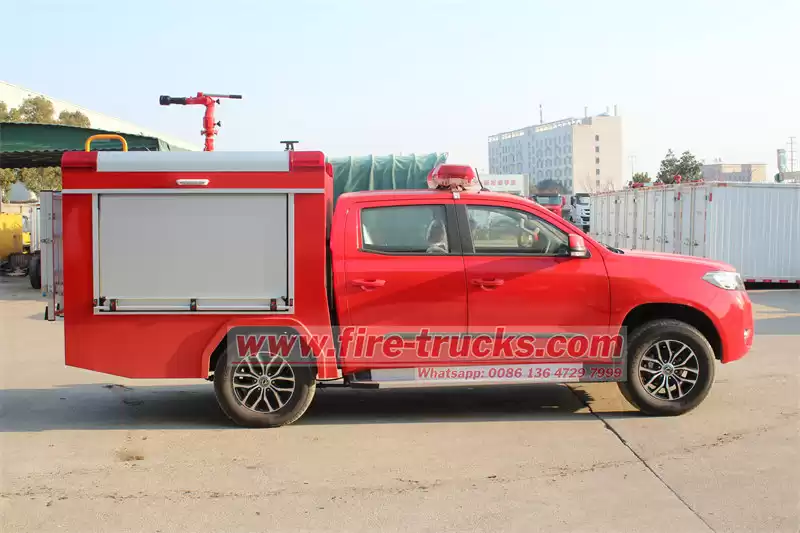

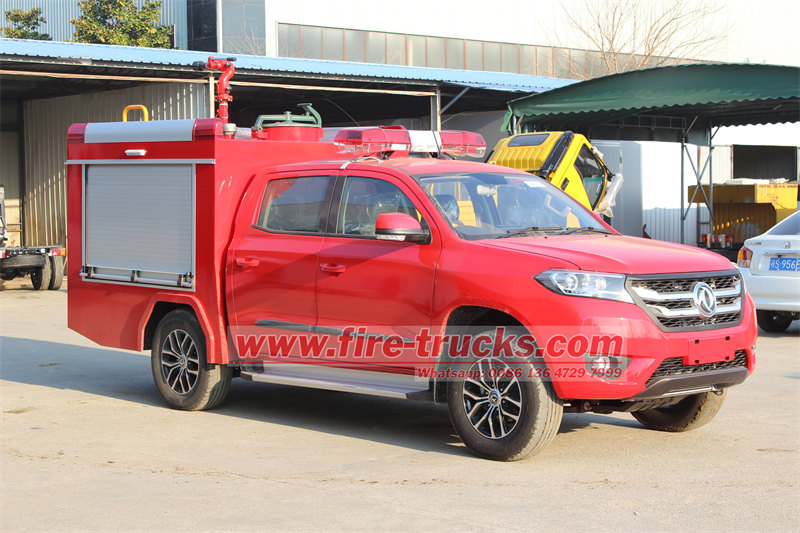

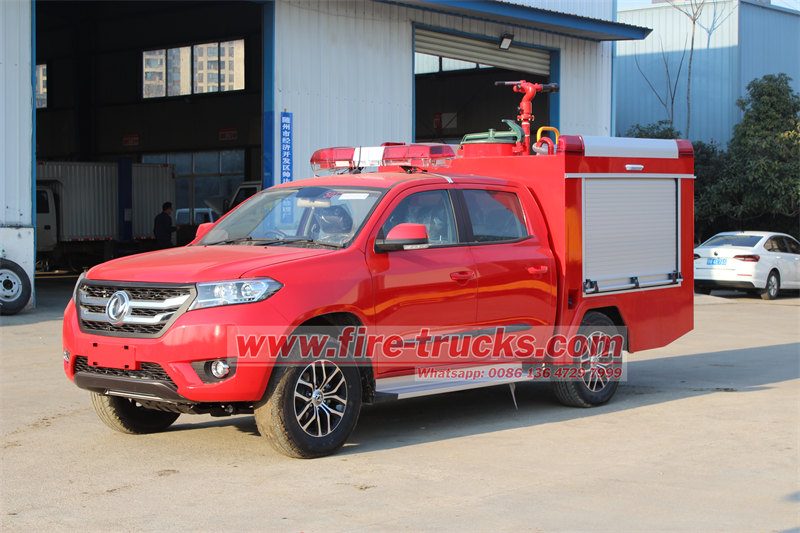

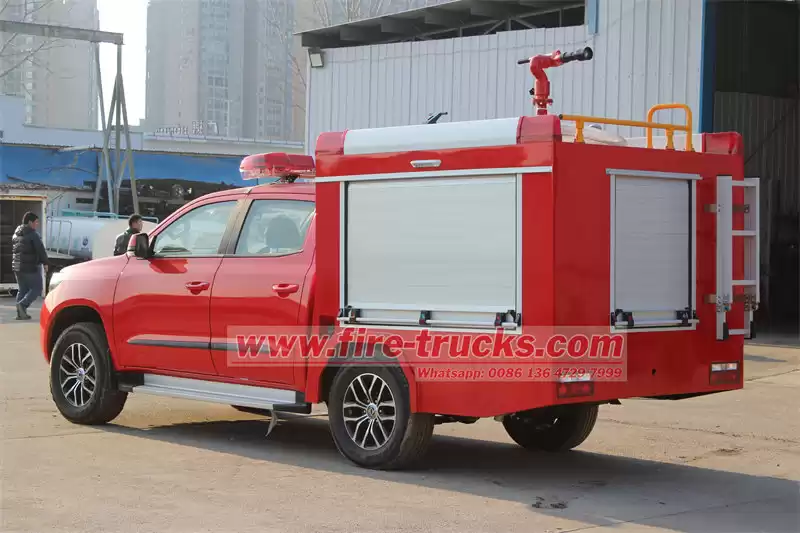

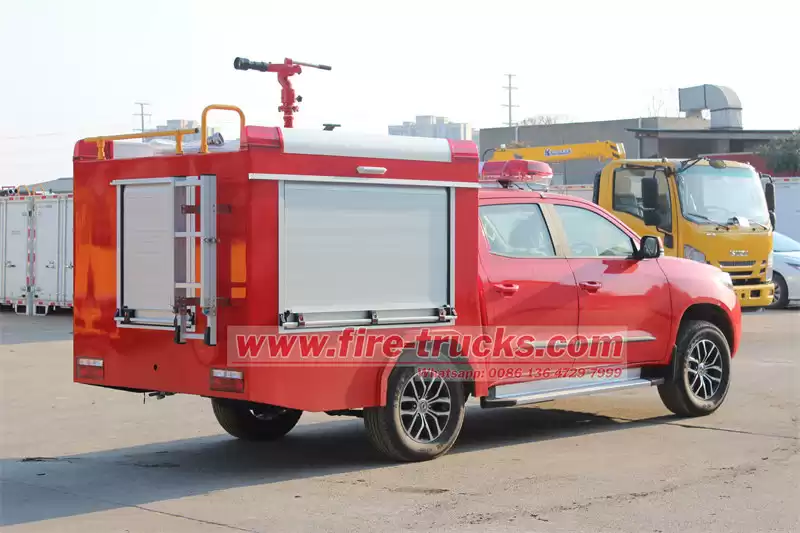

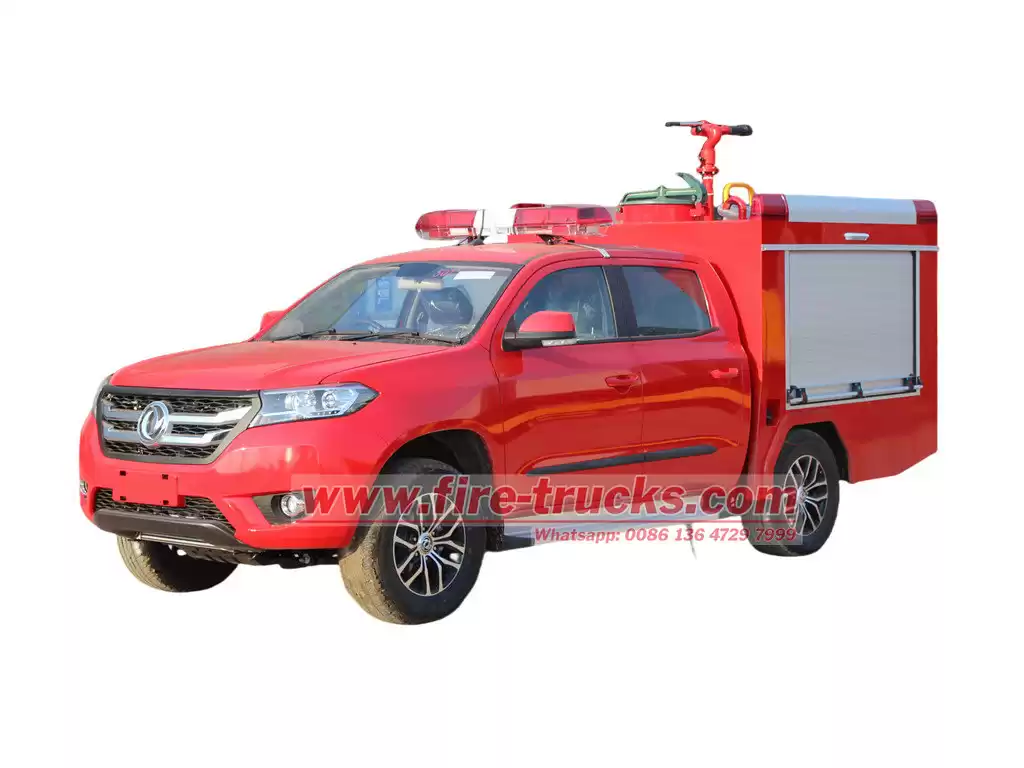

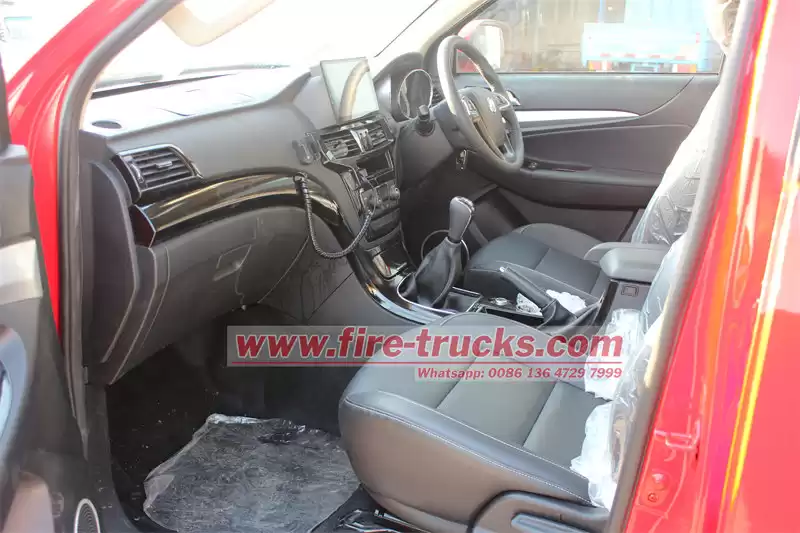

The Dongfeng 4×4 RHD pickup fire truck is a lightweight, multifunctional firefighting vehicle designed for small-scale fire scenarios, suitable for rapid firefighting operations in urban streets, rural roads, and narrow areas. Built on the Dongfeng pickup chassis, the vehicle measures 5650×1910×2640 mm (L×W×H), with a curb weight of 2200 kg and a gross vehicle weight of 2700 kg, offering excellent mobility and flexibility. The 4×4 all-wheel-drive system and right-hand drive design make it ideal for regions with right-hand traffic regulations. The crew cabin accommodates 2+3 personnel and is equipped with air conditioning to ensure comfort for firefighters in high-temperature or harsh environments.

The Dongfeng 4×4 AWD pickup fire engine features a 500-liter water tank and a 100-liter foam tank, both made of stainless steel for excellent corrosion resistance and sealing properties, ensuring long-term storage of water and foam extinguishing agents. The design of the tanks balances the need for sufficient firefighting media with the vehicle's compact size and lightweight structure. The water tank is suitable for extinguishing small fires, while the foam tank is ideal for oil or chemical fires, meeting the demands of various fire scenarios.

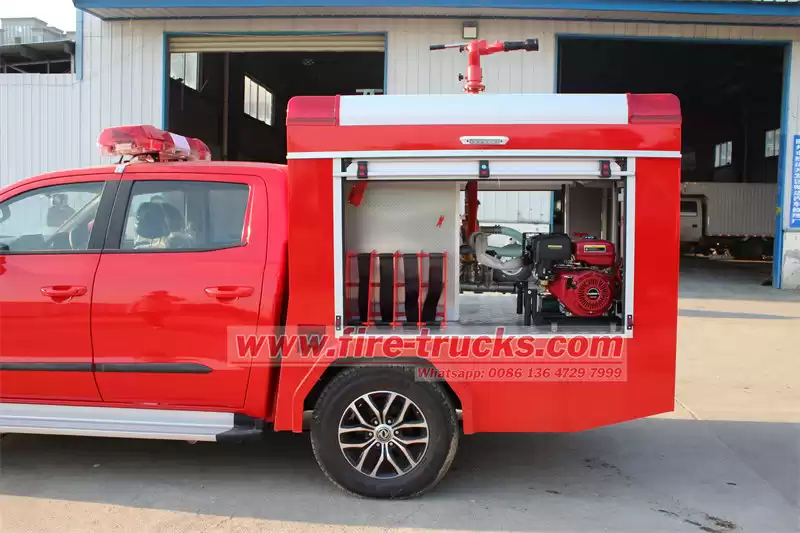

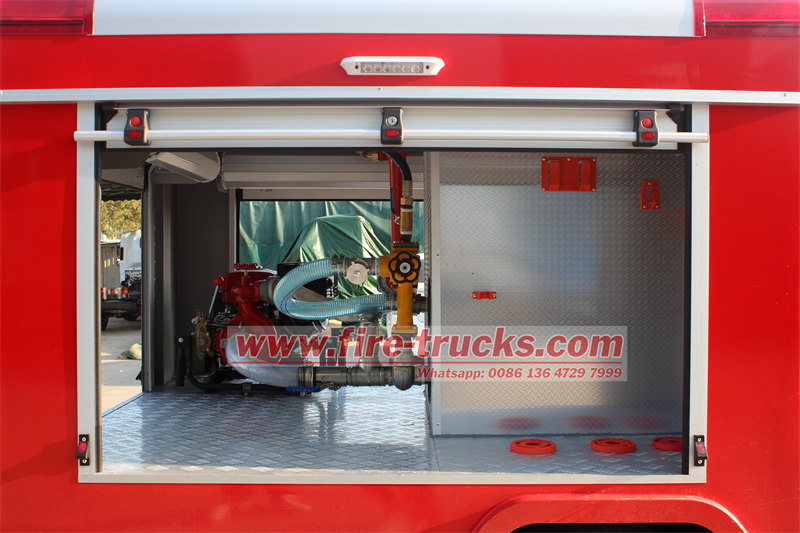

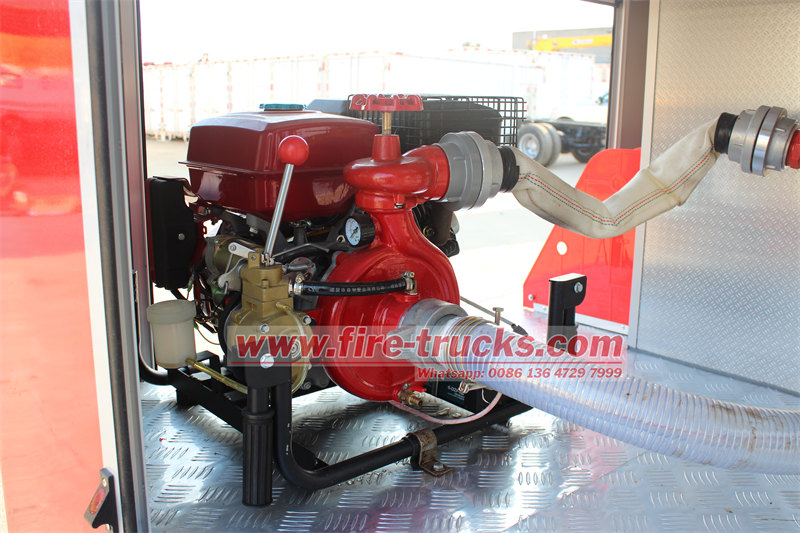

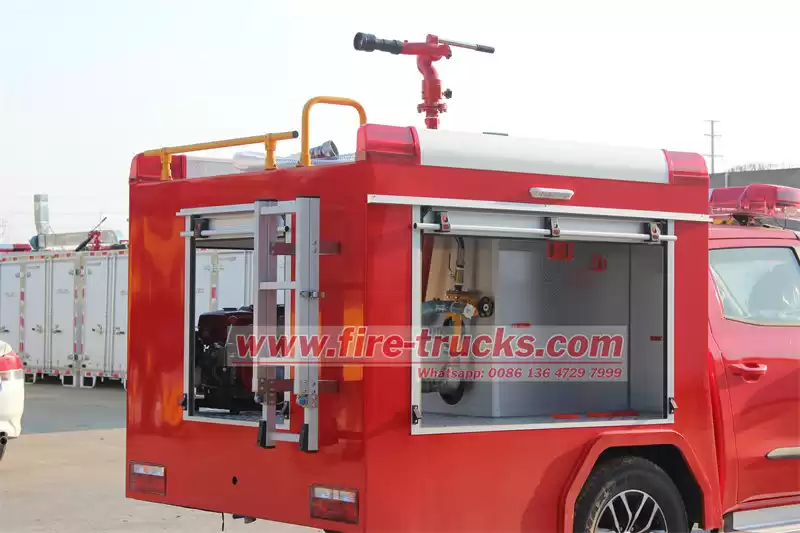

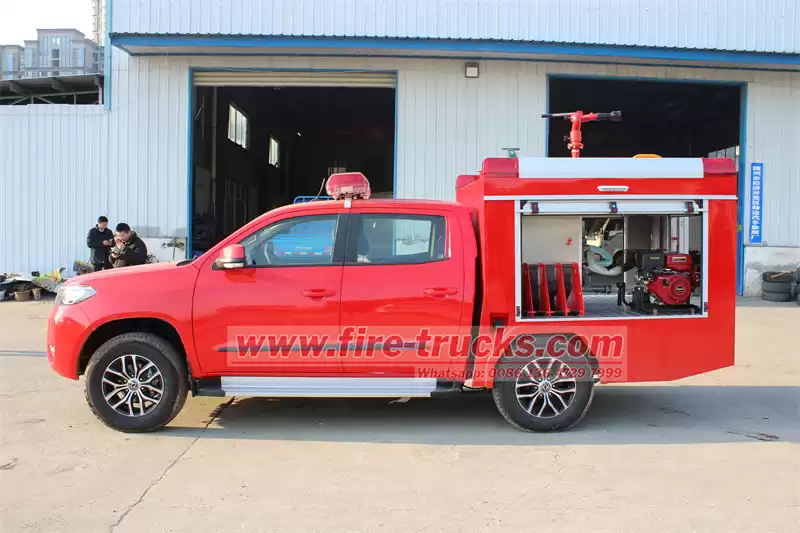

The Dongfeng 4×4 pickup firefighting truck is equipped with a portable fire pump, model JBQ4.5/9, with a maximum flow rate of 600 L/min and a maximum power of 9.6 kW (13 HP). The pump's priming time is no more than 10 seconds, enabling rapid water suction from external sources (such as hydrants or natural water bodies) and pressurization to ensure quick water supply at fire scenes. The pump supports both normal and low-pressure modes, allowing flexible adjustment of water pressure and flow based on fire type and on-site requirements.

The fire monitor, model PL24, has a range of over 35 meters in water mode and over 25 meters in foam mode. It features a pitching rotation angle of -45° to +70° and a horizontal rotation angle of 0° to 360°, providing extensive coverage. The fire monitor's flexibility and long-range capabilities make it highly effective in extinguishing small fires, particularly in urban streets and confined areas.

● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best firefighting truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements

Product Specifications

Product Application

The Dongfeng 4×4 Pickup Fire Truck is a lightweight, multi-functional fire truck specifically designed for small-scale fire scenarios. With its compact body, agile maneuverability, and efficient fire-fighting capabilities, it is suitable for various fire situations and emergency rescue tasks.

1. Urban Street Fire Fighting: In urban environments, fires often occur in narrow streets, residential areas, or commercial districts where large fire trucks have difficulty quickly entering or operating. The Dongfeng 4×4 Pickup Fire Truck, with its small size and agile maneuverability, can quickly navigate through narrow city streets to reach the fire scene. Its 500-liter water tank and 100-liter foam tank can meet the needs of small-scale fire fighting, and the fire monitor's long range and 360-degree rotation capability allow it to operate efficiently in limited spaces.

2. Rural Area Fire Fighting: In rural or remote areas, fires may occur in farmland, forests, or villages where road conditions are poor and large fire trucks cannot pass. The Dongfeng 4×4 Pickup Fire Truck features a 4×4 all-wheel drive system with good off-road capabilities, enabling it to travel on muddy, sandy, or rugged terrain to quickly reach the fire scene. Its portable fire pump can quickly draw water from natural sources such as rivers and ponds, ensuring efficient fire fighting in areas lacking fire hydrants.

3. Industrial Park and Chemical Fire Fighting: Fires in industrial parks may involve chemicals, oils, or other flammable substances, requiring special fire-extinguishing media and equipment. The Dongfeng 4×4 Pickup Fire Engine Truck is equipped with a 100-liter foam tank that can store and discharge foam extinguishants, effectively putting out oil or chemical fires. Additionally, its fire monitor supports both water and foam spraying modes, allowing for flexible switching based on the type of fire and meeting the needs of industrial fire fighting.

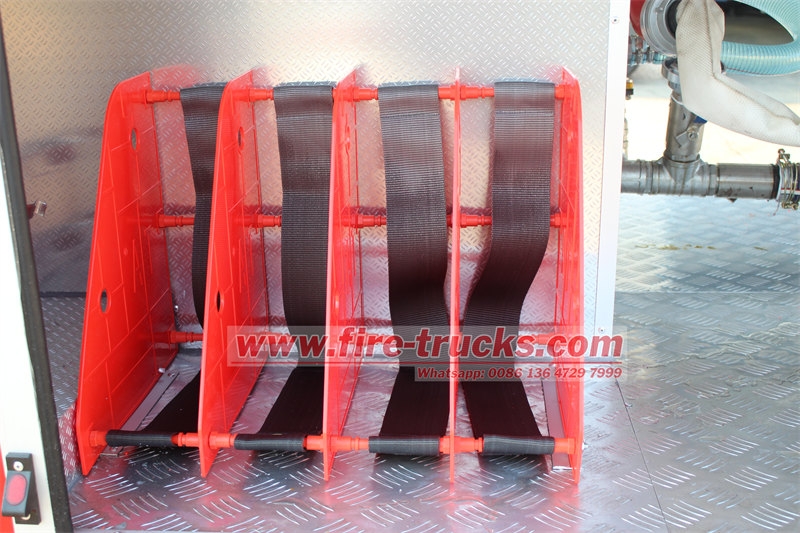

4. Initial Fire Control and Rapid Response: In the early stages of a fire, rapid response and timely control of the fire are crucial. The Dongfeng 4×4 Pickup Firefighting Truck, with its high maneuverability and quick start-up capability, can reach the scene in the first moments after a fire breaks out, using onboard fire extinguishers and hoses for initial fire fighting to prevent the fire from spreading. Its fire pump's priming time of no more than 10 seconds ensures rapid water supply, buying valuable time for controlling the fire.
