Double acting PTFE piston seals

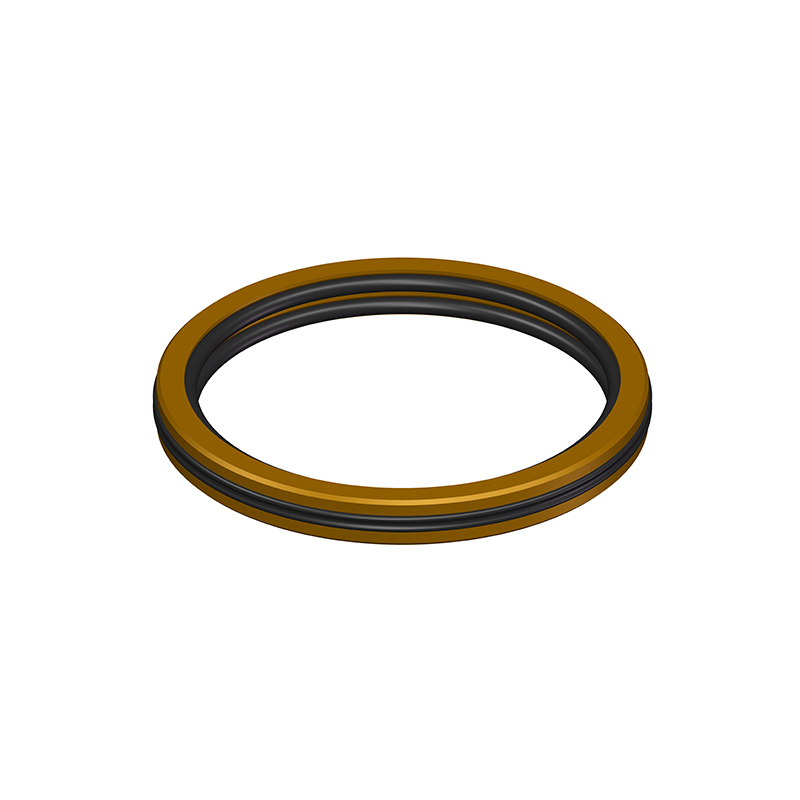

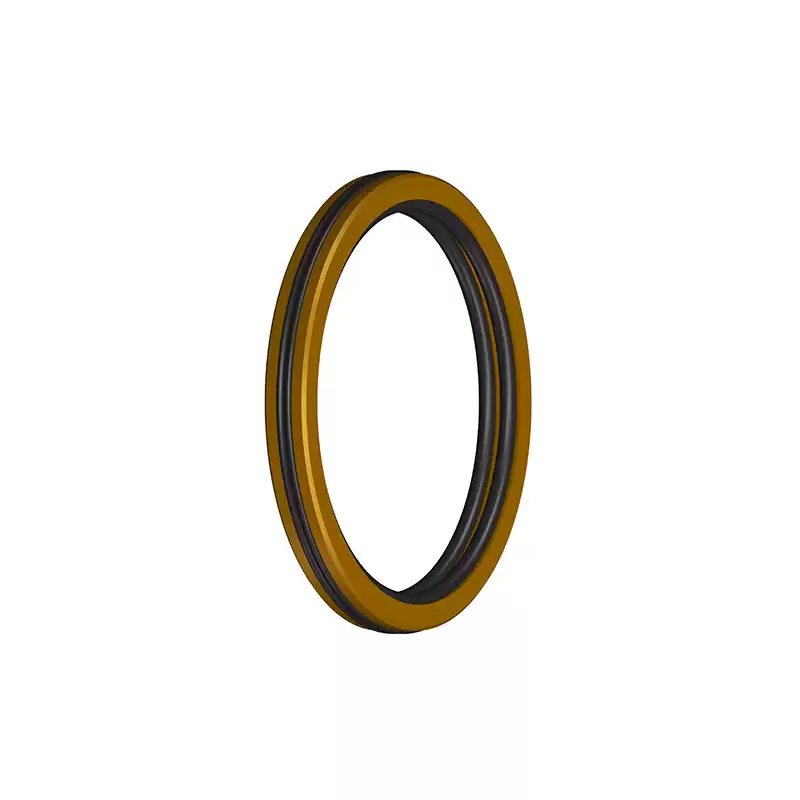

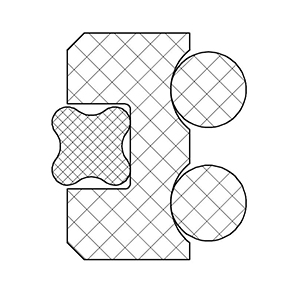

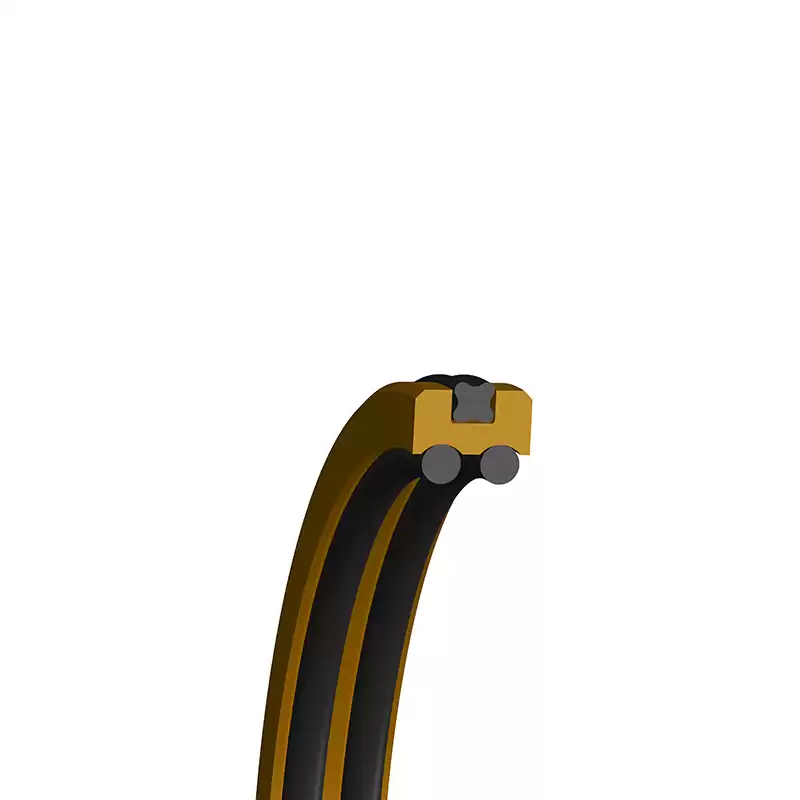

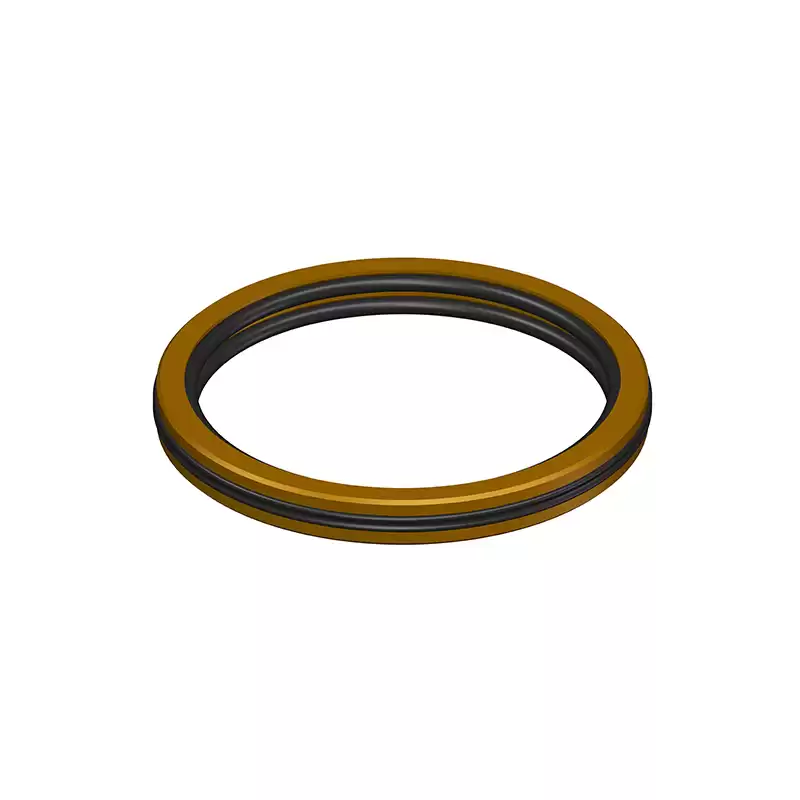

XTP is Double acting piston seals, composed of PTFE piston sealing ring, O-ring and X ring, and is used for the piston bidirectional seal of hydraulic cylinder. Especially suitable for separating two different mediums.
|
Advantages:
1.Low friction
2.Low air permeability
3.Excellent sliding characteristics
4.Good pressure holding performance, no internal leakage
|
Working Conditions
|
Working Pressure
|
Working Temperature
|
Working Speed
|
Working Medium
|
Material
|
≤60Mpa
|
-30~+110℃,
-25~+220℃
(Depends on O ring material)
|
≤3m/s
|
Mineral hydraulic oil, gas, water
|
O ring and X ring: NBR, A70±5、FKM, A75±5
|
Application Suggestion:
Suitable for reciprocating motion of the piston accumulator and the position control oil cylinder, Such as pressure equipment, machine tool, shoemaking machinery and other heavy load application and large diameter application.
Size:
Diameter: φ40-φ700mm
|
|
NO.
|
JST Item
|
Diameter of cylinder
D,mm
|
Diameter of groove
d,mm
|
Width of groove L,mm
|
Dimension of o-ring
mm
|
Dimension of X-Ring
mm
|
|
1
|
XTP0040AP2G01
|
40
|
30
|
6.3
|
29.82x2.62
|
34.65x1.78
|
|
2
|
XTP0042AP2G01
|
42
|
32
|
6.3
|
31.42x2.62
|
37.82x1.78
|
|
3
|
XTP0045AP2G01
|
45
|
35
|
6.3
|
34.59x2.62
|
37.82x1.78
|
|
4
|
XTP0048AP2G01
|
48
|
38
|
6.3
|
37.77x2.62
|
41.00x1.78
|
|
5
|
XTP0050AP2G01
|
50
|
40
|
6.3
|
39.34x2.62
|
44.17x1.78
|
|
6
|
XTP052AZP2G01
|
52
|
42
|
6.3
|
40.94x2.62
|
47.35x1.78
|
|
7
|
XTP055AZP2G01
|
55
|
45
|
6.3
|
44.12x2.62
|
50.52x1.78
|
|
8
|
XTP060AZP2G01
|
60
|
50
|
6.3
|
48.90x2.62
|
53.70x1.78
|
|
9
|
XTP063AZP2G01
|
63
|
53
|
6.3
|
52.07x2.62
|
56.87x1.78
|
|
10
|
XTP065AZP2G01
|
65
|
55
|
6.3
|
53.64x2.62
|
60.05x1.78
|
|
11
|
XTP070AZP2G01
|
70
|
60
|
6.3
|
58.42x2.62
|
63.22x1.78
|
|
12
|
XTP075AZP2G01
|
75
|
65
|
6.3
|
63.17x2.62
|
69.57x1.78
|
|
13
|
XTP080BZP2G01
|
80
|
67
|
8.3
|
66.27x3.53
|
71.12x2.62
|
|
14
|
XTP085BZP2G01
|
85
|
72
|
8.3
|
69.44x3.53
|
75.87x2.62
|
|
15
|
XTP090BZP2G01
|
90
|
77
|
8.3
|
75.79x3.53
|
82.22x2.62
|
|
16
|
XTP095BZP2G01
|
95
|
82
|
8.3
|
78.97x3.53
|
82.22x2.62
|
|
17
|
XTP100BZP2G01
|
100
|
87
|
8.3
|
85.32x3.53
|
88.57x2.62
|
|
18
|
XTP105BZP2G01
|
105
|
92
|
8.3
|
91.67x3.53
|
94.92x2.62
|
|
19
|
XTP110BZP2G01
|
110
|
97
|
8.3
|
94.84x3.53
|
101.27x2.62
|
|
20
|
XTP115BZP2G01
|
115
|
102
|
8.3
|
101.19x3.53
|
107.62x2.62
|
|
21
|
XTP120BZP2G01
|
120
|
107
|
8.3
|
104.37x3.53
|
107.62x2.62
|
|
22
|
XTP125BZP2G01
|
125
|
112
|
8.3
|
110.72x3.53
|
113.97x2.62
|
|
23
|
XTP130BZP2G01
|
130
|
117
|
8.3
|
113.89x3.53
|
120.32x2.62
|
|
24
|
XTP135CZP2G01
|
135
|
117
|
12.3
|
113.67x5.33
|
123.42x3.53
|
|
25
|
XTP140CZP2G01
|
140
|
122
|
12.3
|
120.02x5.33
|
126.60x3.53
|
|
26
|
XTP150CZP2G01
|
150
|
132
|
12.3
|
129.54x5.33
|
136.12x3.53
|
|
27
|
XTP160CZP2G01
|
160
|
142
|
12.3
|
139.07x5.33
|
145.65x3.53
|
|
28
|
XTP170CZP2G01
|
170
|
152
|
12.3
|
148.49x5.33
|
158.35x3.53
|
|
29
|
XTP180CZP2G01
|
180
|
162
|
12.3
|
158.12x5.33
|
164.70x3.53
|
|
30
|
XTP190CZP2G01
|
190
|
172
|
12.3
|
170.82x5.33
|
177.40x3.53
|
|
31
|
XTP200CZP2G01
|
200
|
182
|
12.3
|
177.17x5.33
|
183.75x3.53
|
|
32
|
XTP210CZP2G01
|
210
|
192
|
12.3
|
189.87x5.33
|
196.45x3.53
|
|
33
|
XTP220CZP2G01
|
220
|
202
|
12.3
|
196.22x5.33
|
202.80x3.53
|
|
34
|
XTP230CZP2G01
|
230
|
212
|
12.3
|
208.92x5.33
|
215.50x3.53
|
|
35
|
XTP240CZP2G01
|
240
|
222
|
12.3
|
221.62x5.33
|
215.50x3.53
|
|
36
|
XTP250CZP2G01
|
250
|
232
|
12.3
|
227.97x5.33
|
234.55xx3.53
|
|
37
|
XTP280CZP2G01
|
280
|
262
|
12.3
|
253.37x5.33
|
266.29x3.53
|
|
38
|
XTP300CZP2G01
|
300
|
282
|
12.3
|
278.77x5.33
|
278.99x3.53
|
|
39
|
XTP320CZP2G01
|
320
|
302
|
12.3
|
291.47x5.33
|
304.39x3.53
|
|
40
|
XTP350CZP2G01
|
350
|
332
|
12.3
|
329.57x5.33
|
329.79x3.53
|
|
41
|
XTP400CZP2G01
|
400
|
382
|
12.3
|
380.37x5.33
|
380.57x3.53
|
|
42
|
XTP420CZP2G01
|
420
|
402
|
12.3
|
405.26x5.33
|
380.59x3.53
|
|
43
|
XTP450CZP2G01
|
450
|
432
|
12.3
|
430.66x5.33
|
430.66x3.53
|
|
44
|
XTP480DZP2G01
|
480
|
449
|
16.3
|
433.36x6.99
|
456.06x5.33
|
|
45
|
XTP500DZP2G01
|
500
|
469
|
16.3
|
468.76x6.99
|
456.06x5.33
|
|
46
|
XTP600DZP2G01
|
600
|
569
|
16.3
|
557.66x6.99
|
557.58x5.33
|
|
47
|
XTP700DZP2G01
|
700
|
669
|
16.3
|
658.88x6.99
|
658.88x5.33
|
