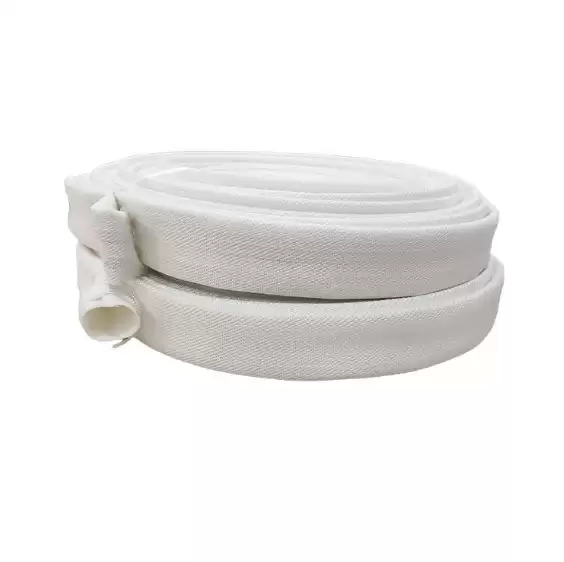

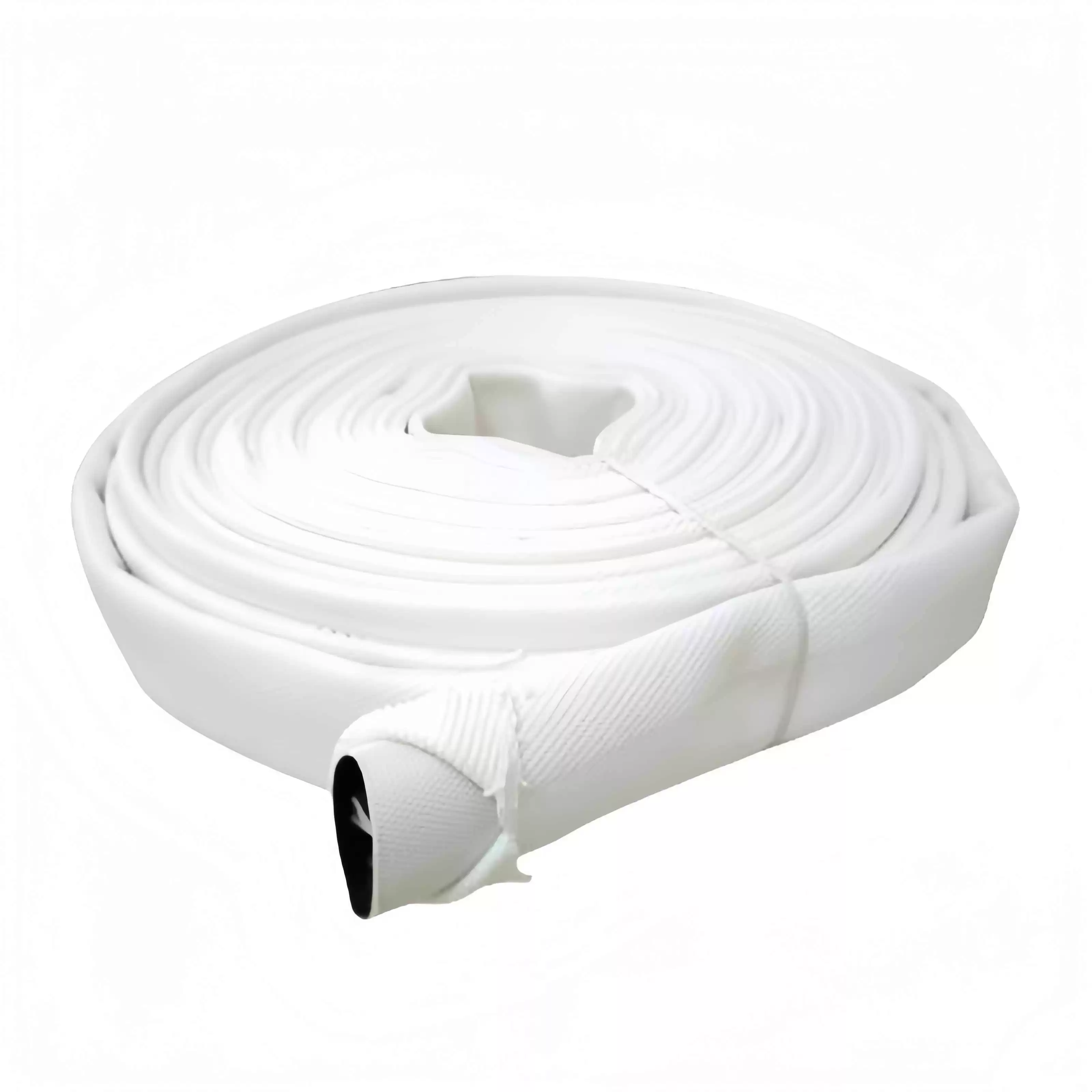

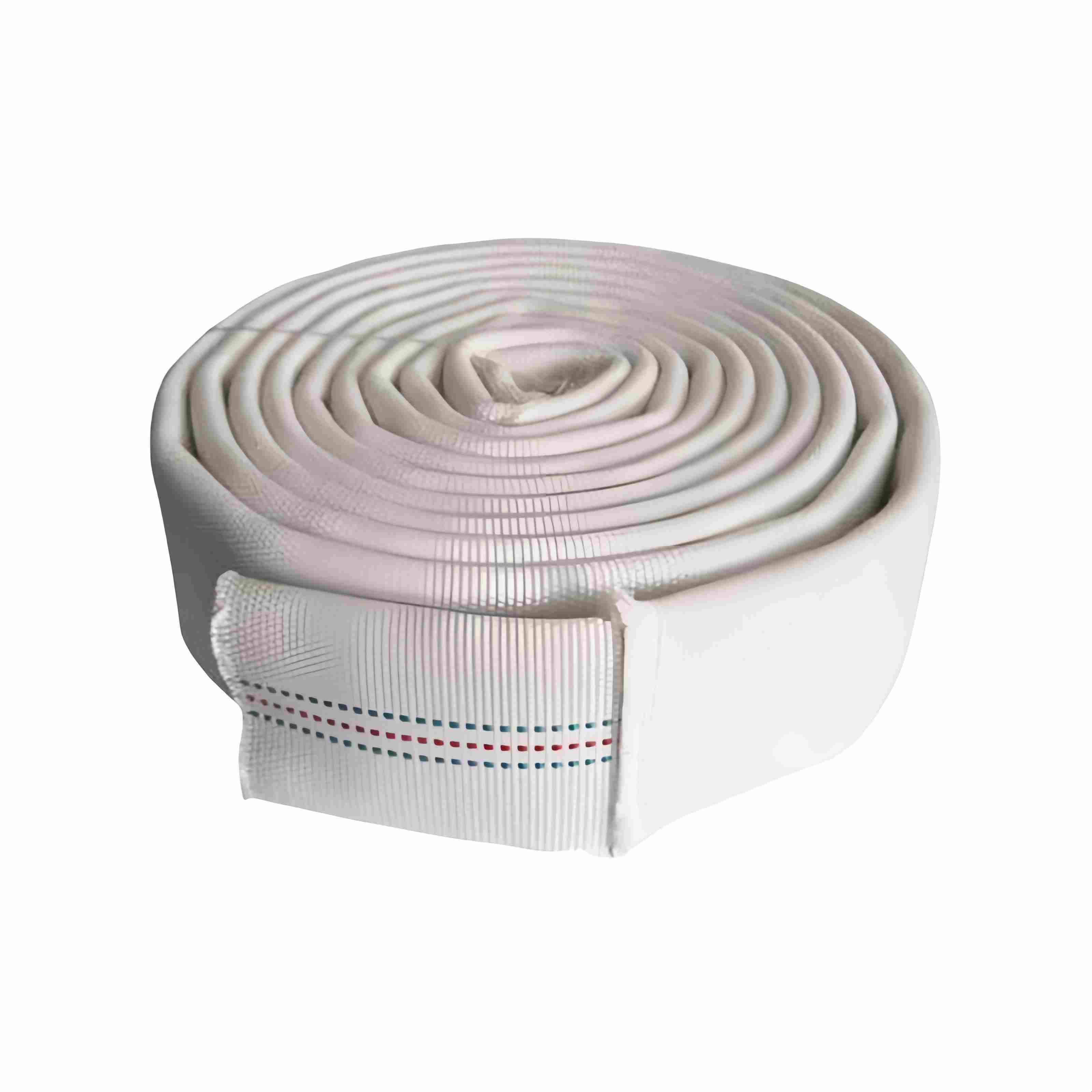

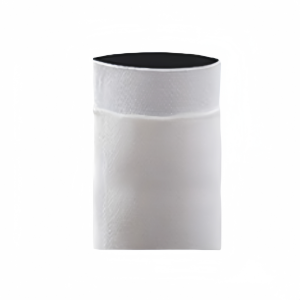

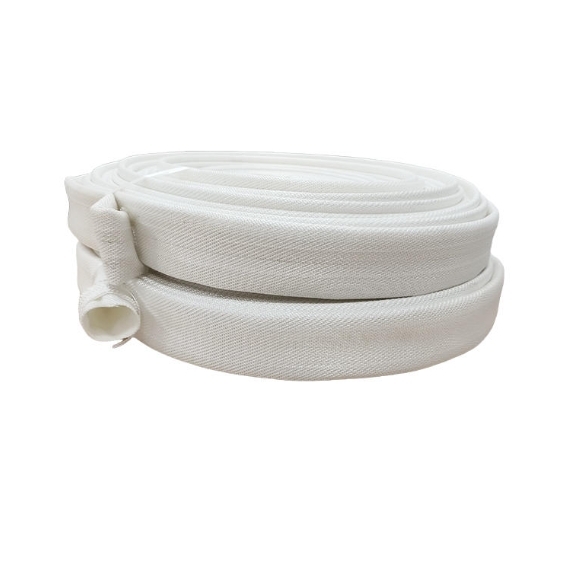

Double Jacket Fire Hose

The double jacket hose features two layers of woven yarn (typically polyester or polyester-cotton blend) that are twisted together around the inner tube.



Products Description

  Double Jacket Fire Hose is a heavy-duty fire hose designed for high-pressure firefighting and industrial applications. It features a dual-layer woven jacket (typically polyester or synthetic fiber) with an internal rubber or thermoplastic lining, providing exceptional strength and durability. This hose is widely used by professional fire departments, industrial facilities, and military operations due to its reliability under extreme conditions.

The double jacket design of this fire hose makes it more robust and durable. The inner layer is woven from high-strength fibers that can withstand high pressure water flow without breaking. The outer layer is made of wear-resistant canvas material, which can effectively protect the inner layer and increase the overall durability. This double jacket structure makes the hose safer and more reliable during use.



Features

 • Deliver water faster and large volume as supply line hose.

 • Superior Strength & Durability

 • Superior adhesion strength and low kinking performance.

 • The color treatment on outer jacket increases abrasion and mildew resistance

 • High Burst Pressure and Reliability

Products Parameters

Normal Size Working Pressure Burst Pressure
Inch mm Psi Bar Psi Bar
1" 25 230,362,724 16,25,50 700,1087,2175 48,75,150
1-1/2" 38 230,362,724 16,25,50 700,1087,2175 48,75,150
2" 52 230,290,362,435 16,20,25,30 700,870,1087,1305 48,60,75,150
2-1/2" 65 230,290,362,435 16,20,25,30 700,870,1087,1305 48,60,75,150
3" 76 145,190,230 10,13,16 435,580,700 30,39,48
4" 102 145,190,230 10,13,16 435,580,700 30,39,48

FAQ

Q:What’s the MOQ for your fire hose?

A:300 Rolls.


Q:Can you accept sample order?

A:Yes,we accept samples with little and reasonable charge.But need customer pay sample fees and transport fees firest.


Q:What is your payment terms?

A:Payment supports T/T, L/C, etc.


Q:How can I get my oeder?

A:We will send you the goods by UPS,DHL,Fedex,Oversea Shipment or other forwarder,all with tracking number.


Q:Why choose us?

A;With over 20 years of experience in the fire protection industry, our company has professional technical personnel and many well-known partners in the domestic market. We offer favorable prices and guarantee quality, having passed multiple certifications!
