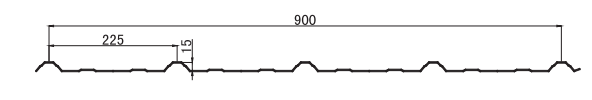

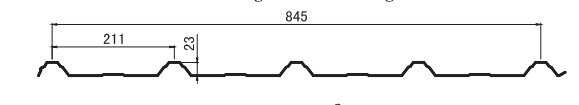

Double Layer Roof Panel Roll Forming Machine for YX845&900 profile

Produce different roof panel size in one machine






          YX845&900 double layer Roof Panel Forming Machine

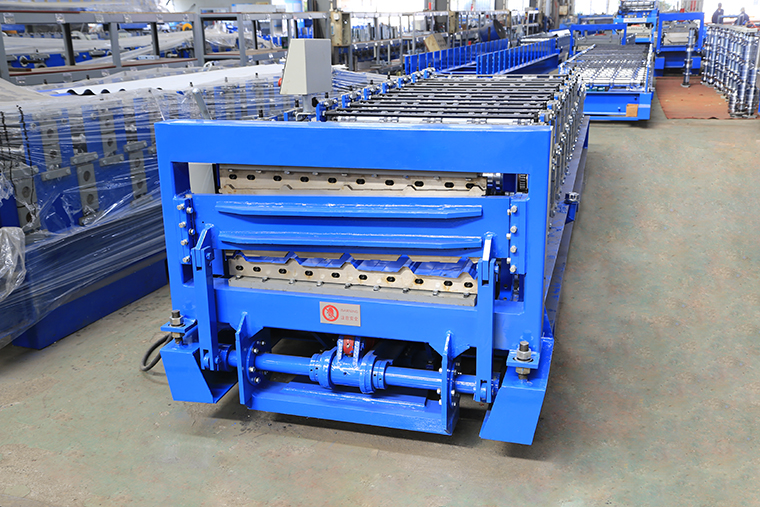

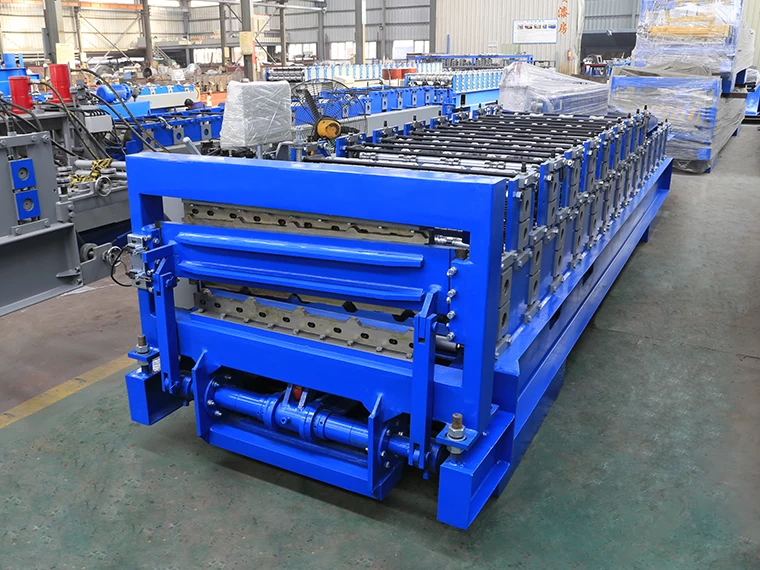

Double Layer Roof Panel Roll Forming Machine



1.Main features of roof panel forming machine



    The advantages of roof panel machine are as follows:

    1.Produce different roof panel size in one machine

    2.Save spacemore convenient.

    3.Easy operation, low maintenance cost

    4.Stable and durable ,Sea freight for import can be saved by 50%



2.Detailed Images of YX845&900 roof panel forming machine



    Machine Parts

        1) YX845&900 double layer roof panel machine feeding guide

        Brand: BMS    Original: China

        Make material feeding more smoothly



      Double Layer Roof Panel Roll Forming Machine

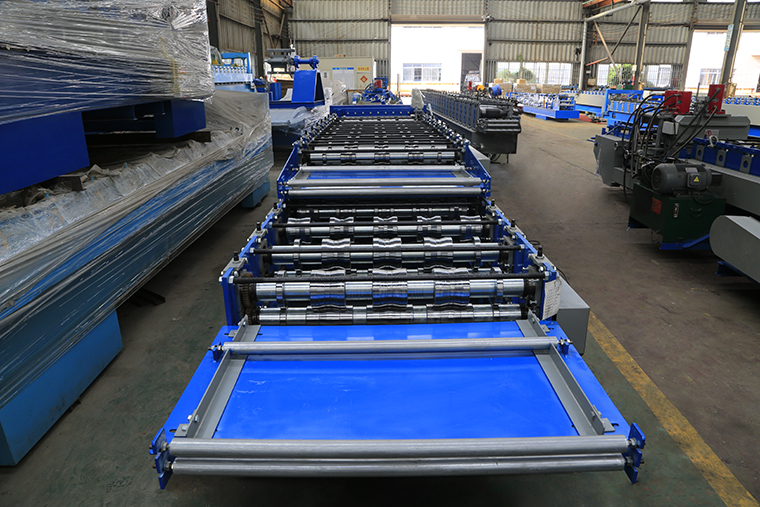

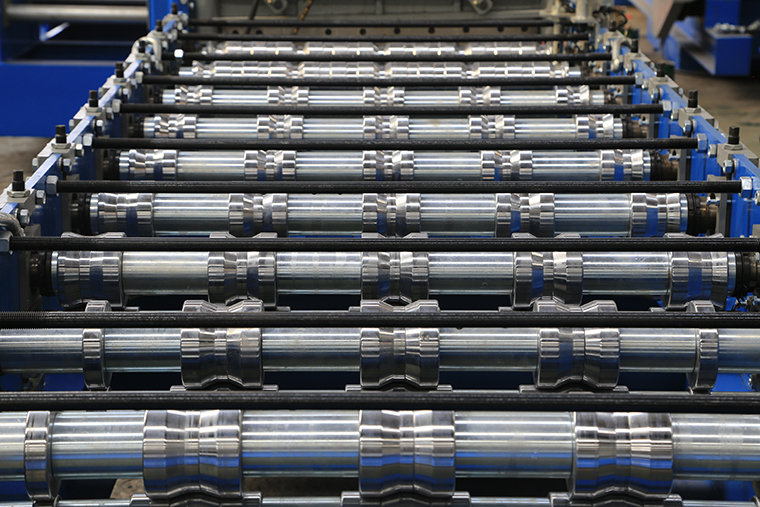

        2) YX845&900 double layer roof panel machine rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 300# H type steel by welding



Double Layer Roof Panel Roll Forming Machine

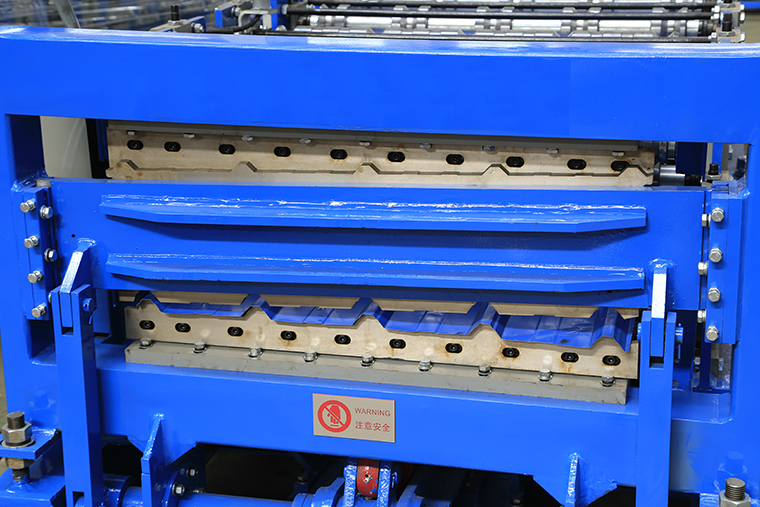

       3) YX845&900 double layer roof panel machine post cutter

        Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 25mm steel plate by welding
        Hydraulic motor:2.2 KW, Hydraulic pressure range: 0-16Mpa



Double Layer Roof Panel Roll Forming Machine

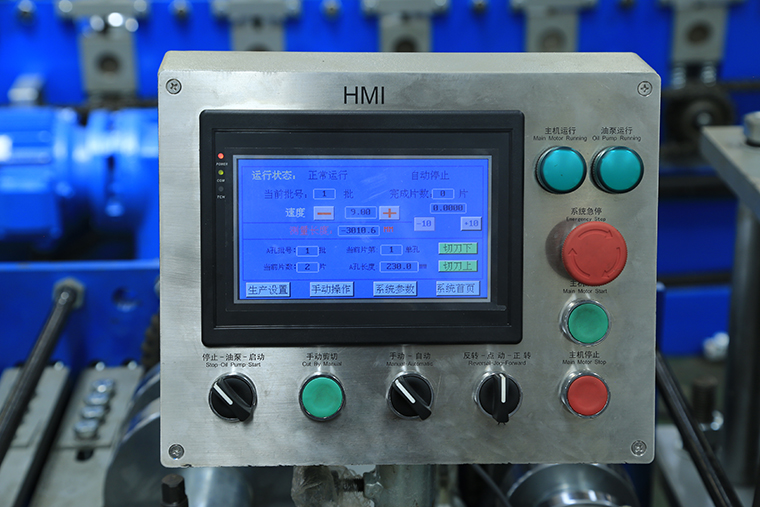

        4) YX845&900 double layer roof panel machine touching screen

        Easy to operate



Double Layer Roof Panel Roll Forming Machine



        5) YX845&900 double layer roof panel machine decoiler

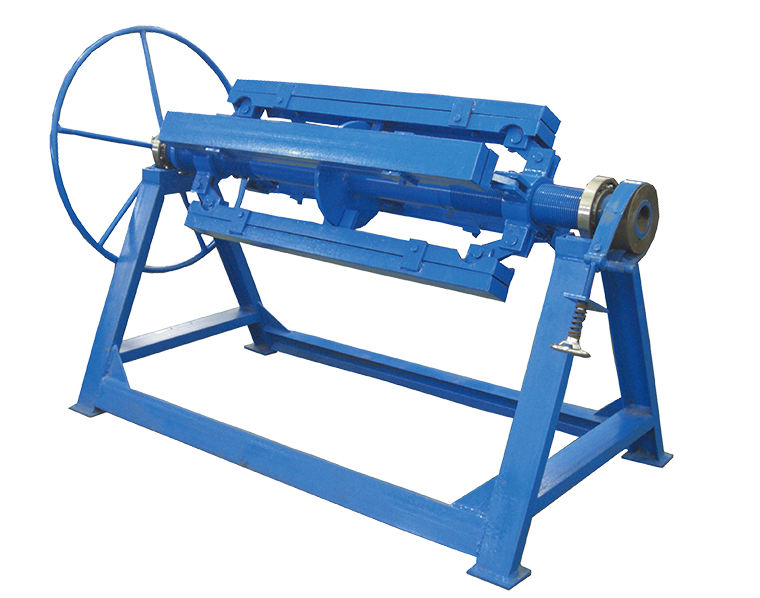

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1250mm, coil ID range 470mm±30mm

        Capacity: Max. 8 Ton





Double Layer Roof Panel Roll Forming Machine

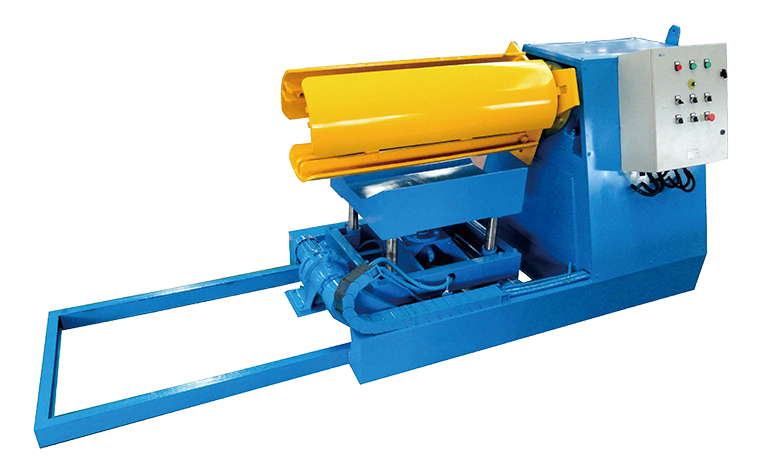

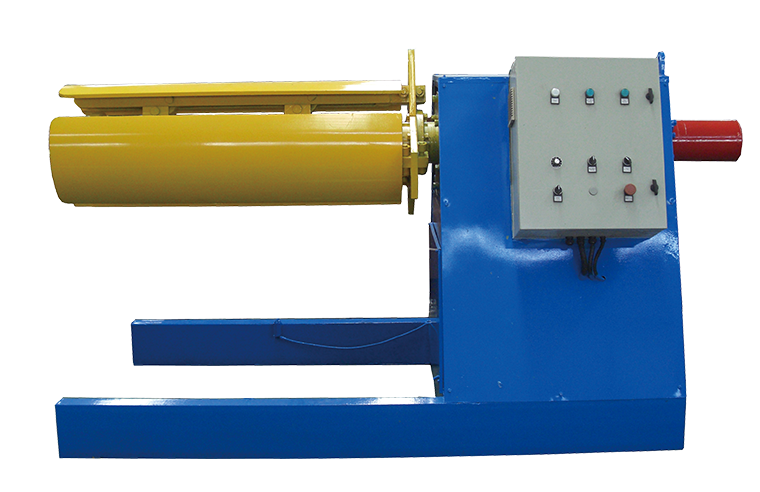

        With 6 tons hydraulic decoiler for option

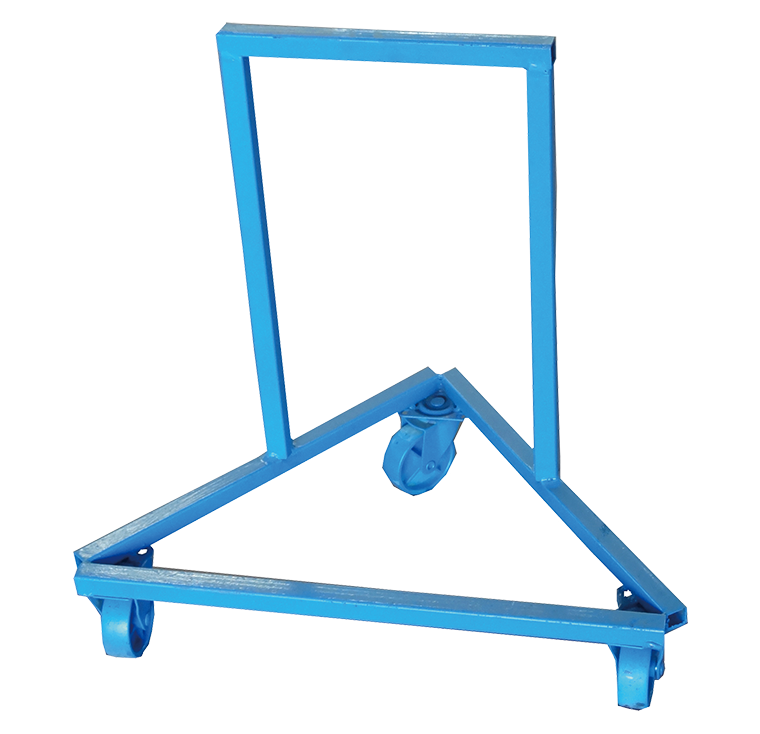

        6) YX845&900 double layer roof panel machine exit rack

        Un-powered,one unit





Other detailes of YX845&900 double layer roof panel machine



Suitable for material with thickness 0.3-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission,14/9 forming stations

Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



For the more detail click here to see the video:

http://www.rollforming-machinery.com/Quick-change-Type-C-Purlin-Roll-Forming-Machine_n26



After-sale service of roof panel machine



1. The warranty of roof panel machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
