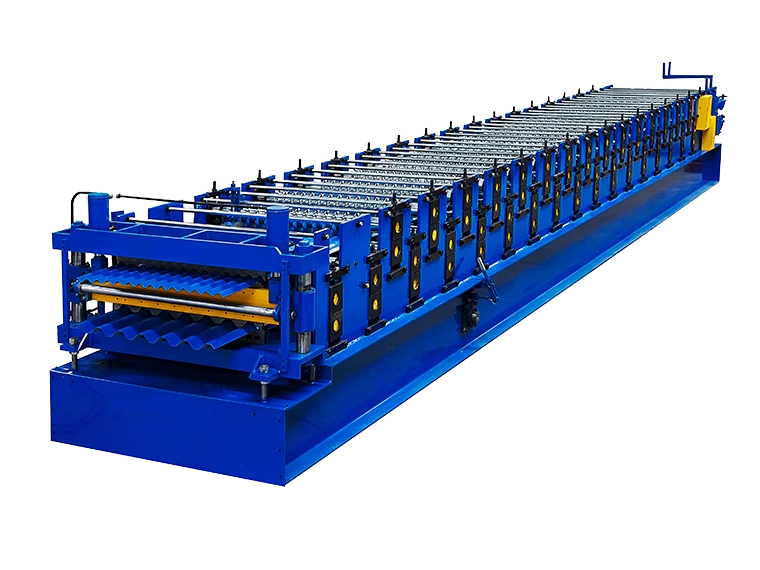

Double Layer Roll Forming Machine for Corrugated Panel and Roof Panel

Double Layer Roll Forming Machine can roll form two different roofing profiles without changing anything because it has two layers. Upper and lower can rollform different profiles. Besides,the sea freight for import is saved by 50%.It is popular choice of both new entrepreneurs and established metal building manufacturers.

The advantages of Quick Change type Purlin Roll Forming Machine when comparing with Traditional Channel Machines are as follows:

1.Produce different roof panel size in one machine

2.Save space

3.Easy operation, low maintenance cost





Details of Double Layer Roof Panel Machine


Material Thickness(&):0.3-0.8mm

Applicable material:Applicable material:Painting Steel,

Galvanized Steel,Tension Grade: 245Mpa or 550Mpa,


Machine Components


1)Manual Decoiler: one set
Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton



2)   Cold Rolling Mills:

With feeding material guide, body frame made from 350# H type steel by welding
Rollers manufactured from bearing steel GCr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust);Shafts manufactured from 45#,Main shaft Diameter=φ85mm,precision machined
Motor Driving,Gear chain transmission, 18/18 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling)

Main Motor=7.5KW  , Frequency speed control

Forming speed approx.12-18m/min


3)Hydraulic Cutting device


Cutter frame made from high quality 25mm steel plate by welding hydraulic motor: 2.2KW, Hydraulic pressure range: 0-12Mpa

Cutting tool material: Cr12Mov, Heat treatment


4)PLC Control System


(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss

,Encoder brand: Japan Koyo)

Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±1mm

Control Voltage 24V


5) Exit Rack

Un-powered, two units


Terms of trade

1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 30 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,  Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
