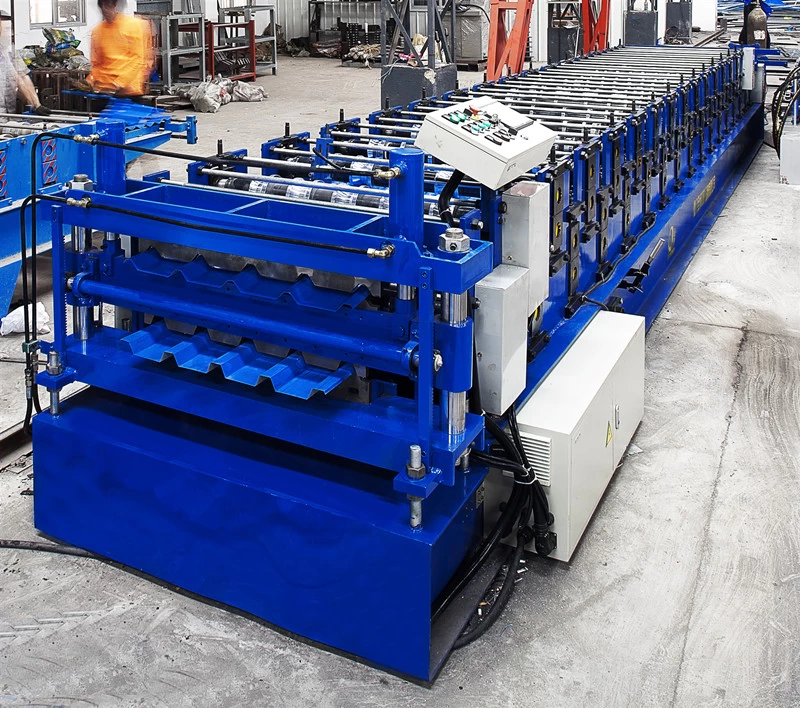

Double Layer Roof Sheet Roll Forming Machine

Double layer forming machine is one machine that can achieve two different roof type, not only save your cost but also your space.



The advantage of roof panel machine are as follows:
1.We are the first and only factory who have a whole Baking Finishing Line to treat the spare parts
2.Low cost, light weight but high strength, short building period, and re-cycle use
3.With computer controlled system which easy to operate and save time and material
4.Metal roof panel or sheeting features light weight, durability, recyclability, etc.

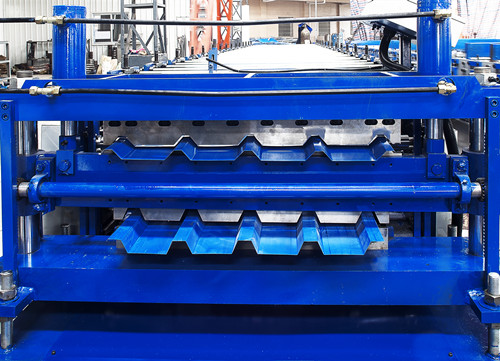

One Machine, Two Size

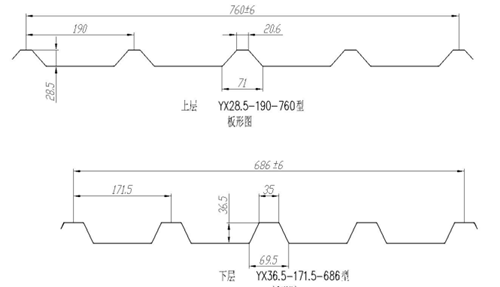

Profile drawing


Machine parts
1.Roof panel machine pre-cutter
This cutter with feeding material guide is easy to operation, and can avoid wasting material.

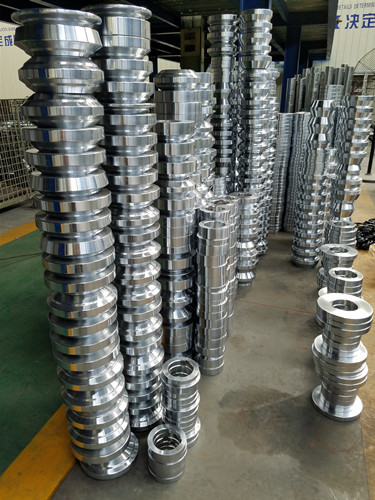

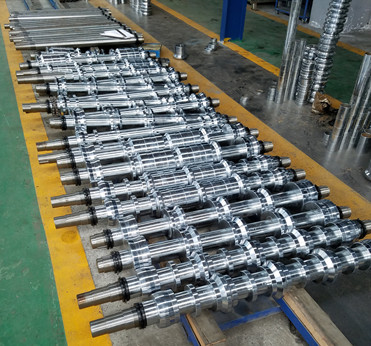

2.roof panel machine rollers
The rollers are made of high quality 45# steel with CNC lathes, heat treatment.
With different demand we have black treatment or hard-chrome coating for options
Body of the machine made from H400# type steel by welding.


3.Roof panel machine post cutter
This post cutter made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor: 3.0KW
Hydraulic pressure range: 1-16Mpa


4.Roof panel machine protection cover

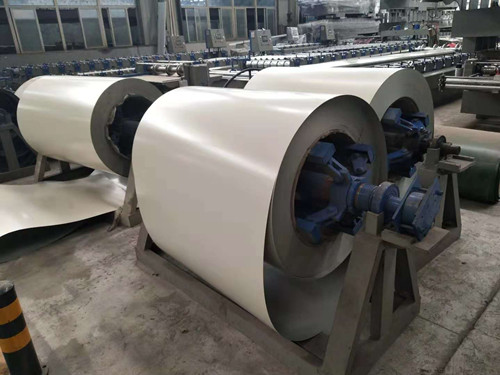

5.Uncoiler
Manual decoiler: 1 set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max.feending width: 1200mm, coil id range 508mm±30


With hydraulic uncoiler for your option

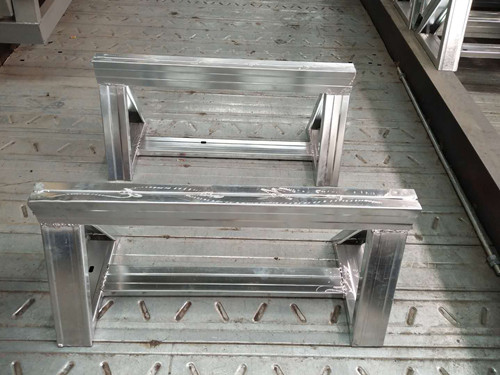

6.Exit rack
Un-powered, three units



7. Machine Size and Weight

Size: 10M *1.4M*1.2M

Weight: 10T
