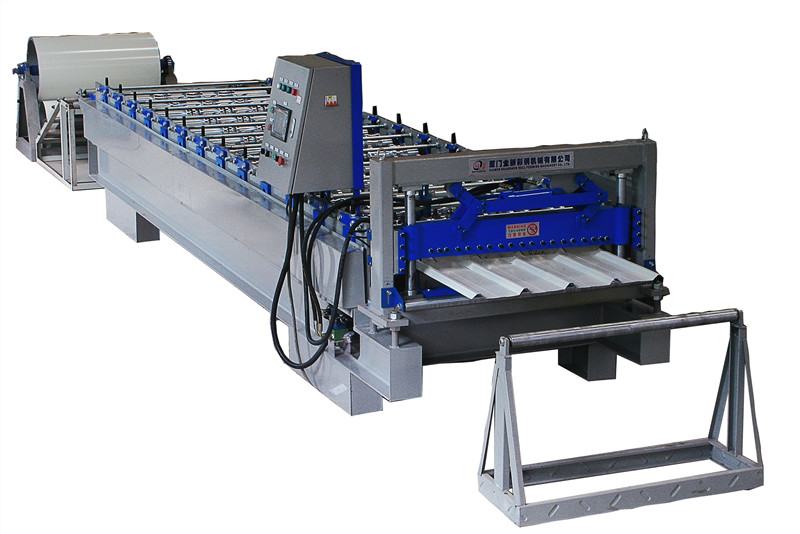

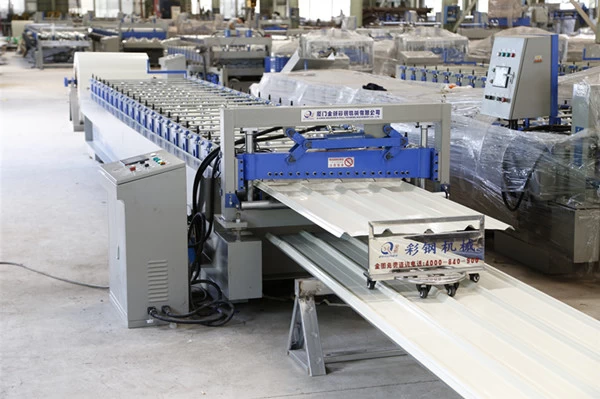

Roof Roll Forming Machine

Roof tile is popular these years because of its high efficiency, reasonable price, unmatched quality and reliability.



The advantage of roof panel machine are as follows:
1.We are the first and only factory to have a whole Baking Finishing Line to treat the spare parts
2.Low cost, light weight but high strength, short building period, and re-cycle use
3.With computer controlled system which easy to operate and save time and material
4.Metal roof panel or sheeting features light weight, durability, recyclability, etc.


We also can do customized size according to your drawings or requirements.


Profile drawing



Main Technical Parameters:

Technical Parameter

Description

Material Thickness

0.6-0.8mm

Material Width

   1000mm

Effective Width

840mm

Forming Station

13,16,20 steps

Motor power

5.5, 11.0 Kw

Weight

6500KG


Machine parts
1.Roof panel machine pre-cutter
With feeding material guide, avoid wasting material

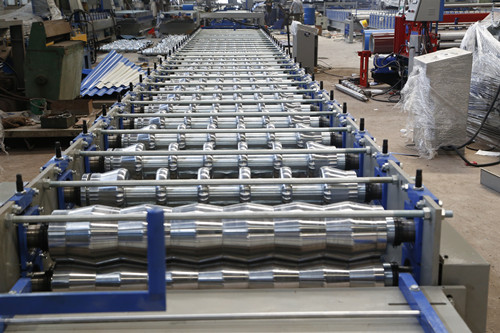

2.Roof panel machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, heat treatment.
With black treatment or hard-chrome coating for options
Body frame made from 350#H type steel by welding.

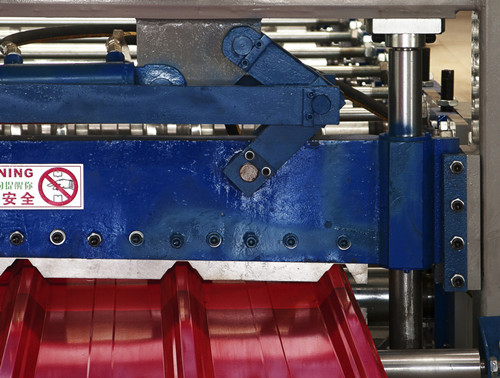

3.Roof panel machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor: 4KW
Hydraulic pressure range: 1-16Mpa


4.Roof panel machine protection cover

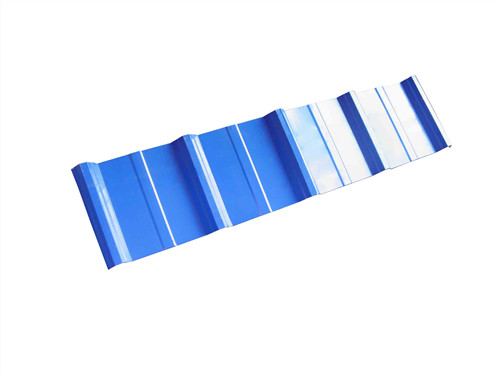

5.Product show


6.Uncoiler
Manual dedoiler: 1 set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max.feending width: 1200mm, coil id range 508mm±30

With hydraulic uncoiler for option


7.Exit rack
Un-powered, three units
