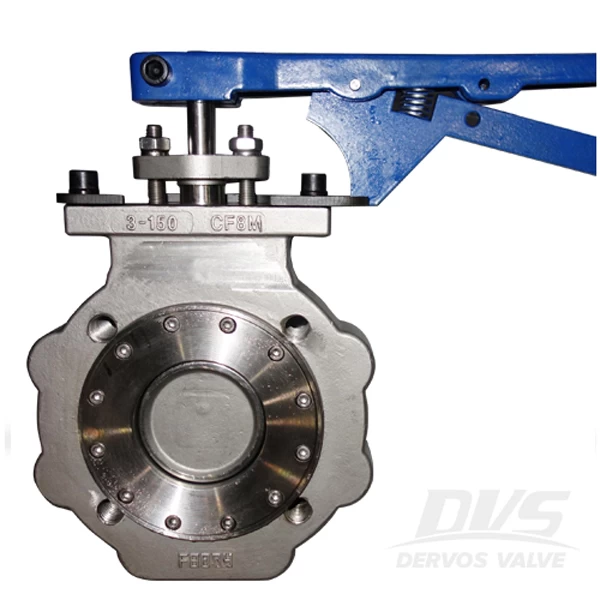

Double Offset High Performance Butterfly Valve CF8M 3 Inch


  • MaterialStainless Steel Butterfly Valve
  • Method of OperationLever Butterfly Valve, Manual Butterfly Valve

The double offset high performance butterfly valve, with lever operation and lug body, is designed per API 609. The CF8M body and PTFE seat butterfly valve is more durable in serving the application.


Quick Detail

Type

Butterfly Valve

Size

3''

Design Pressure

150LB

Construction

Double Eccnetric, Soft Seat

Connection Type

Lug

Operation

Wrench Operated

Design Code

API 609

Face to Face

ASMEB16.10

End Connection

ASMEB16.5

Test & Inspection

API 598

Body Material

Stainless Steel CF8M

Temperature Range

-29℃~+150℃

Application

Water, Oil, Gas

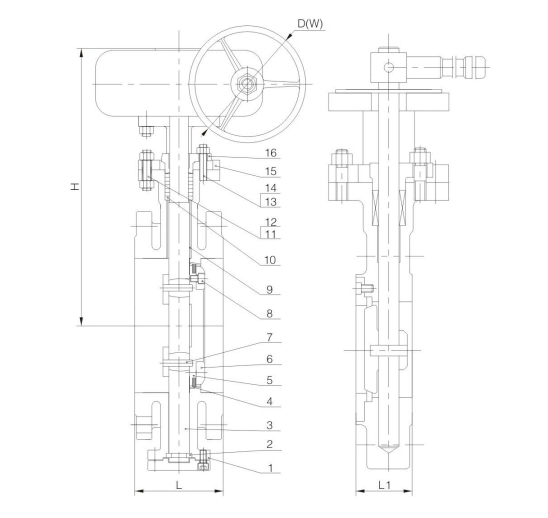

Dimension

High Performance Butterfly Valve Manufacturers

Class 150
DN mm 40 50 65 80 100 125 150 200 250 300 350 400
NPS in 1 1/2 2 2 1/2 3 4 5 6 8 10 12 14 16
L mm 127 127 127 127 152 203.2 203.2 203.2 203.2
in 5 5 5 5 6 8 8 8 8
L1 mm 38.1 46 50.8 48 54 63.5 57 63.5 71.5 81 92 101.5
in 1.5 1.81 2 1.88 2.13 2.5 2.25 2.5 2.81 3.19 3.62 4
H mm 185 190 220 229 239 252 284 307 337 392 435 481
in 7328 7.48 8.7 9 9.4 9.9 11.2 12 13.3 15.4 17.1 19
D(W) mm 160 160 160 160 160 160 160 200 200 250 250 300
in 6.3 6.3 6.3 6.3 6.3 6.3 6.3 7.9 7.9 9.8 9.8 11.8
Weight  (Kg) mm 12.5 13.5 17 38 72 105 148 182 230
in 8 9 10 10 11 14.5 34.2 66 98 134 168 200


Related Knowledge

What is a high performance butterfly valve?


A high performance butterfly valve is often designed with double offset and PTFE seat, to handle everything from general applications to viscous and corrosive liquids; corrosive gases and steam.


Compared to concentric resilient seat butterfly valve, the disc of the high performance butterfly valve is arranged and positioned off the center of the pipe bore, which could reduce wear and tear to the valve during operation and increase sealing performance.


In conlusion, high performance butterfly valve is applicable for higher pressure and temperature applications. Meanwhile, it has longer cycle life and better sealing ability.
