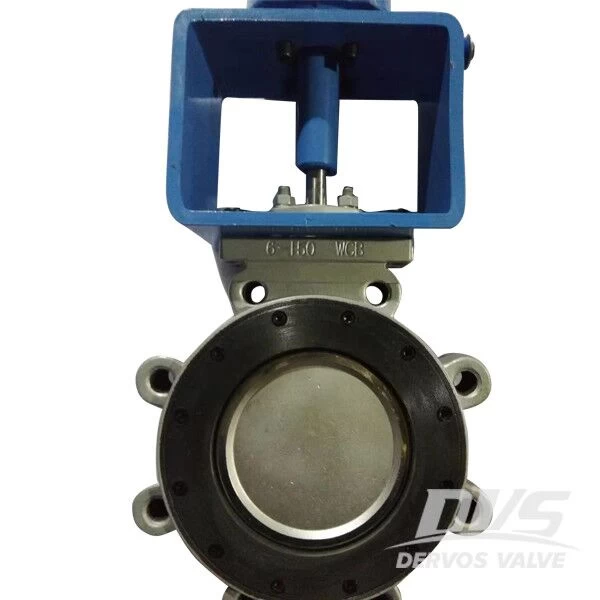

High Performance Butterfly Valve Lug Type Gear Operated WCB


  • Method of OperationGear Operated
  • MaterialCarbon Steel

The high performance butterfly valve is designed with double eccentric or double offset structure. The valve has cast steel WCB body, stainless steel disc and stem along with RPTFE soft seat.


Quick Detail

Type

Butterfly Valve

Nominal Size

6 Inch

Nominal Pressure

Class 150

Structure

Double Offset, Double Eccentric, Soft Seat

Connection Type

Lug Type

Operation

Gear Operated

Design Code

API 609

Face to Face

ASME B16.10

End Connection

ASME 16.5

Test & Inspection

API 598

Body Material

Cast Steel WCB

Trim Material

CF8M Disc, 17-4PH Stem, RPTFE Seat

Application

Water, Oil, Gas

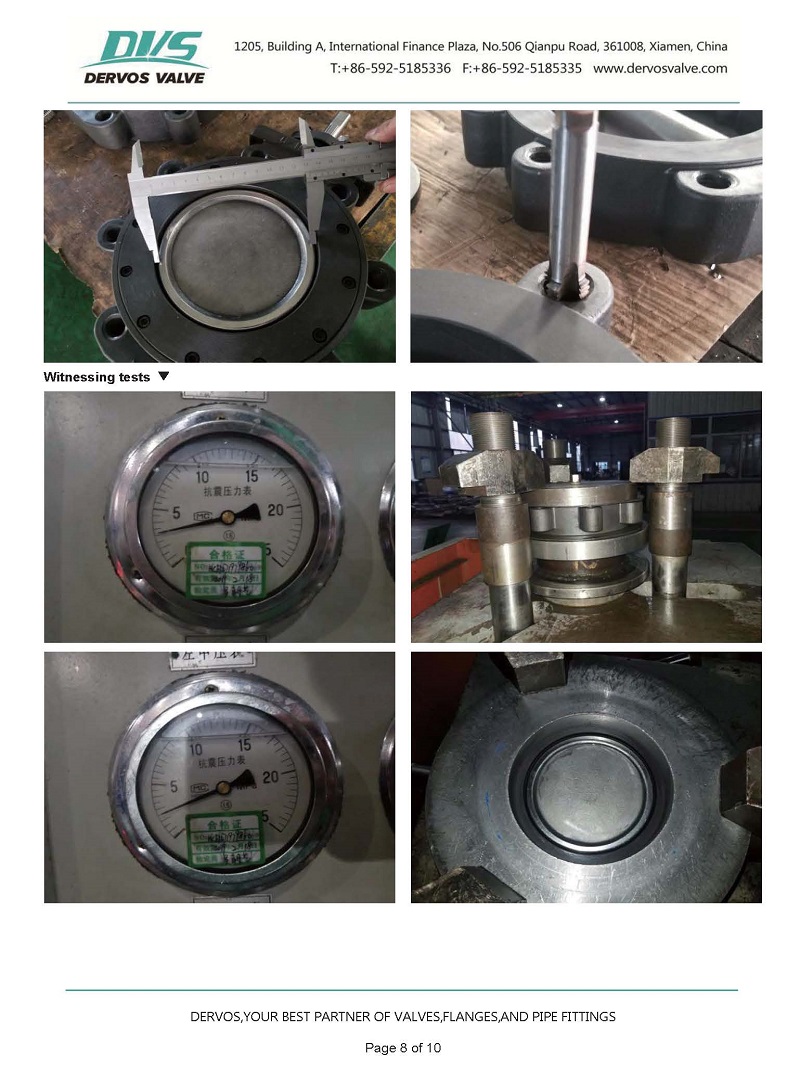

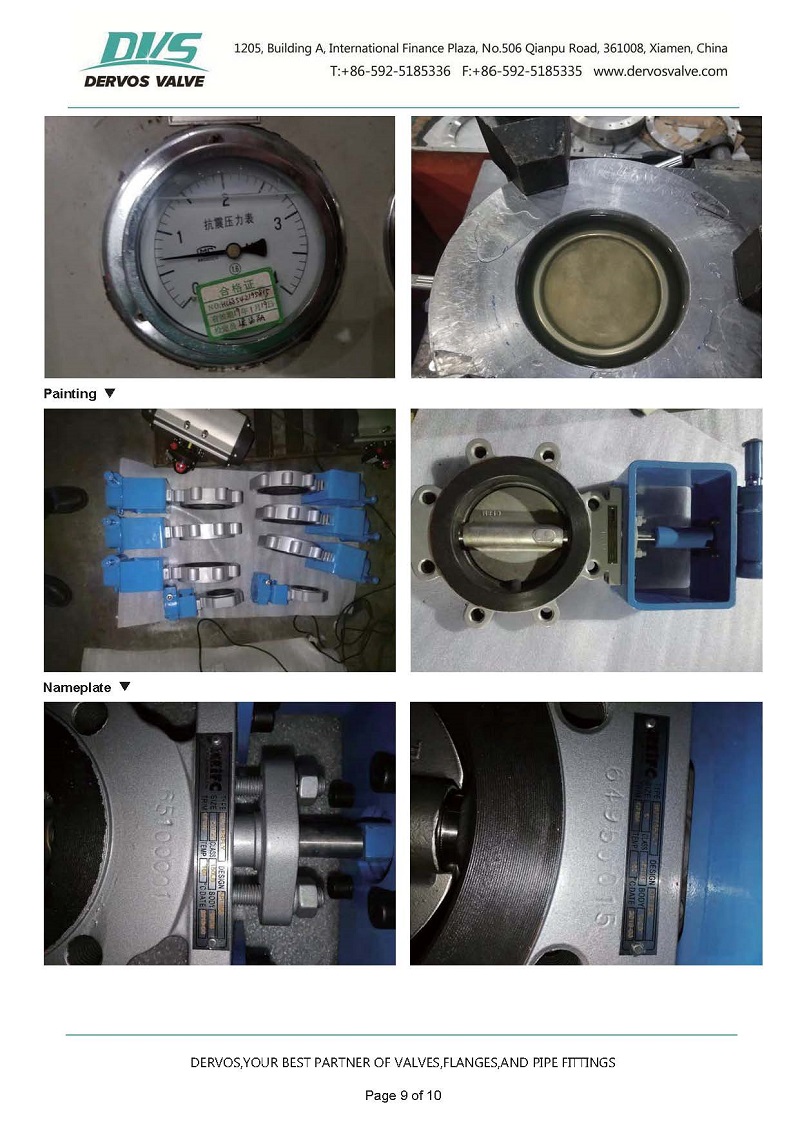

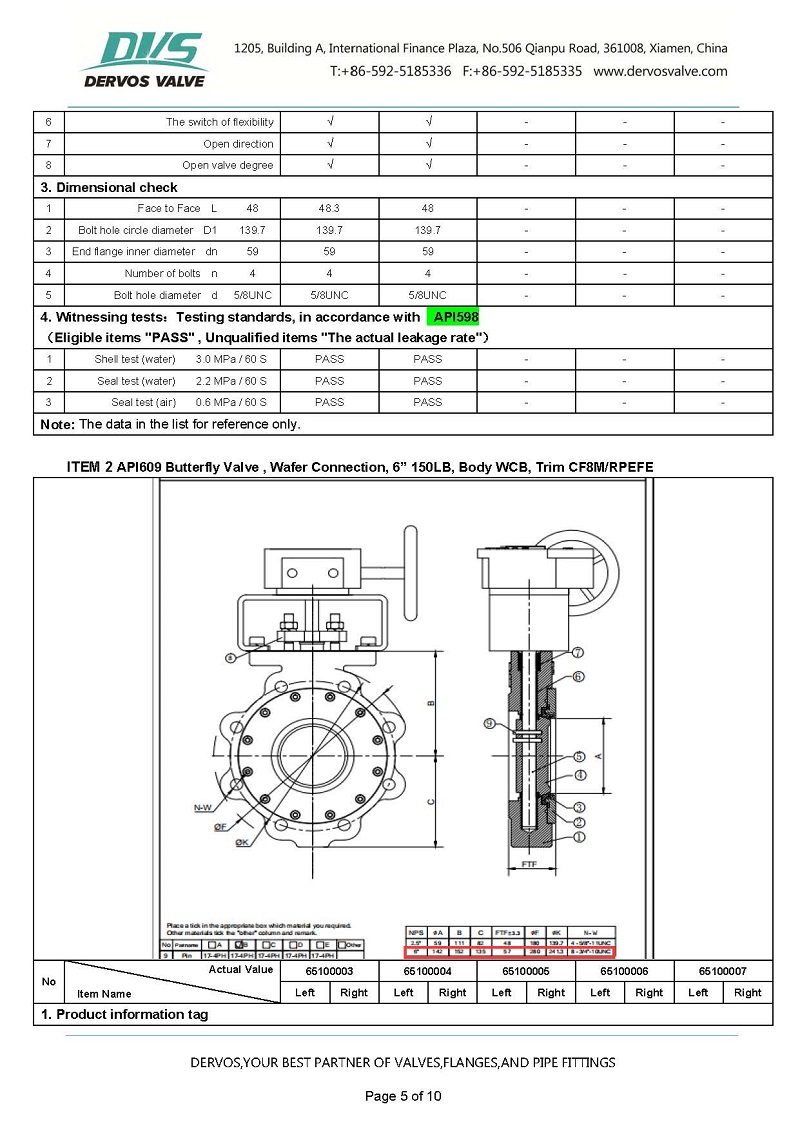

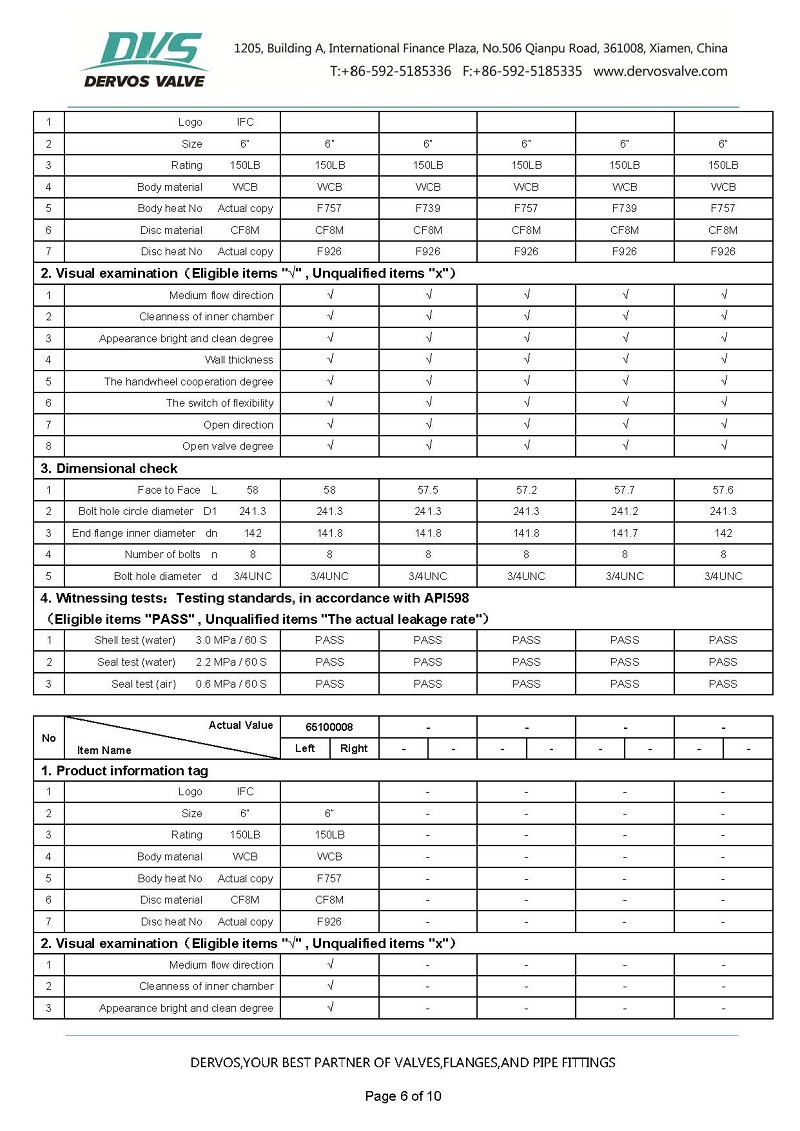

Dervos Inspection Report

API 609 Butterfly Valve

Lug Type Butterfly Valve

Double Eccentric Butterfly Valve
