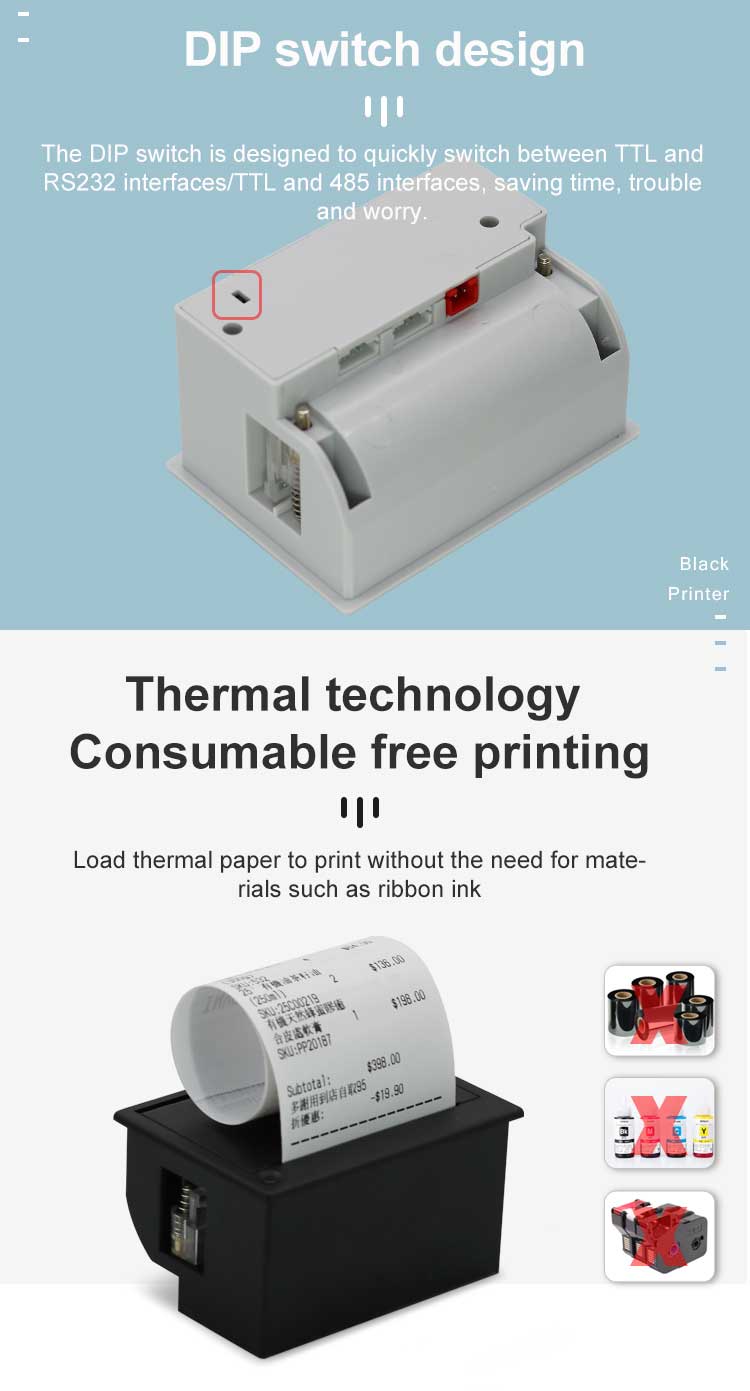

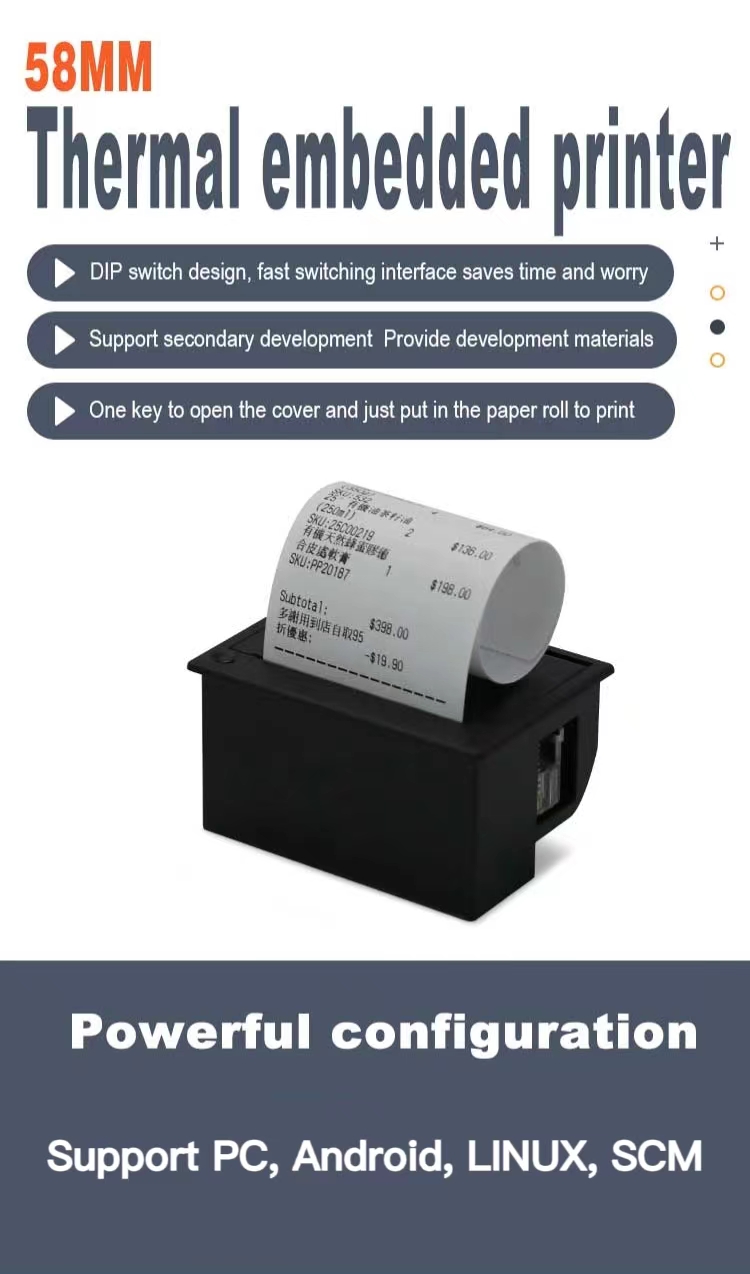

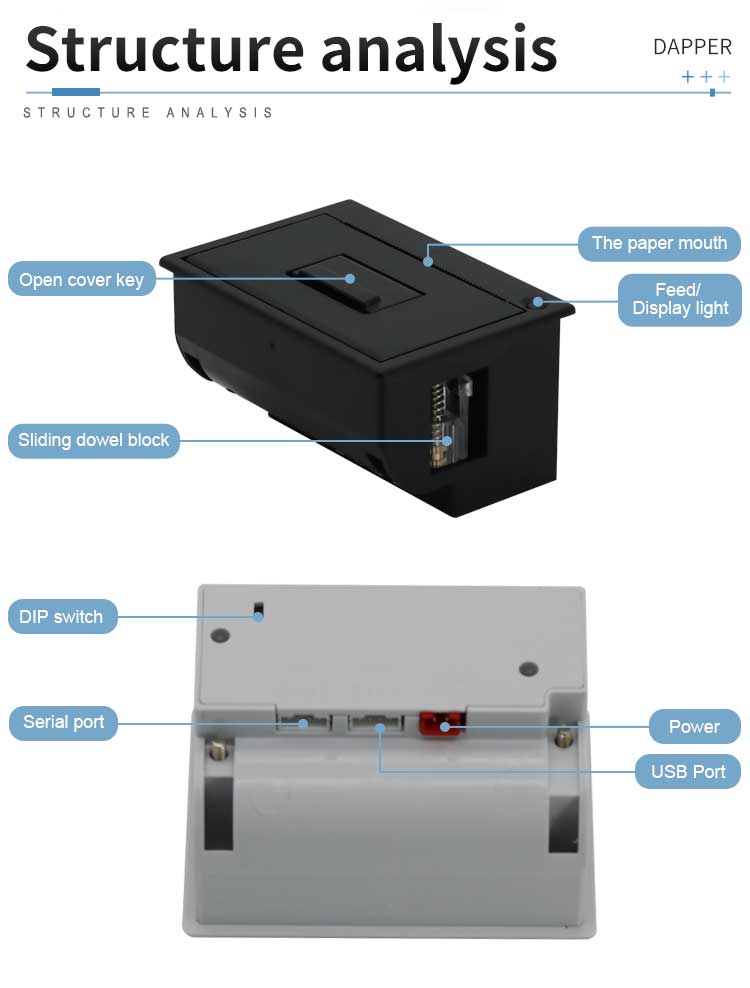

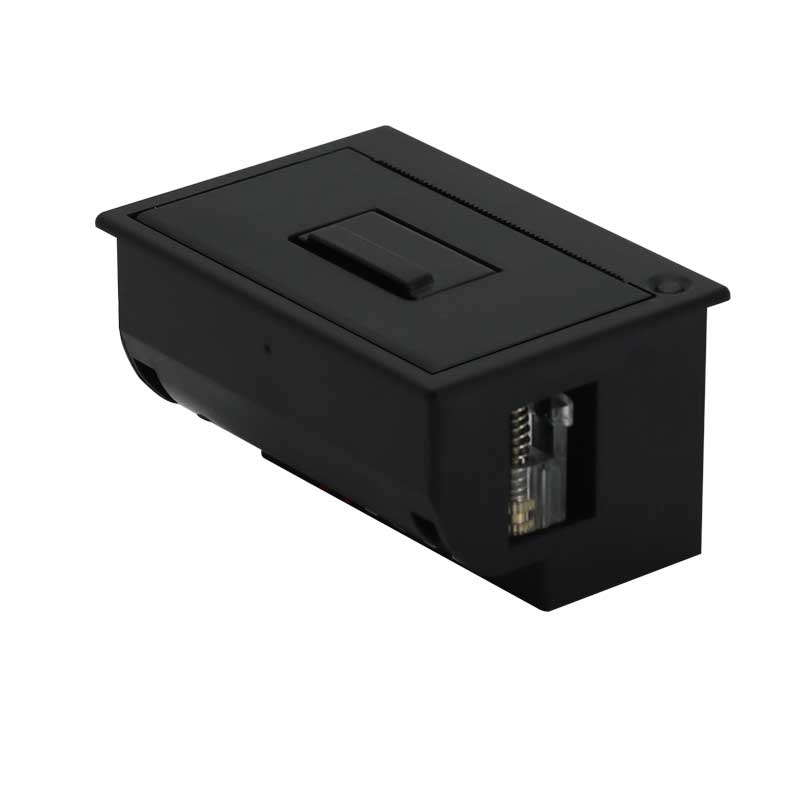

DP-EH700 58 thermal embedded printer with DIP switch design

Printing performance

Product number

DP-EH700

Printing method

Thermal printing (black and white)

Color

Black、White

Printing speed

60mm/s

Resolution

8 dots/mm (203dpi) 384 dots per line

Operating Voltage

5-9V/8.4~24V

Working current

Normal working current 0.8-1.5, peak current 2A

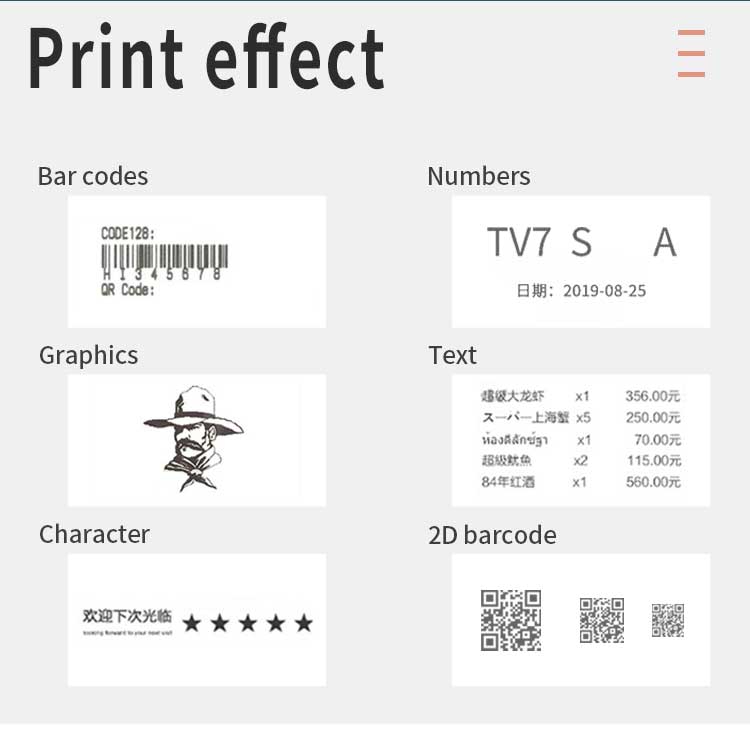

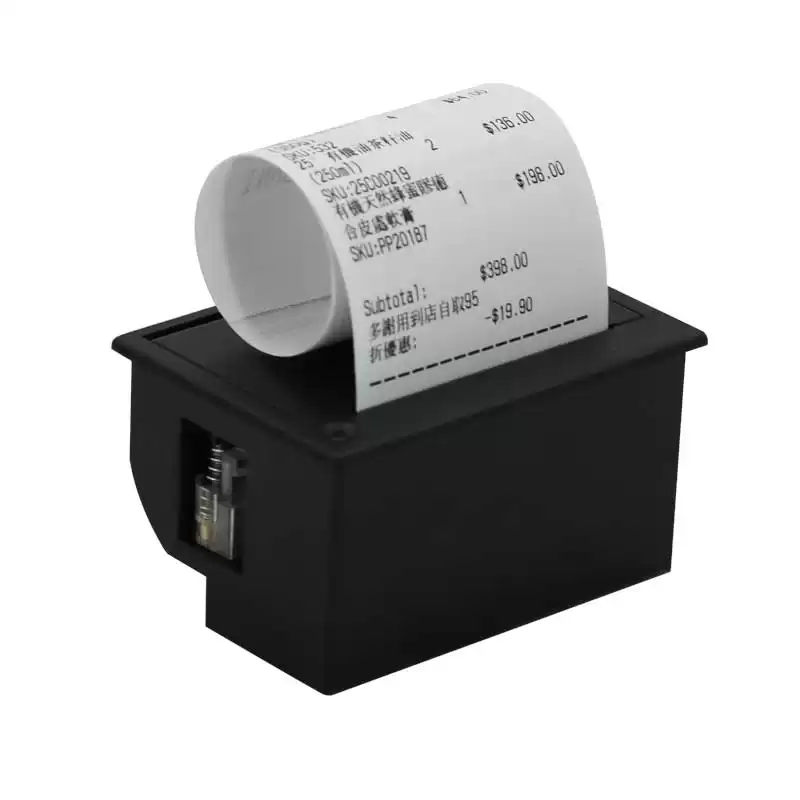

Print content

Support GBK encoded Chinese characters, ASCII characters, barcodes, QR codes, graphics.

Paper parameters

Paper cutting method

Manual tear off

Roll Specifications

58mm（±0.5mm）

Print width

48mm

Paper roll diameter

≤30mm

Paper thickness

0.05~0.1mm

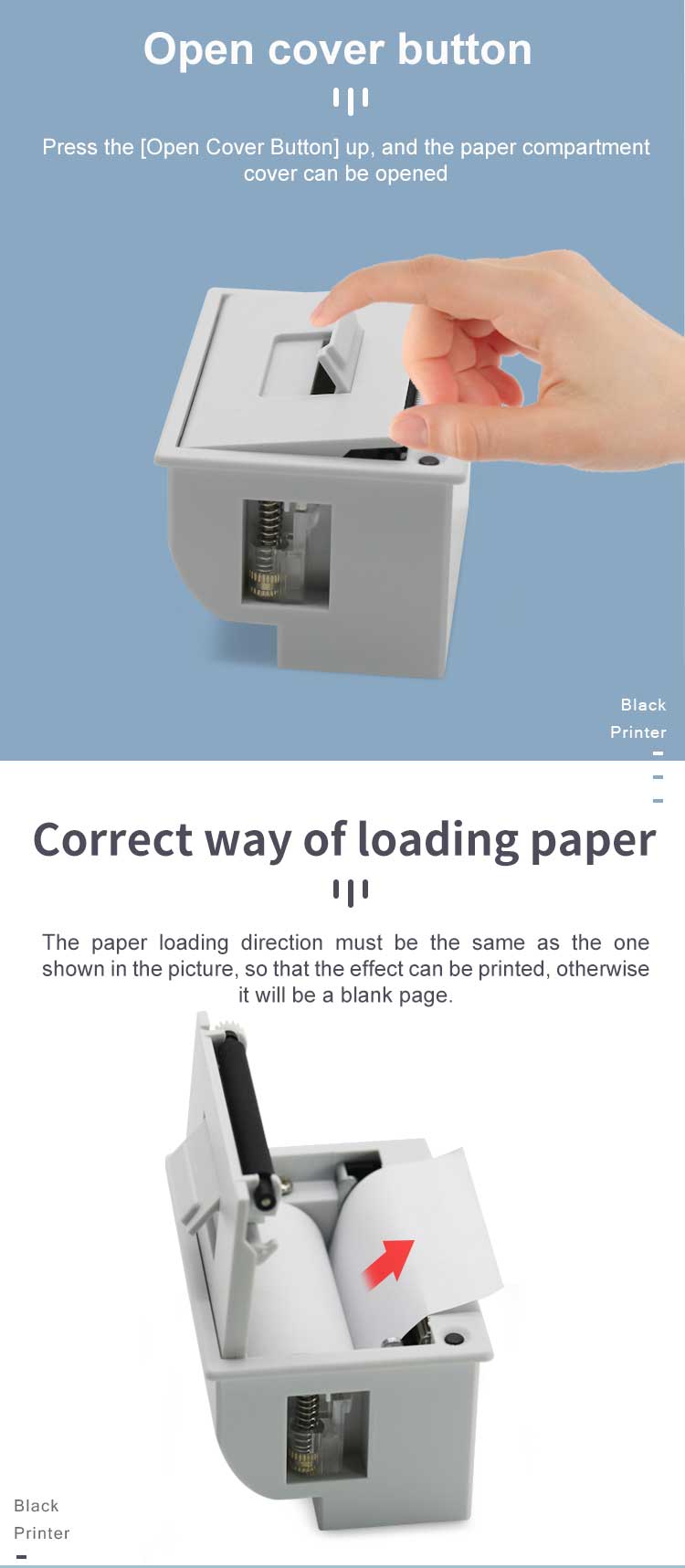

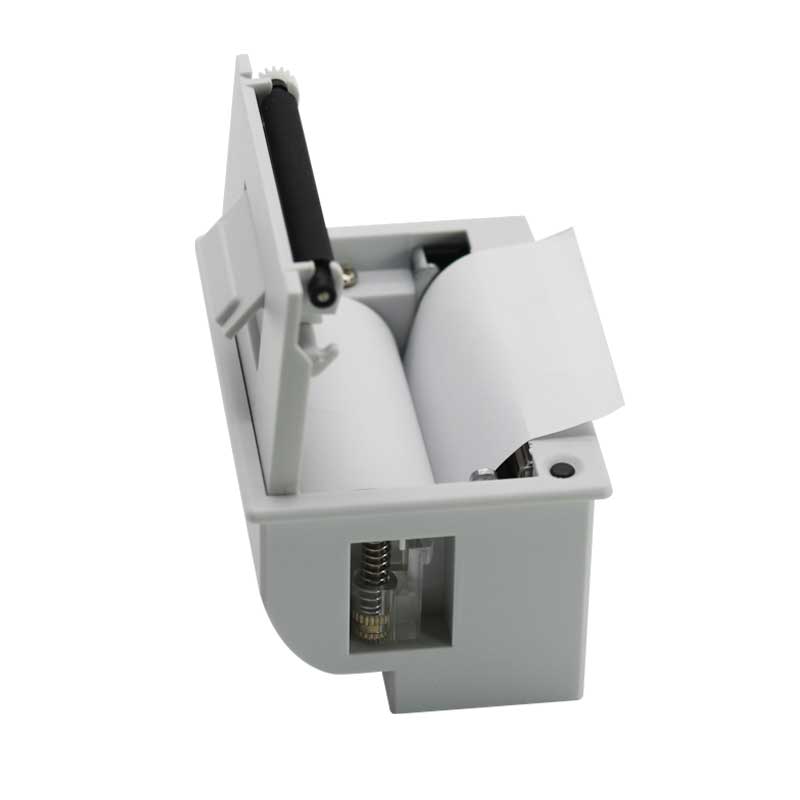

Loading method

Shell-loaded paper

Communication Interface

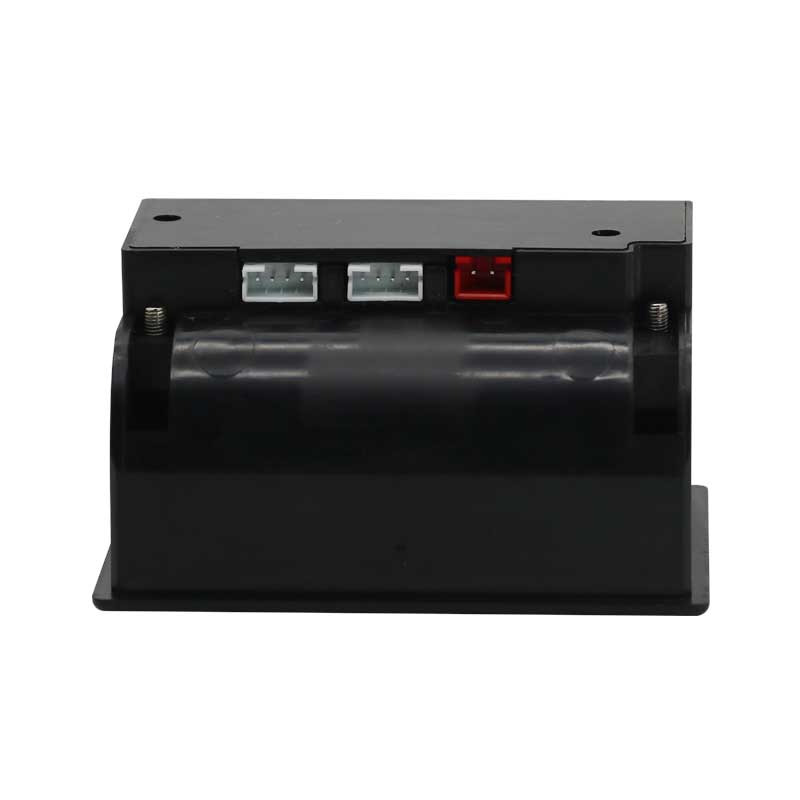

USB interface、TTL interface /RS232 interface/485 interface

Environmental parameters

Operating temperature

-10℃~50℃

Working humidity

20％~50％

Stored temperature

-15℃~50℃

Storage humidity

5％~75％

Support system

windows

USB driver，Serial communication

Android

USB、serial port

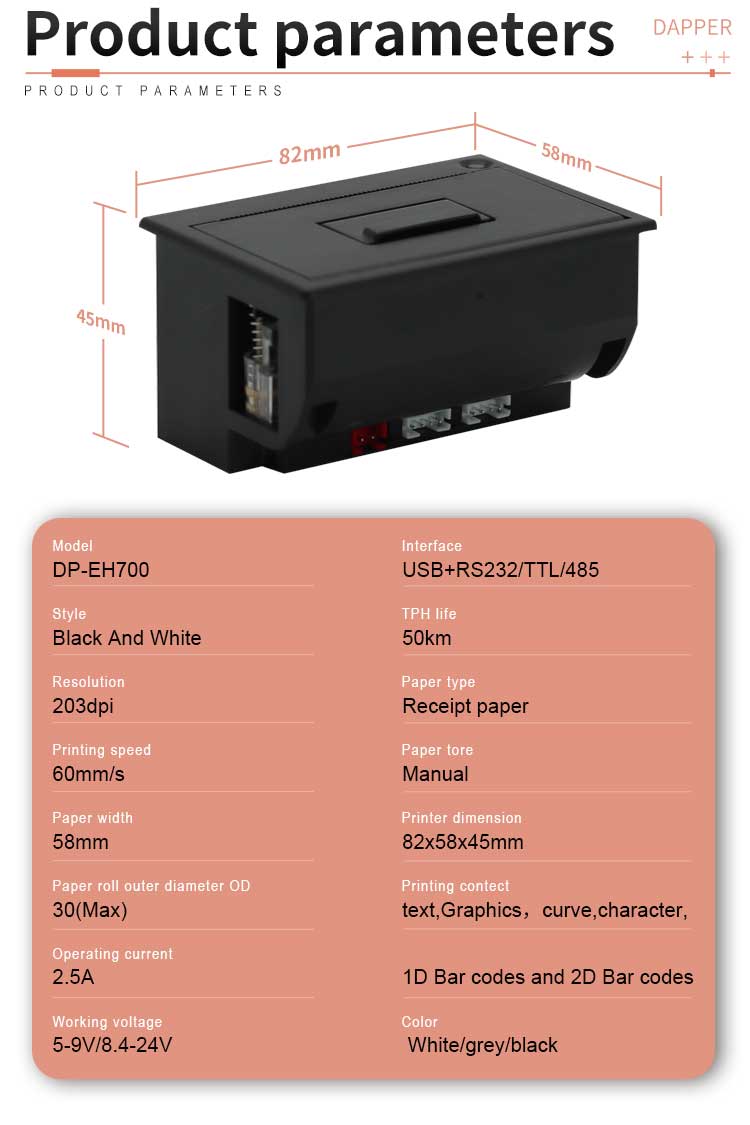

Physical parameters

Product color

Black、off-white, white

Physical dimension

L*W*H（82*58*45）mm

Installation size

L*W*H（77*54*43）mm
