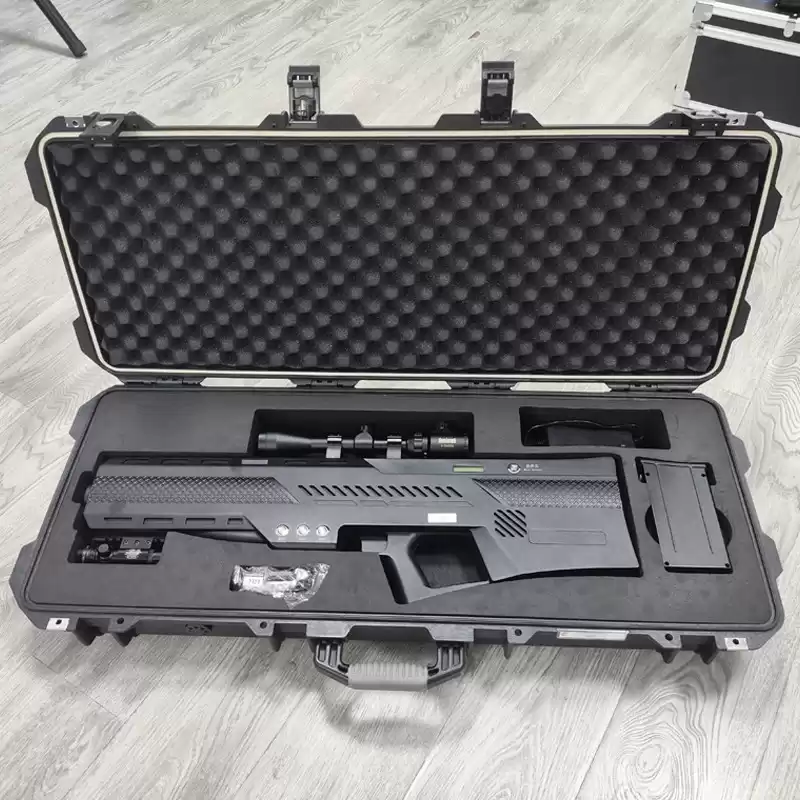

Product Model

F-069

Total power

<50W

Product color

Black

Working method

Hand-held, erected

Optical Sight

9 times

Interference angle

Horizontal and vertical not less than ±15°

Laser Sight

Support

Suppression distance ratio

20:1

Battery voltage screen display function

Support

Interception response time

≤3s

Key switch response time

1s

Effective interception distance

≥2000m

Remote control signal interference distance

≥2000m

Satellite positioning signal

≥2000m

Working hours

Normal operation ≥ 4 hours

Protection level

IP20

High and low temperature storage

(-25℃~+50℃)±2℃

Constant Humidity and Heat

(40 ±2)℃ RH（93+2-3)%

Electrostatic discharge immunity

GB/T 17626. 2 Level 3

Interference band

900M, 1.6G, 2.4G, 5.8G

Size

Host: 752mm long x 65mm wide x 295mm high

Battery: Length 170mm×width 51mm×height 103mm

Weight

Host: 3340g±10g (without battery)

4172g±10g (including battery)

Battery weight: 830g

Power supply method

Two types of power supply (built-in lithium battery power supply,
access to continuous power supply from the utility)

Battery

Detachable, capacity: 6400mAh

Supply voltage: 7S/ 25.9-29.4V

Power supply current: 1.5A-2.3A

Interference/transmission frequency

The first channel: 825 ~ 950MHz (40.51 ) dBm

Channel 2: 1546 to 1635 MHz (39.85) dBm

Channel 3: 2394 to 2515 MHz (40.05 ) dBm

Channel 4: 5713 to 5877 MHz (41.42) dBm

* (equipment can be expanded according to user needs interference band module)

Electromagnetic wave radiation protection

The bodily injury to the operator of the equipment is in accordance with national regulations.

Radiation Safety

Distance from the equipment axially directly behind 300mm to the
operator's radiation in line with GB8702-2014 standards

All parameters of the device are standard for the four-band products, some parameters will have a small amount of up and down with
the increase or decrease of the frequency band module.

Electromagnetic wave radiation protection to the body of the operator of the equipment in line with national regulations.

Radiation safety is 300mm from the axial back of the equipment to the operator's radiation in accordance with GJB5313A-2007 standard.

*Note: The above parameters are in the standard electromagnetic environment and room temperature state, the product can be
customized according to the requirements of the module and other functions, product updates are fast, the appearance of the supply
product to prevail in kind, but the technical parameters are not lower than the previous generation of products.
