Super long distance intercept
Using frequency correction and fast frequency scanning technology, the interception effect of the equipment is greatly improved. The measured interception distance can reach 1500 m, leading the interception effect in the industry.
|
High efficiency, Long standby time
This equipment greatly improves the working efficiency through efficient LDMOS devices and deep optimization of radio frequency engineers. With the built-in high-capacity power lithium battery, it can work for more than 3.2 hours one time charge.
|
Easy to operate
The wireless long distance jamming method is adopted. When illegal drones are found approaching, the device can be intercepted by pointing the transmitting antenna at the drone and open the transmitting switch.
|
Intercepting UAV equipment use step
1.Open the main switch at the bottom of the gun body to ensure that the voltage is in the range of 25-29V;
2. Open the main switch, turn on the audio control button, and open the force landing or drive away switch according to the requirements of the site task (the force landing and drive away cannot be opened at the same time; Choose if open the audio control according to the site situation);
3.Aim at the drone, press the operating trigger continuously, and the indicator light will be on. Wait for 5 to 30 seconds until the drone is forced to land or driven away, and release the operating button.
In the use of jamming interception UAV equipment, the operation key should not be pulled for a long time, the recommended use time is not more than 5 minutes. Too long time is easy to damage the power amplifier module.
Charging instruction

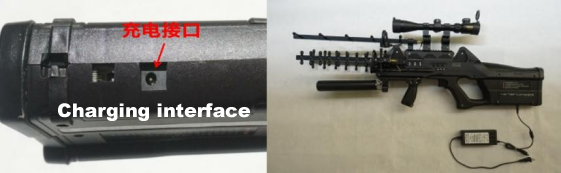

Connect the charger as shown as above photo, and connect to 100V-240V for charging. Full charge time is 2 to 3 hours.
Jammer charger instruction
Input voltage：100V~240V
Output plug：5.5*2.5mm
Output voltage：29.4V
Charging mode：Constant current and pressure, full and stop
Charging current：2A/3A
Instruction: When charging, the indicator light is red; After full, the indicator light is green; When no load , the indicator light is green
*Protection function: short circuit protection; Over current protection; Over voltage protection; Overt emperature protection;
*Professional charger function: start the first phase of constant current charging, LED indicator is red light, charging to rated voltage .when the second phase of constant voltage charging, the current slowly decreases, when the charging current reaches the rotating lamp current, LED indicator to be green, the battery is full to 90%-95%, and the battery continues to charge with a small current until to be full .
product parameter
|
Model
|
F-06S
|
|
Color
|
black
|
|
weight
|
Device host：2900g±50g（not include the battery ）
|
|
size
|
host：L917mm×W182mm×H280mm
charger：L108mm ×W50mm×H31mm
|
|
battery
|
capacity：6400mAh
|
|
Supply voltage：7S/ 25.9-29.4V
|
|
Supply current：1.5A-2.3A
|
|
detachable
|
|
Power supply
|
Built-in lithium battery or access the mains power supply
|
|
Power supply type
|
DC
|
|
Optical sight
|
9times
|
|
channel switch independently
|
support
|
|
work indicator light
|
support
|
|
Battery voltage screen display function
|
support
|
|
Key switch response time
|
2s
|
|
Interference frequency band
|
900MHz、1.6GHz、2.4GHz、5.8GHz
|
|
working method
|
Hand-held , erection
|
|
Effective control distance
|
≥1500m
|
|
Effective control hight
|
≥200m
|
|
work time
|
normal operation≥3.2hours
|
|
Electromagnetic radiation protection
|
Physical injury to equipment operators conforms to national regulations.
|
|
Radiation safety
|
Radiation to the operator at a distance of 300mm directly behind the axial direction of the equipment conforms to GB8702-2014 standard
|
|
Note: The above parameters are in the standard electromagnetic environment and normal temperature condition, the product can be customized according to the requirements of the module and other functions, the product replacement is fast, the appearance of the product is subject to the physical, but the technical parameters are not lower than the previous generation of products.
|
1. Turn off the tail cover of the laser sight button, place the battery, place the positive pole of the battery towards the laser tail switch, and turn on the back cover;
2. Use fixture to fix the product on UAV jamming equipment;
3. Directly adjust the head of the two nuts, adjust the light spot up and down, adjust the deviation to a minimum, until the main laser point overlaps with the target;
4. Laser sights with a steady switch, press on, press off. A rat-tail switch can also be used, which need one hand to be held down to start the product and is closed when released.
