Dry Tyoe Fire Sprinkler

UL/FM Approved Dry Type Fire Sprinkler – Freeze-Proof & Corrosion-Resistant Solution



Facebook Twitter Pinterest LinkedIn 分享

Product Formation

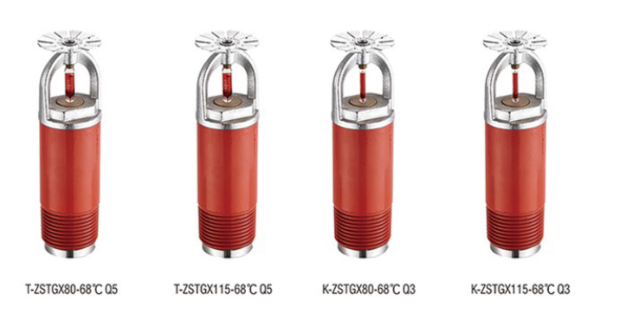

Commercial Dry Sprinkler

Jinyuan dry fire sprinklers are specialized components for dry fire protection systems. In normal operation, a pipe plug with an elastic sealing washer at the nozzle entrance prevents water from entering. When a fire breaks out and the temperature reaches 68℃, the glass bubble bursts. The compressed spring in the nozzle extends, pushing the water pipe and related parts toward the nozzle direction. The sleeve connected to the pipe plug is pulled downward, making the pipe plug and spring washer leave the inlet position. Then water enters the nozzle and sprays out, playing a key role in fire suppression.



These sprinklers are formed through precision manufacturing processes. They consist of a nozzle body, a glass bubble thermal - sensitive element, a spring - pipe plug assembly, and a sealing structure. High - quality materials and advanced production techniques ensure reliable performance. The glass bubble accurately senses temperature changes, and the spring - pipe plug assembly ensures proper sealing and quick response during fire activation.

Products Parameters



Main Parts of the Product Materials Available Size Specifications and Models
Sprinkler Body (Including nozzle, shell, etc.) Alloy, Metal T - ZSTGX80 - 68℃ Q5、T - ZSTGX115 - 68℃ Q5、K - ZSTGX80 - 68℃ Q3、K - ZSTGX115 - 68℃ Q3
Glass Bubble Thermal - Sensitive Element Glass with heat - sensitive liquid inside T - ZSTGX80 - 68℃ Q5、T - ZSTGX115 - 68℃ Q5、K - ZSTGX80 - 68℃ Q3、K - ZSTGX115 - 68℃ Q3
Spring - Pipe Plug Assembly Metal spring, Sealing material T - ZSTGX80 - 68℃ Q5、T - ZSTGX115 - 68℃ Q5、K - ZSTGX80 - 68℃ Q3、K - ZSTGX115 - 68℃ Q3



Model Diameter of thread Flow coefficient Operating temperature Minimum and maximum order length
T - ZSTGX80 - 68℃ Q5 Standard order: 1” NPT(DN25) 80±6 68℃ 76.5mm - 1422.8mm
T - ZSTGX115 - 68℃ Q5 Standard order: 1” NPT(DN25) 115±9 68℃ 76.5mm - 1422.8mm
K - ZSTGX80 - 68℃ Q3 Standard order: 1” NPT(DN25) 80±6 68℃ 76.5mm - 1422.8mm
K - ZSTGX115 - 68℃ Q3 Standard order: 1” NPT(DN25) 115±9 68℃ 76.5mm - 1422.8mm



Feature
Sensitive Element:  Glass Bulb
Main Material:  Brass
Seal Material:  NBR
Surface Finishing:  Chrome
Length of Pipe:  80~1500mm customized.

 FAQ

1:What’s the lead time for  dry fire sprinklers?

Under normal circumstances, the lead time is 15working days. For large - quantity orders, it will be properly extended according to production scheduling.

2:Can you provide certificates for these sprinklers?

Yes, we can provide relevant fire - fighting product certificates, such as test reports and compliance certificates, to ensure product quality and compliance.

 3:What are the delivery terms?

We usually adopt EXW, FOB terms. Flexible adjustments can be made according to customer needs and shipping arrangements.

4.What can you buy from us?

Fire Sprinkler system,Foam system,Fire Monitor,Fire Nozzle,Fire Valves,Fire Hydrants.
