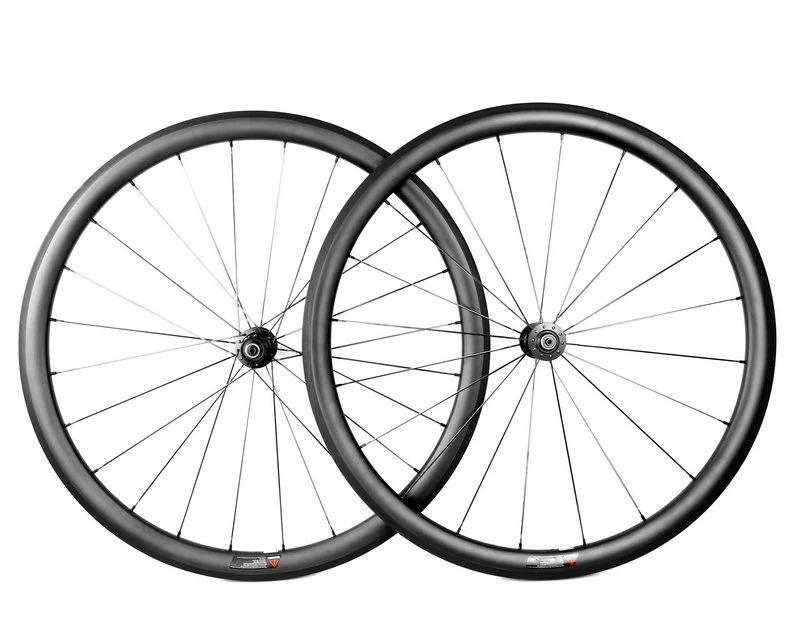

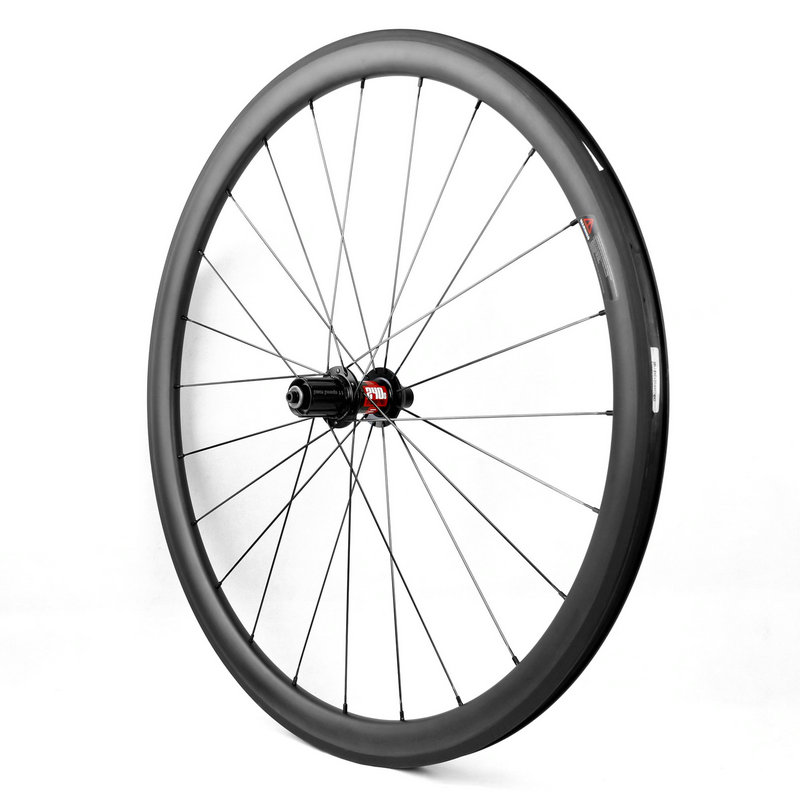

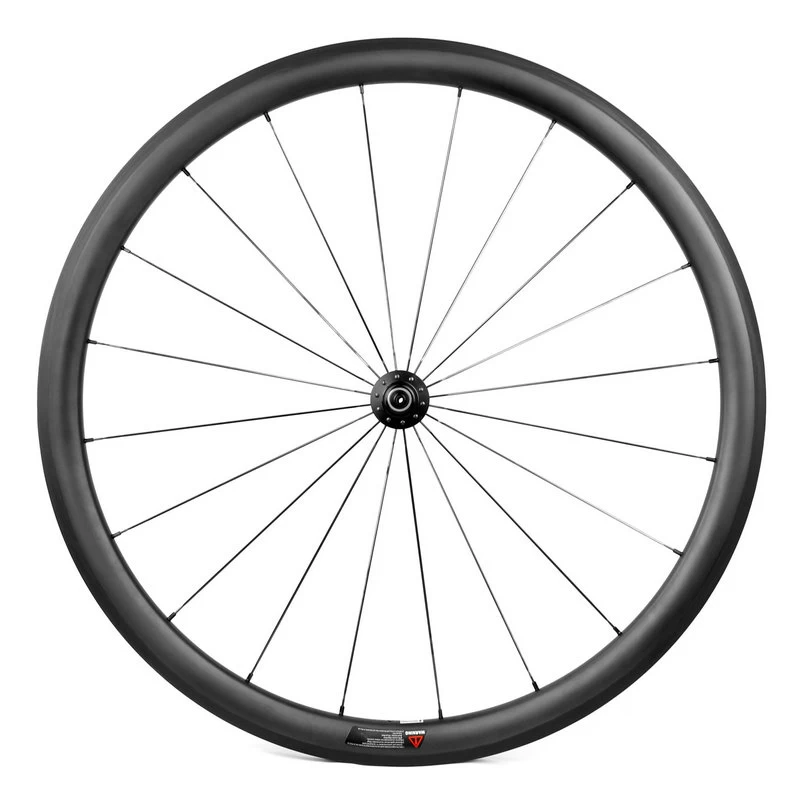

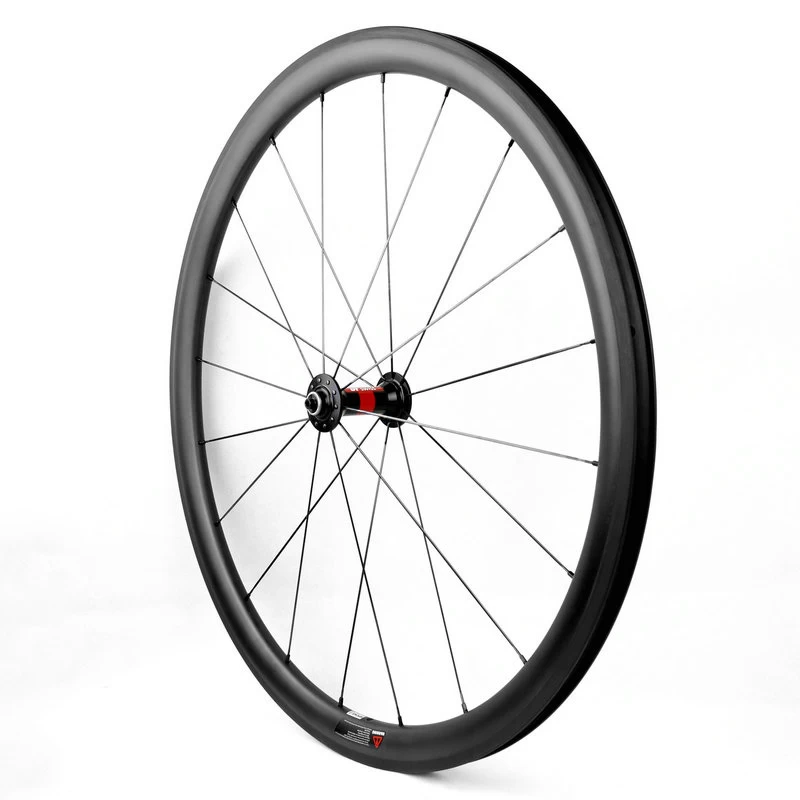

DT Swiss 240s Classic hub + Sapim CX-Ray spoke custom road carbon wheels

[Rim Brake] Custom hand built road bicycle carbon wheels with DT Swiss 240s classic hub + Aero CX-Ray Sapim spokes & nipples. Pro Racing level, perfect transmission of your power and the reliability allowing you to focus on the ride.


  • StandardEN standard
  • LevelPro Racing
  • BrakeRim brake
  • HoleFront 20, Rear 24
  • RimCarbonal rim brake carbon rims
  • LacingF - radial, R - drive side 2 cross, non-drive side radial.
  • NippleSapim alloy, black or red
  • SpokeSapim CX-Ray, black
  • HubDT Swiss 240s hub, Classic

Product Item: DT Swiss 240s Classic hub + Sapim CX-Ray spoke custom road carbon wheels


Rim:

Carbonal rim brake carbon road bike rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.

5 year warranty.


*Rim brake surface available: 3k twill brake track (recommended why?) and basalt brake track.

carbon rim with basalt & 3k twill brake track

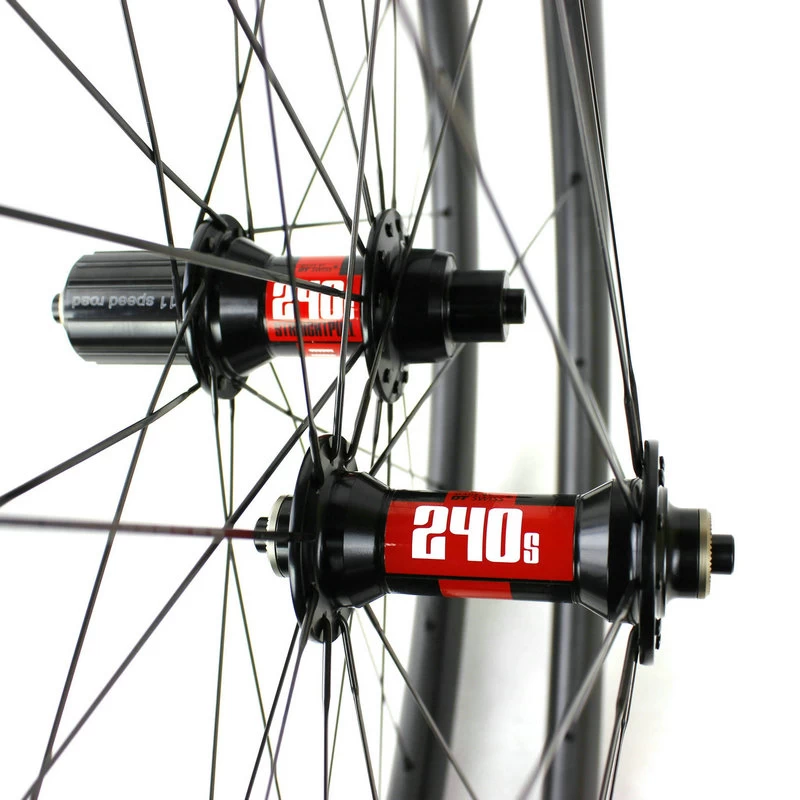

Hub:

DT Swiss 240s hub, classic (J bend);

Size - Axle: Front - 100x9mm, Rear - 130x10mm;

Free hub system: Ratchet System 18T (optional 36T / 54T);

Cassette body: Shimano Road 11S / Sram XDR;

Brake System: non disc, rim brake;

Hole: Front - 20, Rear - 24;

Color: black.


Spoke:

Sapim CX-Ray spokes, black.


Nipple:

Sapim alloy nipples, black or red.


Lacing:

Front wheel - radial;

Rear wheel - drive side 2 cross, non-drive side radial.


Extra: Spare spokes and nipples, skewers and brake pads included.


Weight:

Hub: 320g/set;

Spokes + nipples: 200g;

Weight without rims: 520g.


Rim model vs Complete wheel weight:

Model
Rim type
Rim weight / pc
Complete wheel weight (±5%) / set
Max weight limit
RX30SH
700c clincher 30x25mm
430g
1380g
115kgs
RX38SH
700c clincher 38x25mm
470g
1460g
120kgs
RX38DH
700c clincher 38x25mm- asymmetric
470g
1460g
120kgs
RX45SH
700c clincher 45x25mm
480g
1480g
125kgs
RX50SH
700c clincher 50x25mm
500g
1520g
125kgs
RX50DH
700c clincher 50x25mm - asymmetric
500g
1520g
125kgs
RX60SH
700c clincher 60x25mm
560g
1640g
130kgs
RX88SH
700c clincher 88x25mm
720g
1960g
135kgs
RX38L
700c clincher 38x28mm
480g
1480g 120kgs
RX50L
700c clincher 50x28mm
510g
1540g
125kgs
RT30S
700c tubular 30x25mm
310g
1140g
115kgs
RT38S
700c tubular 38x25mm
360g
1240g
120kgs
RT38D
700c tubular 38x25mm- asymmetric
360g
1240g
120kgs
RT50S
700c tubular 50x25mm
410g
1340g
125kgs
RT50D
700c tubular 50x25mm- asymmetric
410g
1340g
125kgs
RT60S
700c tubular 60x25mm
470g
1460g
130kgs
RT88S
700c tubular 88x25mm
530g
1580g
135kgs


* Complete wheel weights are subject to a ±5% variance.

* Each wheelset will ship with: spare spokes, nipples; pair of quick-release skewers; carbon-specific brake pads; freehub spacer for 10 speed cassettes.

* All clincher rims are tubeless ready.

* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.


Choose your favorite carbon rim model, leave a message below to get a best quote for your next carbon road wheelset!


Product Tags custom road wheels          custom road wheel          custom off road wheels          customized shimano road wheels          road king custom wheels          custom road bicycle wheels          custom built road wheels          custom road bike wheels          off road custom wheels
