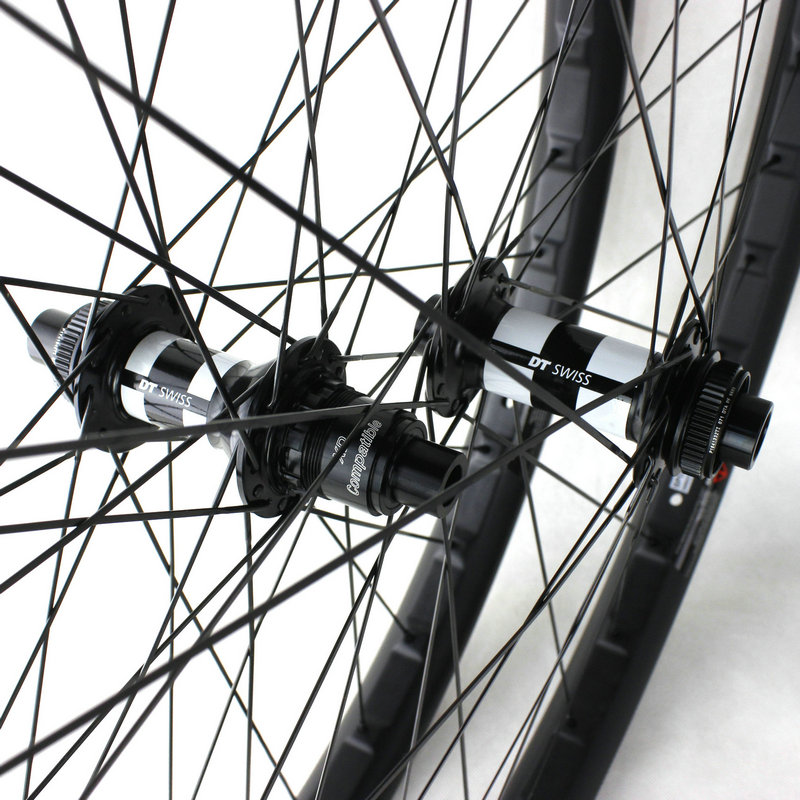

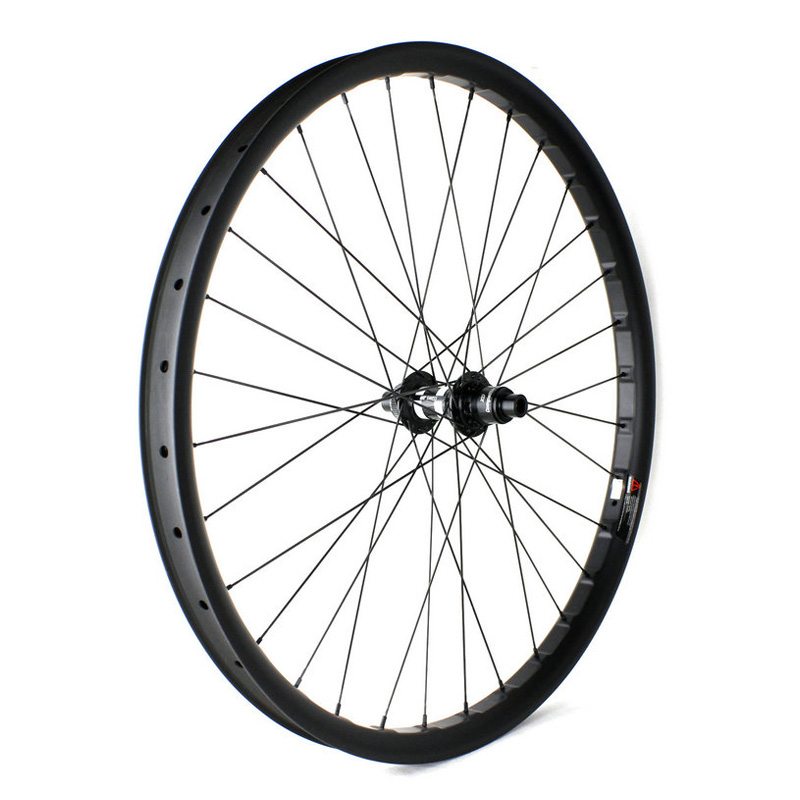

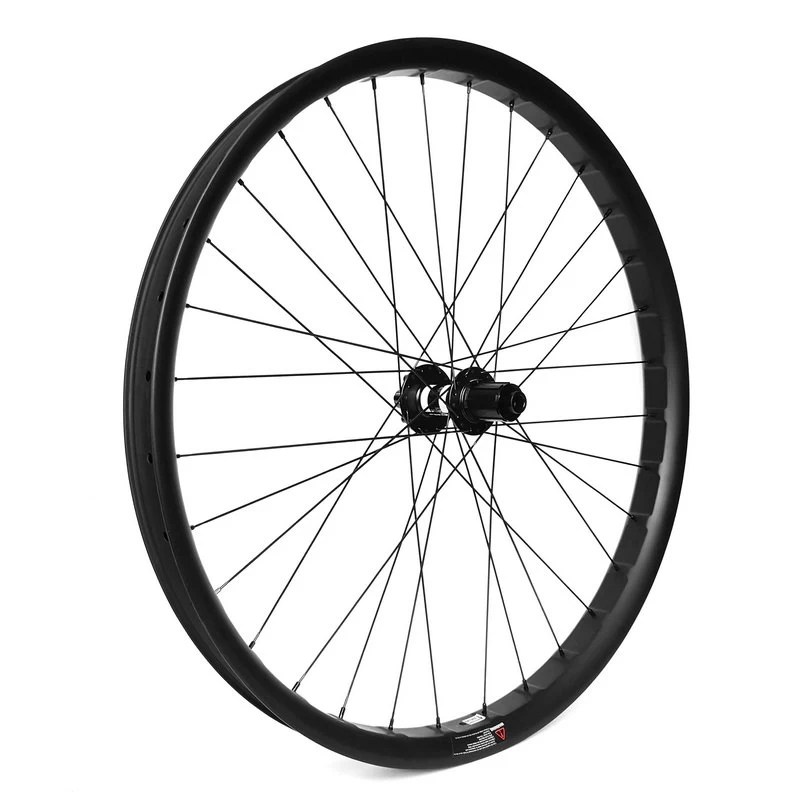

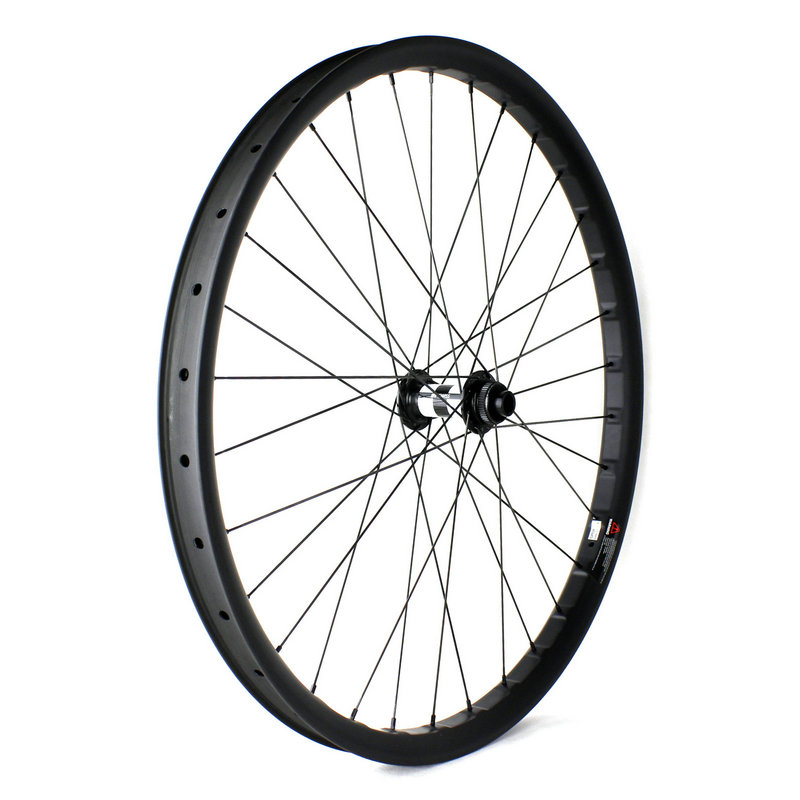

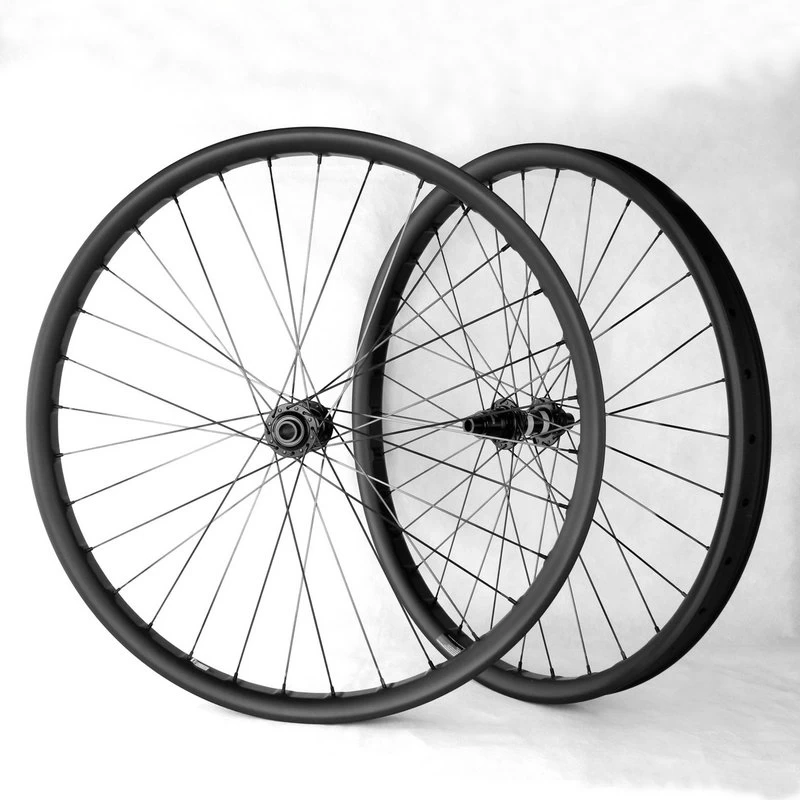

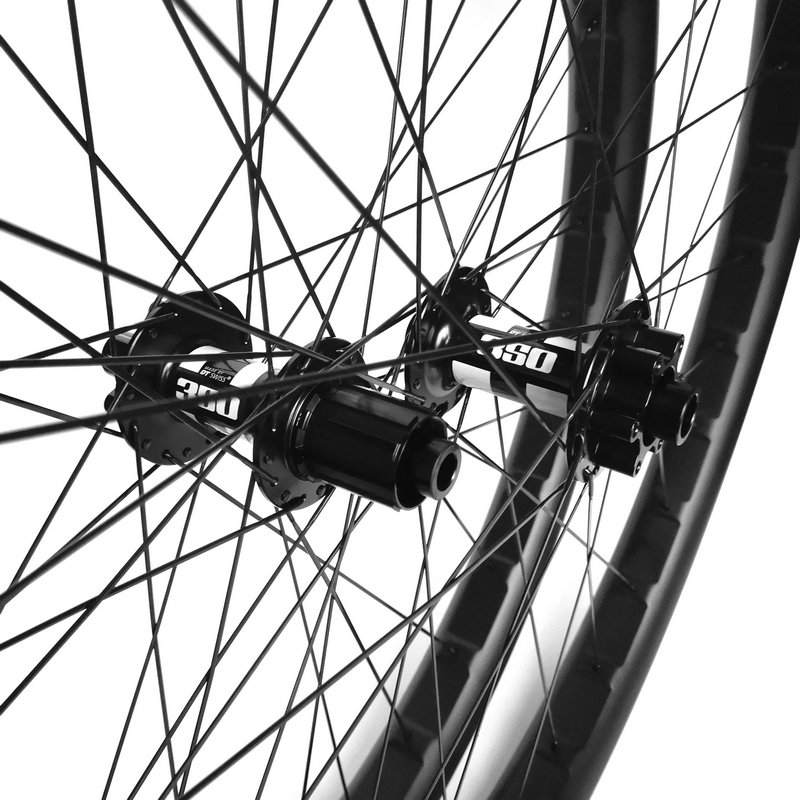

DT Swiss 350 BOOST hub + Sapim CX-Ray spoke custom carbon mtb wheels

Custom hand built mountain bike carbon wheels with DT swiss 350 boost hub + Sapim CX-Ray spokes, Sapim SILS nipples. Choose your favorite carbon mtb rim model. Each wheelset is painstakingly hand built by experienced wheel builder.


  • StandardEN standard
  • LevelMid Racing
  • BrakeDisc brake
  • Hole28/28 or 32/32
  • LacingF - 3 cross, R - 3 cross
  • RimCarbonal mtb carbon rims
  • NippleSapim alloy, black or red
  • SpokeSapim CX-Ray, black
  • HubDT Swiss 350 boost hub

Product Item: DT swiss 350 boost hub + Sapim CX-Ray spoke custom carbon mtb wheels.

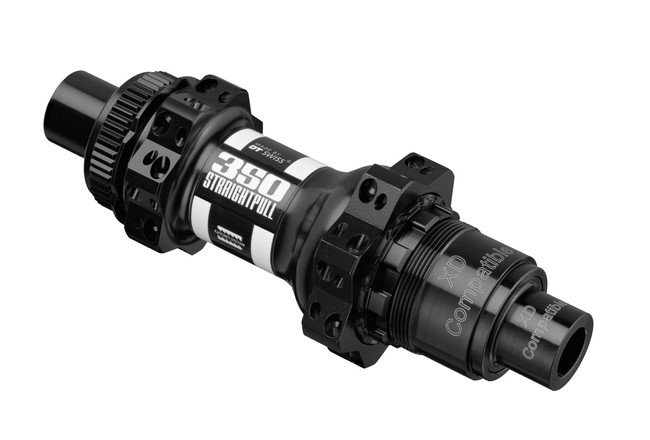

DT Swiss 350 boost hub

DT Swiss 350 hub is the most affordable high performance hub available. The same performance as its even higher end cousins comes with slightly less weight optimized parts to offer the same reliability at a much lower cost.


Hub:

DT swiss 350 boost hub, straight pull or classic (J bend);

Axle system: front 15*110mm, rear 12*148mm;

Material: Aluminum;

Brake interface: Disc 6 bolts or Disc center lock;

Free hub system: Ratchet System 18T (optional 36T / 54T);

Freehub body: Shimano 11SP (optional 12SP) or Sram XD MTB;

Hole: 28/28 or 32/32;

Color: black.


Spoke:

Sapim CX-Ray spokes, black;


Nipple:

Sapim alloy nipples, black or red.


Rim:

Carbonal mountain bike carbon rims: XC / Trail / Enduro / Downhill / Plus. Light, strong, stiff and durable.


Lacing:

Front wheel - 3 cross;

Rear wheel - 3 cross.


Weight:

Freehub body
Hole
Axle system
Hub weight / set
Spokes + nipples weight
Weight without rims / set
Shimano 11SP
28/28
F-15*110mm / R-12*148mm
406g
255g
661g
Sram XD
28/28
F-15*110mm / R-12*148mm
382g
255g
637g
Shimano 11SP
32/32
F-15*110mm / R-12*148mm
484g
291g
775g
Sram XD
32/32
F-15*110mm / R-12*148mm
461g
291g
752g


* Complete wheel weights are subject to a ±5% variance.

* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.

* All our mtb rims are tubeless ready.

* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.


Please choose your favorite carbon mountain bike rim model, leave a message below with the rim "item number" (such as item MX942EN) to get a best quote of your custom mtb carbon wheel.
