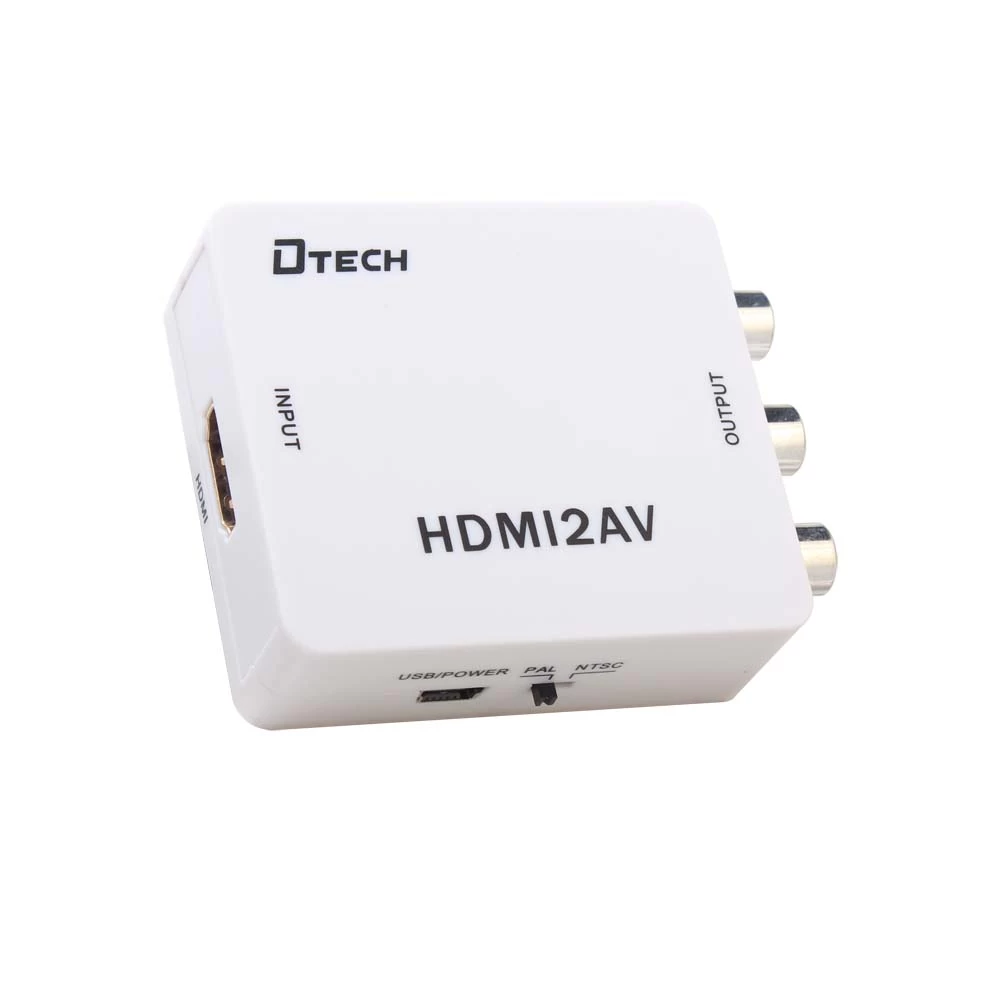

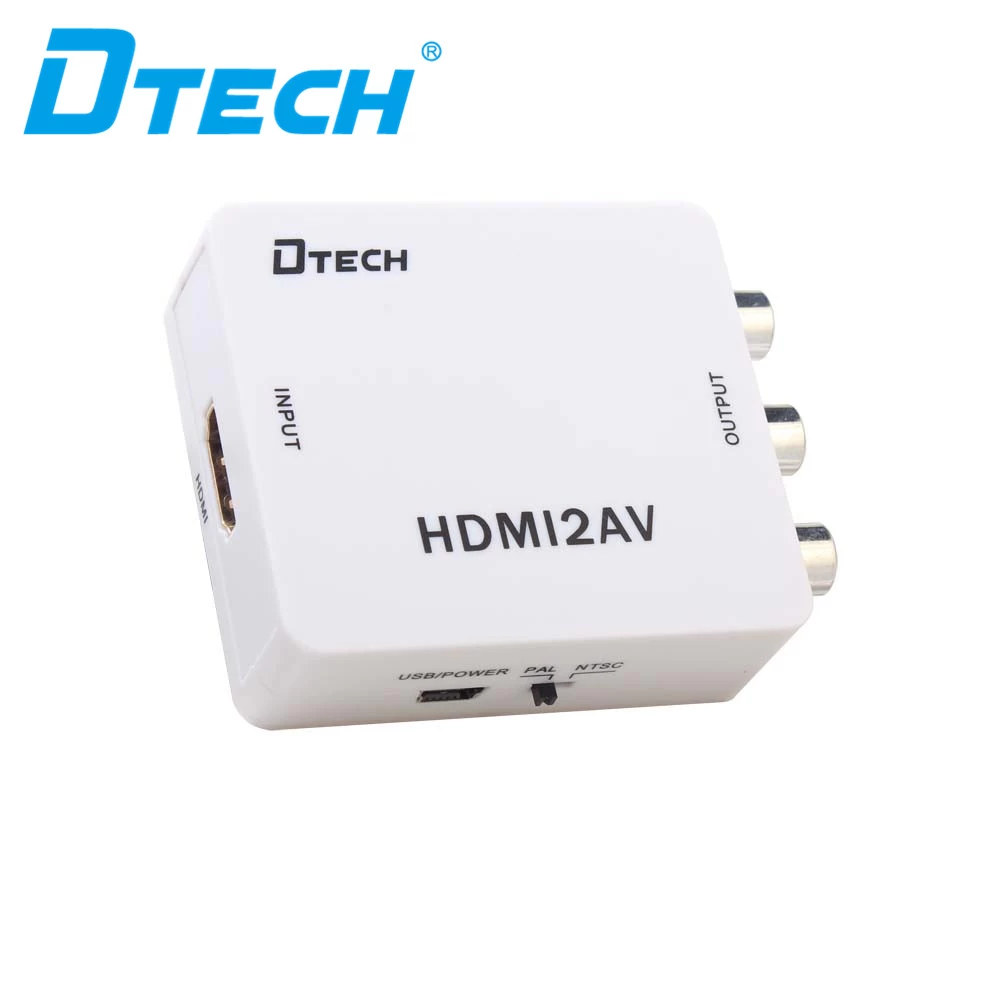

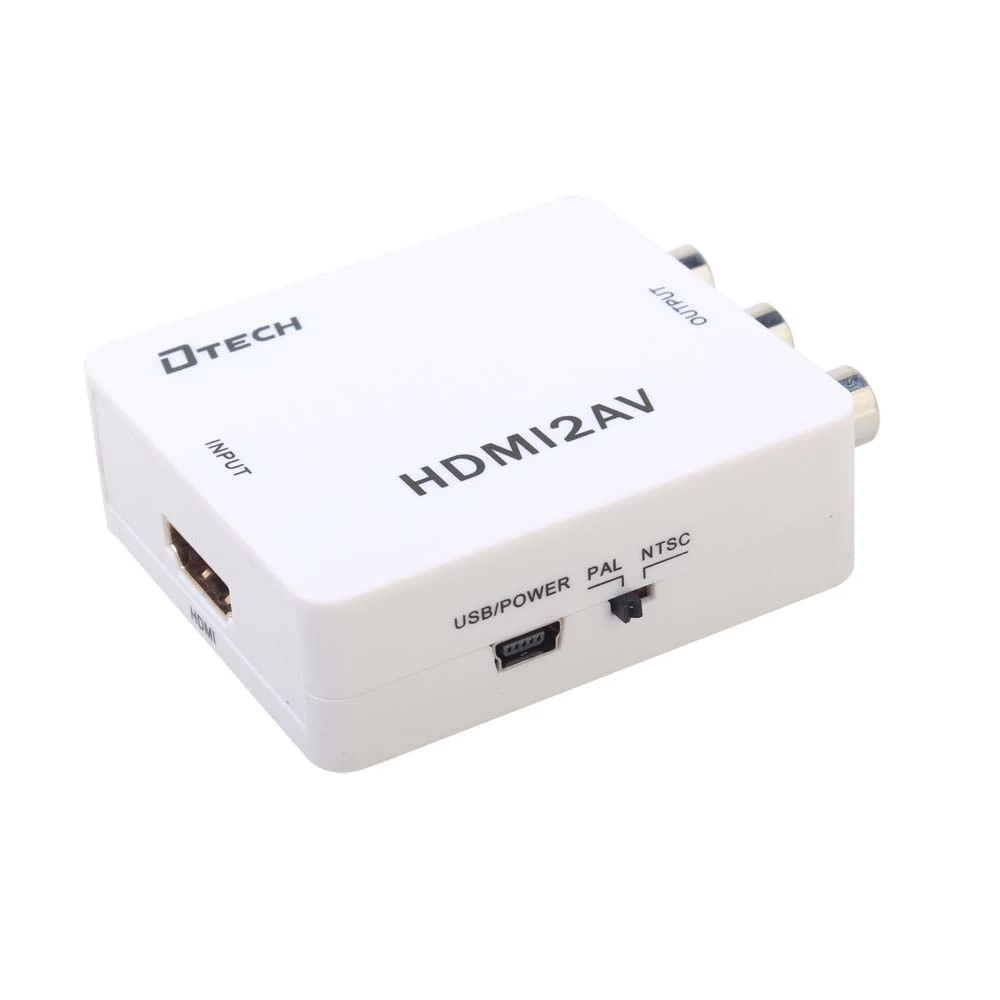

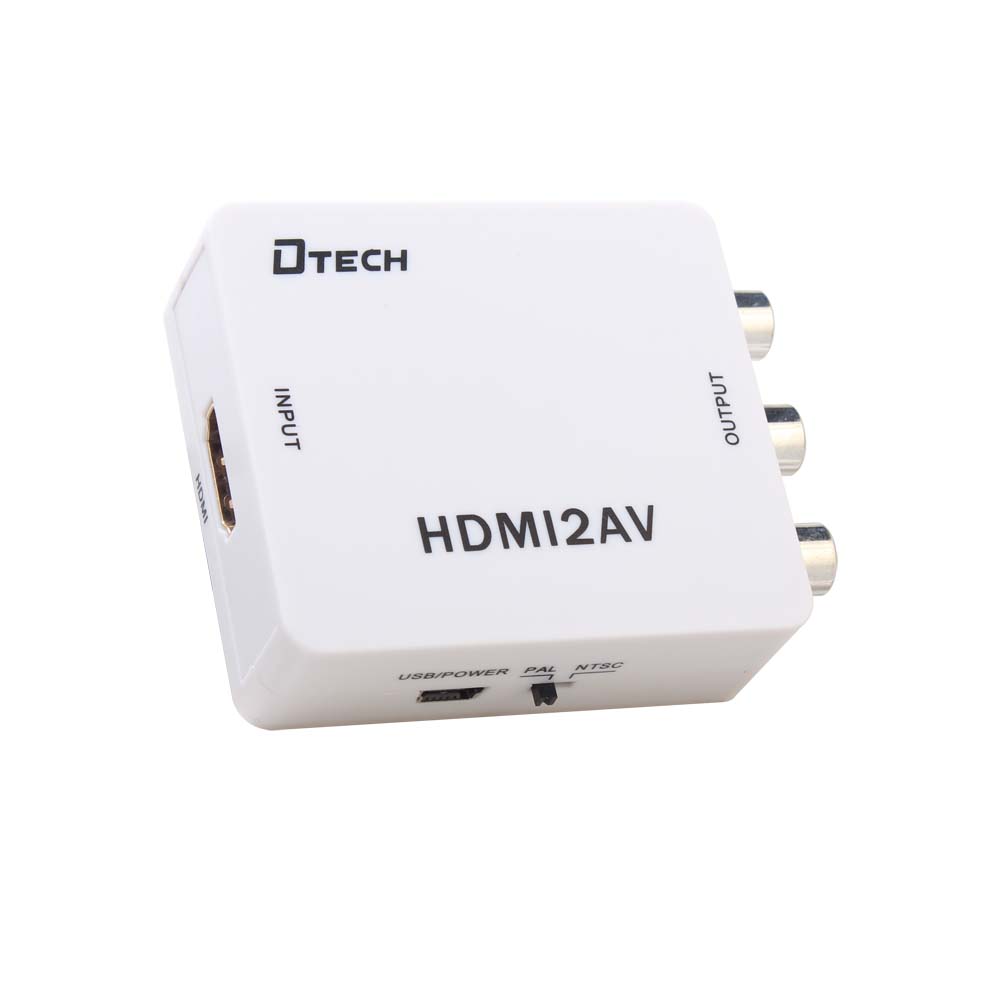

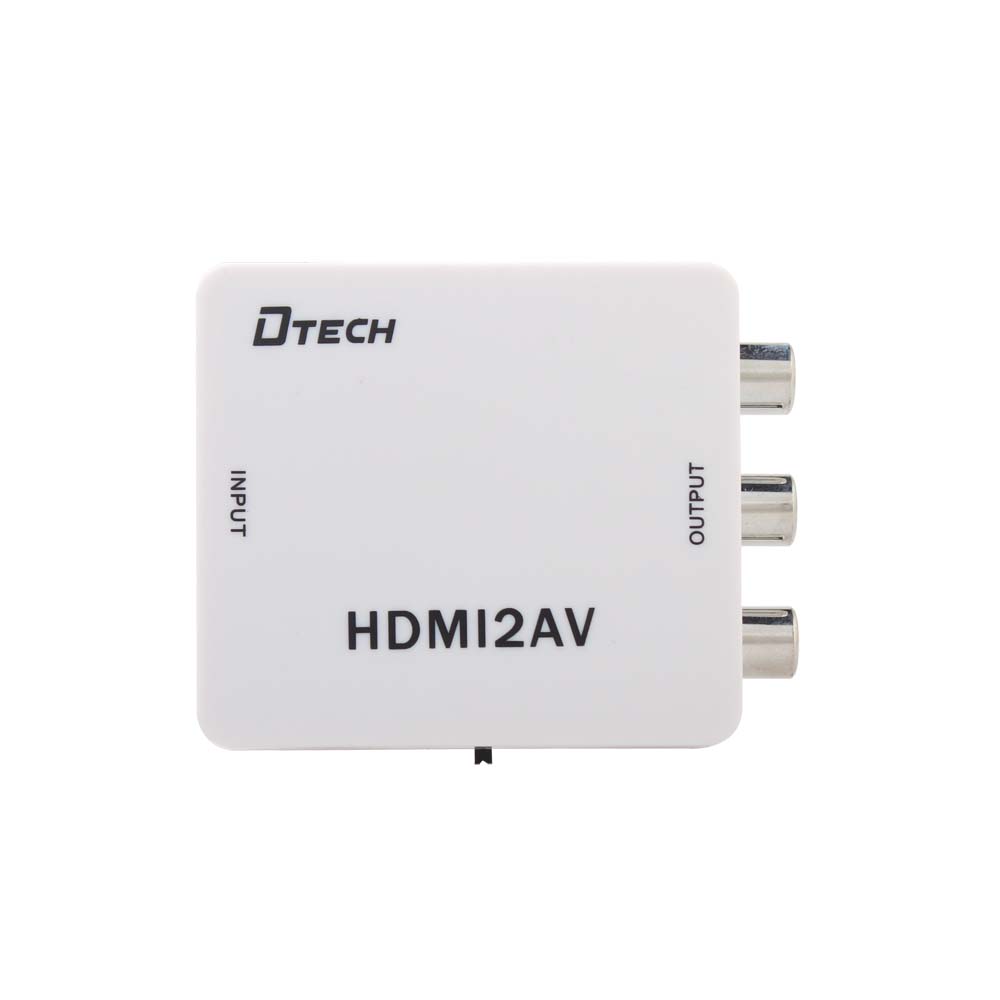

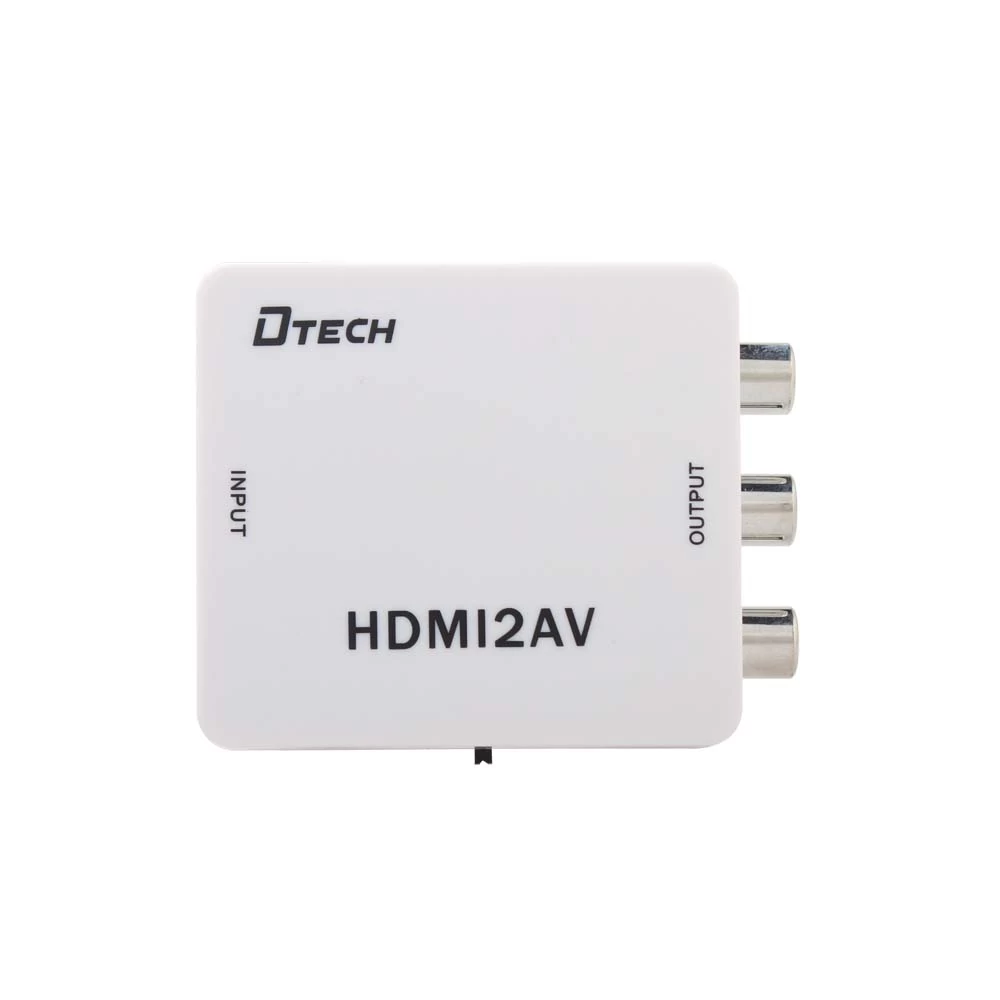

DTECH DT-6524 HDMI TO AV converter

HDMI to AV converter, which can convert digital HDMI signal to AV (CVBS) composite video signal and FL/FR stereo audio signal, the HDMI video signal with high quality can be converted to CVBS signal that support two different systems(standard solution of 480i, 576i, NTSC/PAL) which ordinary TV, VHS green players, DVD recorder can receive  by the customer.



 DTECH DT-6524 HDMI TO AV converter

Basic parameters

1、 输入HDMI信号格式:480p(60Hz)576P(50Hz)720p(50Hz/60Hz)1080i(50Hz/60Hz)1080p(50Hz/60Hz)

1, the input HDMI signal format: 480p (60Hz), 576P (50Hz), 720p (50Hz/60Hz), 1080i (50Hz/60Hz), 1080p (50Hz/60Hz);

2、 输出输入信号:1HDMI输入,1AV输出,1组立体声音频输出;

2, input and output signal : 1 HDMI input, 1 group of AV output, 1 sets of stereo audio output;

3、 输出视频制式:PALNTSC

3, the output video formats: PAL, NTSC;

4、 输出视频信号阻抗匹配:75欧姆;

4, the output video signal impedance: 75 ohm;

5、 工作环境温度:-25℃75℃

5, the working environment temperature: -25 to 75 ;

6、 工作环境湿度:10%-60%

6, the humidity of the environment: 10%-60%;

7、 产品尺寸:66*55*20mm(长宽高)

7, product size: 66*55*20mm (length and width and height)

8、 最大工作电流750mA

8, the maximum working current : 750mA
