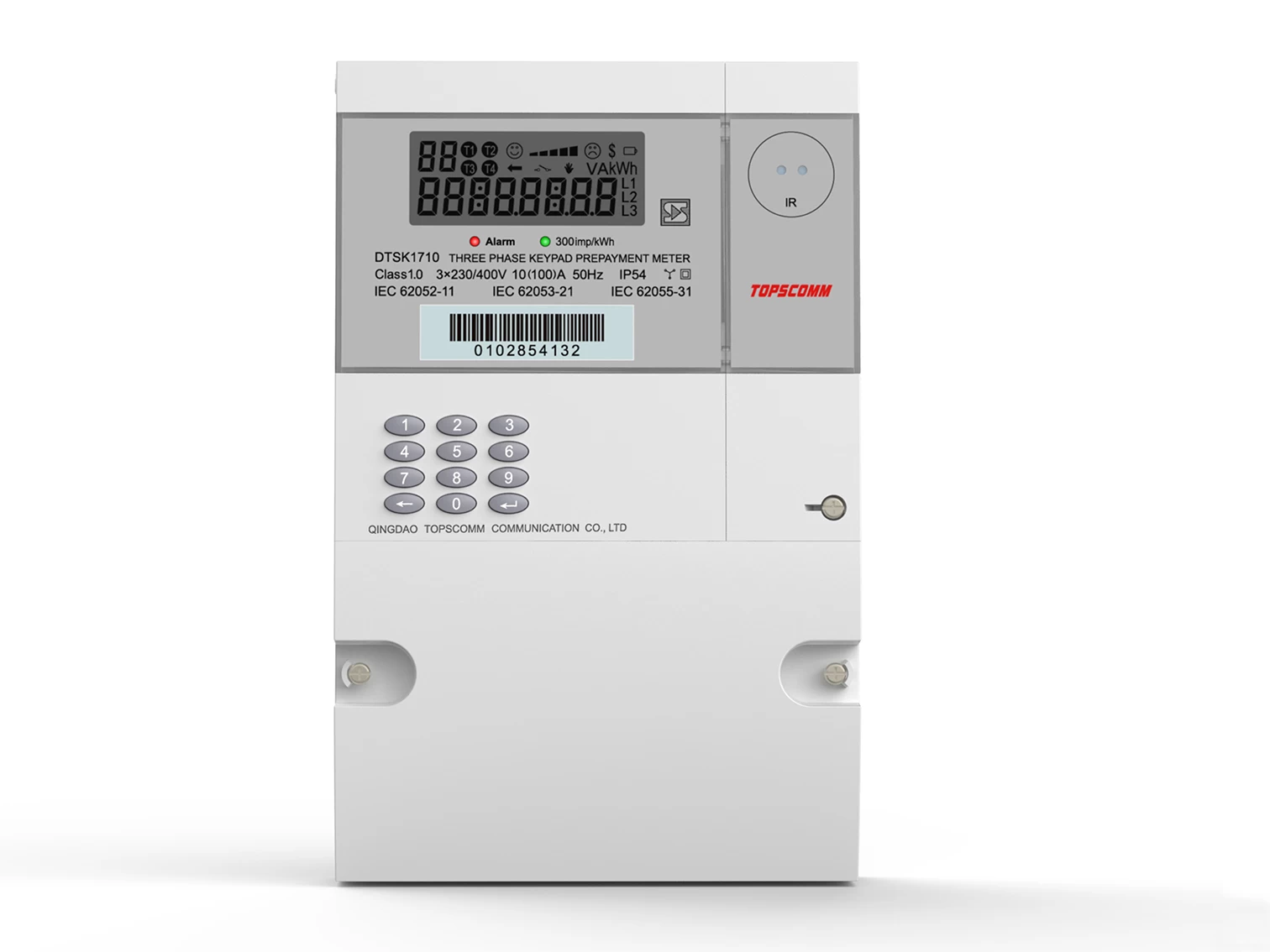

DTSK1710 STS keypad prepayment energy meter is switchable between prepayment and post-payment mode as per actual applications. It is capable to expand to split type combining with a Customer Interface Unit (CIU) through PLC/RF or wired cable communication. This meter is able to be utilized in AMR/AMI smart metering system with hot pluggable communication modules (GPRS/3G/4G/RF/PLC).
Standards
|
IEC 62052-11, IEC 62053-21, IEC-62053-23, IEC 62055-31, IEC 62056-21
|
Accuracy
|
Active:Class 1.0 Reactive:Class 2.0
|
Rated Voltage
|
3*220/380V~3*240/415V
|
Operating range
|
70%-120%Un
|
Current
|
Basic Current
|
5A, 10A
|
Maximum Current
|
100A
|
Starting Current
|
0.4%Ib
|
Frequency
|
50Hz or 60Hz
|
Power consumption
|
Voltage circuit
|
≤2W, 10VA
|
Current circuit
|
≤1 VA
|
Display
|
LCD 7+0/6+2/7+1( Optional)
|
Communication
|
GPRS/3G/4G/RF/PLC, Infrared, RS 485
|
Communication protocol
|
DLT/645, DLMS/COSEM
|
Protection degree
|
IP54
|
Operating temperature
|
-25℃-70℃
|
Humidity
|
＜95%
|
