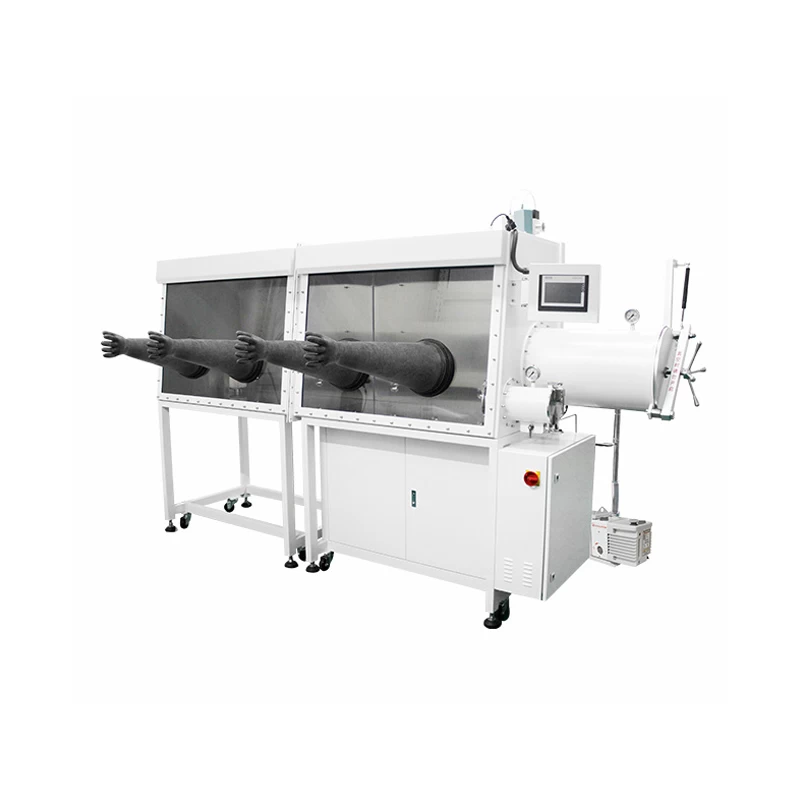

Dual Work Station Vacuum Glove Box for Lab Polymer Battery

Lab dual working station vacuum glove box is a necessary equipment for lithium battery research with Gas Purify System.



Dual Work Station Vacuum Glove Box for Lab Polymer Battery


Brief Introduction

Double station, single-sided operation, integrated with single-column purification unit, PLC control and touch screen operation, vacuum pump, bracket, a closed cabinet with tilting operating surface and detachable safety glass front window. Under standard conditions , that is, 20 degree centigrade constant temperature, a standard atmospheric pressure, 99.999% inert gas source, water and oxygen index is less than 1 ppm.

Technology parameters

Item

Parameter

Glove box

Box

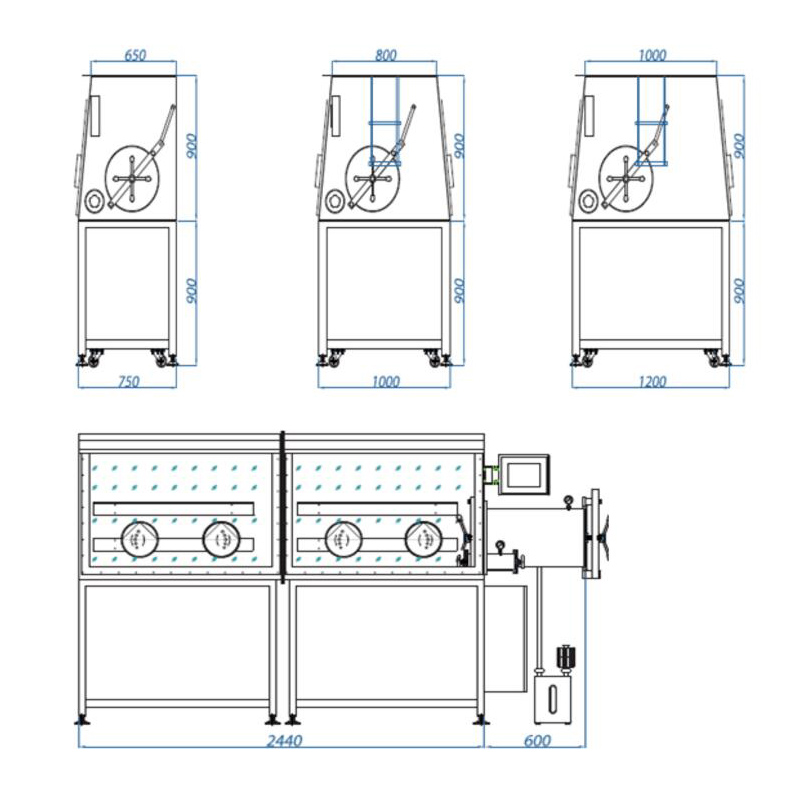

Box inner size: (L*W*H)=2440×750×900mm

Box material: stainless steel 304, thickness 3mm

Inner surface: stainless steel wire drawing treatment

Outside surface: paint, white

Front window

Tilt windows, transparent tempered safety glass, thickness 8 mm

Glove ports

The material is polyoxymethylene, O-ring seal, self-lubricating performance, easy to maintain, and good sealing performance

Gloves

Butyl rubber, diameter 8", length 32"

Filter:

0.3 microns, a gas inlet and a gas outlet

Shelf

Stainless steel, 2 layers

Lighting

LED lights, installed in front of each glass window

Connector

Standby interface7pcs, DN 40 KF, Power interface 1pc (220V)

Bigger transitive cabin

Chamber

Size: diameter 360mm, length 600mm

Material: 304 stainless steel

Surface: inner surfacewire drawing process, outer surface painting (white)

Accessary

Sliding tray: 304 stainless steel

Door: double door, anodized aluminum material, thickness 10mm, vertical operation, with lifting mechanism

Pressure gauge: Analog display

Control

Solenoid valve touch screen automatic operation

Smaller transitive cabin

Chamber

Size: diameter 150mm, length 300mm (100mm lengthinto the glove box)

Material: 304 stainless steel

Surface: inner: wire drawing process, outer: painting (white)

Accessary

Door: double door, button press

Pressure gauge: analog display

Small compartment tray: 304 stainless steel

Control

Manual valve manual operation

Gas purification circulation system

Purification column

Function: gassealed, remove water, remove oxygen

Container material: 304 stainless steel

Purification materials: copper catalyst: 5kg, molecular sieve: 5 kg

Purification capacity: oxygen: 60L, water: 2Kg

Water and oxygen indicators: less than 1ppm

Circulatory system

Working gas: nitrogen, argon

Recycling capacity: integrated fan flow 90m³ / h, install frequency conversion

Regeneration

Operation: PLC automatically controls the regeneration process

Regeneration gas: working gas mixed with hydrogen gas, (hydrogen 5-10%)

Vacuum pump

8m³ / h, rotary vane pump, with oil mist filter, air vibration control

Valves

Main valve: DN 40 KF, electrically operated angle valve

Control valve:electromagnetic integrated valve (stainless steel integrated valvebase, single column for the six valve integration)

Control System

Function

Including self-diagnosis, power-off self-starting characteristics, with pressure control and adaptive function

Automatic control, cycle control, password protection, unit control using Siemens PLC touch screen

Pressure control

Control box, transition chamber pressure,the working pressure of the cabinet can be set freely within +/- 10mbar, and the system automatically protects beyond +/- 12mbar.

Pedal

Control the box pressure, easy to operate boost and buck

Display system

Using Siemens PLC touch screen, display running status, box pressure, system records etc

Vacuum system control

Vacuum pump, can be manually or through the PLC to start, flow 8m³/h,vacuum of the transitionchamber, and keep the box pressure balance, vacuum pump limit vacuum ≤ 2x10-1pa
