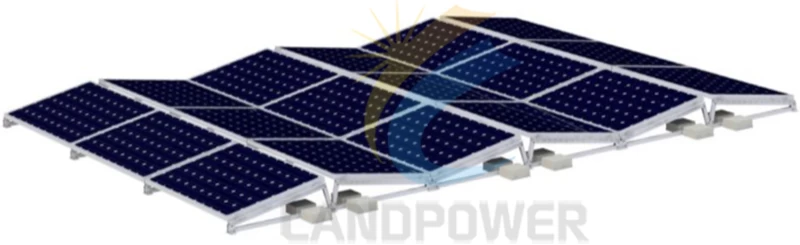

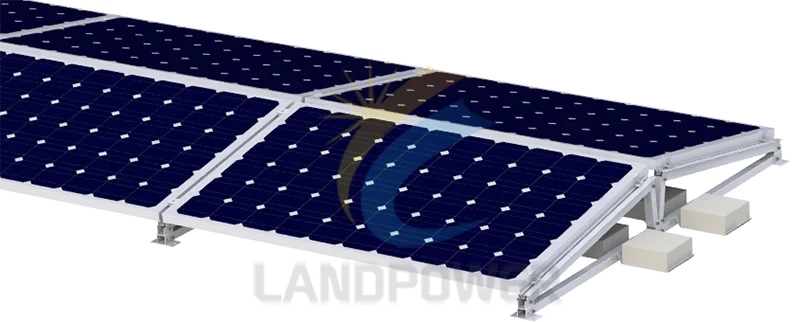

East / West Flat Roof Solar Mounting allows solar pv installed facing east and west orientation, it optimize the roof space by increasing the power production.It is simple flat roof solar mounting solutions,less part needed, less work on site, suitable for both commercial and presidential flat roof installation.

TECHNICAL INFORMATION

Install site ：Flat  Roof

Tilt Angle ：Flushed with the roof （10~60 deg）

Building Height：Up to 20 m

Max Wind Speed：<60m/s

Snow Load：<1.4KN/m2

Standard ：AS/NZS 1170 and other international Standard

Material ：High Class Aluminum alloy Al6005-T5& Stainless steel 304

Color: Natural or Customized

Anticorrosive: Anodized aluminum & stainless steel

Warranty：12 years warranty and twenty- year service life

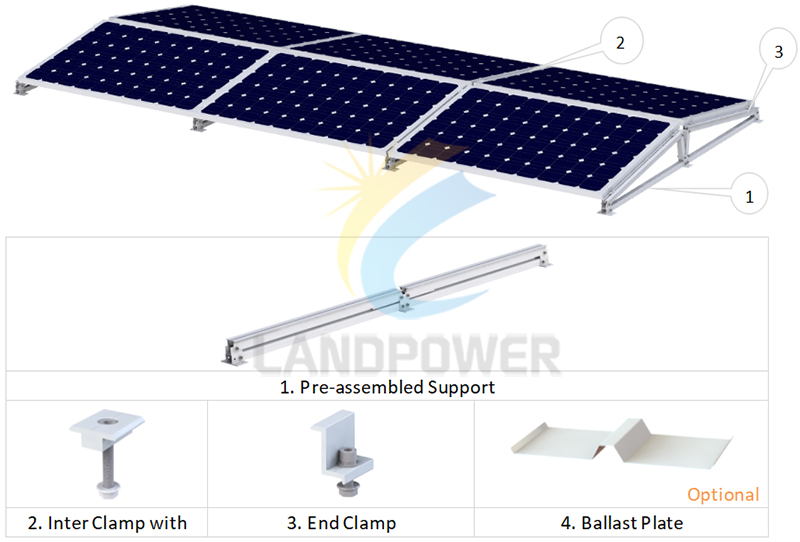

East/West Flat Roof Main Components:

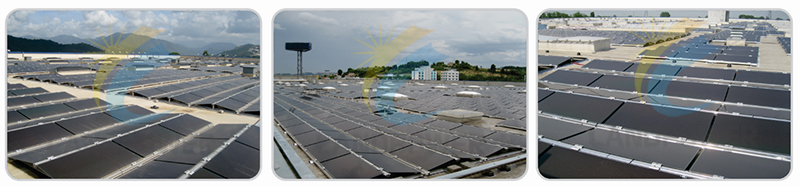

Flat Roof Solar Mounting Installation Demo:

East/West Ballasted Flat Roof Installation Video:
