Easy Install PV Solar Ground Mounting Kits

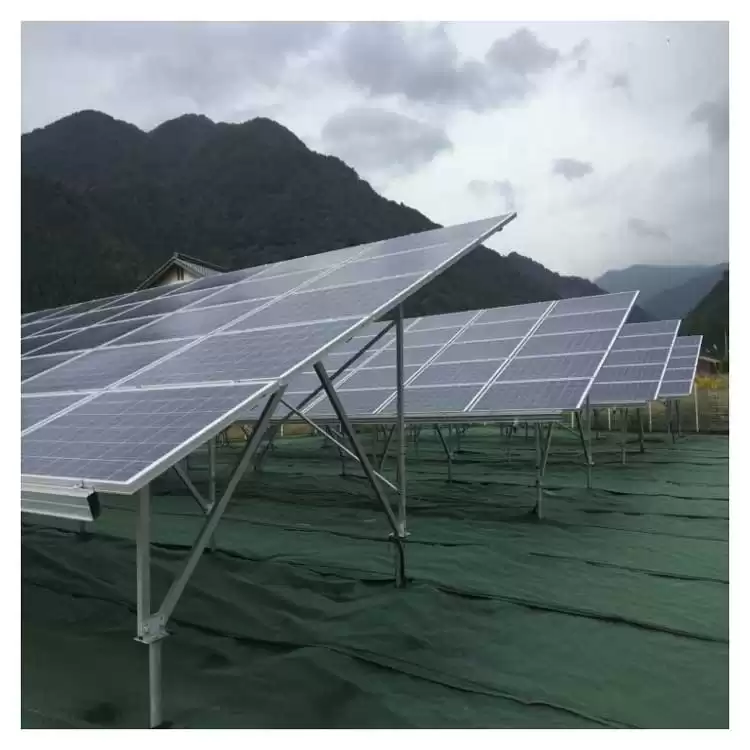

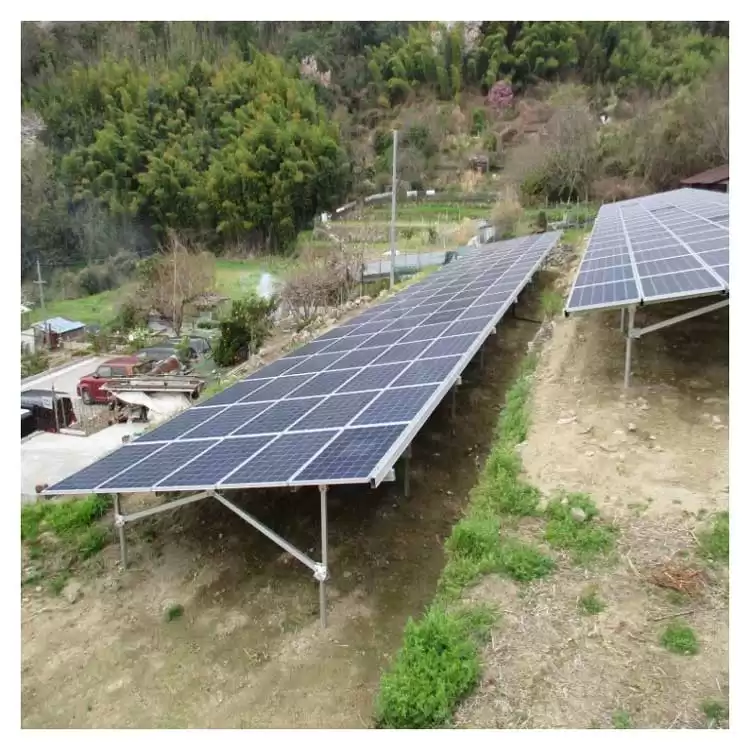

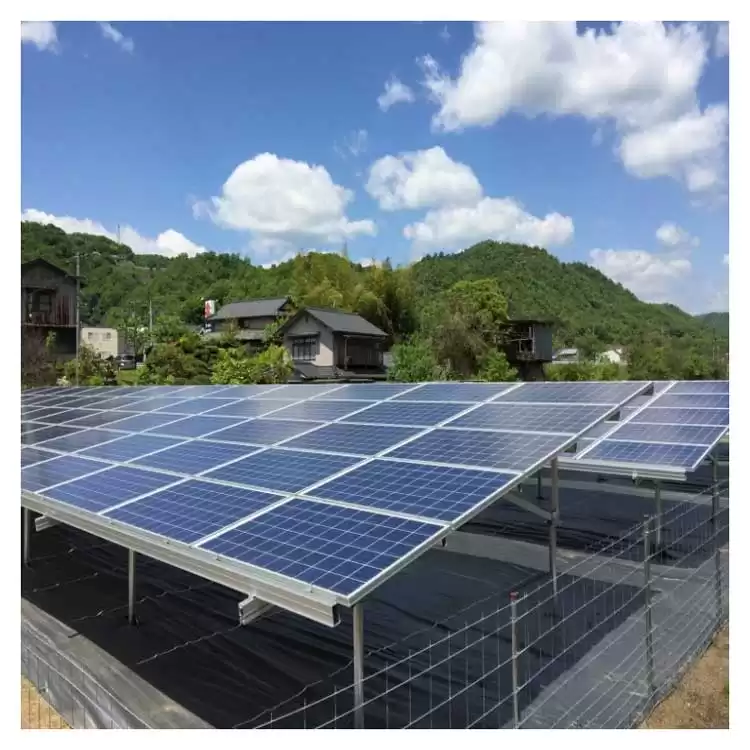

Solar Ground Racking Systems is suitable install on large open filed ,all of our components had been preassembly on factory before delivery to our clients .

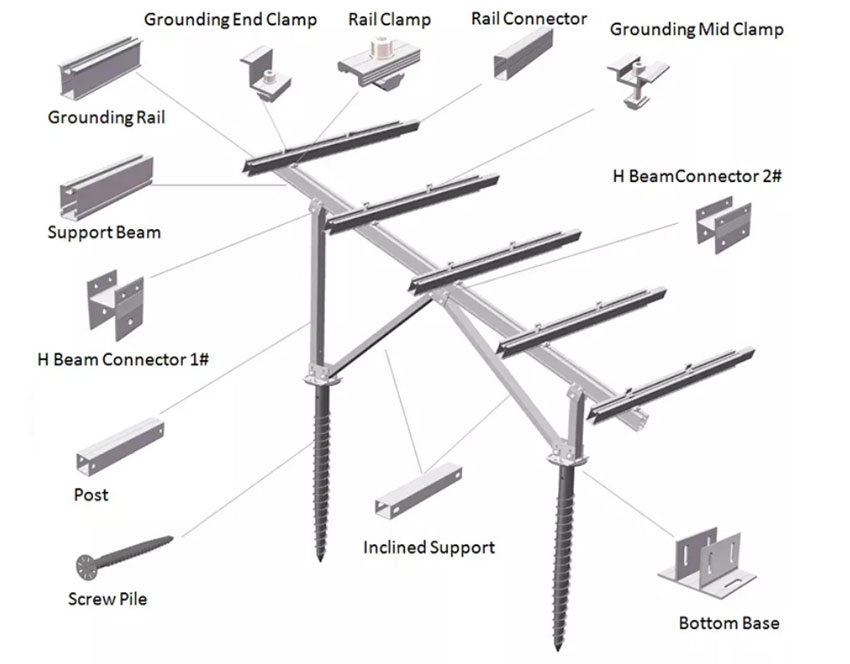

System Components
Technical Parameters
System Name
|
Ground Mount System GM04
|
Panel Layout
|
Landscape or Portrait
|
Foundation
|
Concrete Foundation,Ground Screw
|
Material
|
Anodized AL6005-T5
|
Tilt Angle
|
0-60degrees
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
Snow Load
|
1.6KN/㎡
|
Color
|
Customized or Silver
|
|
Wind Load
|
60m/s
|
Design Standard
|
AN/NZS1170,DIN1055,JIS C8955,etc.
|
Applicable Solar Module
|
Framed or Frameless
|
Warranty
|
10 Years
|
|
Ground Clearance
|
500-2000mm
|
Small Components
|
Anodized AL-6005-T5
|
Features
*Pre-assembly and flexibility ,Low cost and high application
*Anti-corrosion,100% recycled ,portable and beautiful

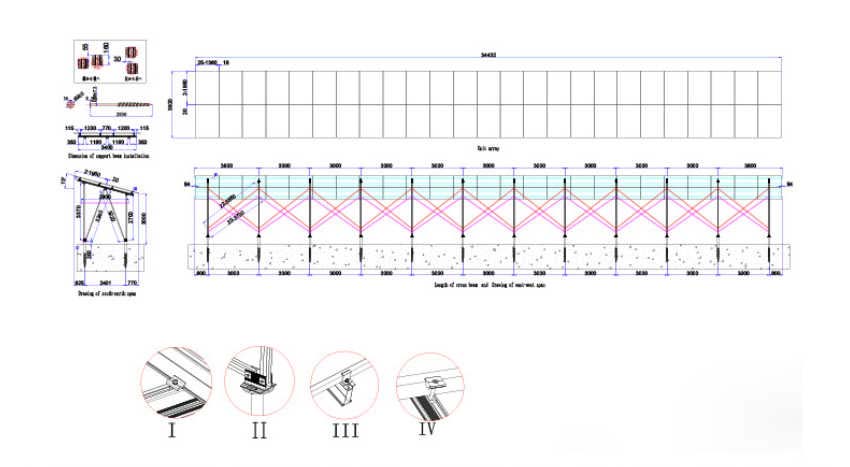

Drawing Reference
Packaging
Excellent quality made us more competitive in the markets, we are always looking for good partners for long cooperation, if you are interested in High Quality & Free Design For solar panel mounting ground, pls contact us right now.Jesfer! Your Best Choice, Your Reliable Supplier!
Why Choose Us?
1.Quality is our culture.our Oxide film ration is 10-15% ,most of factory are only 4-6%.that is means our product's appearance will looks more smooth and beautiful .
2.Our ISO 9001 factory has accumulated 25-years of experience in aluminum products.
Our Factory have 20 sets of punching machines, 10sets of aluminum alloy cutting machines, 20 sets of automatic drilling, tapping machines and 5 roll forming production lines, and monthly productions of aluminum alloy solar mounting up to 50MW.
