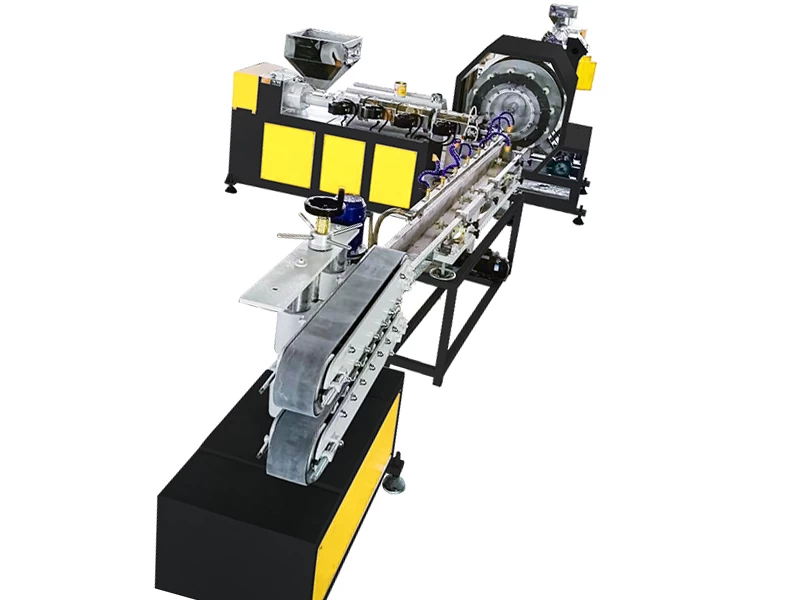

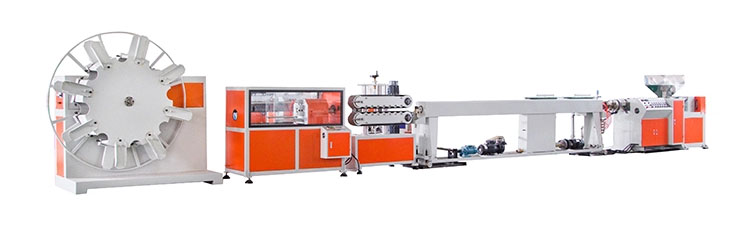

Economic best-selling Automatic high pressure PE pipe extrusion line

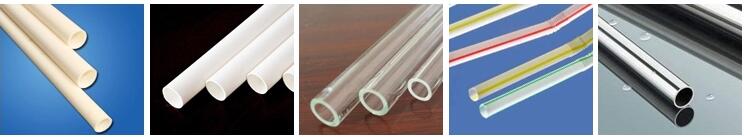

The production line consists of main extruder,die,water,tank haul-off and cutting device,single color,two color and multi-color drink straw extruding lines are available. Equipped with corresponding die then can produce drink straw,nozzle,cotton slip,lollipop stick,toy tube and other small industrial tube.
Products details

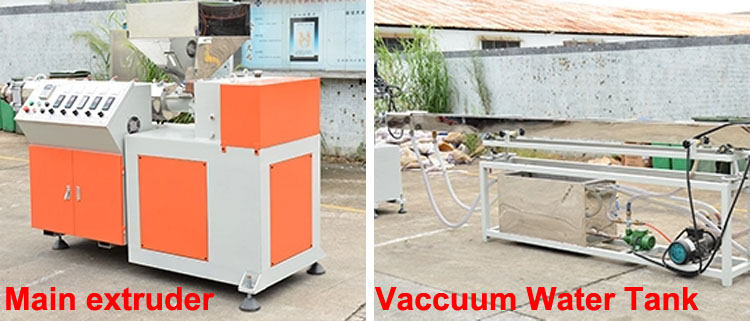

Main extruder
A. Screw-material:38 CrMoAIA nit-riding processing -diameter:55mm - length to diameter ratio:o - forms:PP special material
B. Screw tubes - material: 38 CrMoAIA nitriding treatment
C. Forms:feed zone with advancing tank capacity
D. Capacity:swab rod:150000/h drinking straw:70000/h Candy cane:60000/h
Vacuum Water Tank
Vacuum stainless steel vacuum sizing and cooling device,cooling tank is immersed type vacuum sizing cooling(also can be used according to the customer need to spray cooling way),can be adjusted up and down,left and right sides,front and rear manual fine-tuning the appropriate vacuum degree and equipped with appropriate vacuum sizing die,can meet the production requirements of various precision tubes and profiles.

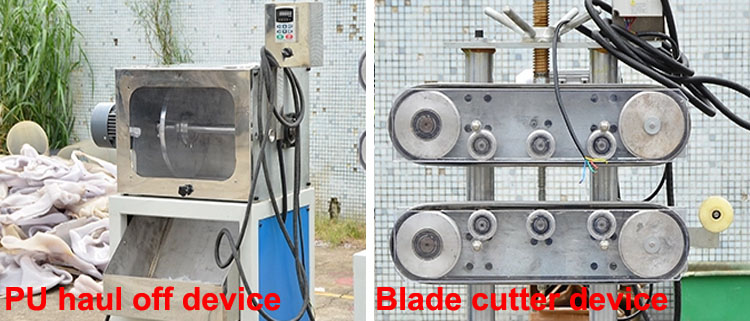

PU haul off device
Traction device of traction device has a roller(2 to)two methods of traction and the haulage,frequency control of motor speed control,traction speed of 5-200m/min (also adjustable speed range according to the requirements of the product),according to user needs can also be equipped with measuring devices and printing devices.
Blade cutter device
The rotary cutting device can be cut with single or double knife,cutting speed is ot adjustable,cutting length is accurate,the product length of precision is 0.1mm,and the length of the normal cutting machine is 1mm. The traction and cutting can be combined on one device,which can be divided into two independent devices,the speed of traction and the cutting degree can be adjusted respectively,and the cutting length can be freely adjusted online.
Supply Ability:10 Set/Sets per Month
Why Choose Us
FAQ
Q: Are you a factory or trading company?
A: We are a factory in Guangzhou, welcome to visit and check at any time.
Q: What’s the lead time for a whole production line usually?
A: About 25-60days or depends on different production lines.
Q: Will your company offer install and guide service door to door?
A:Yes, oversea installation service is available.
Q:How to deal with the machine problem after 1 year free warranty?
A:1. 24 hour telephone technical service
2. Offer spare part with cost price
3. Door to door service again .
Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
If you are interested in our plastic pipe extruder machine,Contact now! Tell us the details of your needing.
