EITAI 10KW Off Grid Solar Power System
EITAI Off Grid 10kw 40kw 60kw 100kw Energy Power System Battery
Commercial Chargeable Solar System Mounting
Production Detail :
Place of Origin : Fujian, China
Brand Name : EITAI
Model Number : Off-grid Solar System
Battery Type : Lead-Acid, Lithium Ion
Certificate : CE
Controller Type : 60A 48V
Mounting Type : Ground Mounting, Roof Mounting, Carport Mounting
Output Voltage (V) : 230V/400V, 230V/ 400V
Output Frequency : 50/ 60Hz
Type : Single/ Three Phase
Out-put Voltage : 3-10kw
Solar panel : MONO/ POLY
Inverter : Pure Sine Wave Inverter

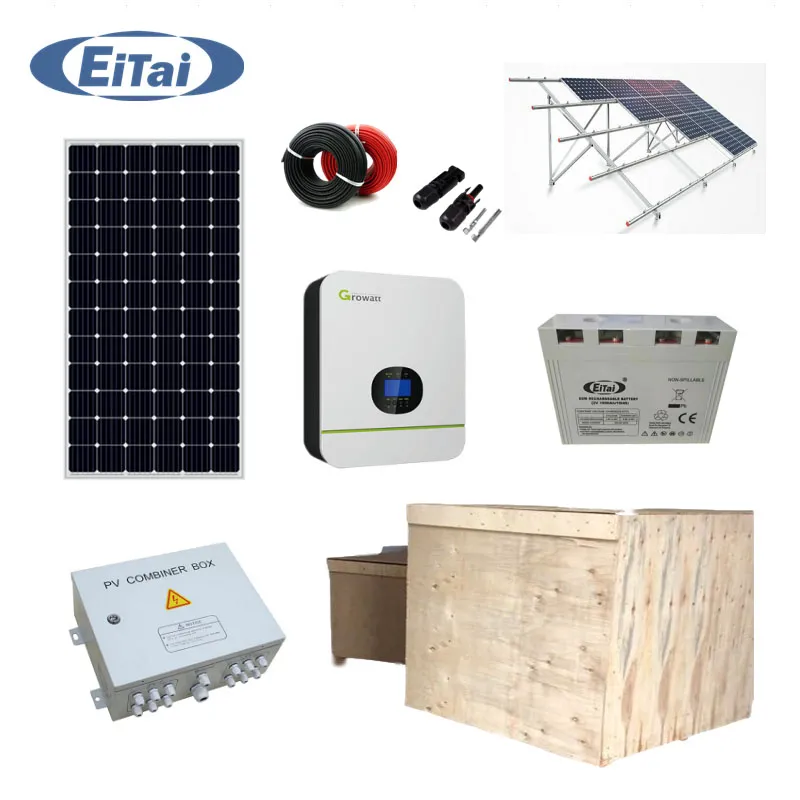

Configuration Detail :
Off-grid Solar System 15kw
|
|
|
|
|
|
|
|
EITAI standard/ custmoized Roof/ Ground mounting kit
|
|
|
|
|
Mono 380w panel,1956*992*40mm
|
|
|
|
|
Off-grid, Growatt SPF 5000TL HVM-WPV, built-in charge, 48V 80A, support parallel.
|
|
|
|
|
|
|
|
|
|
1x4mm2,PV Module to Inverter
|
|
|
Battery Cable-Inverter to Battery Box
|
|
|
|
Battery Cable-Battery Box to Battery
|
|
|
|
|
|
|
|
|
AC Combiner Output Box, 3 in 1 output
|
|
|
|
AC Cables-Inverter to AC Combiner Output Box
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Solar Panel
▶PID Free PV Module
▶0-5W Positive Power Output Guarantee
▶25 Years Power Output Guarantee
▶100% Double Full EL Inspection

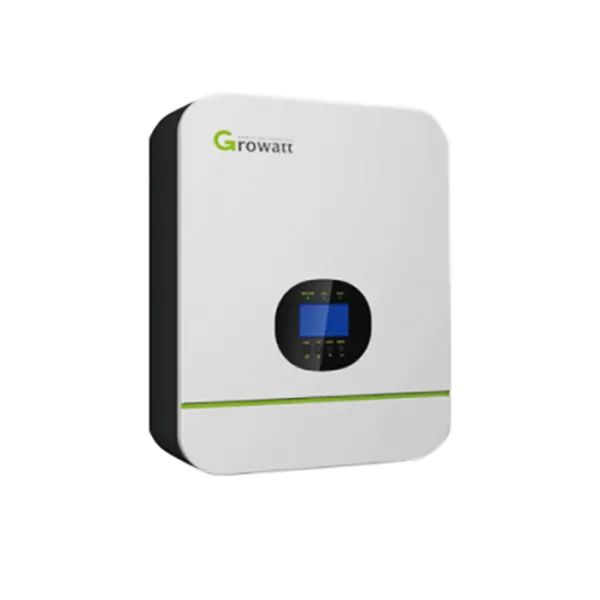

Off Grid Solar Inverter
▶Brand:Growatt
▶5 years standard warranty

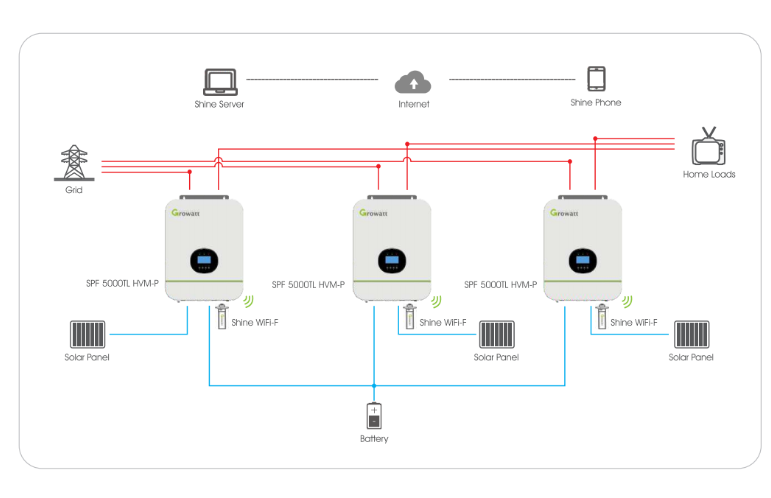

▶Support Working in Parallel
▶Max.Efficiency 99.7%
▶Integrated DC switch for added
▶safety protection
▶With WIFI Monitoring Device
Solar Mounting System
▶Customized for :Rooftop(Flat/Pitched), Ground , Carport etc
▶Adjustable tile angle from 0 to 65 degree
▶Tile roof: Aluminium type
▶Compatible with all solar modules.
AC Combiner box
▶ Include FUSE,SPD, Leakage Breaker etc.
▶ Protect Solar System
DC Cable & MC4 Connector
▶PV Cable 4mm2 6mm2
▶MC 4 compatible Connector
GEL Battery
▶Capacity(kWh): 2.6
▶Nominal Voltage(Vdc): 2
▶Nominal Capacity(AH): 1300
▶Depth of Discharge: 70%
Product packaging :
Packing Details:Carton Packing
Delivery Details:12-30 days after place the order
