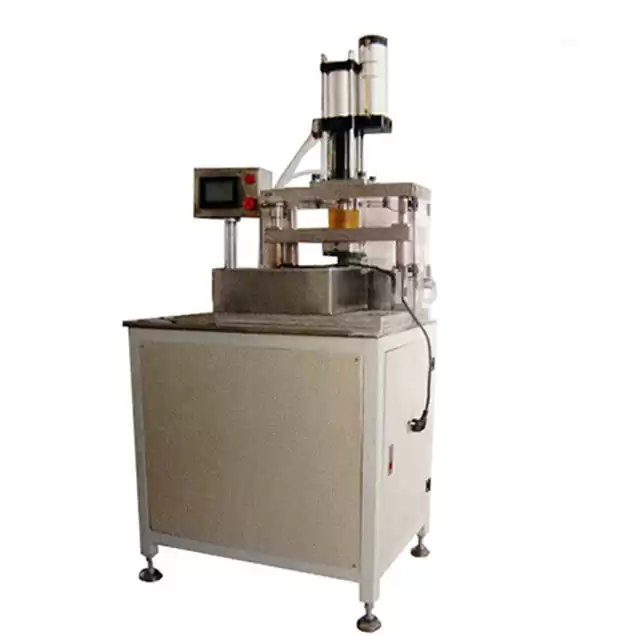

Electric Cylinder Cell Sealing Machine
TMAX-PX-OE-A18 is aSemi-automatic crimping machine forsealing all types of cylinder casesin battery R&D labs.
It is with Touch screen and safety protection device, can finish the sealing process quickly and semi-automatically.
|
Model
|
Electric Cylinder Cell Sealing Machine TMAX-PX-OE-A18
|
|
Source voltage
|
AC110V/220V, 50/60HZ customized
|
|
Power
|
200W
|
|
Warranty
|
One year limited with lifetime support
|
|
Air source
|
0.6-0.8Mpa
|
|
Crimping Dies
|
Suitable diameter size : φ14-26mm
Suitable Height : 35-70mm
Wish changing Die can sealing all kinds of cylinder battery such as
CR123 /18650 / 26650 / 32650 / AA /AAA
|
|
Structure
|
Semi-auto sealing for cylinder cell
With Touch screen and safety protection device
|
|
Output
|
25-35pcs/min
|
|
Application Notes
|
Customized die for other cylindrical cell types is available upon request
It is necessary to groove the opening end of the cylindrical case
by using the TOB-GC650 grooving machine before sealing the cap
Each type of cylinder cell can only be sealed specifically by certain model
of equipment. Please select the type of cylinder cell in the Product Options
drop box to check the model number and price for the corresponding
crimping die of each cylinder cell type
|
