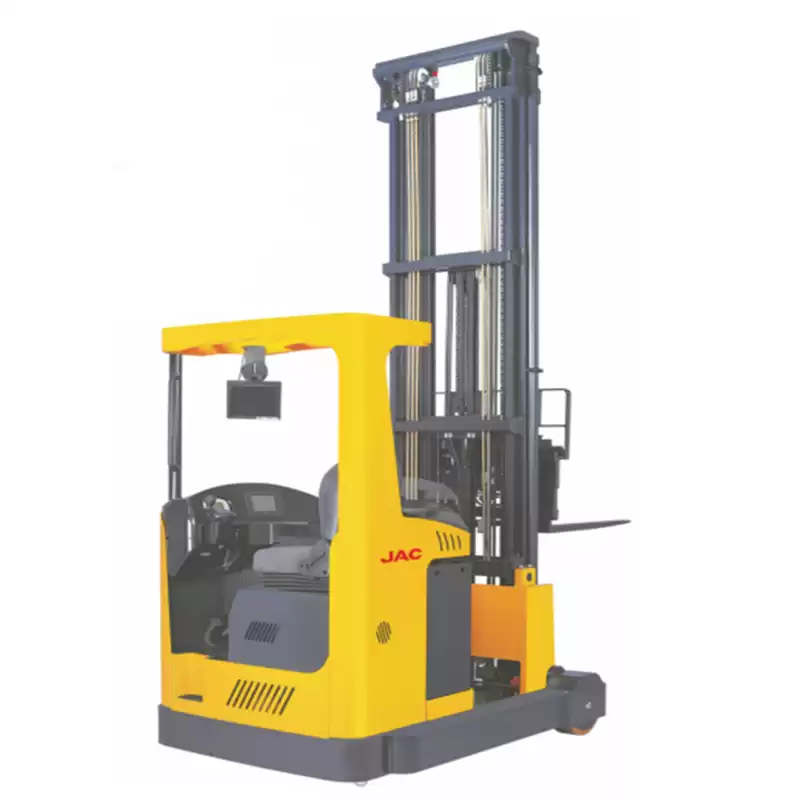

Electric Reach Lift Truck 2 ton

The CQD series Counterbalanced Reach lift truck with innovative design and application-oriented functionality, low noise, no pollution and a small turning radius. Widely used for high-shelves in narrow aisle warehouses, supermarkets, etc.
Loading capacity: 2 ton
Capacity: 500,000 units/year


Facebook Twitter Pinterest LinkedIn 分享

1. Advantages

STABILITY
•The large and strong chassis ensures sufficient stability of the forklift.
•The max lifting height can reach 9.5 meter.
•Use “H” type mast steel is imported from Germany enhance the use time and stability.
•Large and comfortable compartment with adjustable seat reflects a concept of ergonomic design.
•Use double controllers to realize stepless speed regulation of both lifting and travelling.

SAFETY AND HGGH EFFICIENCY
•Have safety travelling speed limited device in the mast. Travelling speed will automatic lowering when forks height is up 5M.
•Full hydraulic steering system makes turning easy and flexible.
•Adopts hydraulic brake for two front wheel and electric brake for electric brake for driving motor, offer simple operation for travelling and braking .
•Integrated design of driving and steering system without chain transmission, resolve the problems of chain fall-off caused by chain transmission.

EASY MAINTENANCE
•Battery changing offers two type methods:
(1)Side way battery changing by a trolley.
(2) Automatic push- out and pull-in function by a simple battery handle controller.

•Bolt fixed back cover is easy to open for daily maintenance.


OPTION:
• Joystick hydraulic controller
•LCD display and camera (LCD for cold storage are available)
•Height selection and height position system
•EX explosion proof type

•Cabin





2. Specification

Model   CQD20 CQD20H
Capacity/rated load Q(kg) 2000 2000 2000 2000 2000 2000 2000
Max.lift height h3(mm) 3000 5000 6200 7400 8000 8600 9500
Load centre distance c(mm) 600 600 600 600 500 500 500
Drive wheel mm φ406×152 φ406×152 φ406×152 φ406×152 φ406×152 φ406×152 φ406×152
Fork wheel mm φ340×104 φ340×104 φ340×104 φ340×104 φ340×134 φ340×134 φ340×134
Wheels,number front rear(x=driven wheels)   1x/2 1x/2 1x/2 1x/2 1x/2 1x/2 1x/2
Tilt mast/fork carriage forkward/backward α,β(Grad) 2,2(mast) 2,2(mast) 2,2(mast) 2,2(mast) 3,5(forks) 3,5(forks) 3,5(forks)
Height,mast lowered h1(mm) 2086 2240 2740 3190 3390 3590 3890
Free lift h2(mm) ~ 1700 2100 2500 2700 2900 3200
Height,mast extended h4(mm) 3800 5800 7000 8200 8800 9400 10300
Height of overhead guard(cabin) h6(mm) 2200 2200 2200 2200 2200 2200 2200
Seat height/stand height h7(mm) 1068 1068 1068 1068 1068 1068 1068
Height of crura h8(mm) 270 270 270 270 270 270 270
Overall length l1(mm) 2440 2440 2440 2440 2510 2510 2510
Length(barring fork) l2(mm) 1950 1950 1950 1950 1950 1950 1950
Overall width b1(mm) 1260 1260 1260 1260 1510 1510 1510
Fork dimensions s/e/l(mm) 40/120/1070 40/120/1070
Reach distance l4(mm) 600 600 600 600 600 600 600
Aisle width for pallets 1000×1200 crossways Ast(mm) 2920 2920 2920  2920 2920 2920 2920
Aisle width for pallets 800×1200 lengthways Ast(mm) 2980 2980 2980 2980 2980 2980 2980
Turning radius Wa(mm) 1820 1820 1820 1820 1820 1820 1820
Travel speed ,laden/unladen Km/h 8/8.3 8/8.3 8/8.3 8/8.3 8/8.3 8/8.3 8/8.3
Lift speed, laden/unladen m/s 0.19/0.2 0.19/0.2 0.19/0.2 0.19/0.2 0.19/0.2 0.19/0.2 0.19/0.2
Lowering speed, laden/unladen m/s 0.5/0.4 0.5/0.4 0.5/0.4 0.5/0.4 0.5/0.4 0.5/0.4 0.5/0.4
Battery voltage,nominal capacity K5 V/Ah 48/500 48/500 48/500 48/500 48/500 48/500 48/500
Battery weight kg 860 860 860 860 860 860 860
Battery dimensions l/w/h mm 1220x344x727 1220x344x727
Service weight kg 3300 3700 3800 3900 4100 4150 4240


Reach trucks offer breakthrough lift height, capacity, visibility and energy savings to help you move and store materials efficiently. Forklifts from our forklift supplier have excellent products and services.
