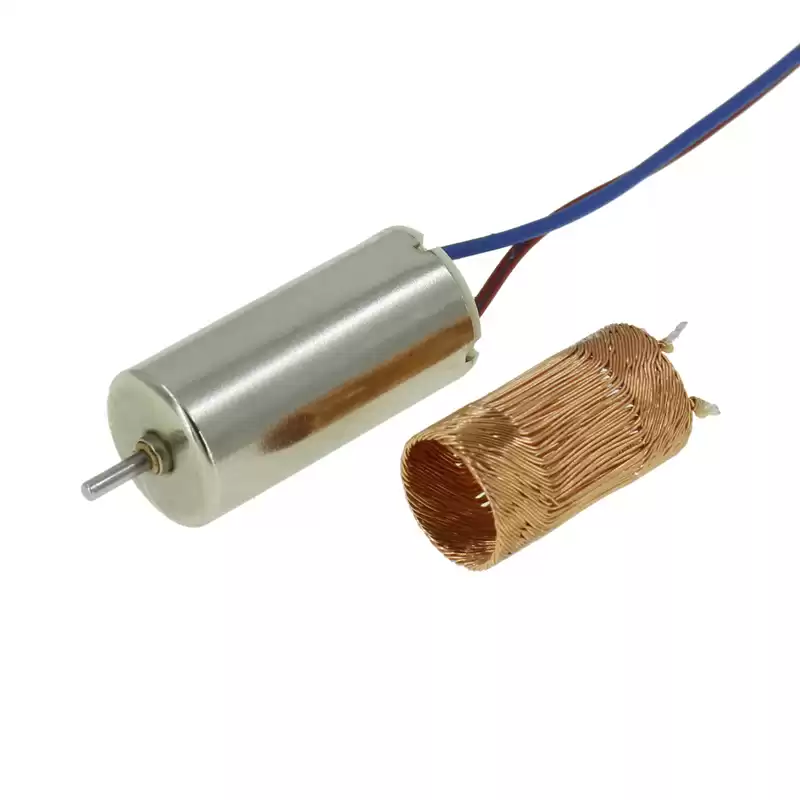

Coreless DC motor, adopt high precision double ball bearings, with small friction between bearings, low heat generation and fast heat dissipation.

About this item

• Dimension of the motor is 8.5 mm(D) x 23 mm(L) / 0.33" (D) x 0.90" (L).

• Shaft Diameter: 1.2 mm / 0.047" | Motor Diameter: 8.5 mm / 0.33" | Motor Length: 23 mm / 0.90".
• Rated Voltage Range: DC 3.0V ~ 3.4V | Speed: 33000 ~ 48000 RPM (the actual speed may be high or low).
• Weight: 7.4 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
• Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.

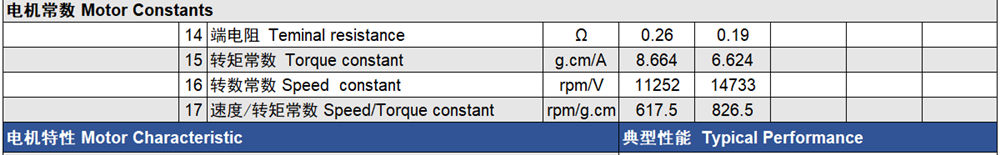

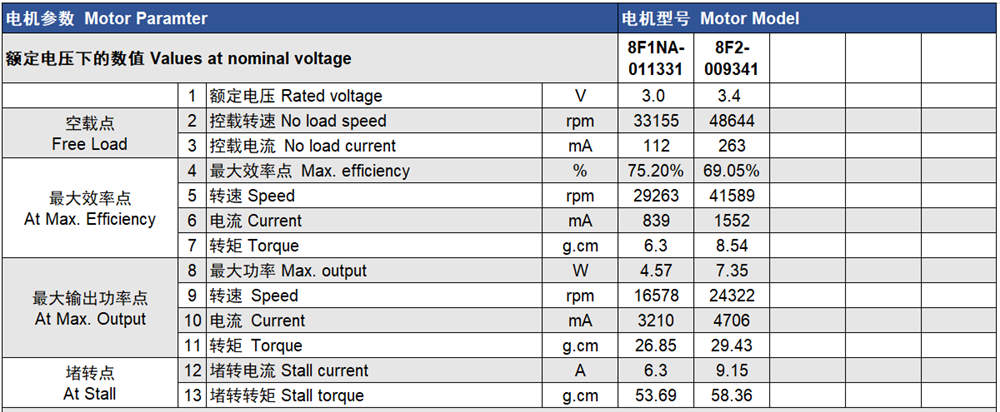

DC Brushes Micro Motor 8F8523

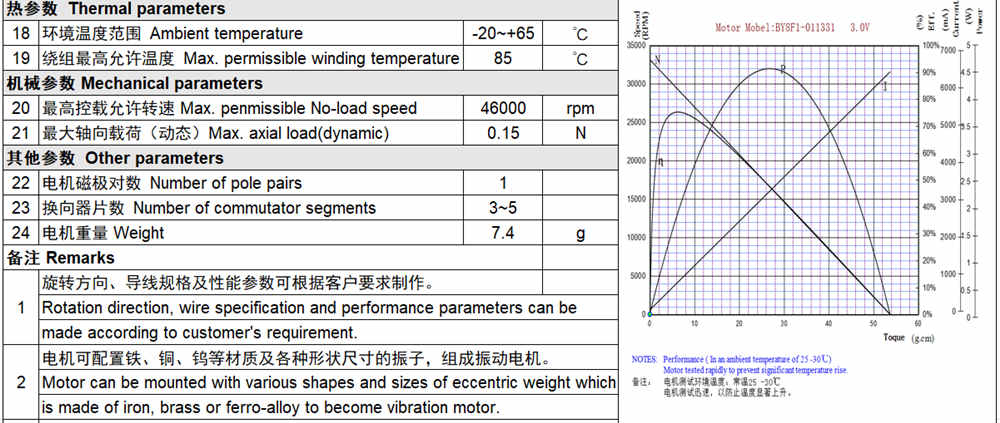

• Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
• Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

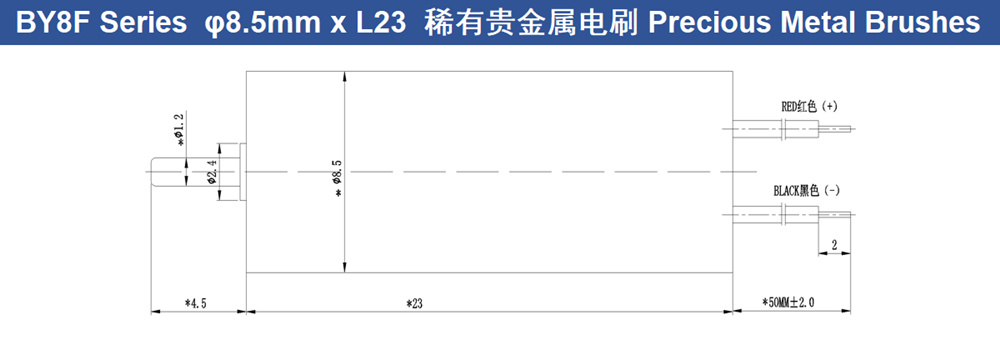

• Dimension with " * " in the drawing can be adjusted according to customer's requirement.

Feature

• Small size and high vibration frequency;
• With fine craftsmanship, durable, not easy to wear;
• Coreless motors ,compact, convenient and easy to install;
• Energy-saving, silent, efficient and energy-saving with low calorific value;
• The internal coil is made of copper, which has stable electrical performance and good voltage resistance.

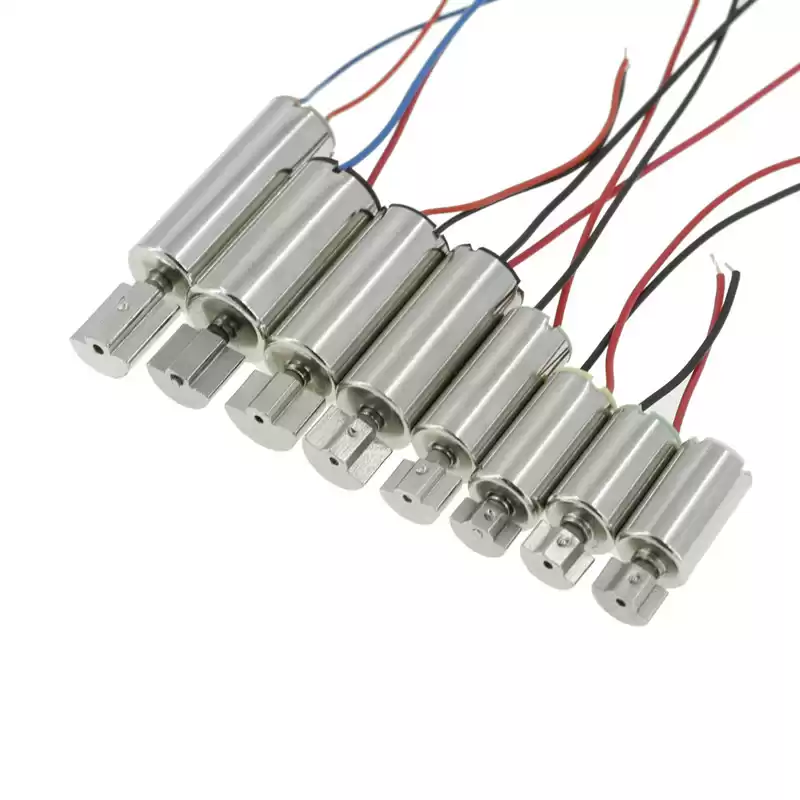

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Application

Our products have been widely used in all kinds of electronic, household appliances, electronic toys, aviation models, healthcare equipment, fitness leisure equipment, electric toothbrush, massage equipment, instrument and equipment.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
