DC brush motor, wiring connection design is convenient, fast, safe and firm; Adopt soft wire material, which can better protect the tension after connection.

About this item

• Dimension of the motor is 10 mm(D) x 13.3 mm(L) / 0.39" (D) x 0.52" (L).

• Shaft Diameter: 1.0 mm / 0.04" | Motor Diameter: 10 mm / 0.39" | Motor Length: 13.3 mm / 0.52".
• Rated Voltage Range: DC 1.2V ~ 3.0V | Speed: 12000 ~ 42000 RPM (the actual speed may be high or low).
• Weight: 5.2 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
• Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.

DC Brushes Micro Motor 10A1013

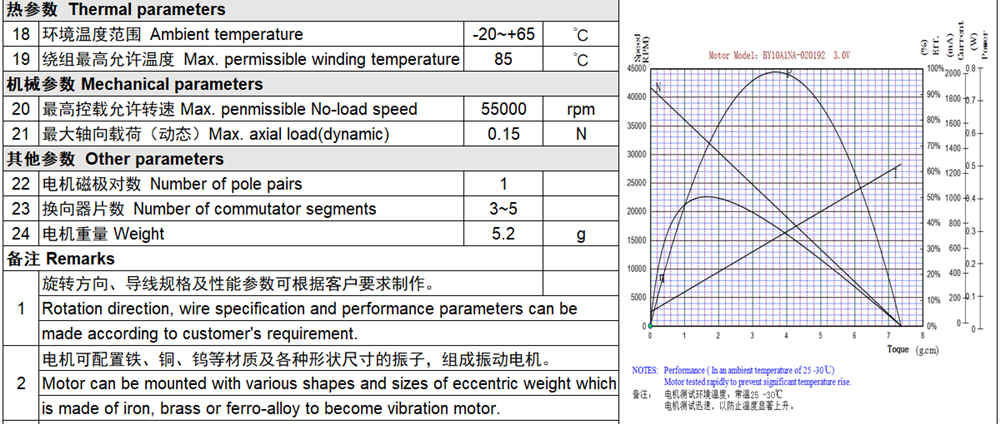

• Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
• Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

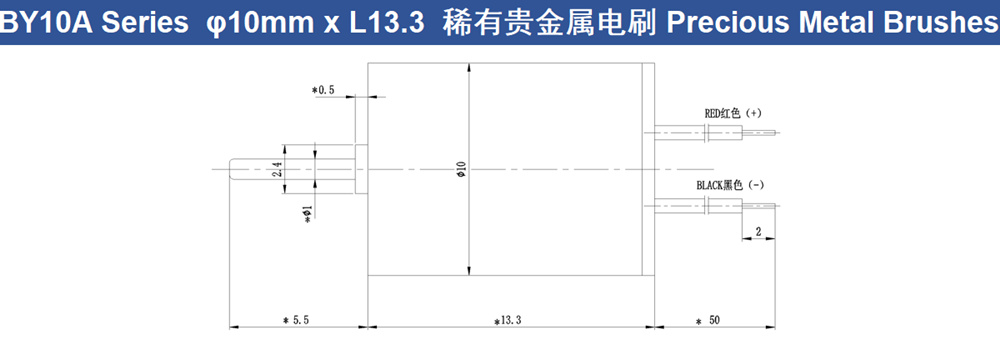

• Dimension with " * " in the drawing can be adjusted according to customer's requirement.

Feature

• High energy conversion efficiency；
• Uniform torque and stable operation at low speed;
• Only 5.2g/pcs, lightweight, durable, practical and convenient to use;

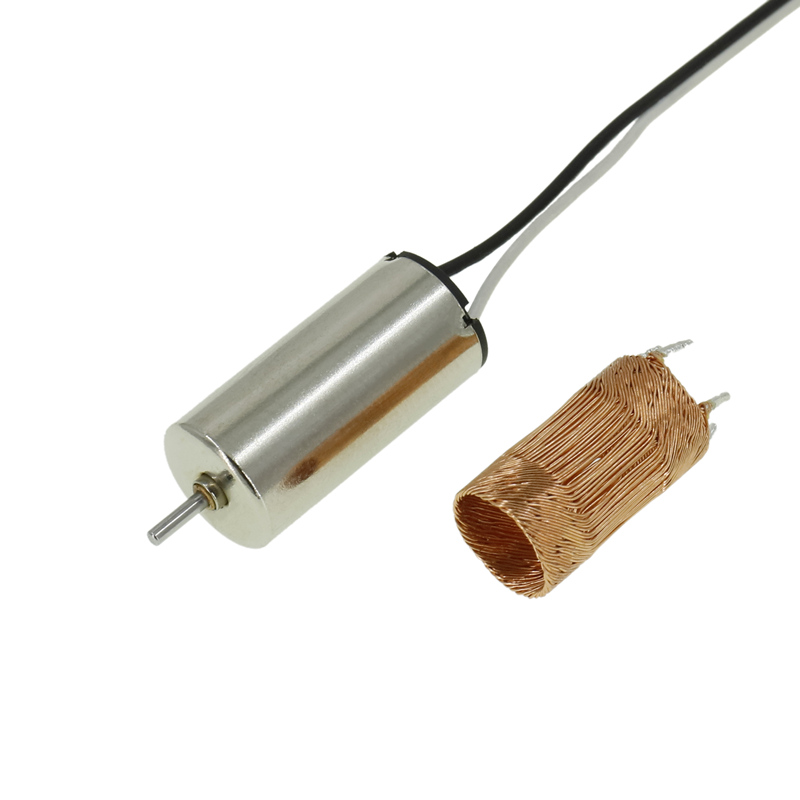

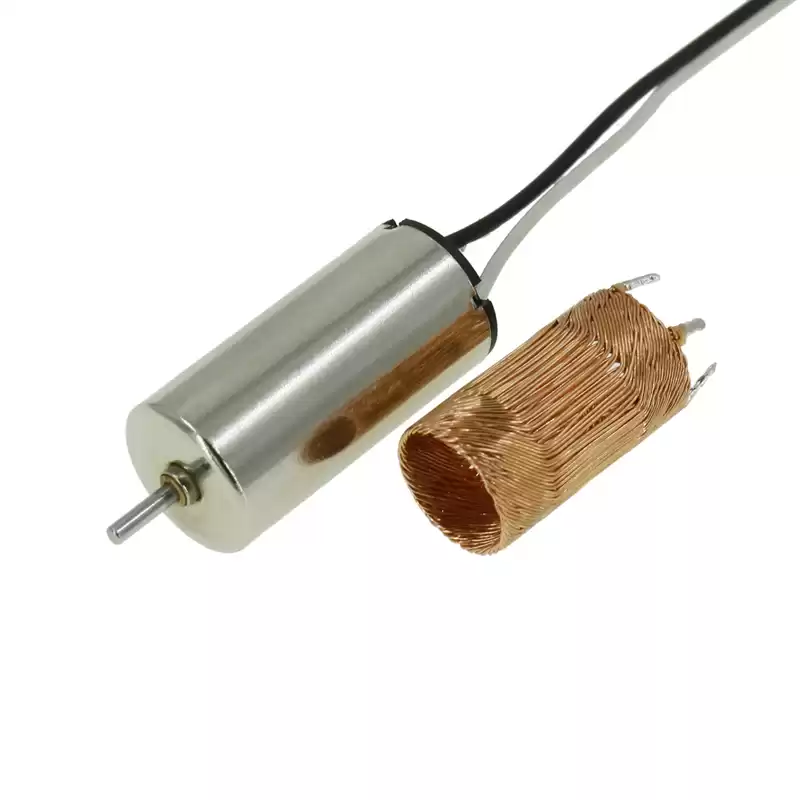

• Based on a coreless design with brush direct current and permanent magnet construction;
• High-quality materials, durable and long service life, corrosion resistance, suitable for a variety of complex environments.

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Application

DC coreless vibration motors are widely used in audio-visual equipment, medical equipment, massage equipment, beauty instruments, electric toys, intelligent products and other fields.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
