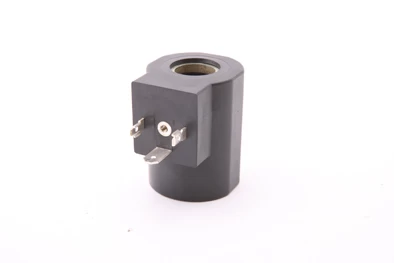

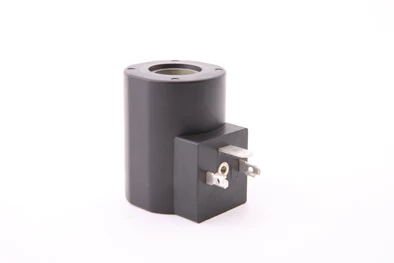

Characteristics MQZ4 Electromagnet Coil
Easy to fix and connect to
the load
The risen temperature is
stable so as to prolong lifetime and guarantee excellent performance
Anti-friction ensures high
efficiency and long lifetime
MQZ-4 is thermoplastic
coated with excellent temperature tolerance
|
Coil Voltage
|
DC220V,DC110V
|
|
Coil diameter * Coil height
|
Φ16mm×40mm
|
|
Operation Frequency
(Power Duration <1s)
|
120 times/H
|
|
Limit of Temperature Rise
|
≤65 K
|
|
Insulation Class
|
AC2000V，1min
|
|
Protection Level
|
IP65
|
|
Environment
|
Altitude
|
≤1000m
|
|
Temperature
|
-40℃ ～ +120℃
|
|
Humidity
|
≤95%
|
|
Pollution degree
|
2
|
