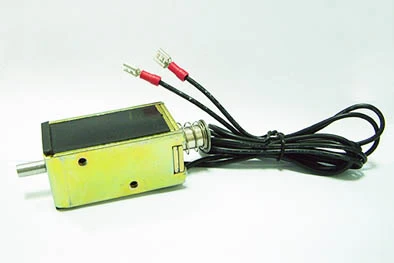

Electromagnet in Disconnectors


MQZ5 electromagnet is mainly used in the control circuit of DC 220V, as the electromagnet coil for switching of motorized operating device of vacuum circuit breaker and switchgear incoming/outgoing cables.





Characteristics MQZ5 Electromagnet



* Easy to fix and connect to the load

* The risen temperature is stable so as to prolong lifetime and guarantee excellent performance

* Anti-friction ensures high efficiency and long lifetime



Coil voltage

2201104824VDC

Rated attraction force

20N

Rated Stroke

12.5mm

Operating frequency
(Power-on duration<1s)

120(times/hour)

Temperature rise limit

65(K)

Usage lifetime

>10000 times

dielectric behavior

AC2000V,1min

Environment

Attitude

1000m

Temperature

-25 +40

Humidity

95%

Pollution degree

2
