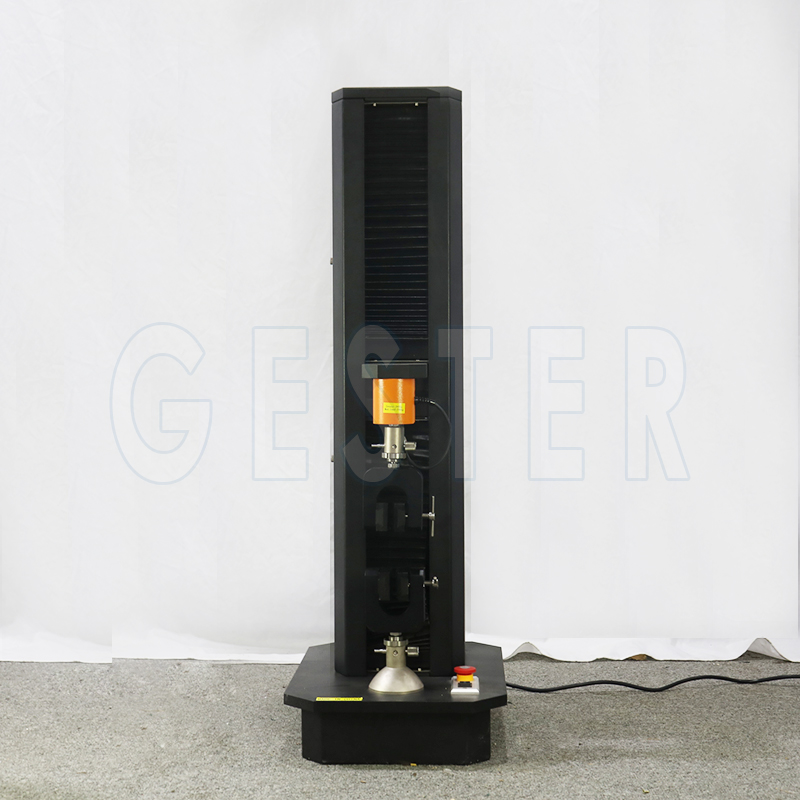

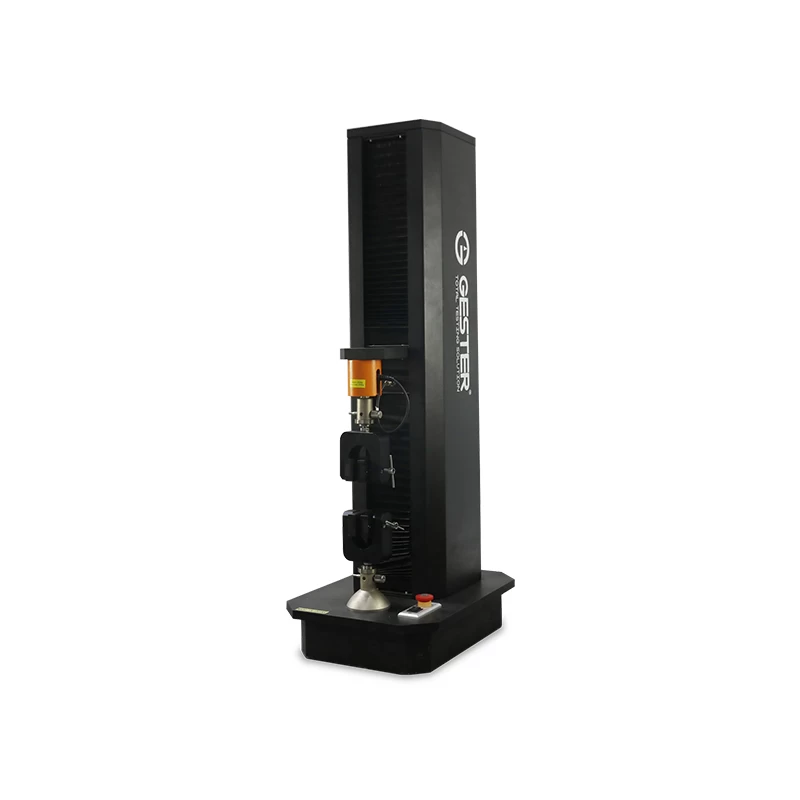

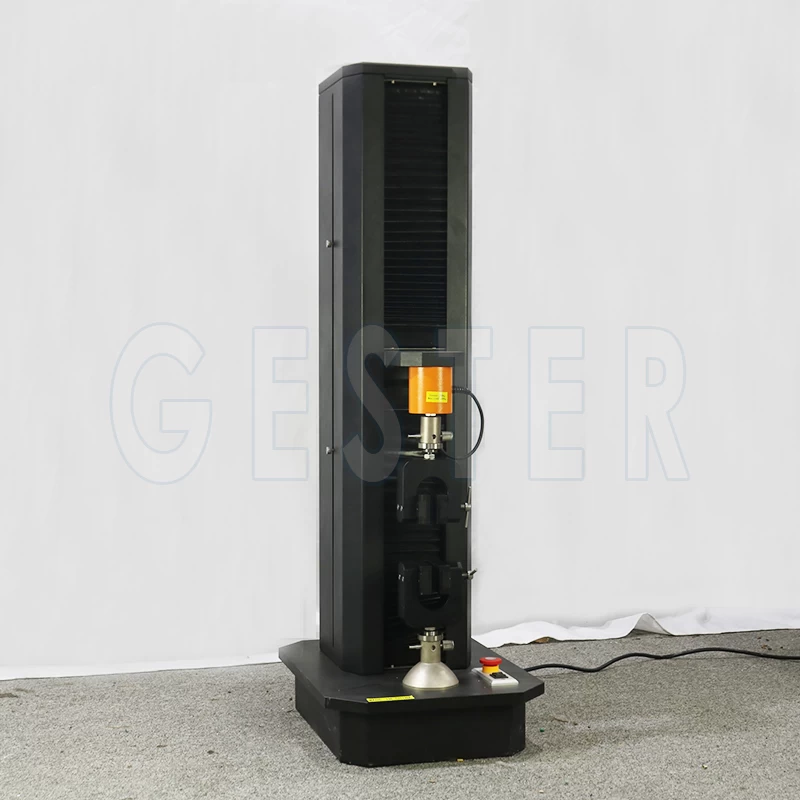

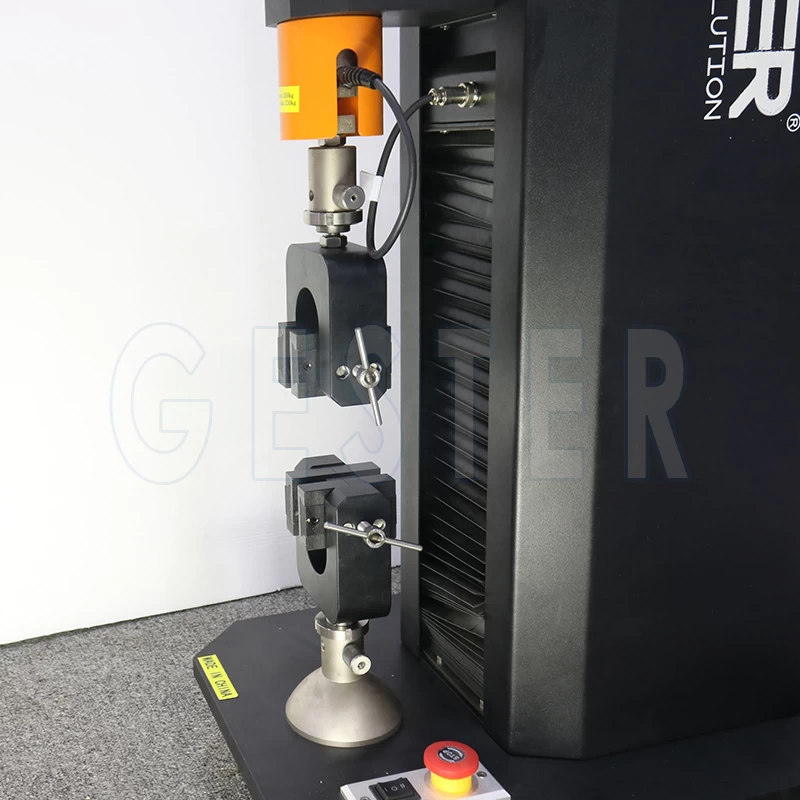

Electronic Elastic Strength Tester GT-C04-2
Product Introduction
|
Application:
This test machine designed for peeling test of adhesive lining, multilayer laminated fabrics, hot melt adhesive lining, adhesive between lining and shell fabric, coating adhesion.
Standards:
FZ/T 01085, FZ/T 80007.1, AATCC 136, FZ/T 01010, FZ/T60011
|
Feature
1. LCD, membrane panel, English human-computer interface.
2. Site cabinet structure, elegant shape, stable working.
3. Stepping servodrive, gearbox equipment with synchronous belt for decelerating, precision&stable test.
4. Equip with online connector, special designed test software can be test result of analysis.
5. Auto locate distance of clamp.
Key Specifications
Model
|
5
|
10
|
50
|
Range
|
50N
|
100N
|
500N
|
Test Accuracy
|
≤0.2%F·S
|
Stretch Speed
|
0.01～1000mm/min
|
Max. Elongation
|
800mm
|
Clamp Width
|
60mm
|
Stroke Resolution
|
0.01mm
|
Power Supply
|
AC220V 50/60HZ 200W
|
Dimensions ( W x D x H )
|
47x38x186 cm
|
Weight
|
85kgs
|
Accessories
Application Industry
All kinds of materials can be tested by the Electronic Elastic Strength Tester.
