Electronic Elmendorf Tearing Strength Tester GT-C11A
Product Introduction of elmendorf tearing strength tester
|
Application:
This Elmendorf Tearing Tester is designed for tearing resistance of textile, non-woven fabric, paper, paper board, thin film, ventilation tape, metal sheet material and etc.
Standards:
|
Textile
|
GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290, M&S P29, NF G07-149
|
Paper
|
GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9,
DIN 53128, EN 21974,ISO 1974, JIS P8116, PAPTAC D9, SCAN P11,
SNV 198482, TAPPI T414, UNI 644
|
Plastic
|
GB/T11999, ASTM D1922, ISO6383-2, JIS K7128-2
|
Non-woven
|
ASTMD5734
|

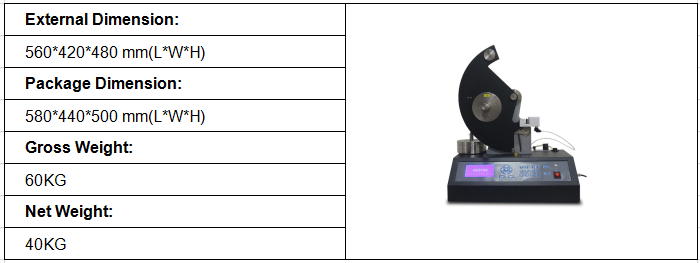

Dimensions of elmendorf tearing strength tester
Key Specifications of elmendorf tearing strength tester
Model
|
GT-C11A
|
Range of Tearing Force
|
16N / 32N / 64N
|
Accuracy
|
≤±0.2％F·S
|
Incision Length
|
20+/-0.2mm
|
Rip Length
|
43mm
|

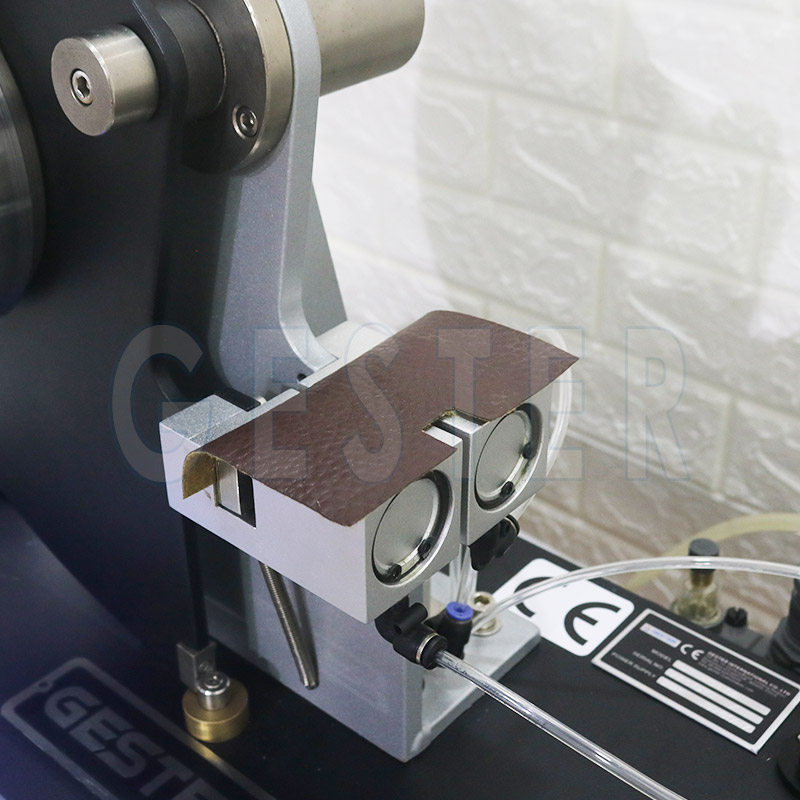

Sample clamping methods
|
Pneumatic clamp
|
Power supply
|
AC 220V 50/60HZ 100W
|
Dimensions
|
560 x 420 x 480mm (L x W x H)
|
Weight
|
40kg
|
Standards accessories
|
1pc
|
Pendulum B (32N)
|
1pc
|
Pendulum C (64N)
|
1pc
|
Sample Template
|
Optional accessories
|
Optional
|
Air compressor
|
Optional
|
English operation software
|
Optional
|
Cable connect with PC
|
Application Industry of elmendorf tearing strength tester
All kinds of materials can be tested on the Electronic Elmendorf Tearing Tester
