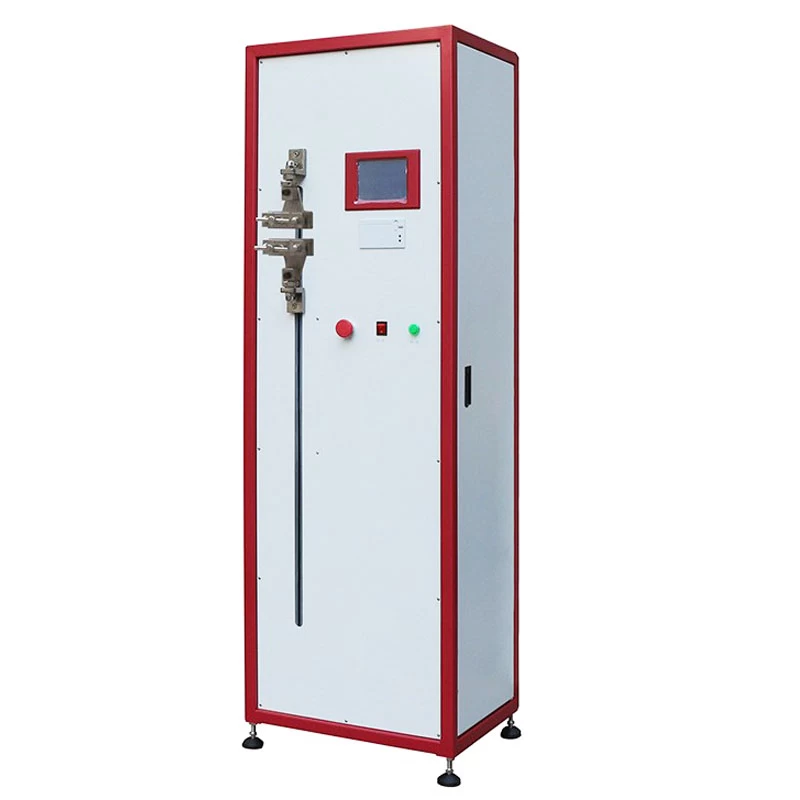

AG40-Electronic Peeling Tester
Application Of Electronic Peeling Tester
Electronic Peeling Tester is used for peel strength test for various bonding, such as adhesive interlinings, multi-layer gluing fabric and hot-melt adhesive lining and garment fabric bonding, interlining and fabric bonding, coating adhesion.
Feature Of Electronic Peeling Tester
-
LCD, membrane panel.
-
Vertical cabinet structure, running smoothly.
-
Step servo drive; the gearbox is equipped with synchronous belt deceleration, accurate and stable test.
-
Equipped with computer connection interface. The professional testing software for analyzing the test results.
-
Automatically position the clamping distance by parameter setting.
-
Sample testing and data processing software using multi-threaded processing makes the test very fast.
Standards Of Electronic Peeling Tester
FZ/T 01085, FZ/T 80007.1, AATCC 136, FZ/T 01010, FZ/T60011
Key Specification Of Electronic Peeling Tester
|
Model
|
AG40 Electronic Peeling Tester
|
|
Force
measurement range
|
Model
|
AG40 -5
|
AG40 -10
|
AG40 -50
|
|
Full scale
|
50N
|
100N
|
500N
|
|
Measurement range
|
1% to 100% of full scale
|
|
Working
mode
|
CRE principle, microcomputer control,
LCD display, can be connected to computer
|
|
Sampling
frequency
|
1000 times / sec
|
|
Test
accuracy
|
≤0.2%F·S
|
|
Stretching
speed
|
50 ~ 1000mm / min
|
|
Max.elongation
|
800mm
|
|
Clamp
width
|
60mm
|
|
Elongation
resolution
|
0.01mm
|
|
Power
supply
|
AC220V 50/60HZ
|
|
Dimensions
|
52 x40 x160cm
|
|
Weight
|
60Kg
|
