AY07-Electronic Yarn Count System
Application Of Electronic Yarn Count System

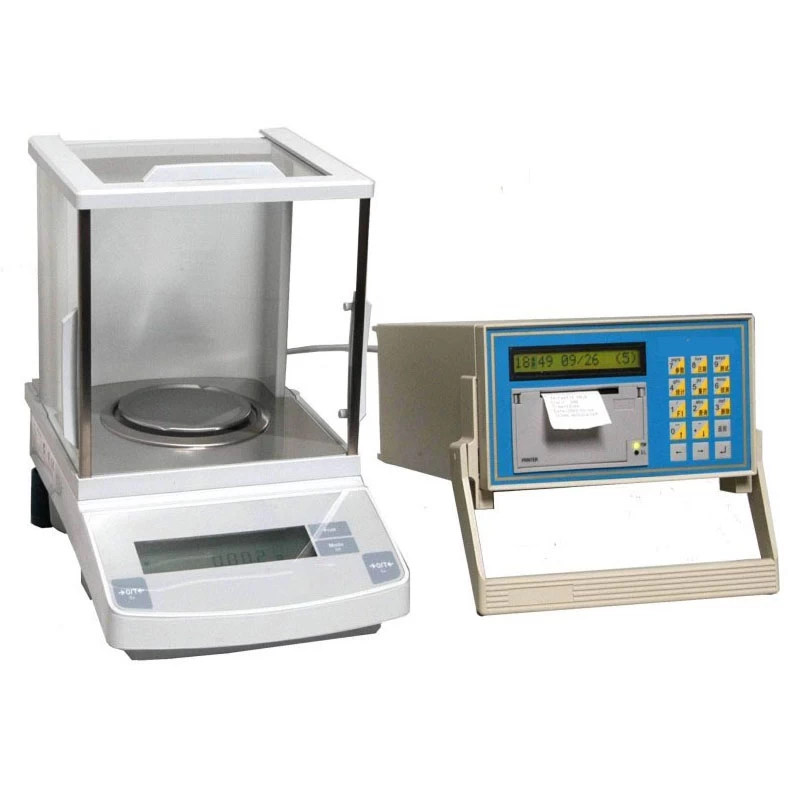

The electronic yarn count detection system consists of a microcomputer and a precision electronic balance,which are connected via a RS232 two-way interface.
It can automatically reject abnormal data and with a power-down data protecting function, can save 50 sets of test data.
Test data includes: number of tests N, weight value Mass, number Tex (or public number Nm), average value AV, coefficient of variation CV%, unevenness U%, maximum Max, minimum Min, total weight Sum, test time T.
Standards Of Electronic Yarn Count System
ISO2060/3801, BS 2010-2471
Key Specification Of Electronic Yarn Count System
|
Model
|
AY07
Electronic Yarn Count System
|
|
Accuracy
|
1mg
|
|
Range
|
210g
|
|
Pallet
diameter
|
100mm
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimensions
|
About 34×22×31cm (L×W×H)
|
|
Weight
|
20kg
|
