Electronic Yarn Twist Tester GT-A08
Product Introduction of twist tester machine
|
Application:
Electronic Yarn Twist Tester is used to determine yarn twist in single or plyed yarns, quadrant type with auto stop & reverse for conventional or untwist/re-twist methods. Test length adjustable up to 50cm/20 inches for S & Z twist yarns.
Standards:
ISO2061, ASTM-D-1422
|

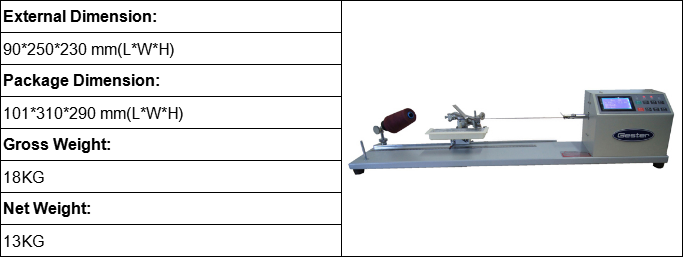

Dimensions of twist tester machine
Key Specifications of twist tester machine
Model
|
GT-A08
|
Length of sample
|
0-500mm(adjustable)
|
Range of twist testing
|
1-9999.9twist/10cm , 1-9999.9twist/m
|
Max length of untwisting
|
60mm (Showed by indicator)
|
Max contracting of twisting
|
20mm
|
Grip speed
|
100-2000r/min(adjustable)
|
Presetting tension
|
0.5-171.5cN
|
Dimensions
|
900 x 250 x 300mm ( L x W x H )
|
Weight
|
30kg
|
Standards
|
ISO2061, ASTM-D-1422
|
Application Industryof twist tester machine
All kinds of yarn materials can be tested on Electronic Yarn Twist Tester GT-A08.
