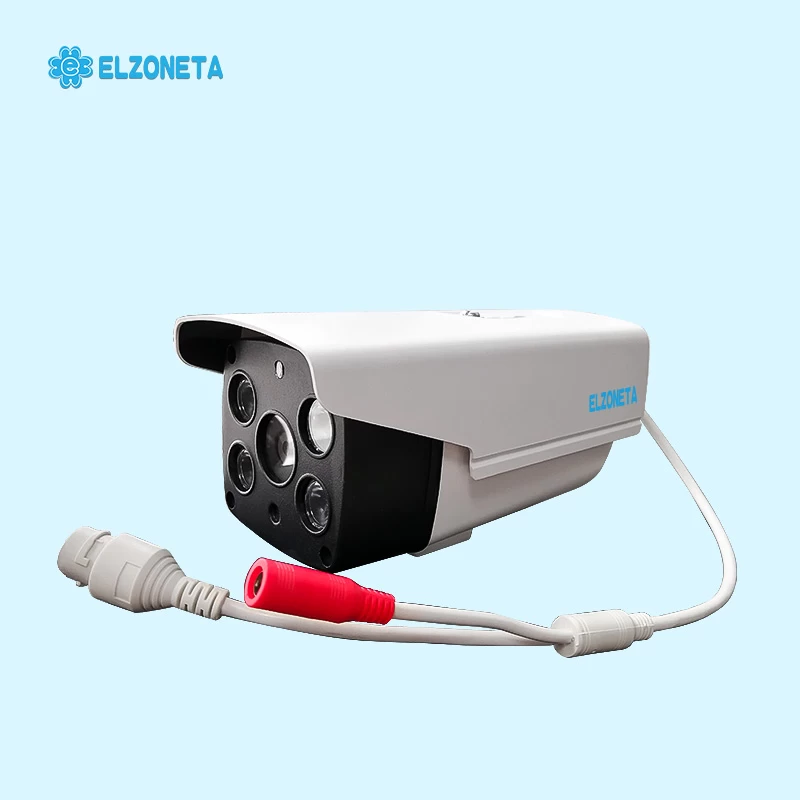

EC-G38S-JJ Regional Intrusion Detection Surveillance Bullet Camera
Elzoneta Regional Intrusion Detection Alarm IP Bullet Camera attracted great interests of many customers when it was first introduced to the market. Because it can make warning and reminder notification when there is someone invades the defense region.
This Restrict Area Alarm IP security Bullet Camera can set a certain area (defense region) as the warning state by drawing lines on the monitoring screen (any shape available). When an object illegally intrude into the defense region, motion detect is auto triggered, white lights will auto turn on, sound-audio alarm works at the same time. Then you can shout at the intruder on your mobile with two way audio. This warning function is suitable to use in certain protected areas such as bank coffer, prohibited military zone, pier, airport, laboratory, hospital, power station, mines, farms, area of guardrail of railway, factory bounding wall, home privacy and etc.
For the reminder notification, this is also common use in our daily life, suitable for dangerous zone such as chemical warehouse, high voltage area, alerting the intruder away from danger at any time, avoid accident happen. Also the exhibition hall, museum and other places where important exhibits are displayed, “Please don’t touch valuable”, even we can use in the supermarket entrance “ Good day, Welcome to Smart supermarket ”. Such these gentle voice remind often has a good effect. Sure, it need to make white lights turn off, just keep sound-audio working.
Such a smart and sensitive CCTV Security Camera can be compatible with Hikvision,DAHUA. It must be the hot sale product in the coming days, pls don’t hesitate to contact with us for details soon.
Features:
1.1920*1080 Resolution/1080P 2.0MP/Low power/Full netcom
2.SONY STARVIS 1/2.8"(IMX307) ,colorful 0.001Lux@F1.2(AGC ON), black & white 0Lux(IR ON)
3.4 pcs array infrared lights/ IR distance: 20M
4.H.265+/H.265/H.264/Support ONVIF
5.Lens:2.8--8mm Optional
6.30fps, 24 hours video recording just need 4-8G
7.Two way audio /IR CUT
8.Support smart region alert& motion detect
9.POE Optional/12V 1.5A
10.Support IOS/Android remote
11.IP66
Specifications:
|
Camera
|
|
Model No.
|
EC-G38S-JJ
|
|
Image Sensor
|
SONY STARVIS 1/2.8"(IMX307) 2.0MP 30fps
|
|
Effective Pixels (HxV)
|
1920*1080
|
|
Signal System
|
PAL / NTSC
|
|
Mini Illumination
|
colorful 0.001Lux@F1.2(AGC ON), black & white 0Lux(IR ON)
|
|
Lens
|
2.8-8mm optional
|
|
IR Leds
|
4 pcs array infrared lights
|
|
IR range
|
up to 20meter
|
|
DNR
|
3D DNR
|
|
WDR
|
D-WDR
|
|
AES
|
PAL=1/50 ~1/100,000sec；NTSC=1/60 ~1/100,000sec
|
|
S/N Ratio
|
> 48dB（Auto Gain Off）
|
|
Video Compression
|
H.265+ (24 hours video recording just need 4-8G)/H.265/H.264
|
|
Network
|
|
LAN
|
RJ45 10M/100M adaptive ethernet
|
|
POE function
|
Optional
|
|
Dual stream
|
Support
|
|
Access protocol
|
ONVIF/CGI/GB28181
|
|
Support protocol
|
HTTP,TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P,PPTP,GB/T28181 etc.
|
|
ROL Codec
|
Support
|
|
Corridor Type
|
Support
|
|
Regional Block
|
Support regional block
|
|
Mobile View
|
Support (Android,IOS)
|
|
Intelligent functions
|
Support SMART REGION ALERT, TWO WAY AUDIO, MOTION DETECT
|
|
General
|
|
Operating Condition
|
-20 °C - 45 °C (-4 °F - 113 °F), Humidity 90% or less (non-condensing)
|
|
Power Supply
|
12V1.5A
|
|
Power Consumption
|
Max. 6W
|
|
IP Rate
|
IP66
|
|
Weight
|
0.8 kg
|
|
Dimension
|
250(L)*150(W)*140(H)mm
|
