Embedded Industrial PC i3 i5 i7 CPU Multi-serial support

Embedded PC, 1PCI or PCIE Expansion,Support i3 i5 i7 CPU,Multi-serial support



Embedded Industrial PC  i3 i5 i7 CPU Multi-serial support

Product Introduction

MIS-ITX01B is a compact industrial PC with all-steel chassis, good heat dissipation, dustproof, and shock resistance. It can be applied to transportation, electric power, communication and industrial automation industries.



Specifications optional configurations
Chassis All steel construction, industrial black Other colours such as industrial grey are available

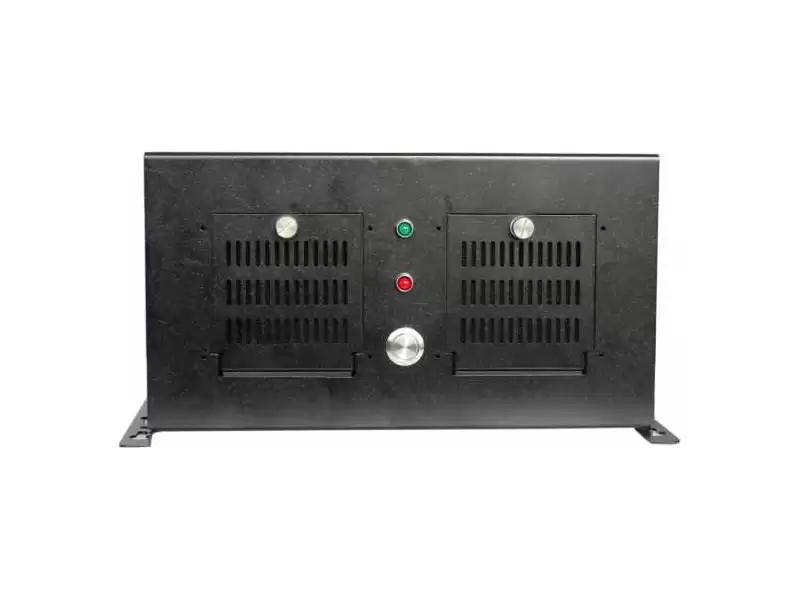

Front Power Switch, Power/HDD indicator;2FAN; Dust sponge can be changed and cleaned without turning off the machine Customizable with customer logo or more serial or parallel ports

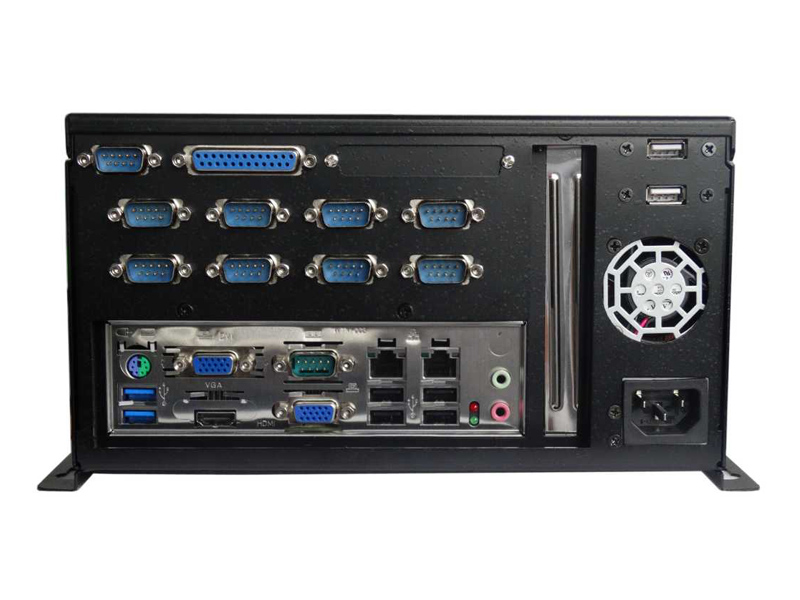

Back Large square holes in motherboard, 1-slot expansion; 8DB9,1DB25,2USB,2 wireless antenna holes,1 Phoenix terminal
Hard disk rack 1 shock-resistant hard drive cage, supports 1 x 3.5" or 2 x 2.5" hard drives
Adaptive Motherboard Intel B75/H81/H110 etc. chip Mini-ITX motherboards in Yanyue Support All Mini-ATX Motherboard in Yanyue
CPU/GPU Intel i3 2120 Supports 3rd/4th/6th/7th/8th/9th Gen desktop CPU or soldered onboard CPU
Memory 4G DDR3  Optional 2G/8G/16G/32G memory
Hard Disk 128G MSATA Optional 32G/64G/256G/1T SSD; support 2.5 inch SSD and HDD
Interfaces AC input;6USB(2USB3.0);2RJ45(Gigabite ethnet)VGA;DVI;Audio Out;MIC in;6COM(Standard) Optionally available with all interfaces on the chassis
Expand 1PCI 3rd/4th/6th/7th/8th/9th all support 1 PCIEx16 extension
Size Handle not included:241*233*130mm Net/Gross Weight 3.5/4KG
Power Supply 200W 1U Industrial Powern Supply
Installation mode Bracket installation



Product Features

■ Heat dissipation, dust and vibration resistance

■ Support All Mini-ITX Motherboard in Yanyue

■ 1PCI or PCIEx16 Expansion

■ Can be added 9COM,1LPT,2USB and 1DB37 on the back

■ Dust sponge can be changed and cleaned without turning off the machine



Work and Environment
Working temperature (-20~60)℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

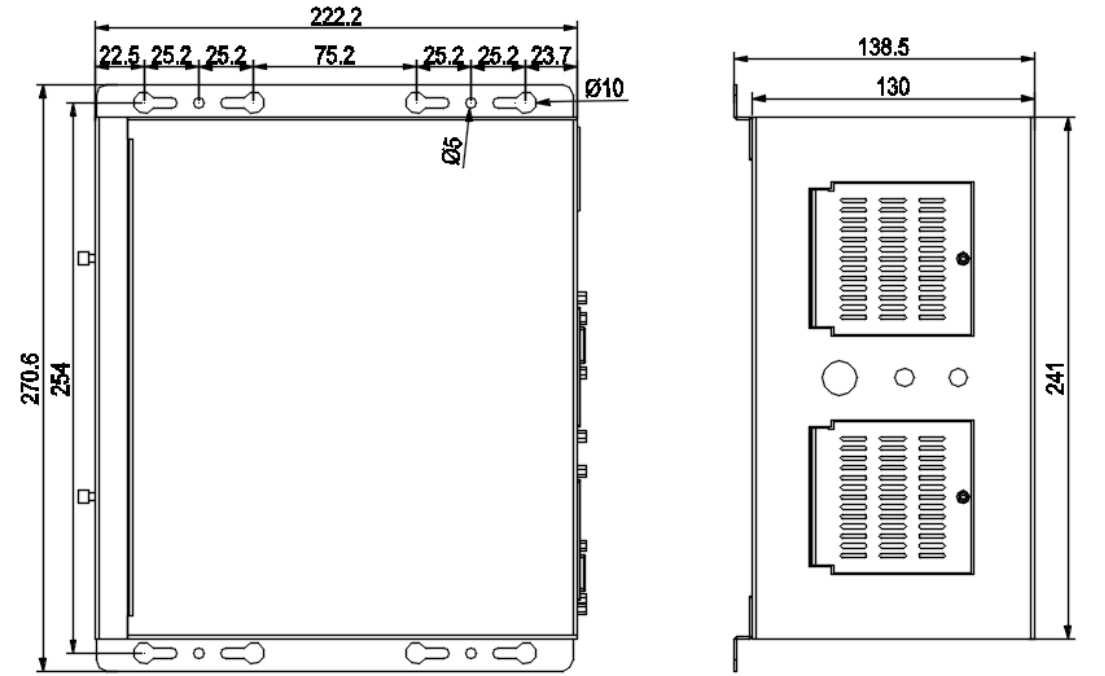

Product Installation Dimension Diagram



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
