Data Sheet: Emerson KJ4006X1-BP1 12P4733X052 – DeltaV 40-Pin Mass Terminal Block
Contact: ab@mooreplc.com | Same-day dispatch worldwide
What It Actually Is

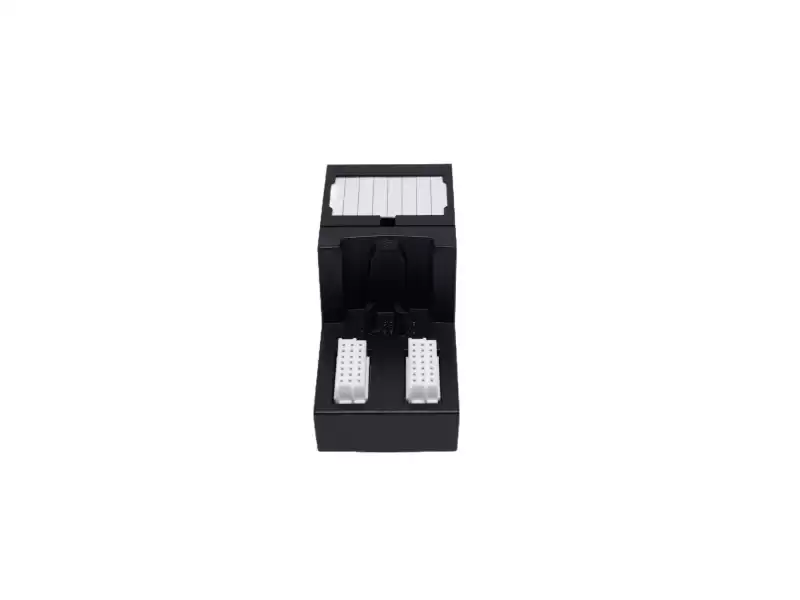

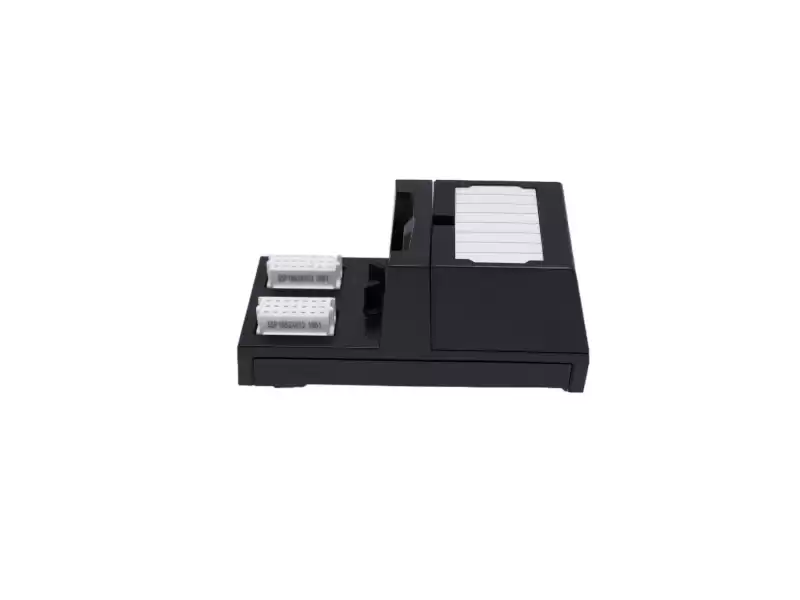

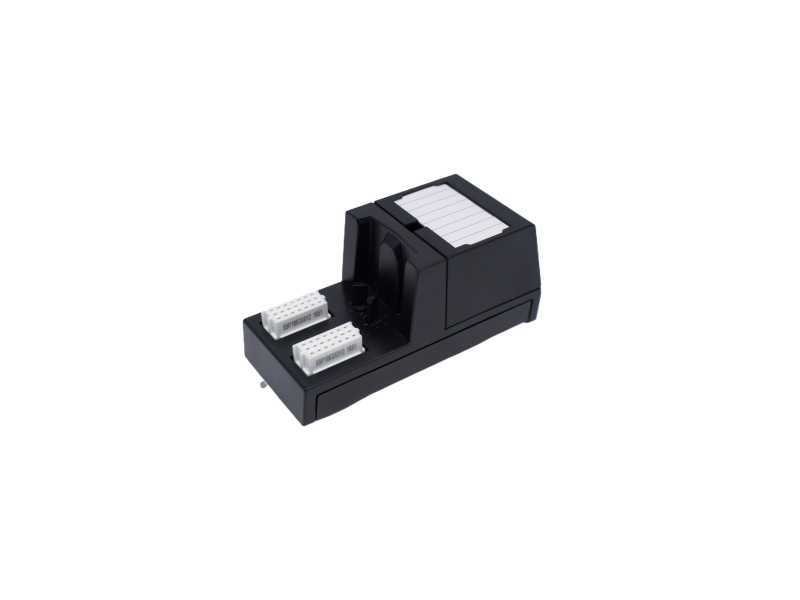

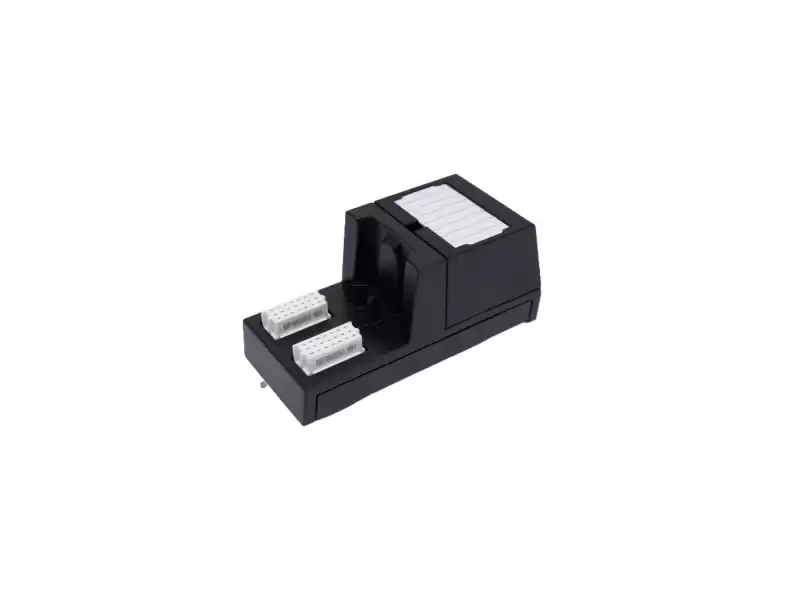

Emerson KJ4006X1-BP1 (part number: 12P4733X052) is a 40-pin mass terminal block designed specifically for the DeltaV S-series digital automation system. It acts as a high-density field wiring interface, enabling fast, secure, and service-friendly connections between process instruments and the controller. Each terminal is rated for 30 VDC field power at up to 3.2 A, so one block can carry a total of ~96 A without derating—enough to support large I/O bundles on a single footprint.
Key Details
• Pins: 40, screw-clamp, 2.5 mm² max conductor
• Voltage Rating: 300 V AC / 300 V DC (per Emerson ATEX sheet)
• Current Rating: 10 A per pin (UL), 16 A per pin (IEC)
• Wire Size: 0.14 – 2.5 mm² (AWG 26 – 12)
• Pitch: 5.08 mm (0.2 in)
• Temperature: –40 °C … +70 °C
• Protection: IP20, finger-safe shroud
• Approvals: CE, UL, marine (DNV, ABS, LR, BV, NK, KR, RINA)
• Keying: Rotating key system – must match I/O card key code before insertion
• Hot-swap: Can be inserted/removed under power only when no I/O card is installed and field wiring is disconnected (per Emerson ATEX instruction)
Ready-to-Ship Package
|
Part Number
|
Description
|
|
KJ4006X1-BP1 12P4733X052
|
40-pin mass terminal block
|
|
KJ4006X1-BC1 12P4733X062
|
8-channel fused terminal block (30 V DC, 3.2 A per channel)
|
|
KJ4006X1-BK1 12P4733X072
|
Redundant interface terminal block (35 V DC, 1 A per channel)
|
|
KJ4001X1-CA1 12P0818X042
|
16-channel digital I/O terminal block
|
|
KJ4001X1-CB1 12P0818X052
|
8-channel analog I/O terminal block
|
|
KJ4001X1-CC1 12P0818X062
|
8-channel RTD terminal block
|
|
KJ4001X1-CD1 12P0818X072
|
8-channel thermocouple terminal block
|
Contact – Pick Your Channel
• Quote: ab@mooreplc.com
• WhatsApp: +86-18106909650 (24 h)
• WeChat id: dcsfcs
All items factory-sealed, ready for same-day dispatch worldwide.
