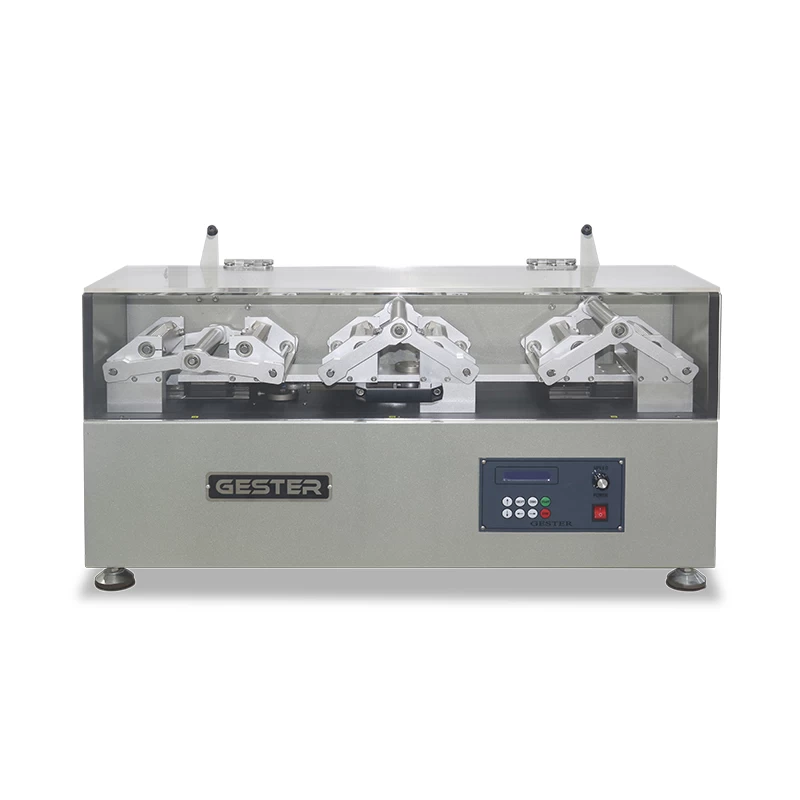

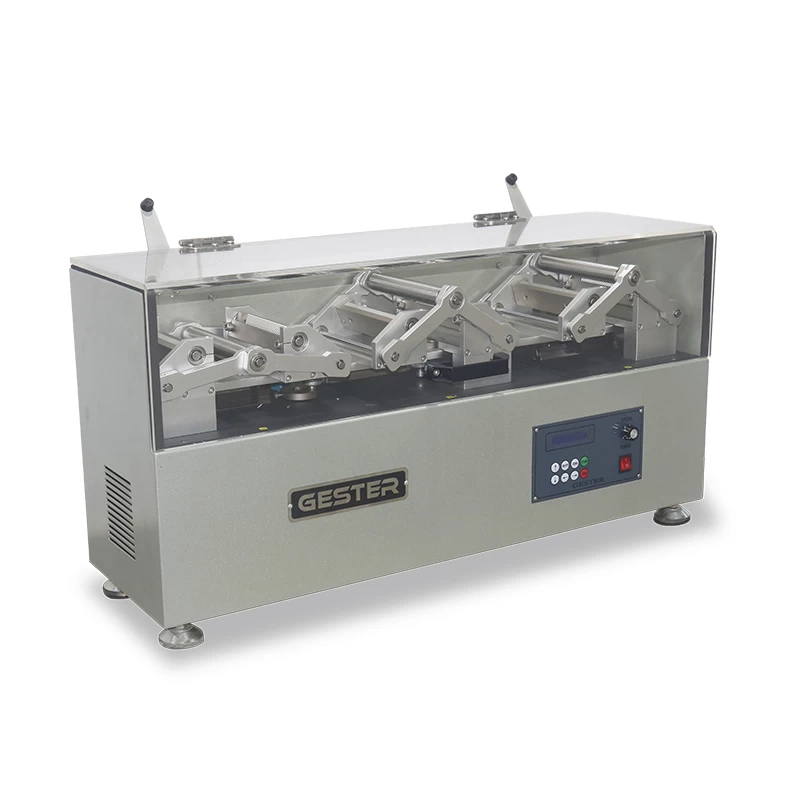

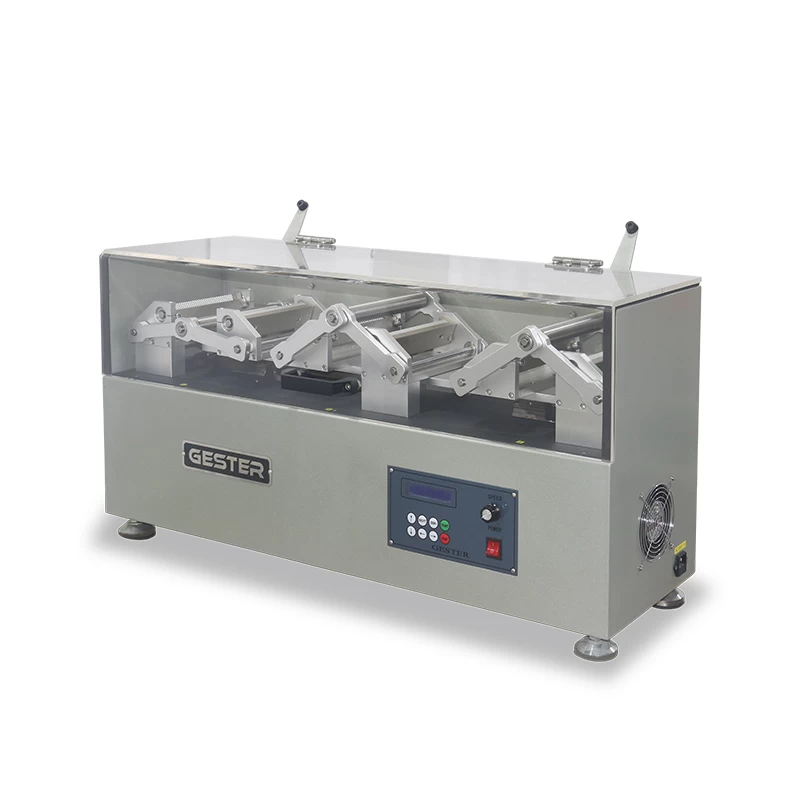

EN Sole Flexing Tester GT-KB06
Product Introduction
| Application:

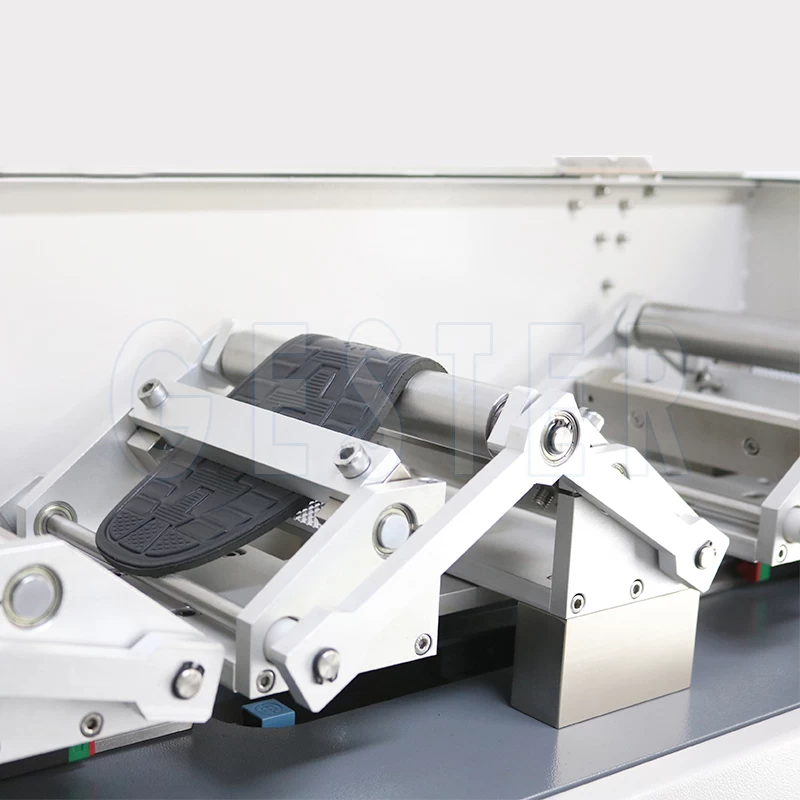

This EN Sole Flexing Tester is used to measure the flexing resistance of shoe soles under continuous movement. Before test, plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the specimen and check its difference of incision length.
Standards:
SATRA TM161, ISO 17707, ISO20344 section8.4.2, ISO20347 section 5.8.4, AS/NZS 2210.2 section8.4.2
|

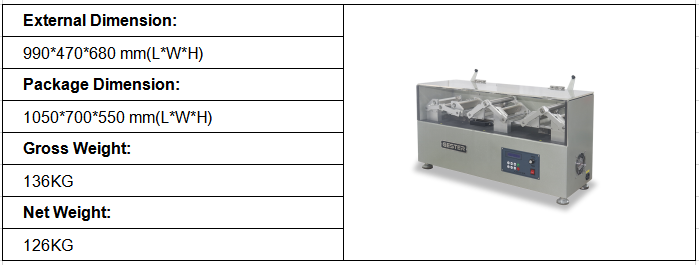

Dimensions
Feature

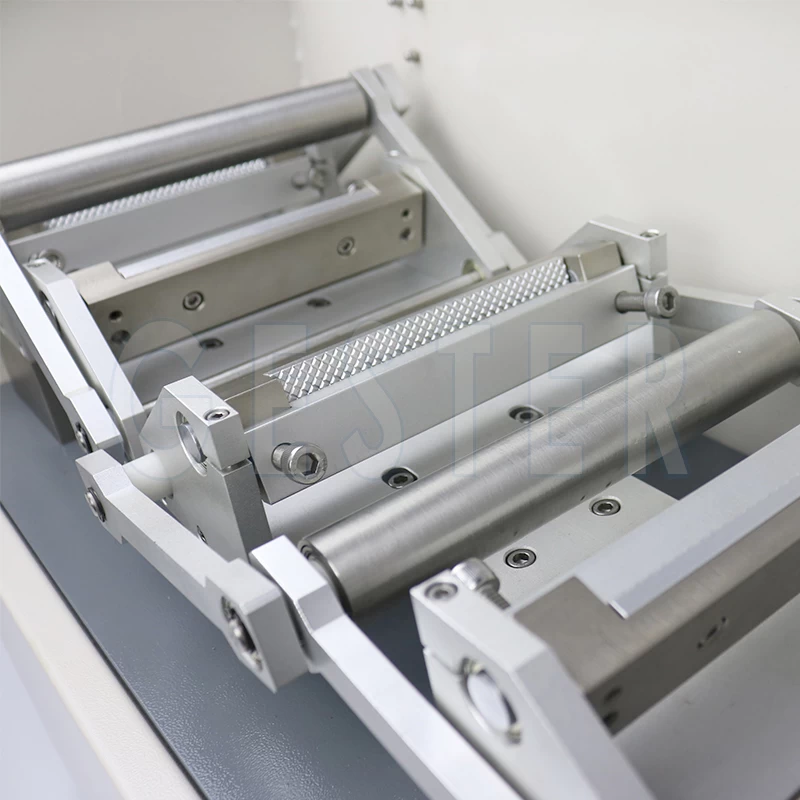

Plunge some holes at the maximum bending position, and mount specimen at both grips, one fixed, one movable. Specimen runs flexing owing to the movement of machine. After a certain test cycles, remove the specimen and check its difference of incision length.

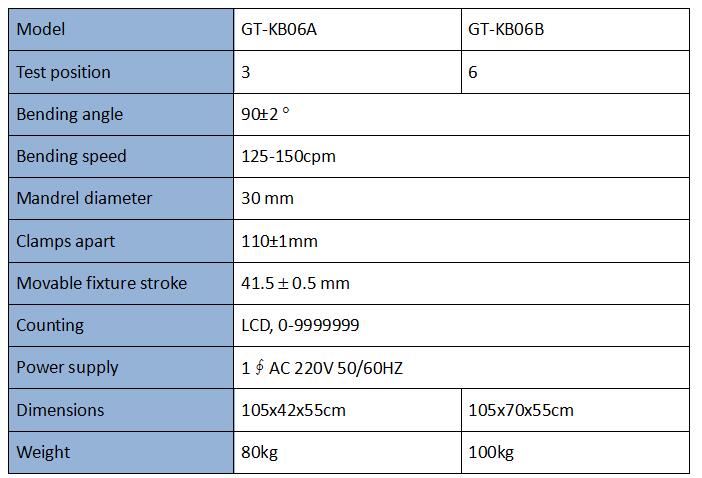

Key Specifications
Application Industry

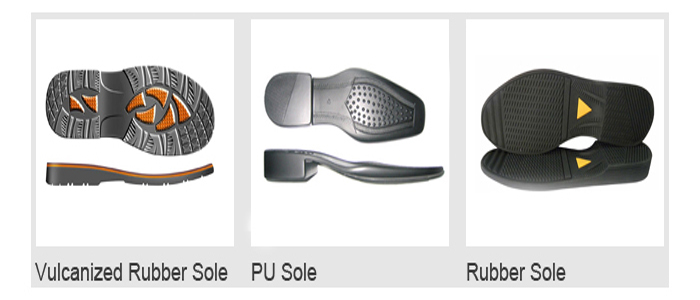

All the material blow can be tested on the EN Sole Flexing Tester
