DC Motors Brushless Cooling Frameless Ventilation Fan with waterproof function. Due to the Cost-effective designs, it is lighter than the traditional frame fan. Without a surrounding frame, these fans combine optimal cooling performance and remarkable space efficiency.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
• Dimension of outer the frame is 92 mm(L) x 92 mm(W) x 25 mm(H) / The size of fan in inch is 3.62 in(L) x 3.62 in(W) x 0.98 in(H).
• Operating Voltage Range: DC 12V | Current: 0.14 ~ 0.42 Amp | Speed: 1600 ~ 2400 RPM | Airflow: 44.72 ~ 65.32 CFM | Noise: 30 ~ 40 dBA | Pressure: 2.70 ~ 5.80 mmAq.
• High Speed: This model is designed to maximize airflow and can be too loud for some applications.
• Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
• Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

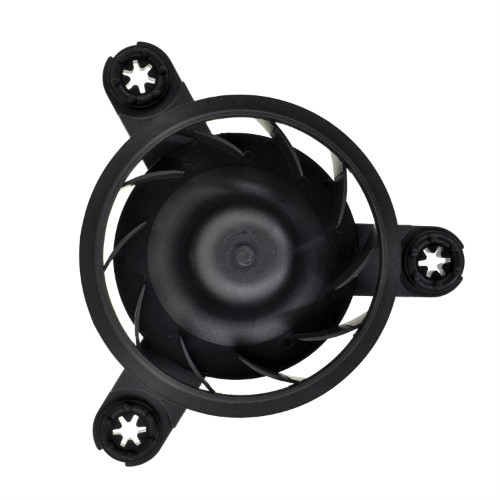

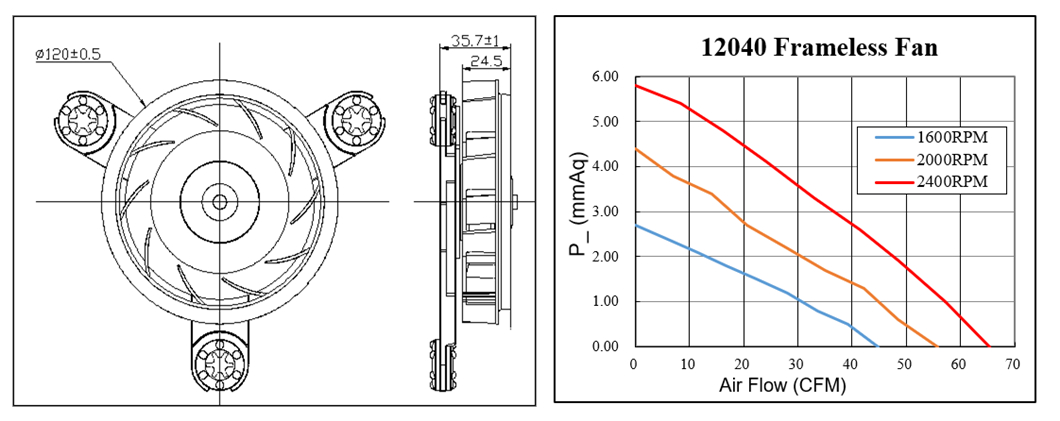

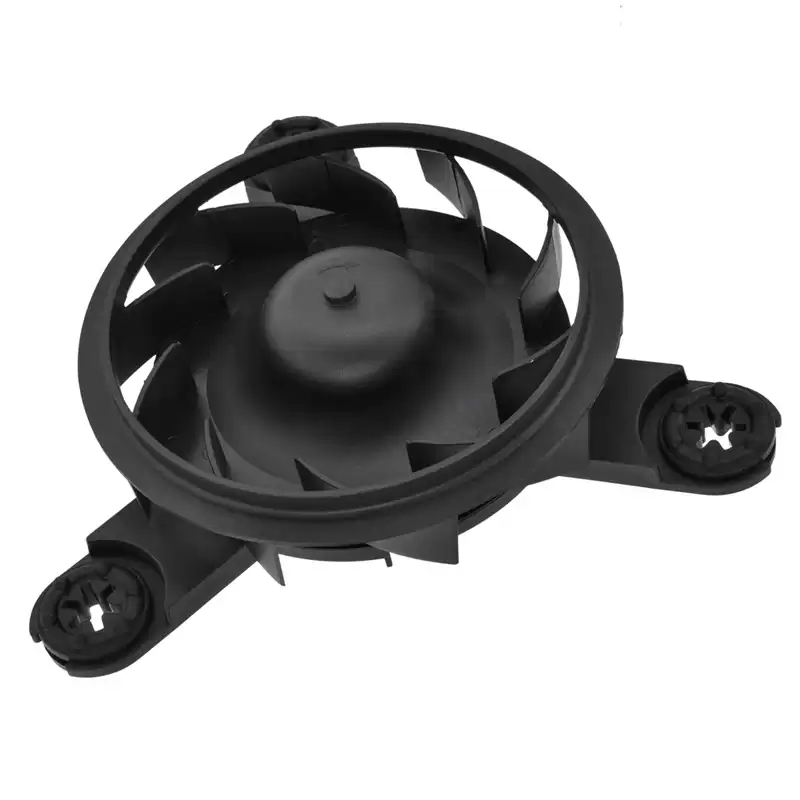

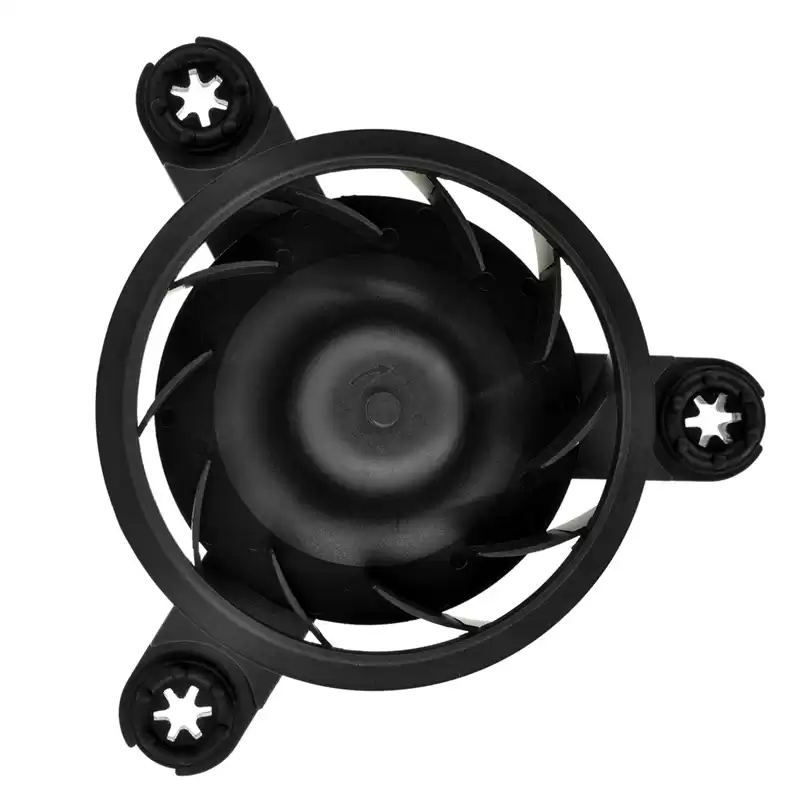

DC FRAMELESS BRACKET FAN φ120x40mm

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Unique blade design increases air volume, 65.32 CFM;
• Provide systematic products and customized service;
• Adopt the compact structure design of sleeve/ball bearing motor;
• Padded corners help dampen any vibration noise when mounting;
• Compact construction, high speed, low noise & vibration and easy mounting.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

The frameless bracket fans can also be applied to special equipment, such as DR host server, air disinfection machine, distribution box, electric welding machine, industrial power supply, optical fiber terminal server, medical power supply inverter, PM2.5 air detector, sensor, etc.

• Customized items related to cooling systems such as refrigerators, humidifiers, air purifiers, power supplies, radiators and electric welding machines, ect.
• Create a cooling system to keep the ventilation system of household appliances, computers, power supplies and other electronic equipment running at the ideal temperature and the best speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
