Customized UV Adhesives Curing Machine for Screen Printing

Customized UV LED Dyrer UV Curing Machine with conveyor system.Chain conveyor belt can be adjustable width.Curing Area 300*200mm or other sizes available.



Customized UV LED Dryer UV Curing Machine with conveyor system.Chain conveyor belt can be adjustable width.Curing Area 300*200mm or other sizes is available.


Energy Saving UV Curing Lightsource with conveyor system

Long life span

25000-30000H

Energy saving



save 80% electrical than Mercury lamp

Environment friendly

NO Mercury. NO Ozone.NO warm-up time.Low temperature

UV output adjustment

From 1%-100%



Technical Data of the Head of Conveyor UV Dryer Machine for Offset Printing

Wavelength(±5nm)

365nm /385nm/395nm/405nm

Curing area

300x200mm / other sizes available

Electronic power

1100w

Input voltage

220VAC 50Hz / 60HZ

Cooling method

Air cooling

Life

>10000 H

Conveyor speed

100-400mm adjustable

Optic power

800mw/cm2  (10mm irradiation distance)

Recommend irradiation distance

10-100mm

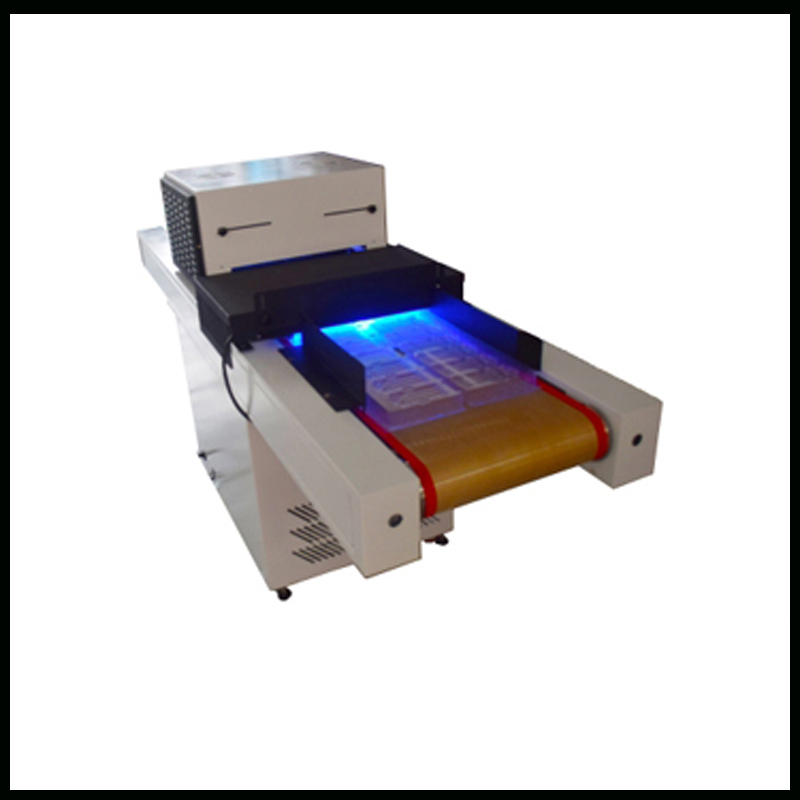

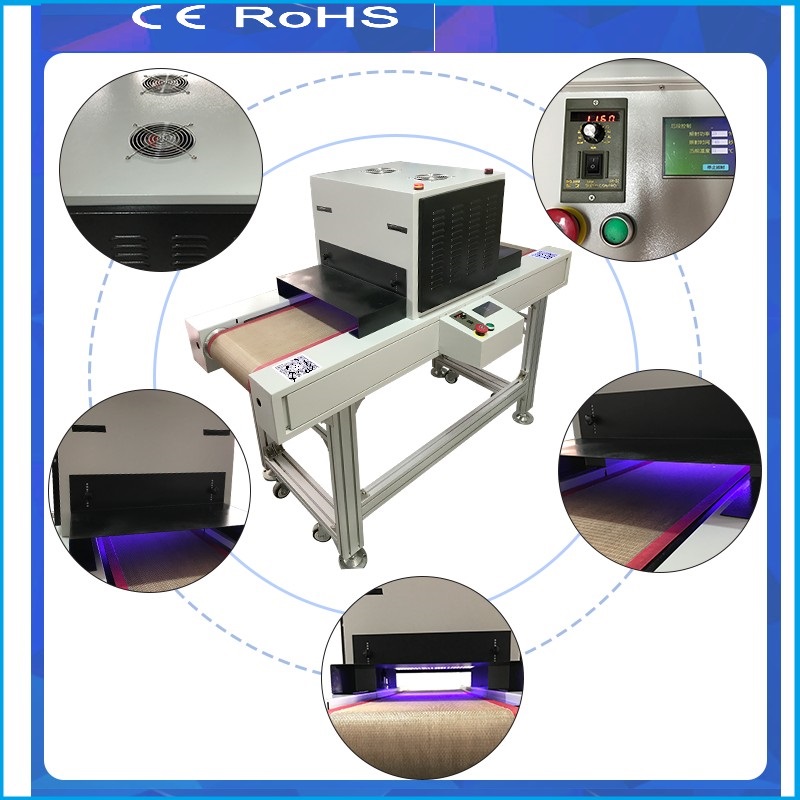

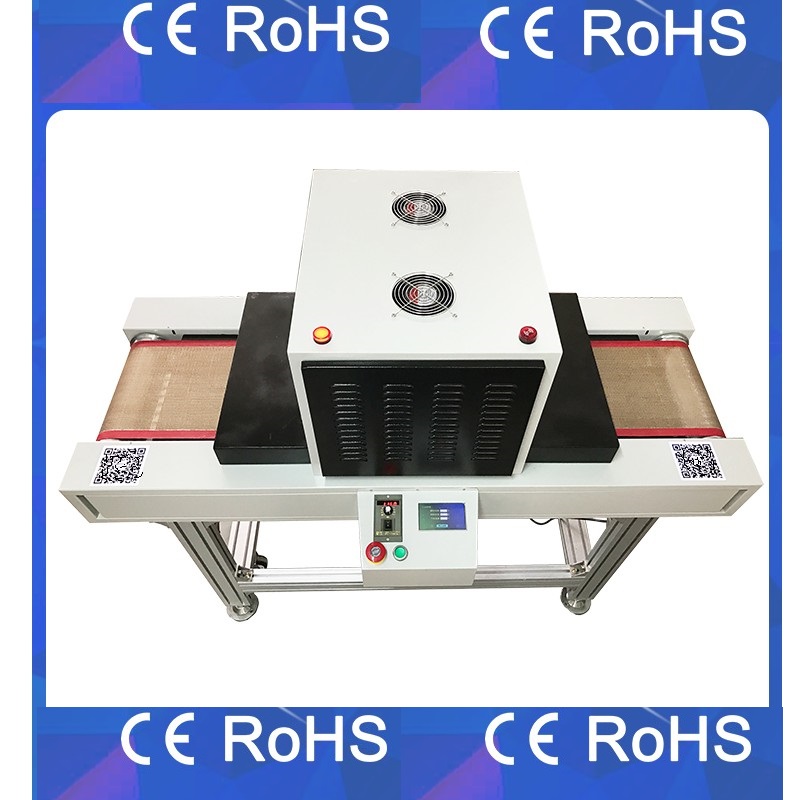

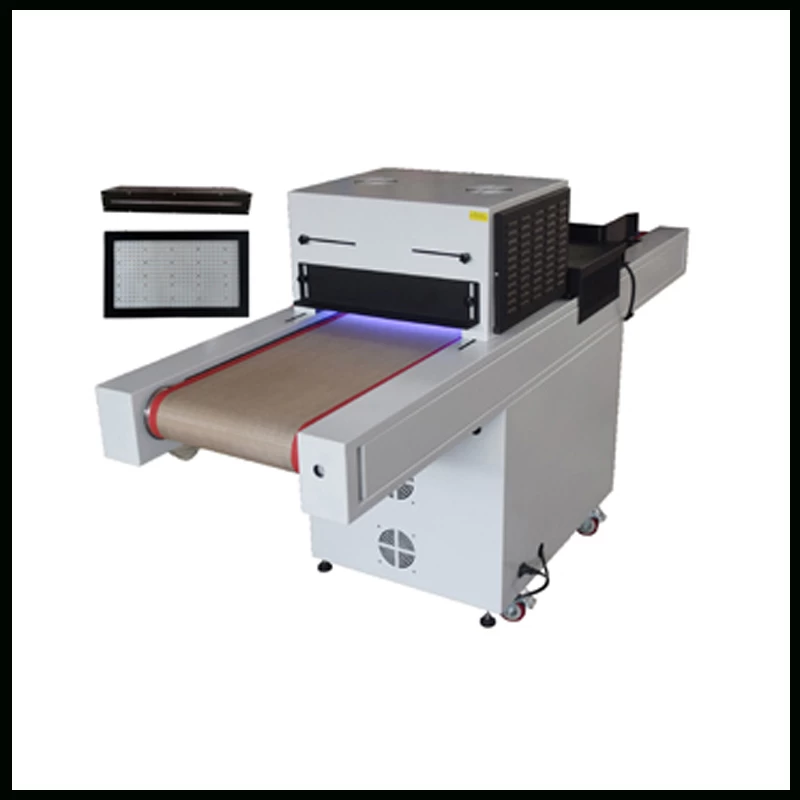

Product Detail of Desktop UV LED Curing Tunnel Systems :

UV LED Light Customized Curing System

UV LED Conveyor Machine

UV LED Belt EquipmentsUV LED Chain MachineUV LED Light Curing


Product Specification of Powerful UV Conveyor Curing System :

1.luminous body(effective radiation area):300x200mm

2.UV light from the conveyor belt adjustable distance:10-60mm

3.UV lamp power density:1300mw/cm2

4.UV light indensity adjustable:1%-100%

5.Reflector:aluminum reflector built-in import reflective aluminum reflector,high efficiency, long life

6.Belt width:300mm

7.Conveyor material:Teflon mesh belt or stainless steel mesh belt for choice

8.Conveyor speed:1-10m stepless adjustable

9.LED lamp beads which means that light, without warm-up, and immediately began to solidify work

10.Drum:knurled surface to ensure smooth transportation

11.Total cooling:air-cooled

12.Machine material: cold rolled sheet table machine spray

13.Apperance: plasitic spraying computer white and black and gray

14.Machine Specification: 1500LX750WX800Hmm

15.Power Connection: 220VAC 50HZ

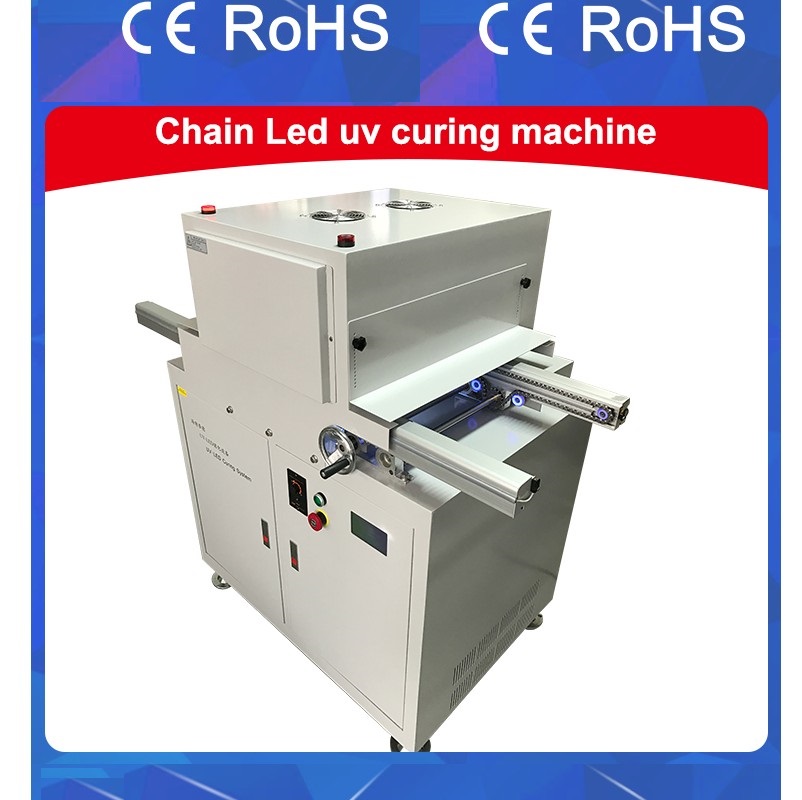

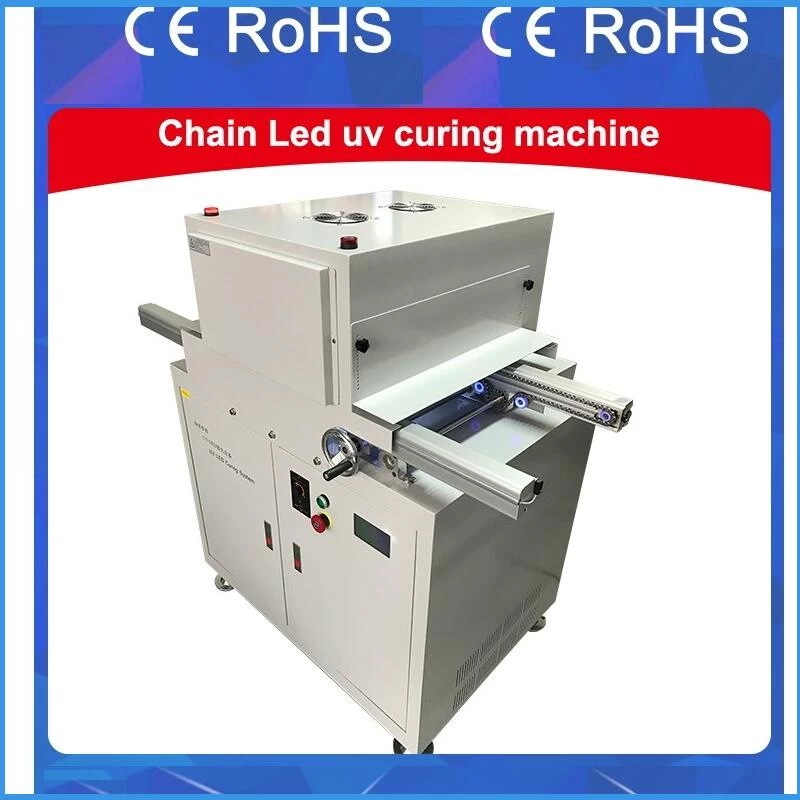

Chain UV LED Curing Machine :

Chain Conveyor Belt UV LED Curing SystemUV Led Curing Adhesives Machine for Printing


Product Feature of Conveyor UV Curing Equipment :

1. Instant ON/ OFF, NO preating required.

2. Adjustable curing distance, UV output intensity and conveyor speed

3. Energy saving and environmental protection

4. infrared sensor to stop, protect your products

5. No infrared radiation, cold light source, suitable for all types of heat-sensitive material curing.

6. Chain conveyor belt with adjustable width.


Main Application of UV Conveyor Cring System :

PCB/PCBA Conformal Coating curing

SMT component protection and reinforcement

Medical instrument uv glue curing

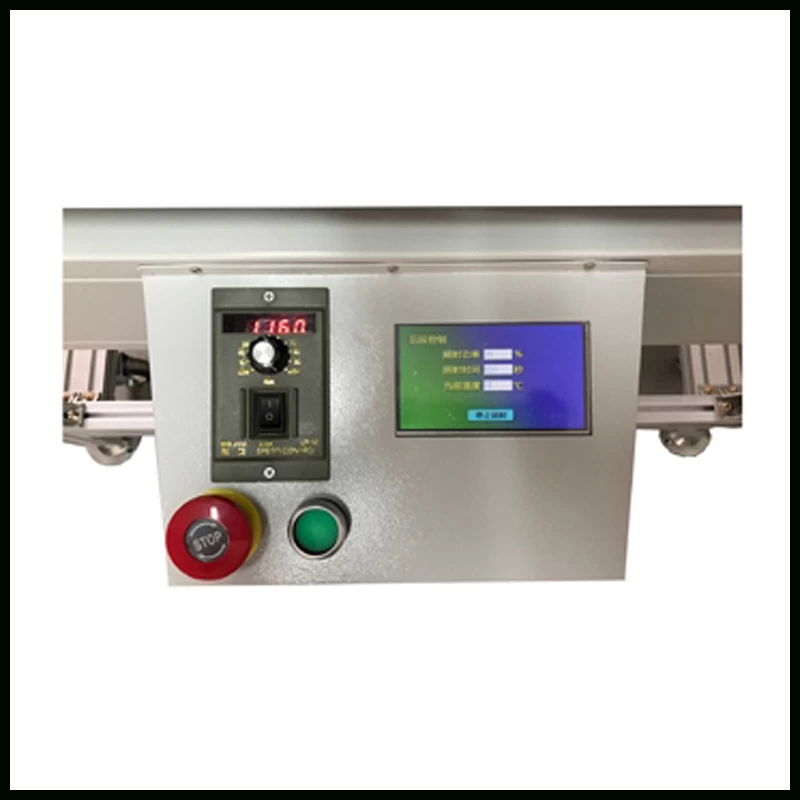

Control System Features of Convoyor UV Curing Machine :

1: Panel display, touch operation, real-time monitoring of the head of the working state

2: Intensity adjustable from 0-100%

3: Temperature monitoring

4: Infrared sensor control, work mode selection

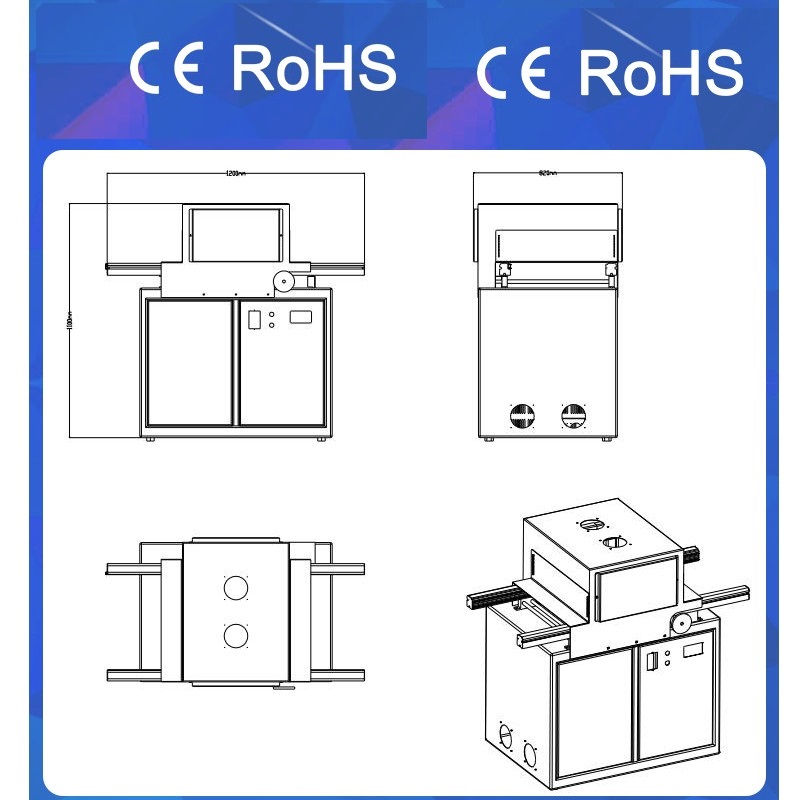

5: Whole machine size: L1200*W820*1100mm
