EP-380C 80mm Mini panel mount thermal printer

Serial+USB interface, DC24V/12-24VDC, Full and partial cut

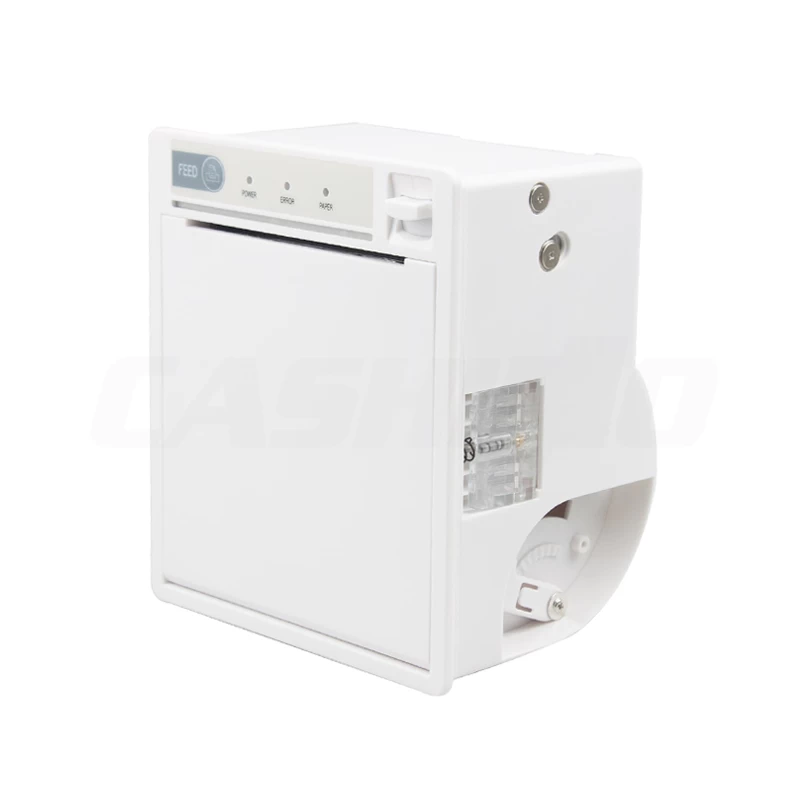

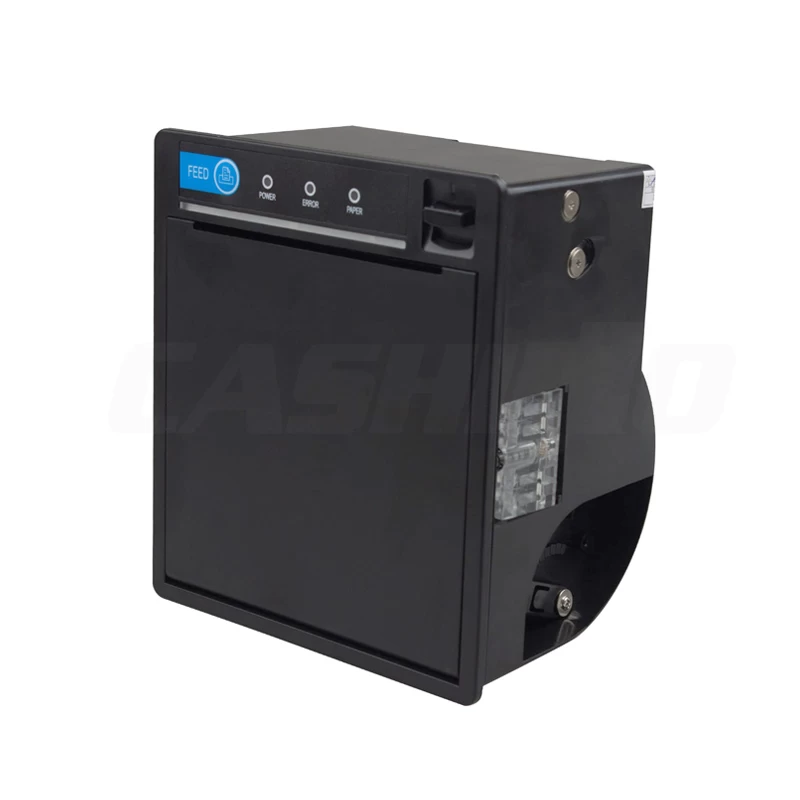

80MM KIOSK Thermal Panel Printer  EP-380C

EP-380C is embedded kiosk thermal printer with auto cutter. To meet the customers' request and market trend, This kiosk receipt printer is improved on our another 80mm receipt printer EP-360C. It can support large paper rolls diameter up to 80mm. EP-380C features serial +USB interfaces, DC24V power and full/partial auto cutter.


Feature:

1). Easy-installing design
2). Smart appearance
3). Easy paper loading
4). Low noise thermal printing
5). Different interface optional
6). Printer's cover lock as optional


Specification:


MODEL EP-380C
Print Thermal line printing Thermal Line Printing
Printing speed (max.) 150mm/s
Resolution 203dpi (8dots/mm)
Effective printing width 72mm
Character Character Set ASCII,GBK,BIG5
Print Font ANK:9×17,12×24,GBK:24×24
Paper spec. Paper Type Thermal Paper
Paper Width 79.5±0.5mm
Paper Thickness 55-90μm
Paper Roll Diameter Max:80mm
Reliability TPH 100km or more(12.5% print ratio)
Cutter 1,000,000 cuts or more
Barcode 1D UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
2D PDF417 QR Code
Cutting Method Full and Partial cut
Text and graphic support Figure, sample, graph, curve icon, multi-languages
Command Compatible with ESC/POS command set
Detectors paper end, paper near end, paper out, paper taken out,cover open
Interface Serial(RS232/TTL)+USB, Cash Drawer port (optional)
Power Supply(Adapter) DC24V,2A(average), 5A(peak)
Physical Outline Dimension 118.7×136.1×87.5mm
Installation Port Size(WxL) 113×130.4mm
Insert Depth 84.8mm
Color Black/White
Environment Operating temp 0°C~50°
Operating Humidity 10%~80%
Storage Temp -20°C~60°
Storage Humidity 10%~90%




Application:
1). Taste kiosk
2). Payment kiosk
3). Bank ATM
4). Queuing machine
5). Ticket vendor


Company Information:

We are a professional manufacturer of thermal printers since 2011.Our main products are handheld thermal printer, impact dot matrix printer, panel thermal printer, kiosk ticket printer, POS receipt printer and label barcode printer, etc. We have a wealth of in dependent research and experience, which can effectively meet different customers ODM requirements and help achieve printing simply, efficiently and economically. Currently, Our products are exported to Southeast Asia, South Asia, South & North America, Middle East and Europe, etc.

mobile printer

Our Services:

portable bluetooth printer


FAQ:

Q: About samples

A: Samples are available for testing.

Q: Delivery date.

A: All the printers for samples are in stock, can ship it within 2 days after payment received. For bulk order

delivery date approximately 2 weeks.

Q: Payment terms

A: Paypal, western union, T/T in advance, or order in aliexpress.

Q: Warranty

A: One year warranty. During warranty period, the damage caused by non-human factor, CASHINO will be

responsible for the free repair. Overdue warranty period, CASHINO will continue to provide services with

reasonable price to the customer.
