3+3 Pins EP7-01 Dip Bobbin

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.35mm Size=9.4mmX7.4mmX8mm

Dip EP7 Phenolic Bobbin

2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=5mm Parallel Distance=5.5mm Size=9.4mmX7.5mmX8.3mm

3+3 Pins EP7 Transformer Bobbin

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.3mm Size=9.2mmX7.6mmX8.6mm

Dip EP7-04 Horizontal Transformer bobbin

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.3mm Size=9.2mmX7.6mmX8.6mm

Dip EP7 Phenolic Bobbin For High Frequency Transformer

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.54mm Parallel Distance=5.08mm Size=9.3mmX7.4mmX8.4mm

3+3 Pins EP7 Double Slots Bobbin

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=5.08mm Size=9.03mmX7.4mmX8.4mm

3+3 Pins EP7 Horizontal Bobbin For Tranformer

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=5.08mm Size=9.3mmX7.4mmX8.4mm

3+3 Pins EP7-08 Double Slots Bobbin

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.54mm Parallel Distance=9.6mm

3+3 Pins EP7-09 Phenolic Bobbin

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=5.08mm Size=9.3mmX7.4mmX8.4mm

Double Slots EP7-11 Horizontal Bobbin

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.2mm Size=9.4mmX7.7mmX7.9mm

EP7-12 Horizontal Bobbin For Transformer

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.54mm Parallel Distance=5.2mm Size=9.4mmX7.7mmX8.3mm

Dip EP7-13 Horizontal Bobbin

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=5.2mm Size=9.4mmX7.7mmX8.2mm

EP13 Transformer Bobbin Horizontal Bobbin 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13.9mmX13.3mmX11.5mm

4+8 Pins EP13 Transformer Bobbin For High Frequency Transformer

4+8 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=13.2mm Size=15.2mmX13.6mmX10.2mm

Double Slots EP13 Transformer Bobbin Horizontal Bobbin

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=9.9mm Size=13.8mmX13.5mmX9.8mm

EP13 Transformer Bobbin Horizonal Bobbin 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13.9mmX13.8mmX10.7mm

Double Slots EP13 Transformer Bobbin With 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13.9mmX13.8mmX10.7mm

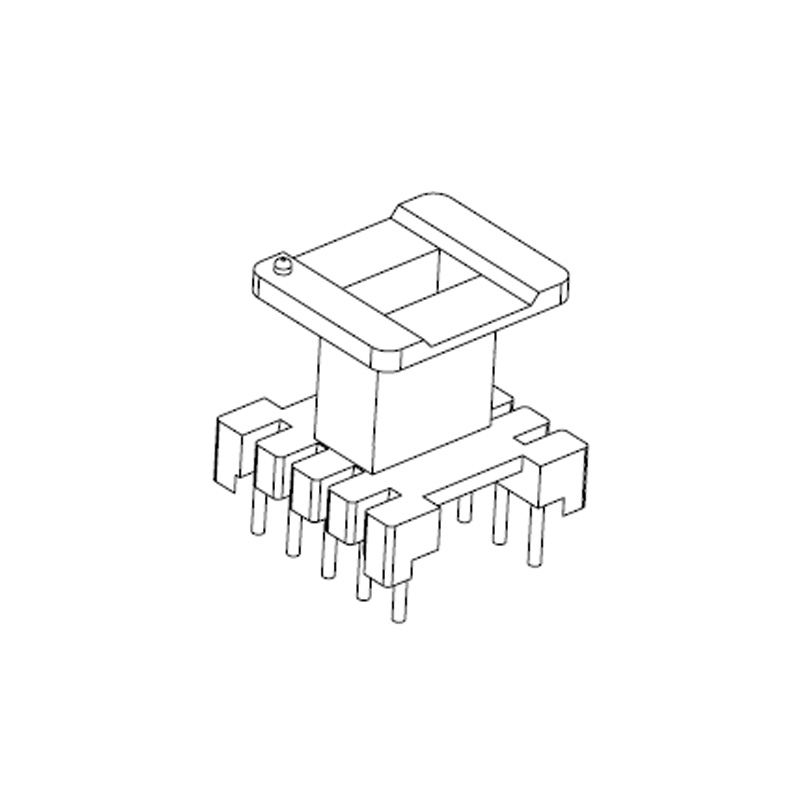

EP13 Transformer Bobbin Vertical Bobbin Phenolic Material

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8.5mm Size=13.3mmX12.2mmX12mm

8+8 Pins EP13 Transformer Bobbin For PCB Mounting Transformers

8+8 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=1.7mm, Parallel Distance=13.3mm Size=15.1mmX13.6mmX10.4mm

Horizontal Bobbin EP13 Transformer Bobbin SMD Bobbin

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm Size=15.1mmX13.5mmX10.3mm

EP13 Transformer Bobbin Horizontal Bobbin With 4+8 Pins

4+8 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=1.7mm Size=15.1mmX13.5mmX10.3mm

5+5 Pins EP13 Transformer Bobbin Horizontal Bobbin

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm

Double Slots EP13 Transformer Bobbin With 5+5 Pins Dip Bobbin

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13.8mmX13.1mmX11.2mm

EP13 Transformer Bobbin Horizontal Bobbin With 5+5 Pins

5+5 Pins Horizontal Bobbin Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10.16mm Size=13.9mmX13.3mmX10.5mm

EP13 Transformer Bobbin Horizontal Bobbin 8+8 Pins

8+8 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=1.7mm, Parallel Distance=13.2mm Size=15.2mmX13.7mmX10.3mm

EP13 Transformer Bobbin 5+5 Pins Horizontal Bobbin

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13.9mmX14mmX10.6mm

EP10 Transformer Bobbin Used in High Frequency Transformer, 4+4 Pin Bobbin

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=7.5mm DIP Bobbin, Bobbin Size=11mmX10.9mmX9.6mm

EP10 Electronic Transformer Bobbin with Pin 4+4 Double Slots

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Double Slots Bobbin, Pin Pitch=2.5mm Parallel Distance=7.5mm Size=11mmX10.9mmX9.6mm

Horizontal EP10 Transformer Bobbin for Magnetic Cores

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin,Pin Pitch=2.5mm Parallel Distance=7.5mm Bobbin Size=11mmX11mmX9.8mm

EP10 High Frequency Bobbin, 4+4 Pin and Double Slots

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin,Pin Pitch=2.5mm Parallel Distance=7.5mm Bobbin Size=11mmX11mmX9.8mm

EP10 Horizontal 4+4 Pins Phenolic Transformer Bobbin

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 DIP Bobbin,Pin Pitch=2.5mm Parallel Distance=7.5mm Bobbin Size=11.2mmX11mmX10.2mm

EP10 Bobbin for electronic components 4+4 Pins Double Slots Bobbin

4+4 Pins Double Slots Bobbin,Phenolic Material,UL REC:94V-0 Horizontal Bobbin,Pin Pitch=2.5mm Parallel Distance=7.5mm Size=11mmX11mmX9.7mm

EP20 Horizontal Bobbin 5+5 Pins Ferrite Core Bobbin

5+5 pins EP20 transformer bobbin. Phenolic material bobbin. Parallel Distance=18.1mm. Pin pitch=5.1mm. Size=25.1mmX21.9mmX16.5mm. UL REC:94V-0. Custom design acceptable.

Double Slots EP20 Coil Bobbin Horizontal Bobbin 5+5 Pins

EP20 two slots bobbin 5+5 pin. Horizontal type coil former. Phenolic material bobbin. Parallel Distance=18.1mm. Pin pitch=5.1mm. Size=25.1mmX21.9mmX16.6mm. UL REC:94V-0. Custom design acceptable.

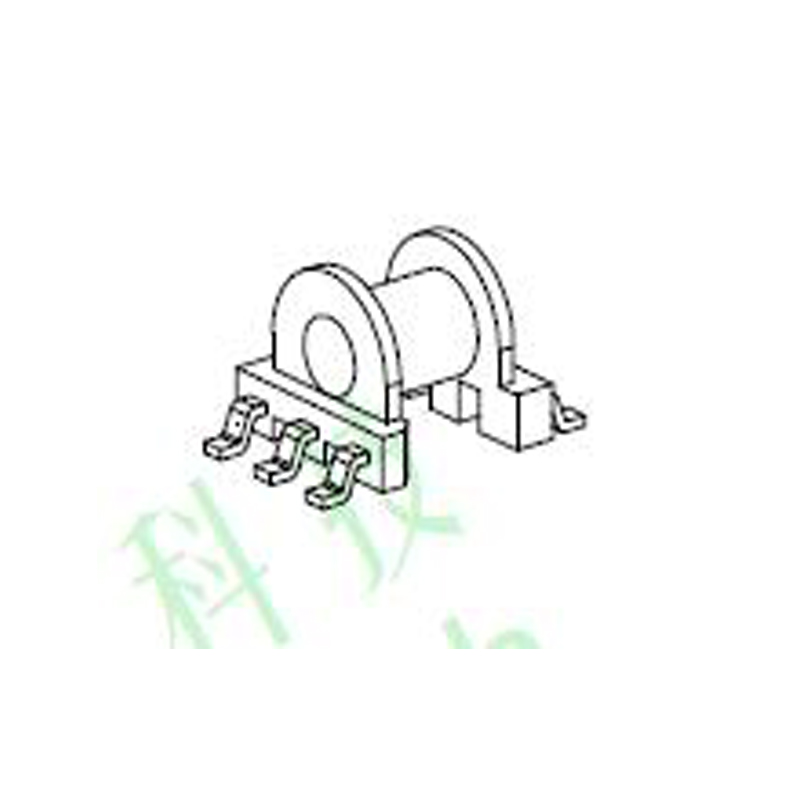

EP0501 SMD Transformer Bobbin 3+3 Pin

Single groove transformer EP5. SMD bobbin pin 3+3. Bobbin Size=7.7mmX5.3mmX4.2mm. Parallel Distance=5.0mm. Pin pitch=1.85mm. PM9630 material transformer bobbin. UL REC: 94V-0. Custom design acceptable.
