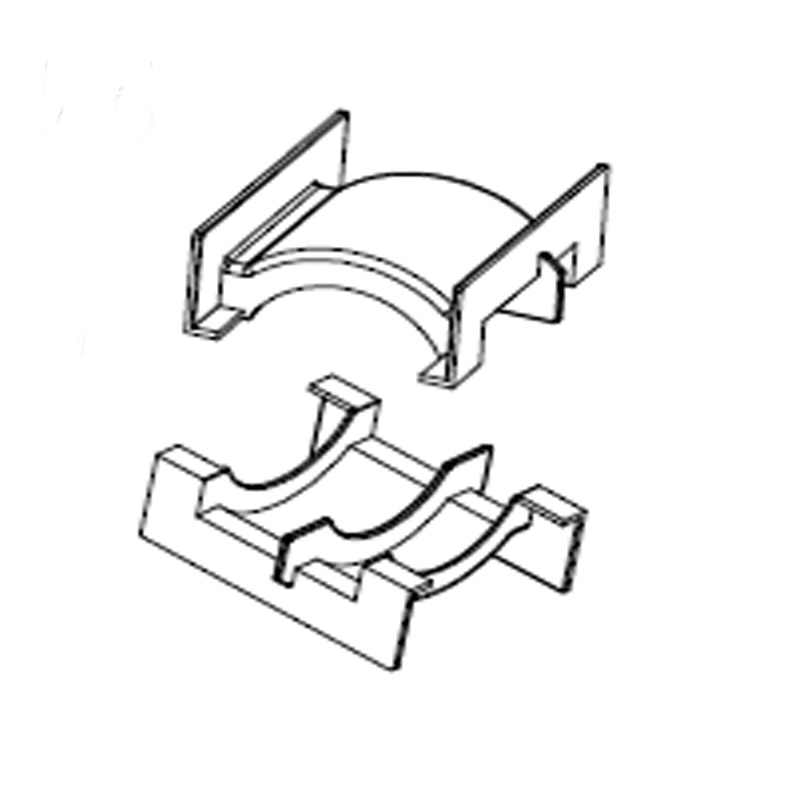

PQ35 Electronic Transformer Cover Made of PA66 Material

PQ35 Electronic Transformer Cover. UL REC:94V-0. PA66 Material Cover. We can make bobbin tooling. Transformer cover accept custom design

PQ35 High Frequency Transformer Bobbin 6+6 Pins Vertical Bobbin

PQ35 vertical type transformer bobbin. 6+6 pins bobbin. Parallel Distance=35.5mm. DIP bobbin. UL REC:94V-0 Bobbin Size=39.2mmX35mmX37mm. Accept make bobbin tooling.

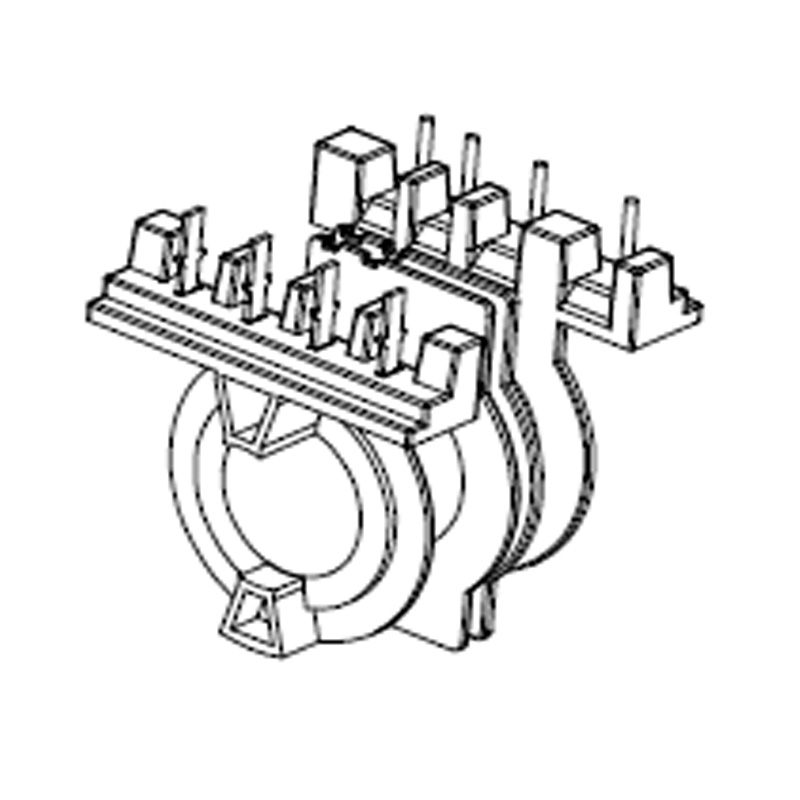

Double Slot Horizontal PQ35 High Frequency Transformer Bobbin 4+4 Pins

4+4 Pins PQ35 horizontal transformer bobbin. DIP bobbin. Parallel Distance=30mm. Phenolic material bobbin. UL REC:94V-0 Bobbin Size=39mmX36mmX39.2mm. Accept make bobbin tooling.

PQ35 Ferrite Core Power Transformer Vertical Bobbin

6+6 pins PQ35 coil bobbin. Vertical type bobbin. Bobbin Size=39.1mmX35.5mmX37.6mm. Accept make bobbin tooling. Parallel Distance=35.5mm. DIP bobbin. UL REC:94V-0

PQ38 High Frequency Transformer Bobbin 3+3 Pins Vertical Bobbin

3+3 pins PQ38 vertical type electronic transformer bobbin. Parallel Distance=32.51mm. Accept make bobbin tooling. PQ type phenolic transformer bobbin. UL REC:94V-0

6+4 Pins Vertical PQ38 High Frequency Transformer Bobbin

PQ38 vertical transformer bobbin. UL REC:94V-0 6+4 pins PQ38 transformer bobbin. Parallel Distance=36.9mm. Phenolic transformer bobbin.Accept make bobbin tooling.

PQ38 Vertical Transformer Bobbin 6+4 Pins High Frequency Bobbin

PQ38 vertical transformer bobbin. UL REC:94V-0 6+4 pins PQ38 transformer bobbin. Parallel Distance=36.9mm. Phenolic transformer bobbin.Accept make bobbin tooling.

PQ40 Transformer Bobbin 6+6 Pins Vertical Bobbin(Coil Former)

PQ40 vertical transformer bobbin. Phenolic bobbin. Parallel Distance=38mm. 6+6 pins PQ transformer bobbin. Bobbin Seize=42mmX40mmX41mm, Accept make bobbin tooling.

Electronic Transformer Bobbin PQ40 Vertical Bobbin 6+6 Pins Coil Former

6+6 pins PQ40 transformer bobbin. Phenolic PQ bobbin. Parallel Distance=38mm. PQ40 Vertical transformer bobbin. Bobbin Seize=42mmX39.8mmX41mm, Accept make bobbin tooling.

PQ50 Vertical High Frequency Transformer 6+6 Pin Bobbin

6+6 pins PQ50 coil former. PQ phenolic material bobbin. Bobbin Seize=51.5mmX50.8mmX51.5mm. Parallel Distance=45.65mm. PQ50 Vertical bobbin for power transformer. Make bobbin tooling.

PQ20 Ferrite Core Bobbin For High Frequency Transformer

6+8 pins PQ20 coil former. Phenolic bobbin. Pin pitch1=2.5mm. Pin pitch2=3.8mm. Parallel Distance=20.3mm. Size=23.3mmX23.2mmX18.5mm. We can make bobbin tooling.

PQ20 Power Supply Transformer Vertical Bobbin 6+8 Pins

PQ20 vertical transformer bobbin. PQ20 coil former made of phenolic material. Pin pitch1=2.5mm. Pin pitch2=3.8mm. Parallel Distance=20.3mm. Size=23.3mmX23.2mmX22.3mm. We can make bobbin tooling.

High Frequency PQ20 Transformer Bobbin Pin 6+8

PQ20 phenolic transformer bobbin. PQ20 coil former vertical 6+8 pin. Pin pitch1=2.5mm. Pin pitch2=3.8mm. Parallel Distance=20.3mm. Size=23.3mmX23.2mmX22.7mm. We can make bobbin tooling.

PQ20 Vertical Bakelite High Frequency Bobbin 6+8 Pins

PQ20 DIP bobbin 6+8 pins. PQ20 vertical type winding bobbin. Pin pitch1=2.5mm. Pin pitch2=3.8mm. Parallel Distance=20.3mm. Size=23.3mmX23.2mmX18.2mm. We can make bobbin tooling.

PQ20 Power Transformer Bobbin Vertical 6+8 Pin Bobbin

6+8 pin PQ20 coil bobbin. PQ20 vertical winding bobbin made of WH-8200 material. Pin pitch1=2.5mm. Pin pitch2=3.8mm. Parallel Distance=20.3mm. Size=23.2mmX23mmX23.72mm. We can make bobbin tooling.

PQ20 Horizontal Bakelite Bobbin 3+4 Pins Coil Former

PQ20 DIP bobbin pin 3+4. PQ20 horizontal type winding bobbin. Pin pitch=5mm. Parallel Distance=17mm. Phenolic bobbin. Size=20mmX19.8mmX17.7mm. We can make bobbin tooling.

PQ20 Horizontal Bobbin 5+5 Pin High Frequency Transformer Bobbin

5+5 pins PQ20 power bobbin. DIP bobbin. PQ20 horizontal bobbin. Pin pitch1=3mm. Pin pitch2=5mm. Parallel Distance=7.7mm. Size=20.6mmX12.7mmX18.2mm. Phenolic bobbin. We can make bobbin tooling.

Vertical Transformer Bobbin PQ20 6+8 Pins Ferrite Core Bobbin

PQ20 vertical bobbin 6+8 pin. Pin pitch1=2.5mm. Pin pitch2=3.8mm. Pin pitch3=5mm. Parallel Distance=20.1mm. Phenolic PQ20 bobbin. Size=22.8mmX22.8mmX23.8mm. We can make bobbin tooling.

High Frequency PQ20 PCB Mount Transformer Bobbin Pin 6+8

6+8 pins vertical PQ20 bobbin. Pin pitch1=2.5mm. Pin pitch2=3.8mm. Pin pitch3=5mm. Parallel Distance=20.5mm. Phenolic PQ20 bobbin. Dip bobbin. Size=23mmX23mmX18.3mm. We can make bobbin tooling.

PQ20 Vertical Coil Former 6+6 Pin For LED Transformer

PQ20 6+6 pin vertical bobbin. DIP transformer bobbin. Pin pitch1=2.5mm. Pin pitch2=5mm. Parallel Distance=20.4mm. T375HF material PQ20 bobbin. Dip bobbin. Size=23.08mmX23mmX22.1mm. We can make bobbin tooling.

PQ20 Vertical Power Transformer Bobbin 6+8 Pin

PQ20 ferrite core bobbin. Vertical transformer bobbin. Pin pitch1=2.5mm. Pin pitch2=5mm. Parallel Distance=20.4mm. T375HF material PQ20 bobbin. Dip bobbin. Size=23.08mmX23mmX22.1mm. We can make bobbin tooling.

PQ32 Vertical High Frequency Transformer Bobbin For Ferrite Core

Lead free PQ32 6+6 pins bobbin. Vertical transformer bobbin. Pin pitch=5.1mm. Parallel Distance=30.5mm. Phenolic material PQ32 bobbin. Size=34.01mmX31.93mmX19.7mm. Dip bobbin. We can make bobbin tooling.

PQ32 Vertical 6+6 Pins High Power Bobbin For PCB Mount Transformer

PQ32 vertical coil former. 6+6 pins transformer bobbin. Pin pitch=5mm. Parallel Distance=30mm. Phenolic material PQ32 bobbin. Size=34.5mmX33.2mmX25mm. Dip bobbin. We can make bobbin tooling.

PQ26 Vertical Bobbin for High Frequency Isolation Transformer

PQ2625 vertical ferrite core bobbin. 6+6 pins coil former. Size=29.3mmX26.4mmX25.2mm. Pin pitch=3.8mm. Parallel Distance=25.6mm. Phenolic material PQ26 bobbin. Dip bobbin. We can make bobbin tooling.

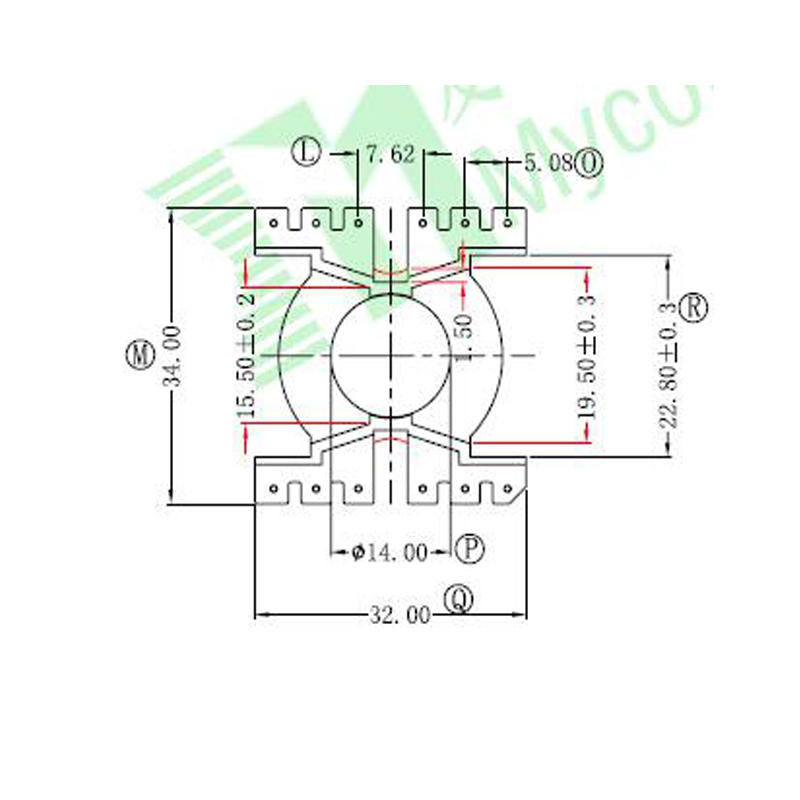

Vertical PQ35 Bobbin For PCB Mounted Transformer

SMPS flyback transformer. PQ35 6+6 pins coil bobbin. Bobbin Size=34.0mmX32.0mmX31.5mm. Parallel Distance=22.8mm. Pin Pitch1=5.0mm. Pin Pitch2=7.5mm. PQ35 transformer has large transmission power and stable performance.

High Voltage Transformer PQ35 Coil Former

Electrical transformer bobbin. Vertical type PQ35 bobbin 6+6 pins. Bobbin Size=39.6mmX35.0mmX24.26mm. Parallel Distance=36.4mm. Pin Pitch=5.0mm. PQ35 transformer has large transmission power and stable performance.

PQ32/20 Vertical Power Transformer Bobbin

PQ32 6+6 pins bobbin for ferrite core. PQ32 vertical coil former. Bobbin Size=34.0mmX32.0mmX20.3mm. Pin pitch=5.0mm. Parallel Distance=30.0mm. Phenolic material PQ32 bobbin. Dip bobbin. We open bobbin tooling for customers.

PQ32 Vertical Step Down Transformer Bobbin

PQ32 PCB mounting transformer. Vertical type PQ32 coil former. Bobbin Size=34.0mmX32.0mmX21.6mm. Pin pitch=5.0mm. Parallel Distance=30.0mm. Phenolic material PQ32 bobbin. Dip bobbin. We open bobbin tooling for customers.

PQ32 Switching Power Transformer Vertical Bobbin

PQ bobbin for transformer magnetic cores. Vertical PQ32 12 pins coil former. Bobbin Size=34.0mmX32.0mmX18.8mm. Pin pitch=5.08mm. Parallel Distance=30.5mm. Phenolic material PQ32 bobbin. Dip bobbin. We open bobbin tooling for customers.

PQ32 Soft Ferrite Core Bobbin For Power Transformer

Customized PQ32 high frequency transformer. Vertical type coil bobbin PQ32. Bobbin Size=34.5mmX32.3mmX23.8mm. Pin pitch=5.10mm. Parallel Distance=30.5mm. Phenolic material PQ32 bobbin. Dip bobbin. We open bobbin tooling for customers.

PQ32 Micro Battery Charger Transformer Bobbin

PQ32 isolation transformer. Vertical PQ32 ferrite core winding bobbin. Bobbin Size=33.9mmX32.0mmX22.4mm. Pin pitch=5.0mm. Parallel Distance=30.0mm. PQ32 series vertical bobbin in competitive price. We make bobbin tooling for customers.

PQ32 Power Supply Transformer For Lighting

Vertical ferrite core bobbin. 6+6 pins PQ3225 coil former. Bobbin Size=34.2mmX32.3mmX26.9mm. Pin pitch=5.0mm. Parallel Distance=30.0mm. Phenolic material PQ32 bobbin. Dip bobbin. We open bobbin tooling for customers.

Power Transformer PQ32 Isolation Transformer Bobbin

12 pins PQ3225 transformer bobbin. Parallel Distance=30.5mm. Bobbin Size=34.0mmX32.2mmX23.9mm. Pin pitch=5.0mm. PQ32 high frequency transformer has low leakage inductance and wide operating frequency range.

PQ32 Ferrite Core High Frequency Transformer

Switching power PQ32 transformer. Vertical type bobbin 6+6 pins. Bobbin Size=34.0mmX32.0mmX24.8mm. Parallel Distance=30.0mm. Pin pitch=5.08mm. PQ32 high frequency transformer has low leakage inductance and wide operating frequency range.

PQ32 Vertical Bobbin For LED Driver Transformer

Single phase PQ32 transformer. 6+6 pins vertical type PQ32 coil former. Bobbin Size=34.0mmX32.0mmX23.6mm. Parallel Distance=30.5mm. Pin pitch=5.08mm. PQ32 high frequency transformer has low leakage inductance and wide operating frequency range.
